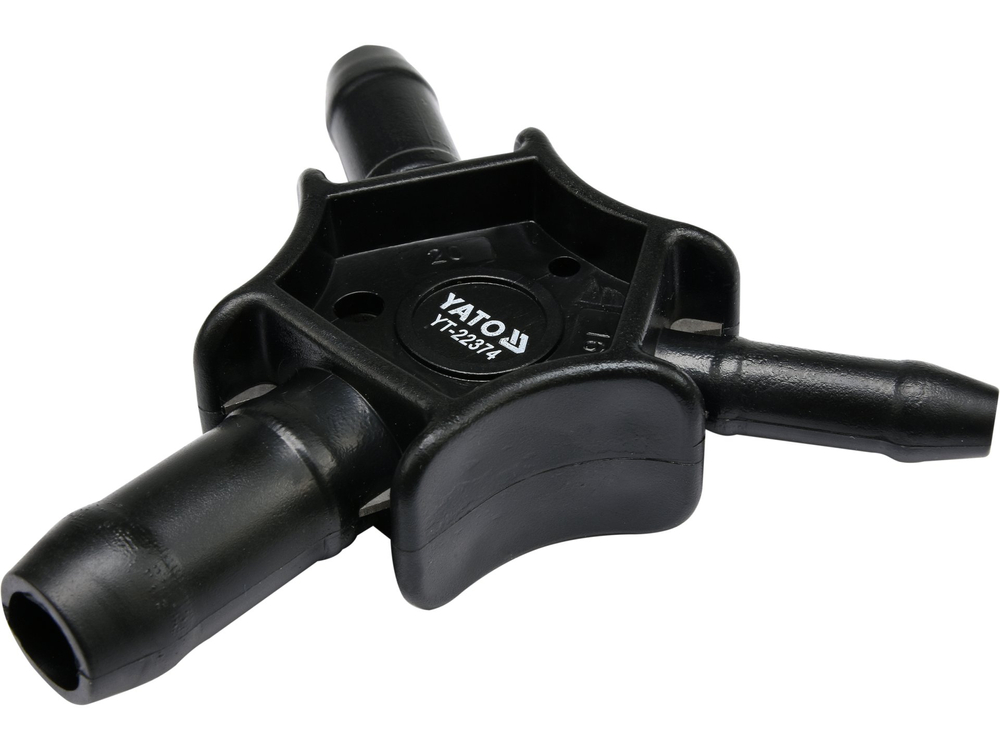

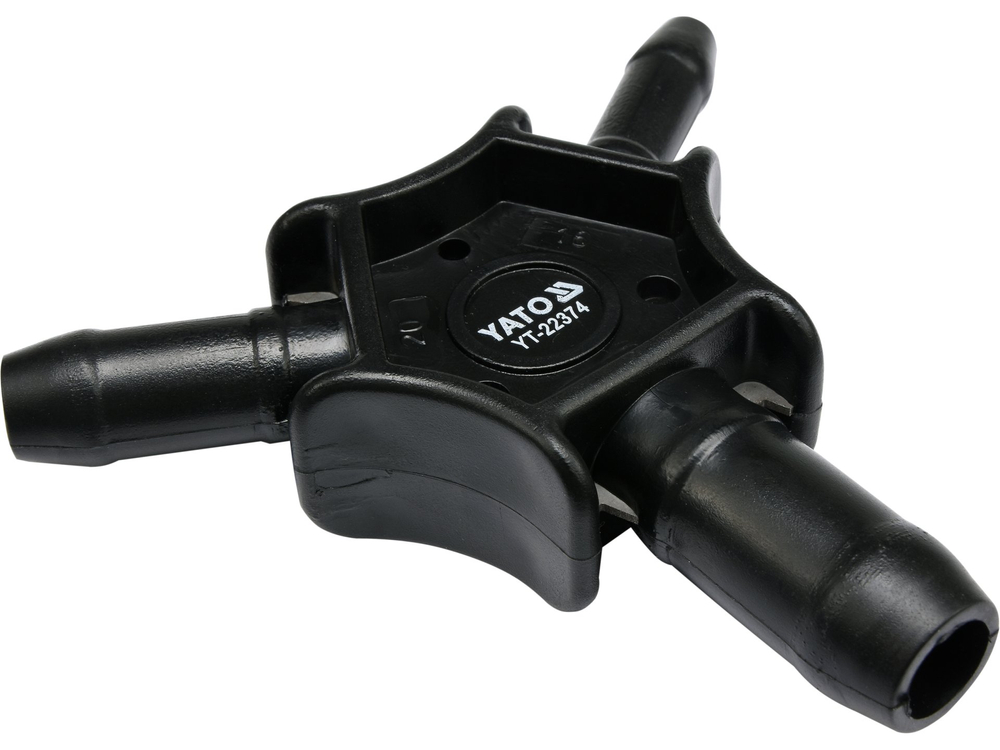

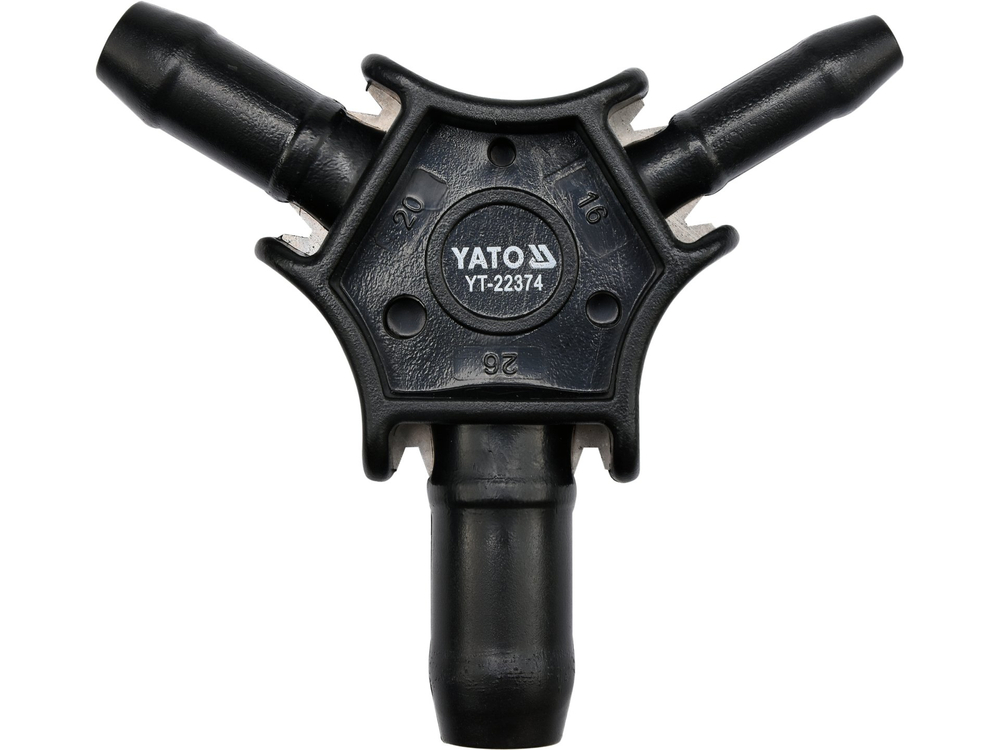

The YATO calibrator is very useful during any work with PEX-AL.-PEX or PERT-AL.-PERT pipes. Designed for pipes with diameters:

• Ø 16 mm
• Ø 20 mm
• Ø 26 mm

This is because when these pipes are cut, their profile is flattened. Subsequently, installing any fittings on them can lead to leaks and very costly repairs.

Calibrators

YATO calibrators also combine the function of an internal and external deburrer.

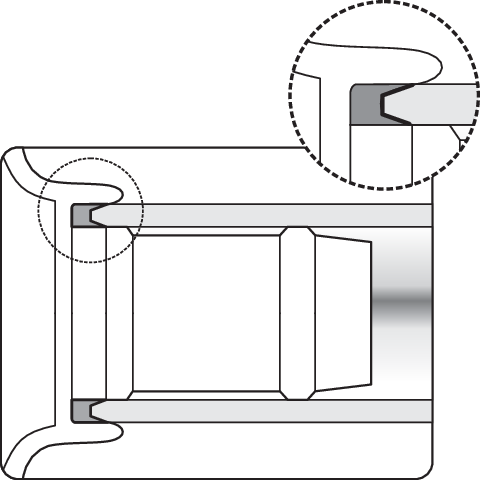

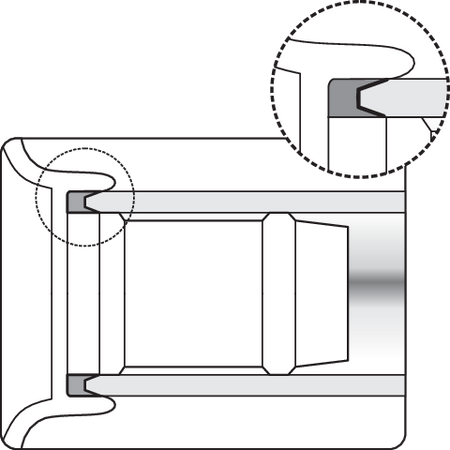

Each calibrator size has special inner as well as outer blades on both sides. Thanks to this design, all the tubes being worked on are simultaneously calibrated to give them a perfectly round cross-section ensuring a tight connection, and then deburred to even out the edges and allow the tube to be pressed evenly to the very end of the fitting.

Method of use:

Insert the calibrator into the tube to the very end, rotating it clockwise and counterclockwise. Then, making 2-3 rotations of 360 degrees, deburr the tip.

Calibrate the tip

Benefits of using YATO calibrators:

• Speed of work - calibrating and deburring performed in one operation
• Precision of connections - each size has an individual calibrator and deburrer with strictly defined dimensions<
• Quality of connections - pipes with perfectly round cross-section ensure tightness at fittings
• Universality - most popular sizes in one tool

.

Usage warnings:

Warning! Always use personal safety equipment at work.
