YT-44663

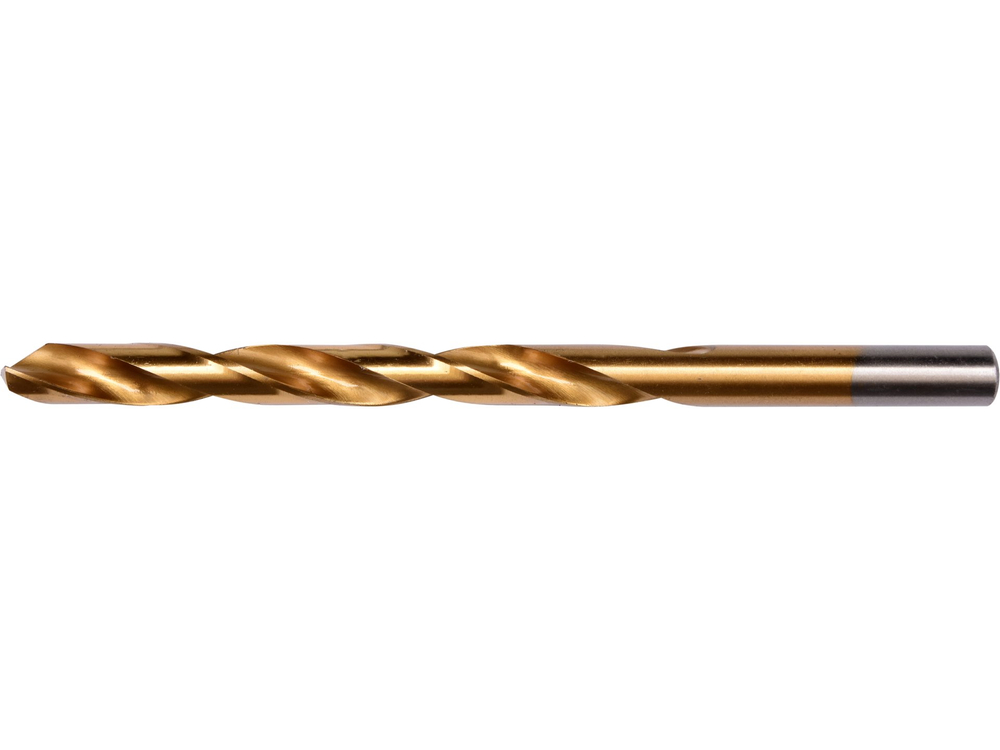

TWIST DRILL BIT HSS-TIN 10,5 MM
- Wiercenie w stali wysokogatunkowej, w tym nierdzewnej, konstrukcyjnej i walcowanej na zimno.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Diameter
10.5 mm
Overall length
133 mm
Working part length
87 mm
Toolholder type
cylindrical
Material
HSS 6524
Surface finish
coated with titanium nitride, polished
DIN
338
Drill bit point angle
135 ˚
Split point
yes
Pcs
1
Application
stainless steel, acid-resistant steel, cold rolled steel
Symbol
YT-44663
A ground drill bit with aggressive blade geometry. Thanks to its titanium nitride coating, it dissipates heat very efficiently and does not dull when working in hard steels. The blade's rake angle of 135° makes it possible to drill even without first using a scoring tool.
Made according to DIN 338 for professional use in industry. Cylindrical chuck drill bit designed for standard self-clamping and keyed drill chucksó. High pressure resistance also allows use with column and magnetic drills.
Drilling in high-grade steel, including stainless, structural and cold-rolled steel Drilling without scoring, thanks to aggressive blade geometry. Fast heat dissipation allows operation without coolant, without burning the drill bit.
Usage warnings:
Warning! Always use personal safety equipment at work.Ask a question
