73412
GAS TORCH WITH PIEZO
- Palnik gazowy z zapłonem PIEZO.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Power
1.3 kW
Flame temperature
1300 ˚C
Gas type
butane from an external cylinder
Gas tank type
disposable, self-sealing, under direct pressure, type EN417
Gas tank connection type
90˚ TWIST
Gas usage
96 g/h
Working time
30 min
Piezo ignition
yes
Flame adjustment
yes
Weight with empty tank
0.13 kg
Application
jewelry, handicraft, modeling, gastronomy, burning small metal or wooden surfaces, lighting fireplaces, grills and stoves, bending and warm forming,
Application contd
heat welding and gluing, unscrewing stuck screws, reheating and thawing, shrinking of heat-shrinkable materials
Symbol
73412

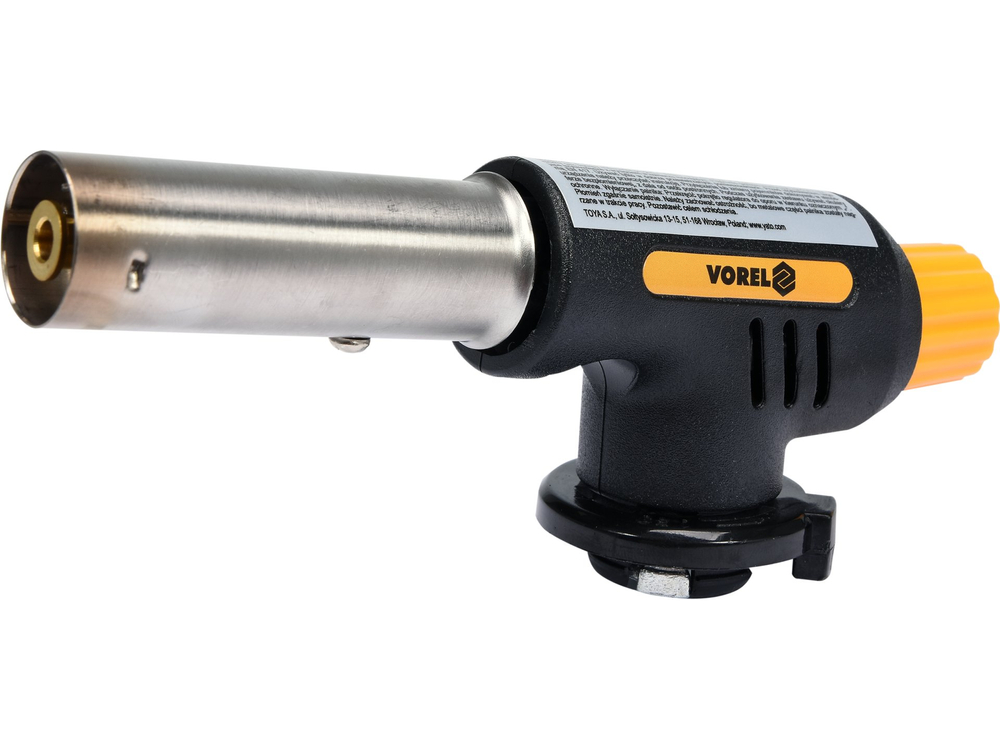

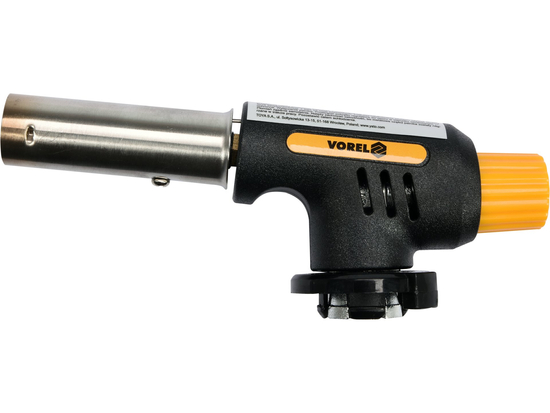

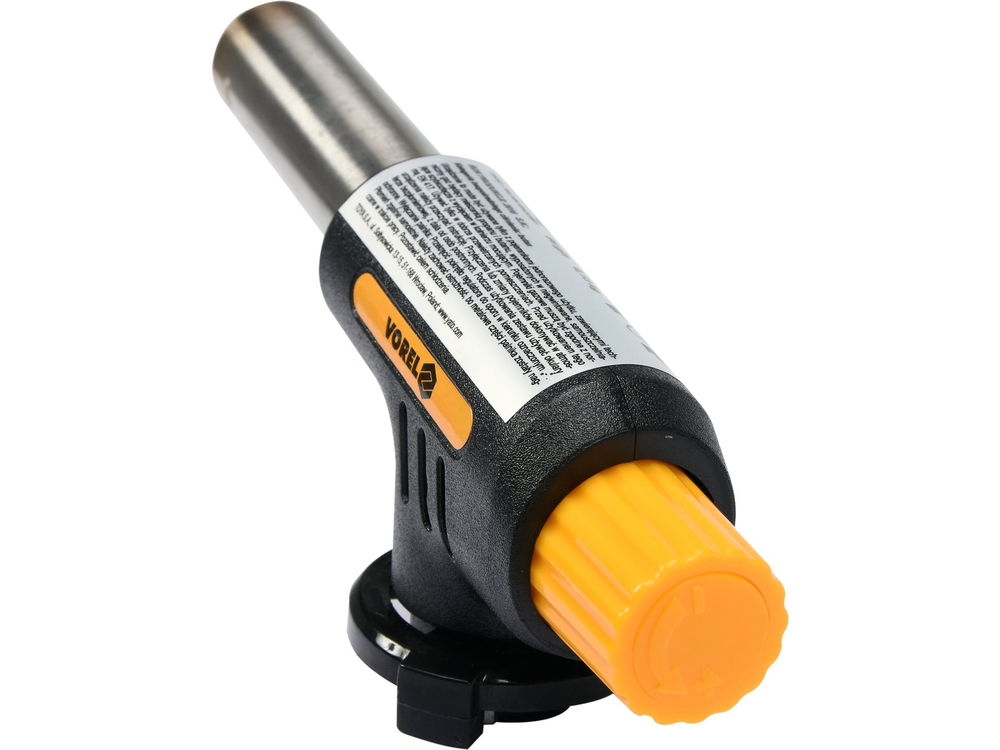

Gas burner 73412 with PIEZO ignition. It is supplied with butane gas from an external cylinder - according to EN417 standard. Cylinder connection for TWIST type burner.
The burner with power of 1.3 kW allows to reach temperature of 1300°C. Gas consumption of 96 g/h. The burner has adjustable flame power.
Purpose:
Jewelry work, handicrafts, model making, gastronomy, and household applications:
- firing of small metal or wooden surfaces
- firing of fireplaces, grills, stoves
- heat bending and forming
- heat bending and forming . heat welding and bonding
- removal of baked screws
- heating and thawing
- shrinking of heat shrinkable materials

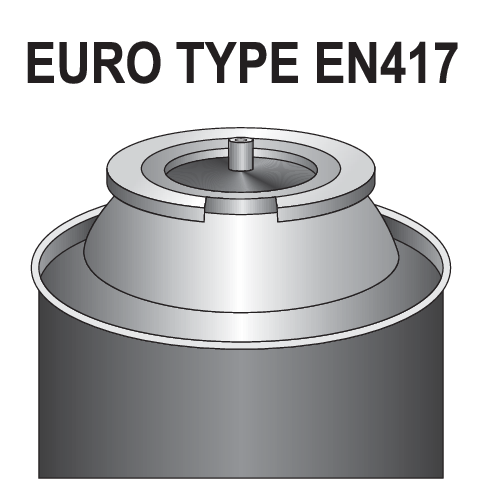

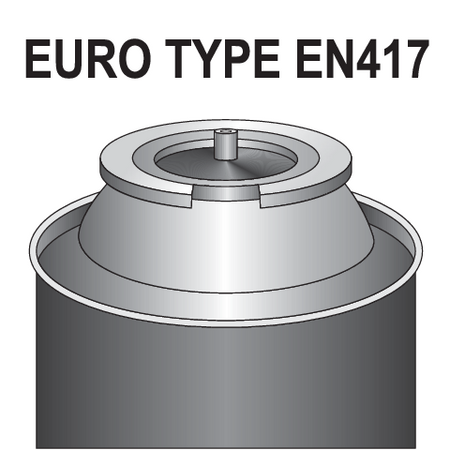

Installation of gas container
The panic is adapted only to EN 417-compliant containers equipped with a non-threaded quick-connection with a cutout in the mounting flange. It is forbidden to connect tanks with other type of attachment and tanks that do not comply with EN 417.
Panic
- Close the gas valve, to do this, turn the regulator knob as far as it will go in the direction marked "-".
- Make sure that the burner connection gasket is not damaged or worn out.
- Turn the gas connection so that the plastic ring plates are between the metal parts of the connection.
- Connect the tank to the burner so that the protrusion of the gas connection hits the notch of the tank flange. Then press the tank to the burner and turn it clockwise to the stop
Usage warnings:
Direct pressure category - propane butane.The device should only be used with single-use containers containing technical gas consisting of a mixture of propane and butane, equipped with a non-threaded, self-sealing quick connector with a cut-out in the mounting collar.
Gas containers must comply with the EN 417 standard.
Use only in well-ventilated rooms.
Please read the instructions before using this device.
Wear safety glasses when using the set.
Connect or change containers in a flameless or ignitionless atmosphere, away from unauthorized persons.
Be careful because the metal parts of the burner became hot during operation. Leave to cool.
