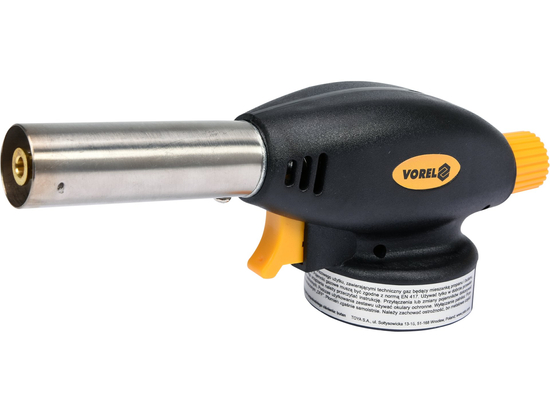

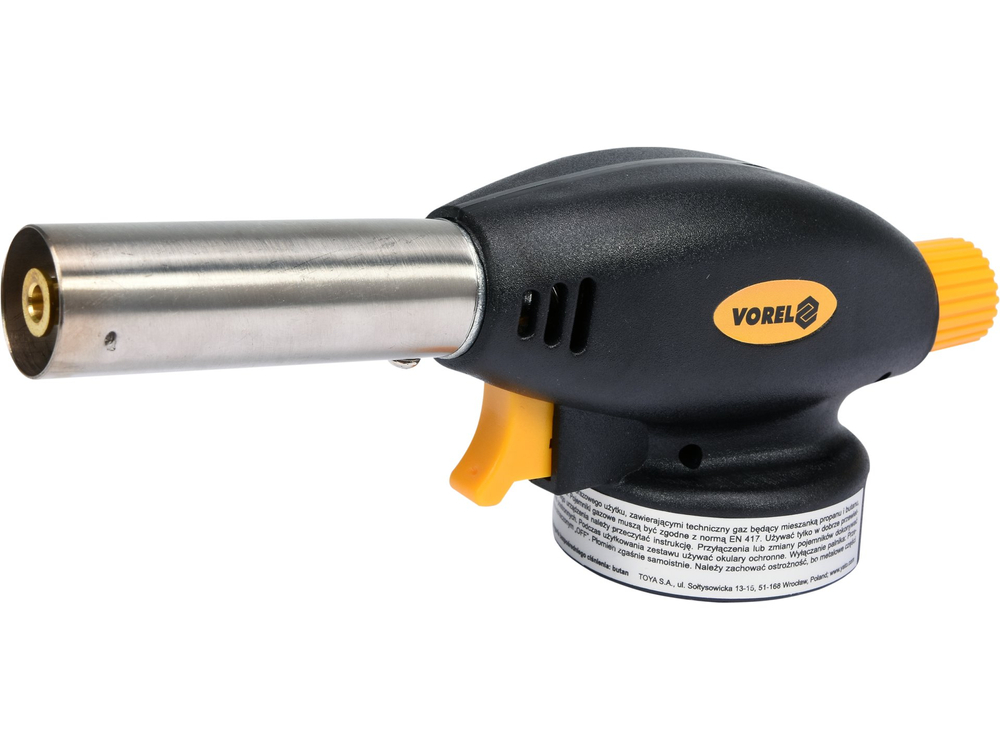

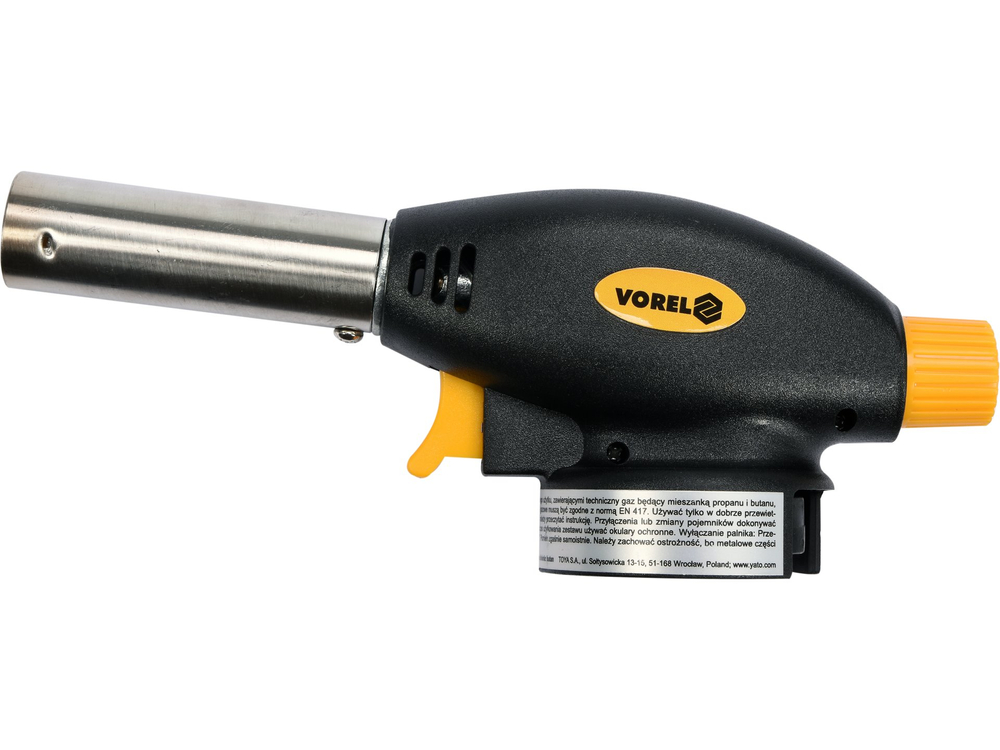

Gas burner 73413 with ignition PIEZO. It is powered by butane gas from an external cylinder - in accordance with EN417. Cylinder connection to the burner type TWIST.

The burner with a power 1.3 kW allows to reach a temp 1300°C. Gas consumption 96 g/h. The burner has adjustable flame power.

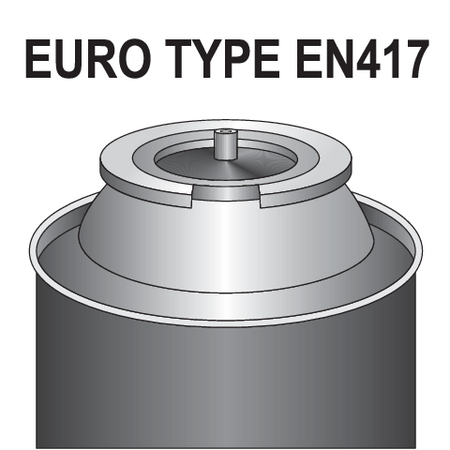

Installation of gas container:

The panic is adapted only to EN 417-compliant tanks equipped with a non-threaded quick-connector with a cutout in the mounting flange. It is forbidden to connect tanks with other type of attachment and tanks that do not comply with EN 417.

Panic

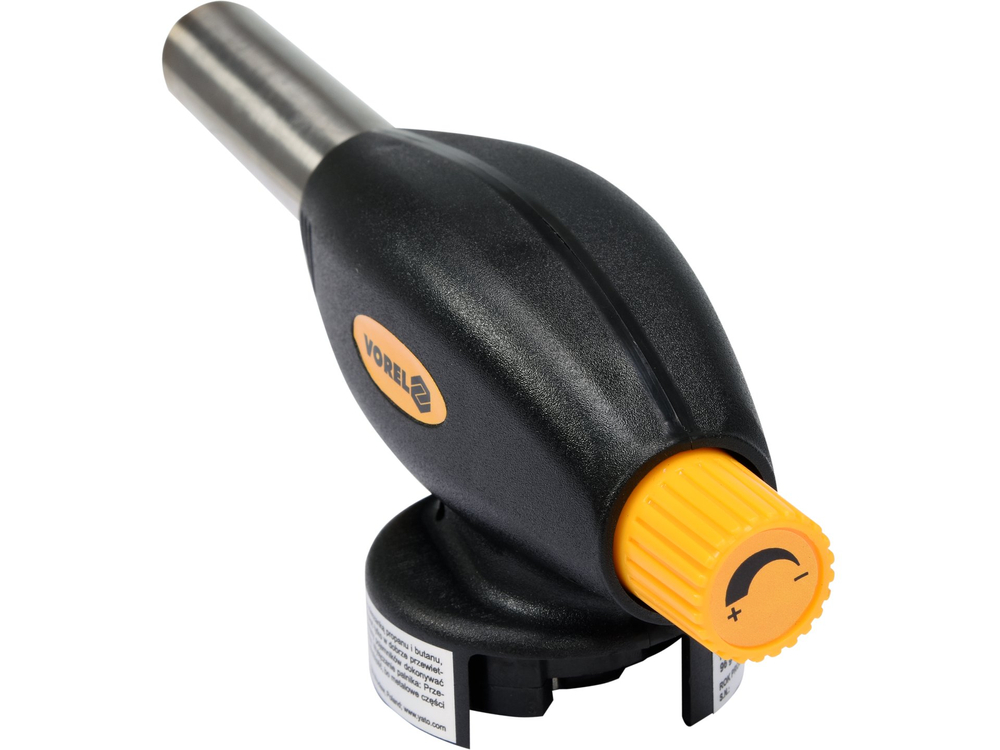

1. Close the gas valve, to do this, turn the regulator knob as far as it will go in the direction marked "-". Make sure that the burner connection gasket is not damaged or worn out.
2. Turn the gas connection so that the plastic ring plates are between the metal parts of the connection.
3. Connect the tank to the burner so that the protrusion of the gas connection hits the notch of the tank flange.
4. Then press the tank to the burner and turn it clockwise as far as it will go.

Purpose:

Jewelry work, handicrafts, model making, catering, and household applications:

• firing of small metal or wooden surfaces
• firing of fireplaces, grills, stoves
• heat bending and forming
• heat welding and gluing
• heat welding and gluing
./li>
• removal of baked screws
• heating and thawing
• shrinking of heat shrinkable materials
• cooking

Usage warnings:
