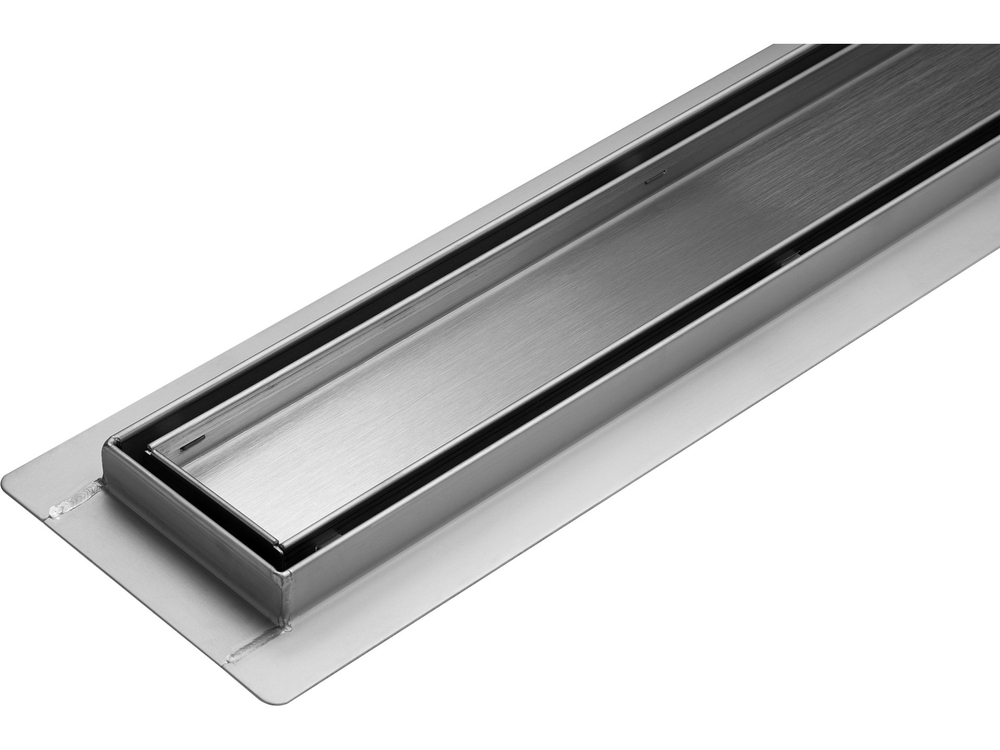

Wave linear drain is an excellent idea for elegant and practical arrangement of bathroom space.
The wide range of available sizes allows you to optimally match its length to the dimensions of the shower enclosure or tiles, and allows you to plan your shower space with greater freedom than with traditional shower trays.
It is made entirely of AISI 304 stainless steel, which is characterized by resistance to corrosion, detergents and mechanical damage.
Wave shower drains are equipped with amenities that guarantee comfortable and efficient operation for many years:

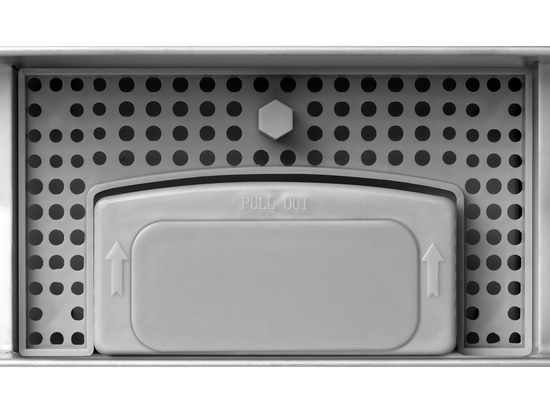

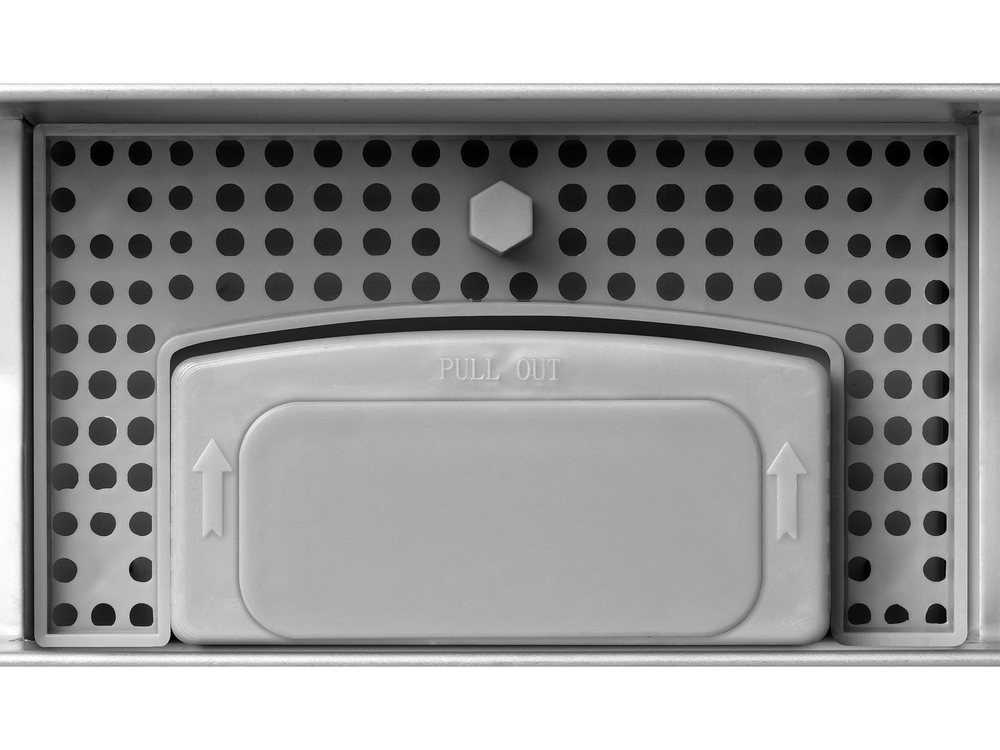

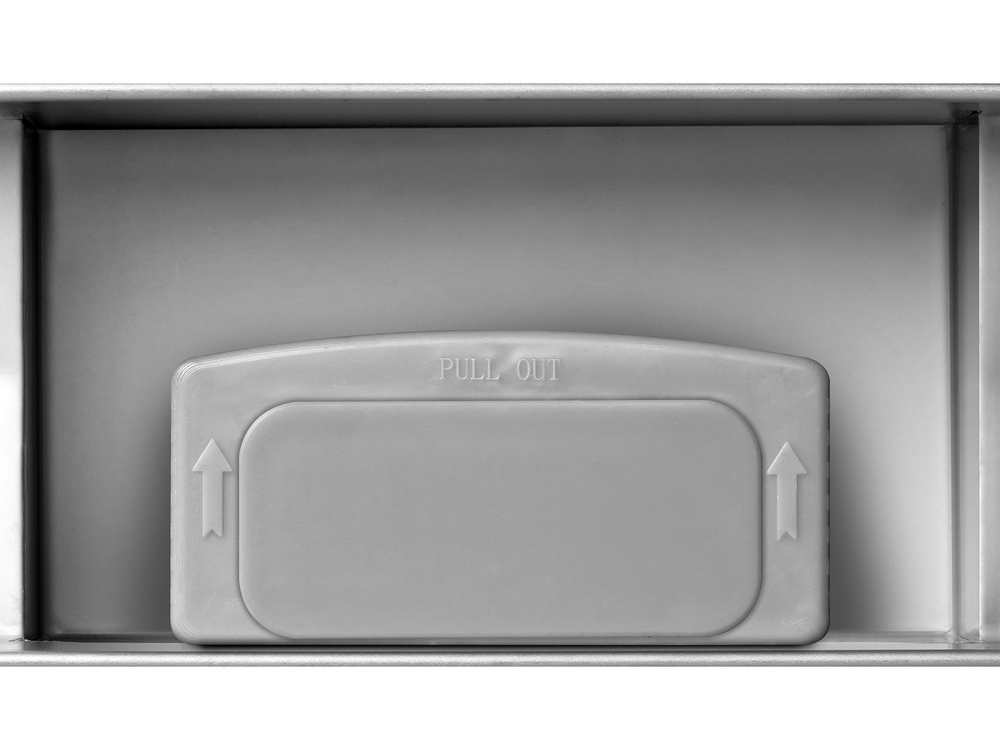

- SMARTthru - a special inspection window means 100% patency control and convenient cleaning;

- EASYclean - it is easy to clean, thanks to the hook that is included;

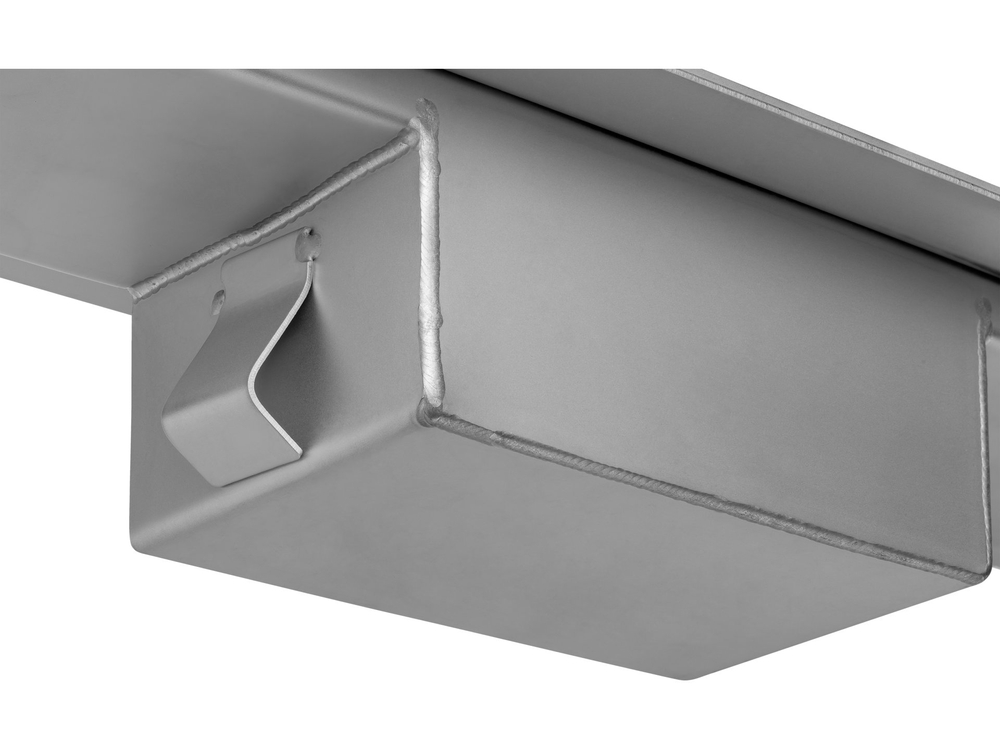

- GRIPstrong - handles to stabilize the body, additional stiffening of the structure in the floor;

- HYDROcloth - sealing mat is included - an indispensable part when waterproofing;

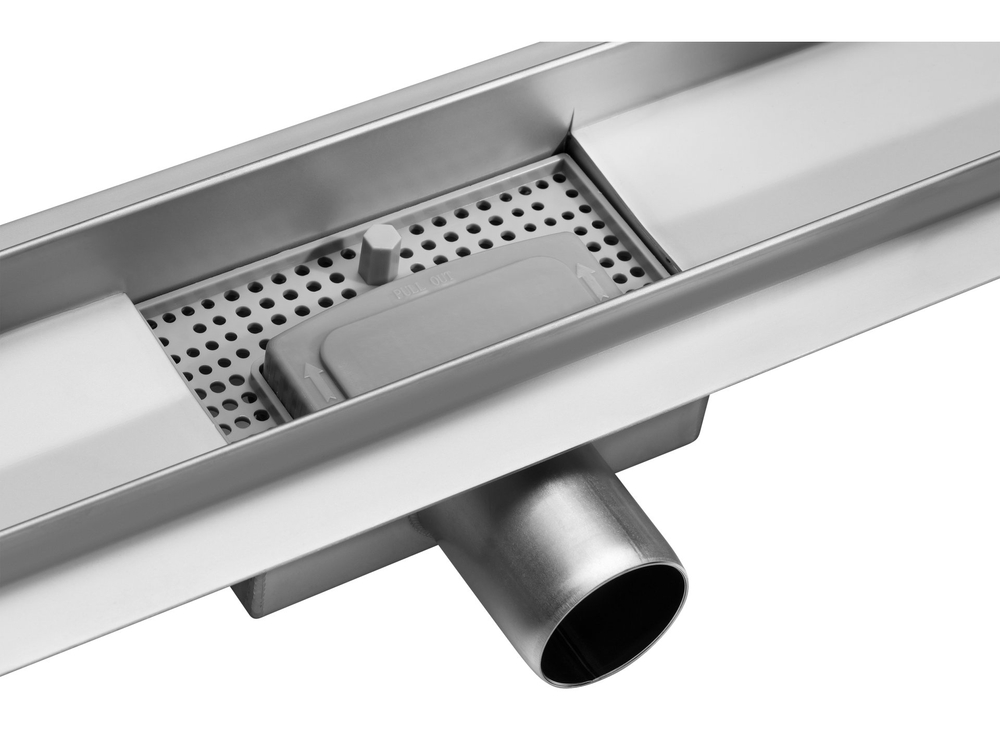

- STRAINer - an effective and durable strainer that prevents clogging of the trap and facilitates the ongoing maintenance of the drain;

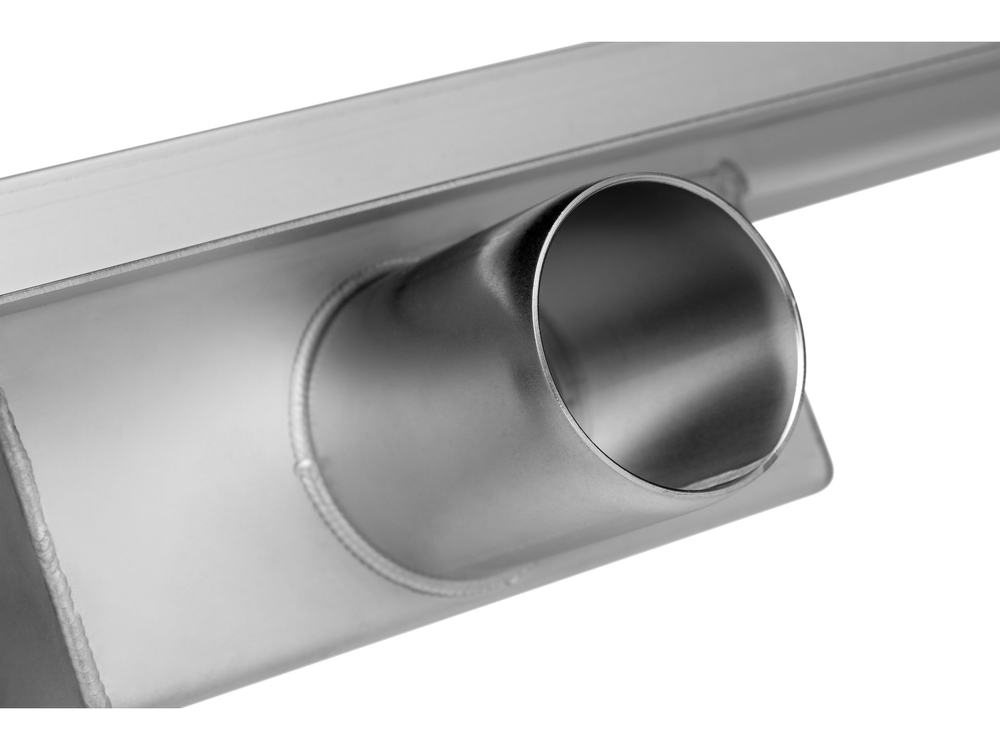

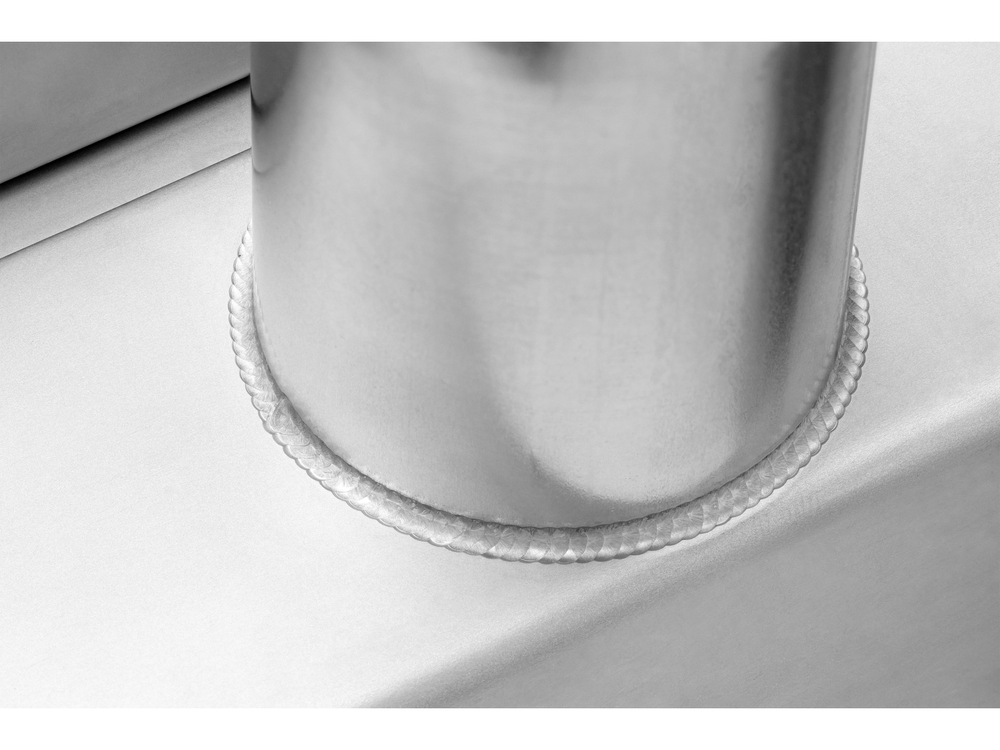

- HQwelding - high quality precision welds , which guarantee the tightness of the drain;

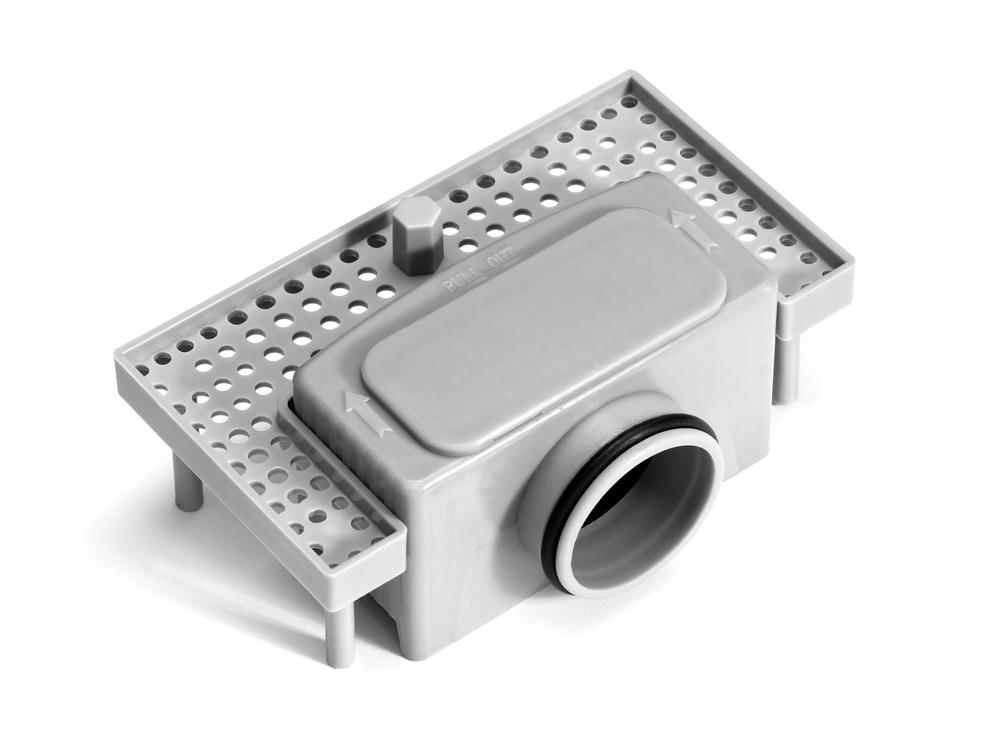

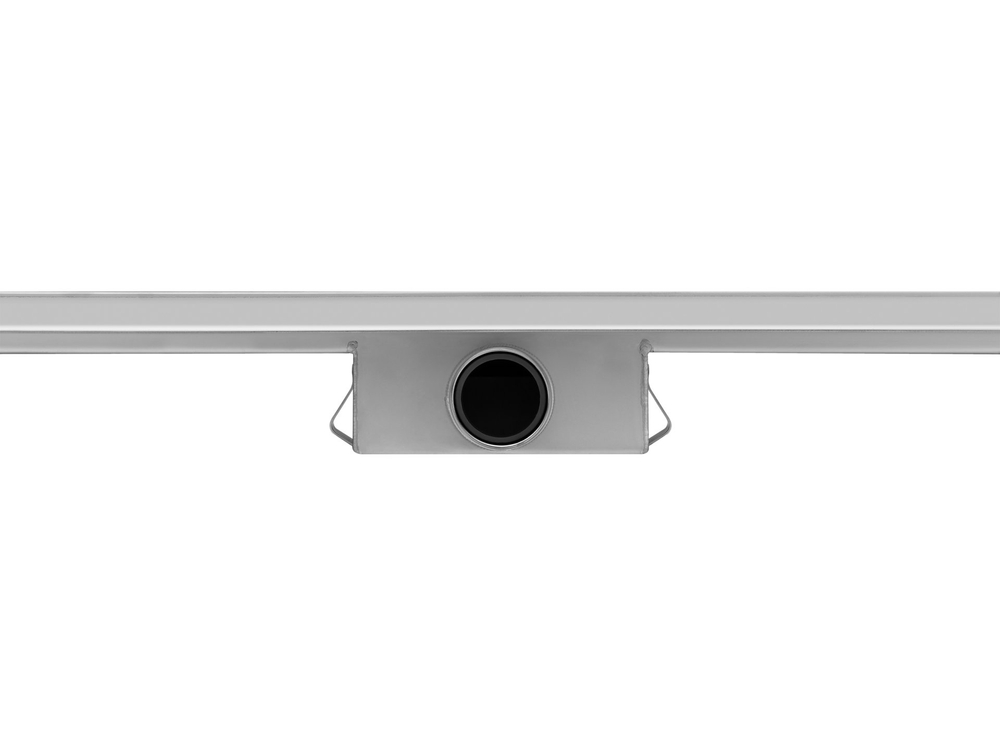

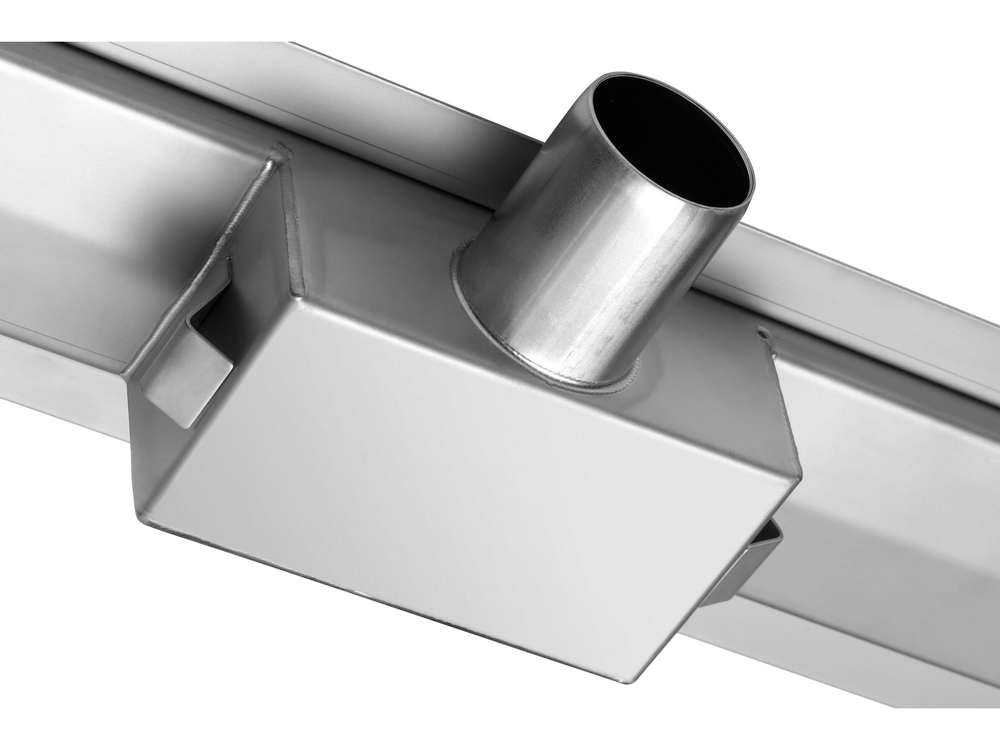

- EXTRAslim - made of AISI 304 stainless steel very low siphon, which makes installation easier;

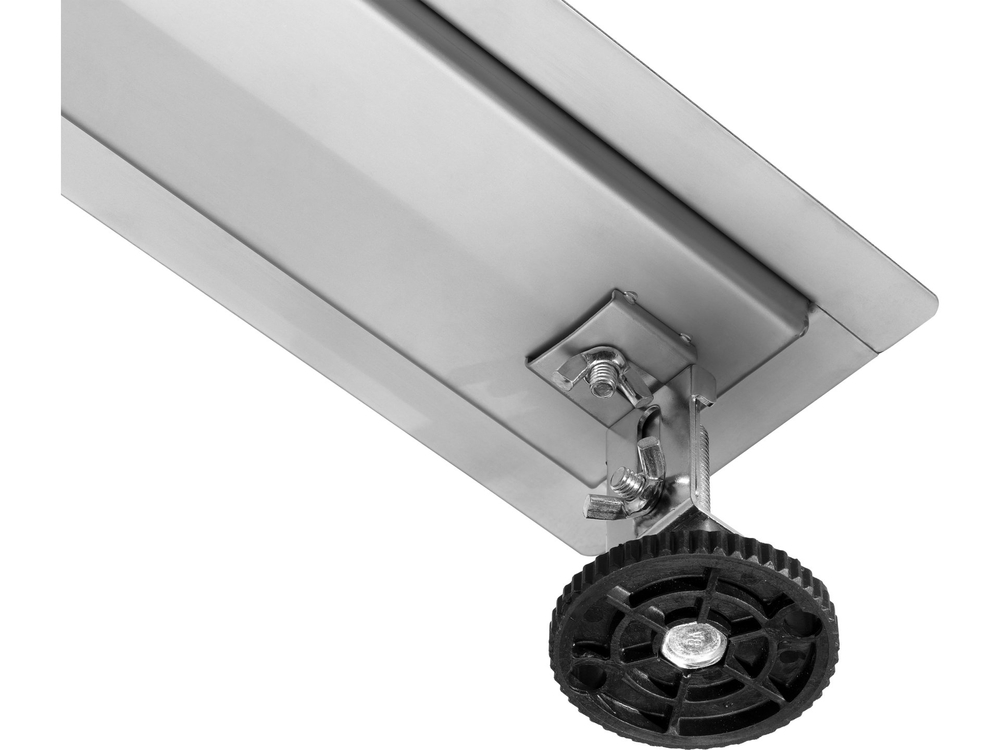

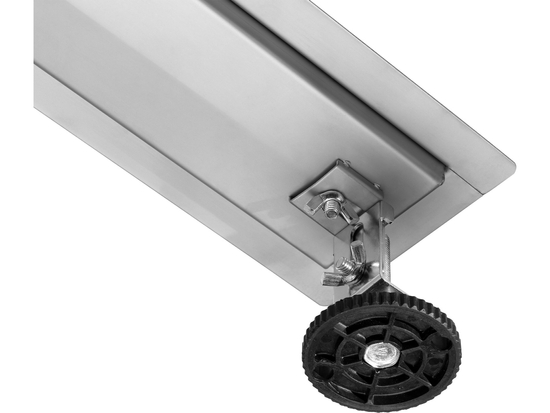

- EASYfix - wide range of height adjustment, which allows you to adjust the drain to fit the floor surface.

You will install the Wave drain without worry - all our drains have a 10-year warranty!

Data:
- gutter length: 90 cm

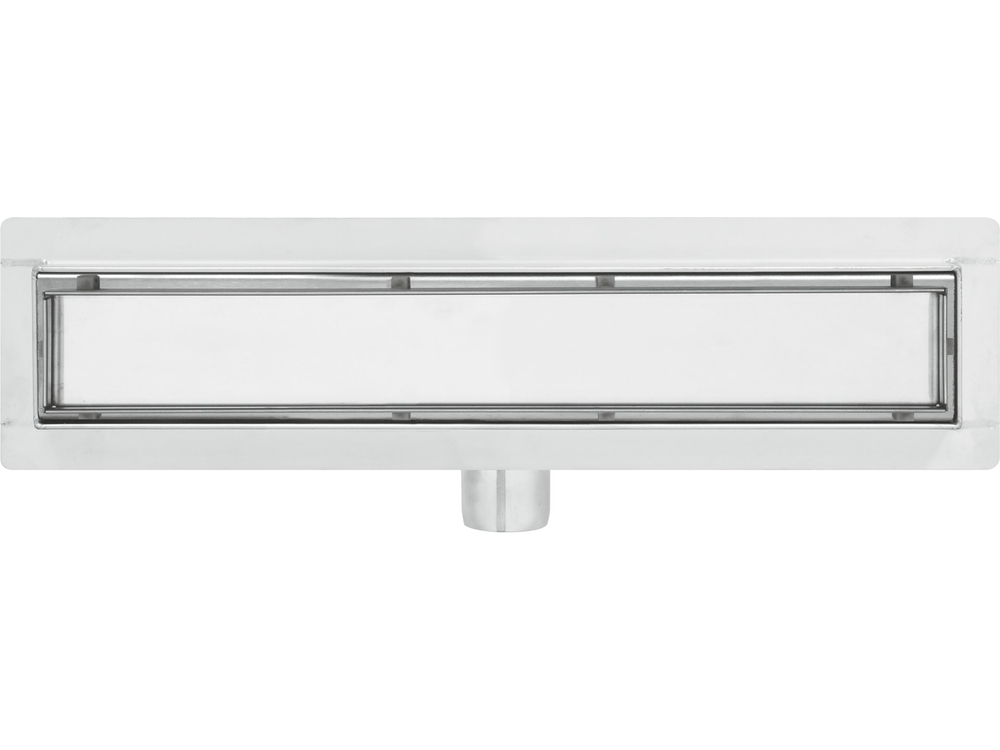

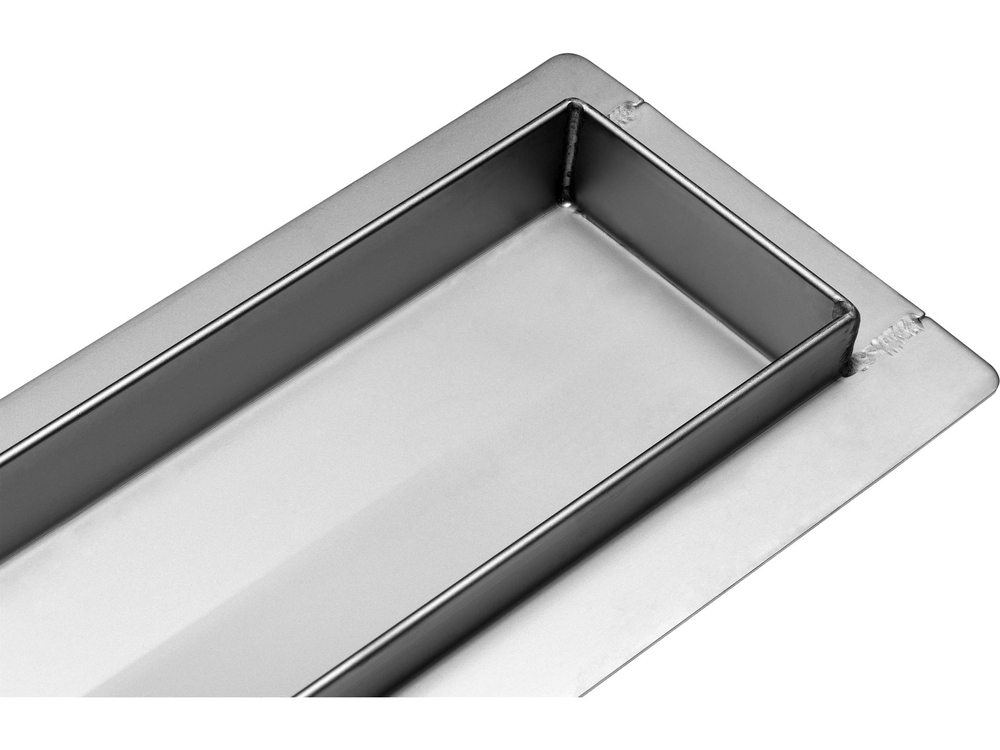

- grid pattern - Madeira (insertable tile)
- material: stainless steel AISI 304
- width: 70 mm (additional flange about 2 cm on each side)
- siphon height: 52 mm

Thickness of steel of linear drains:

• trough: 1.2 mm
• grate: 1.5 mm

Product in accordance with EN 1253-1
Load class: K3 (surfaces without vehicular traffic)
Thermal behavior class of the product: class A (without installation restrictions)
Flow rate: more than 36 l/min (shower faucet has a maximum flow rate of 18 l/min)

- bathrooms, shower stalls - swimming pools - swimming pools, swimming pools - laundry rooms, boiler rooms - balconies, terraces - drainage trough with trap - grate - sewer reduction 50/40 mm - adjustable mounting feet - insulation mat - hook for lifting the grate - instruction manual - warranty card.
