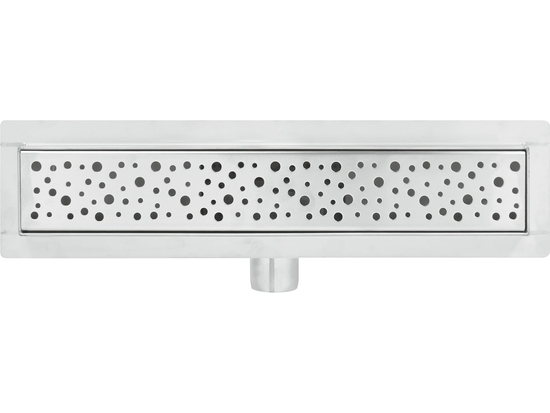

LINEAR DRAIN 40 CM SERIES: NAPO
- Odpływ liniowy Fala to doskonały pomysł na eleganckie i praktyczne zaaranżowanie przestrzeni łazienki.
- Szeroki wybór dostępnych rozmiarów umożliwia optymalne dopasowanie jego długości do wymiarów kabiny lub płytek i pozwala z większą swobodą, niż w prz
The Wave linear drain is an excellent idea for elegant and practical arrangement of bathroom space.
A wide selection of available sizes allows you to optimally match its length to the dimensions of the shower enclosure or tiles and allows you to plan your shower space with greater freedom than with traditional shower trays.
It is made wholly of AISI 304 stainless steel, which is characterized by resistance to corrosion, detergents and mechanical damage.
Wave shower drains are equipped with facilities that guarantee comfortable and efficient operation for many years:

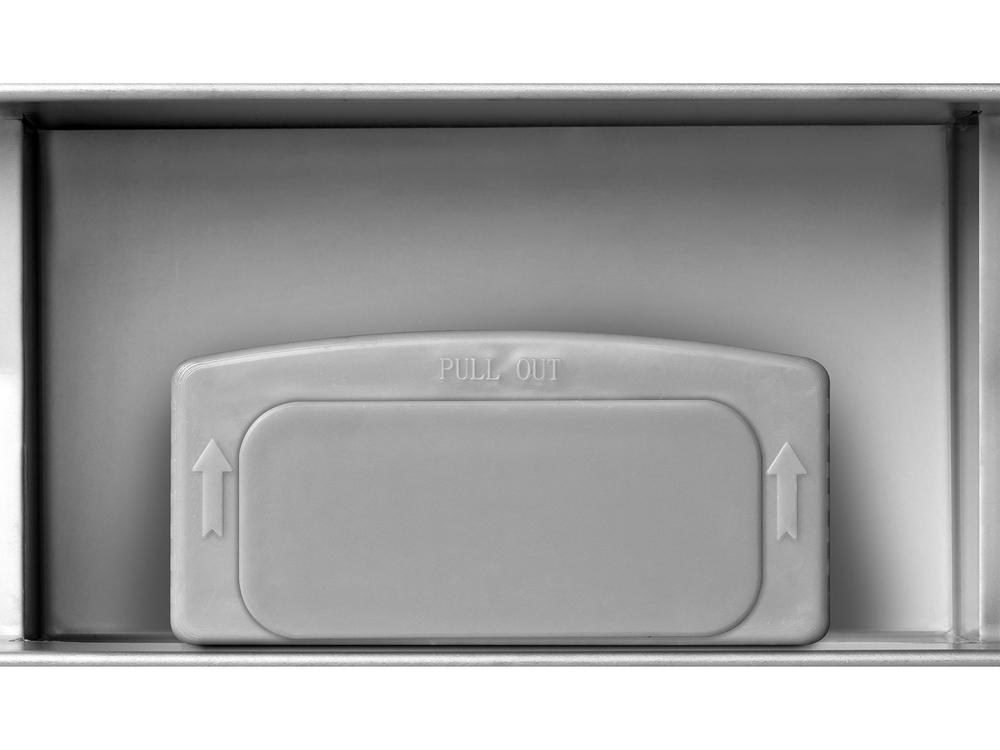

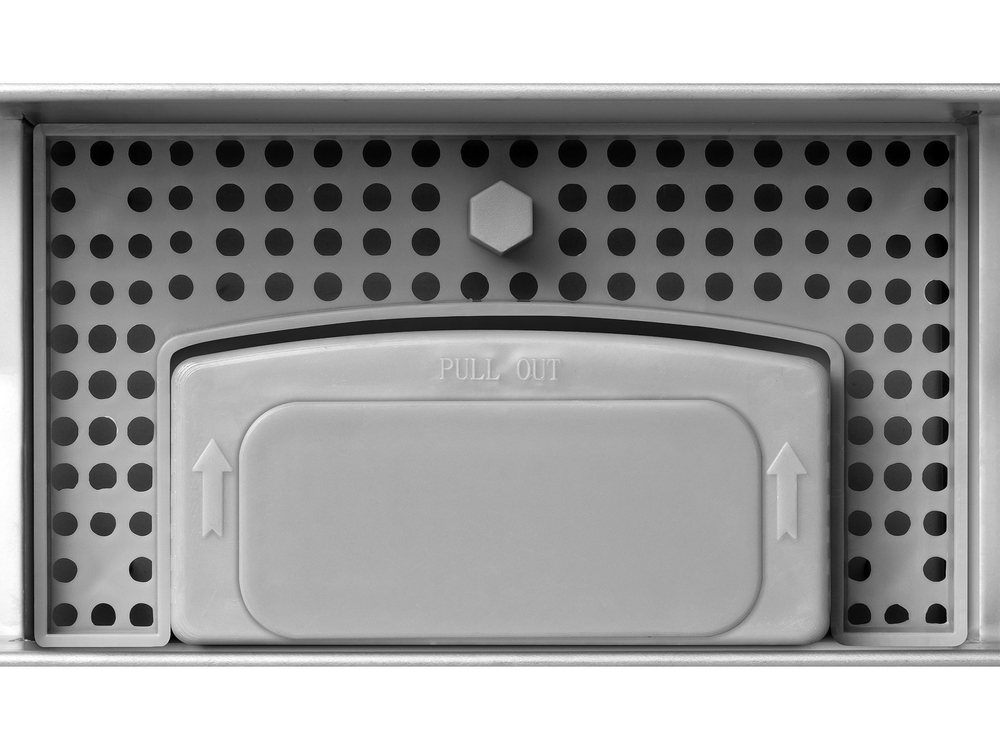

- SMARTthru - special inspection window means 100% patency control and convenient cleaning;
- EASYclean - is easy to clean, thanks to the hook that is included;

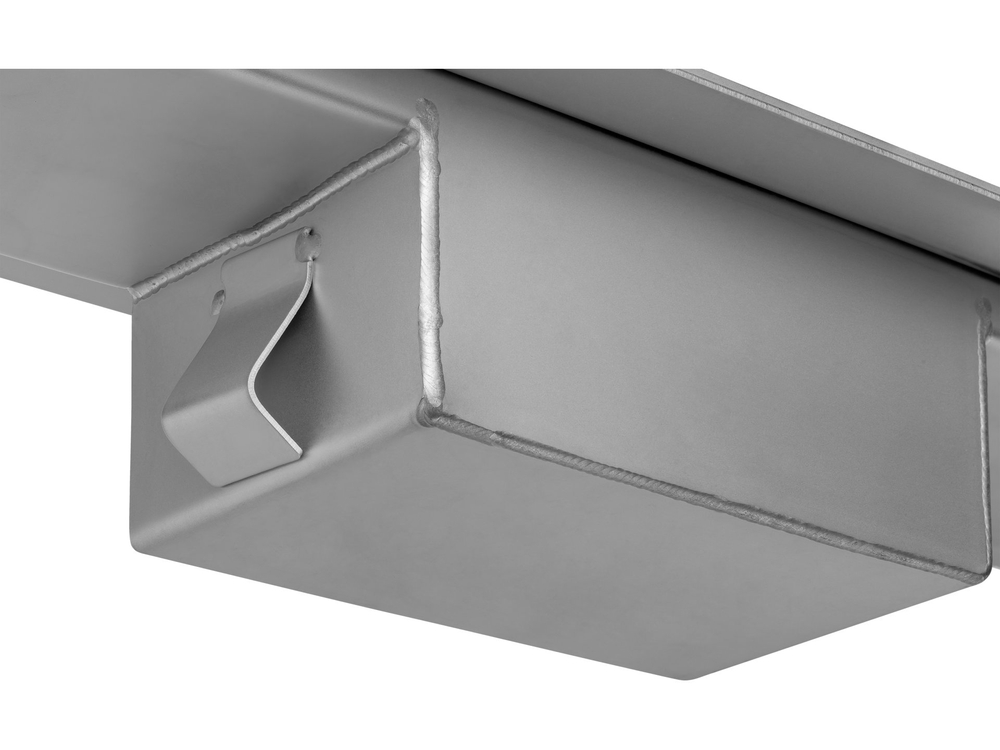

EASYclean. - GRIPstrong - handles to stabilize the body, add extra stiffening of the structure in the floor;
- HYDROcloth - sealing mat is included - an indispensable part when performing waterproofing;

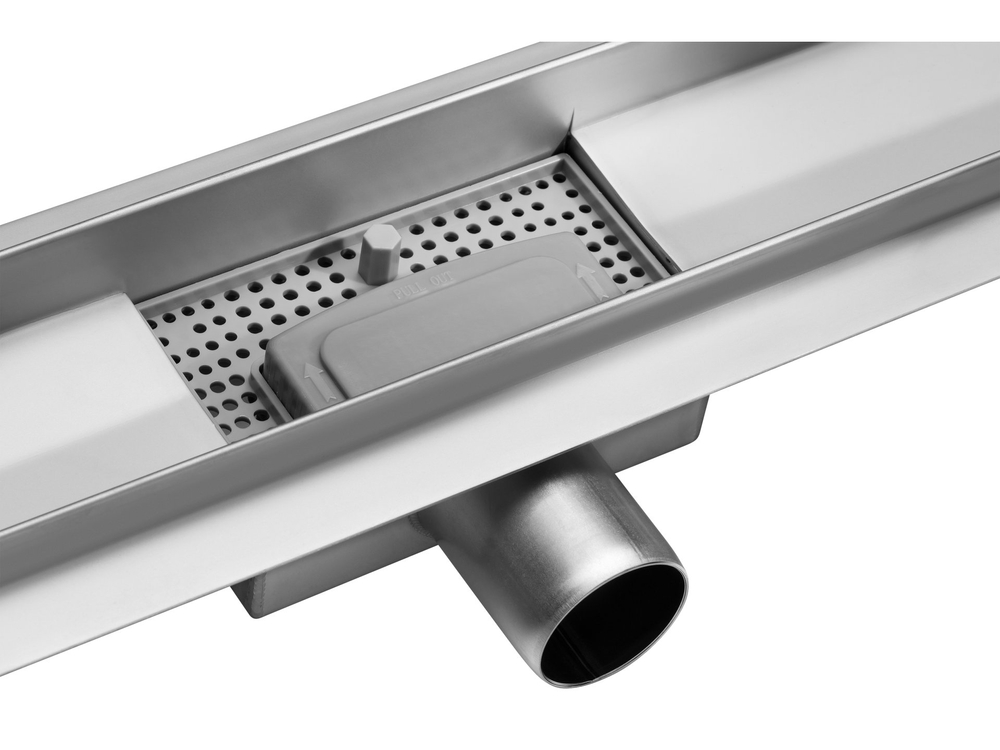

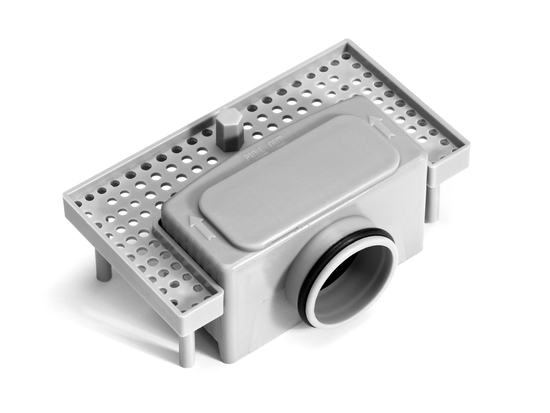

- HYDROcloth - Sealing mat. strong>STRAINer - an effective and durable strainer that prevents clogging of the trap and facilitates the day-to-day maintenance of the drain;

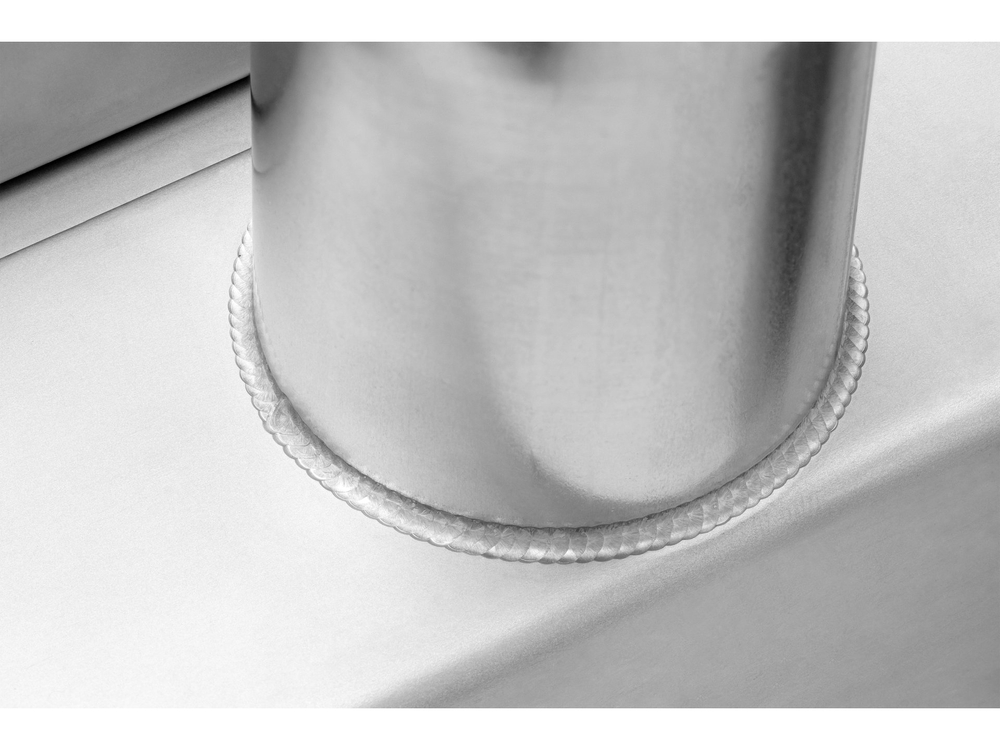

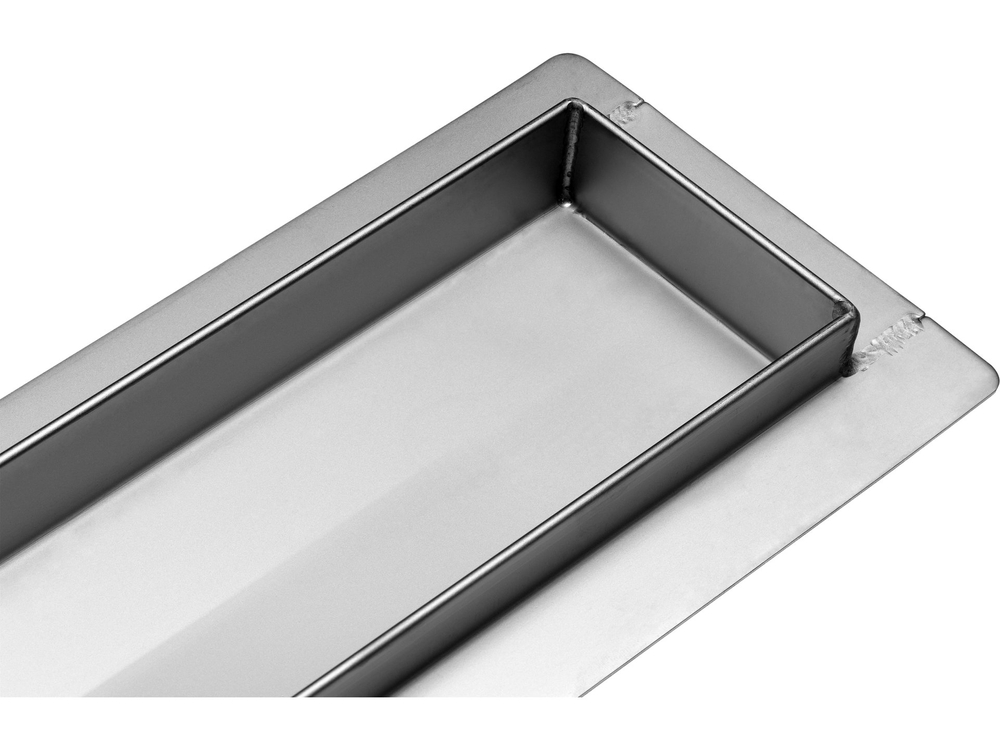

.br /> - HQwelding - high-quality precision welds that guarantee the tightness of the drain;

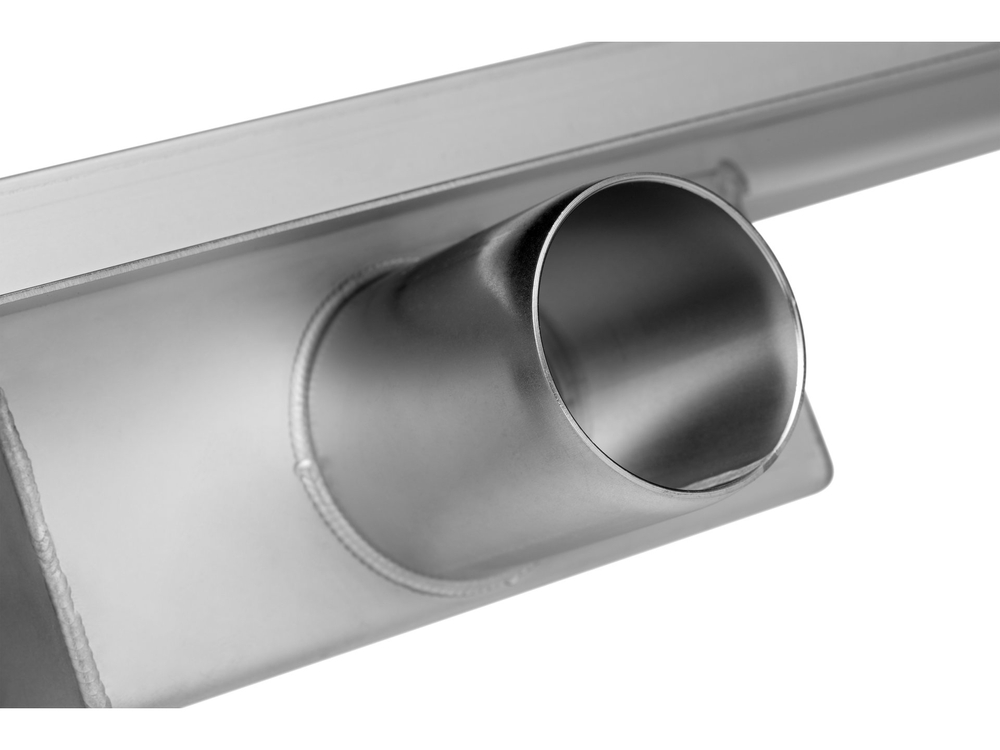

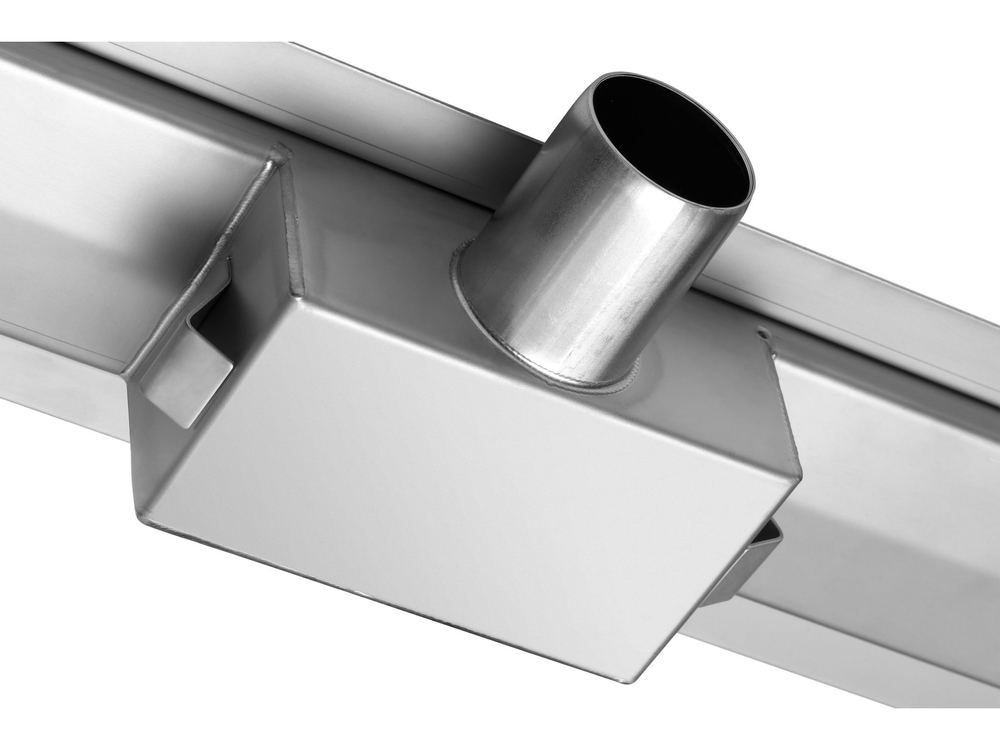

- EXTRAslim - made of AISI 304 stainless steel very low siphon, which makes installation easier;
- EASYfix - wide range of height adjustment, which allows adjustment of the drain to the floor surface.
You will install the Wave drain without worry - all our drains have a 10-year warranty!
Details:< br /> - gutter length: 40 cm

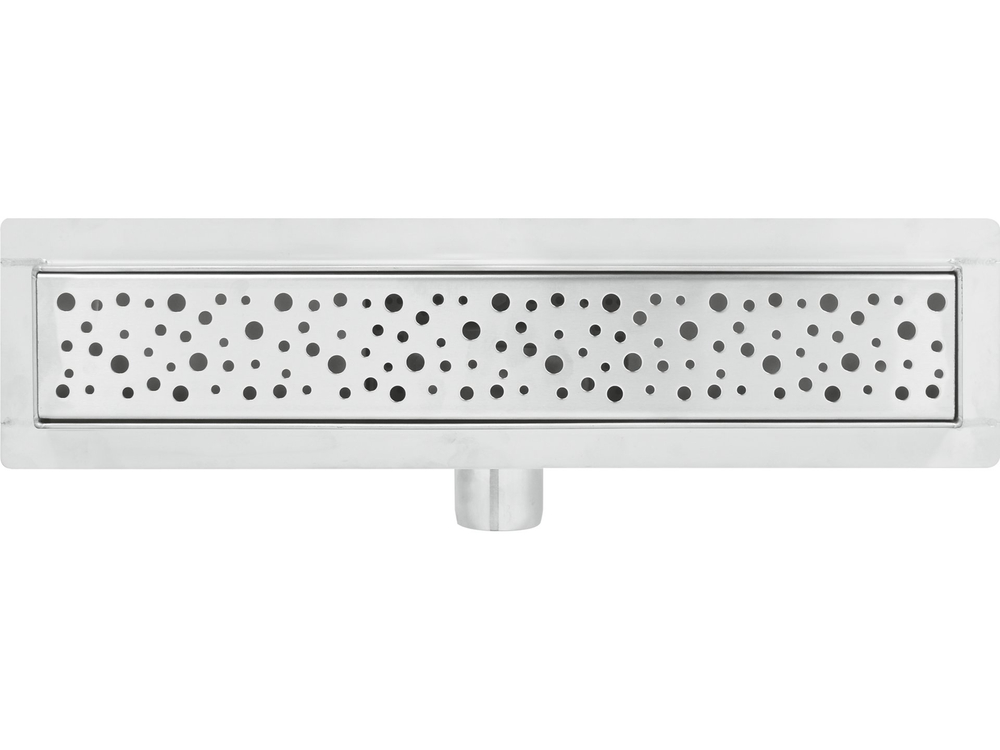

. - grate design - Napo
- material: stainless steel AISI 304

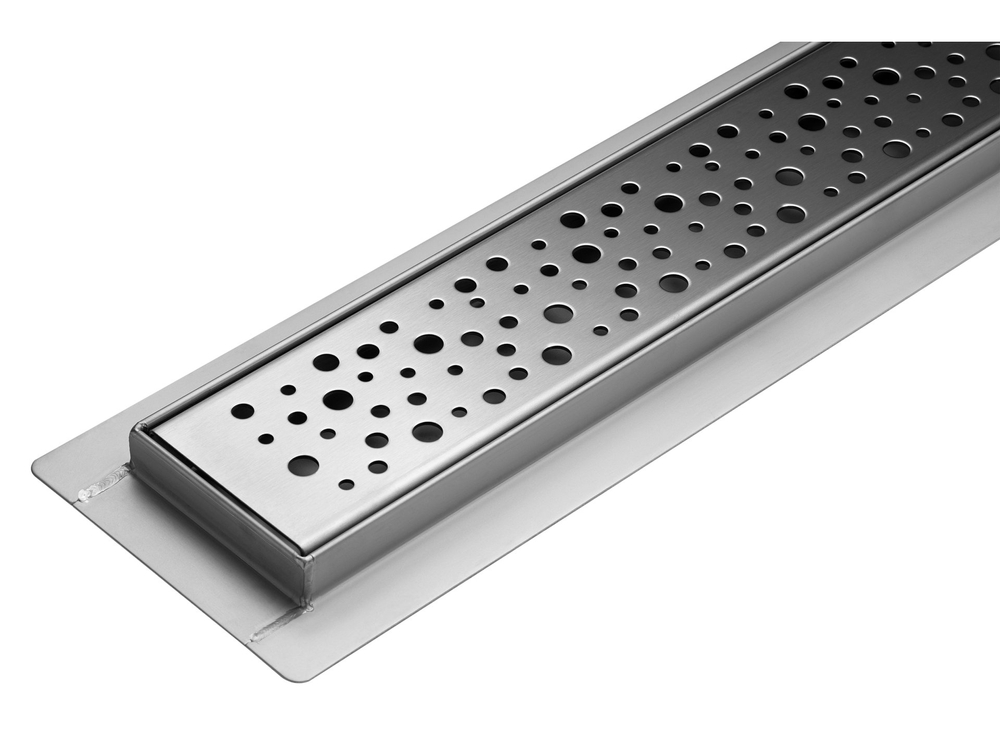

- width: 70 mm (additional flange about 2 cm on each side)

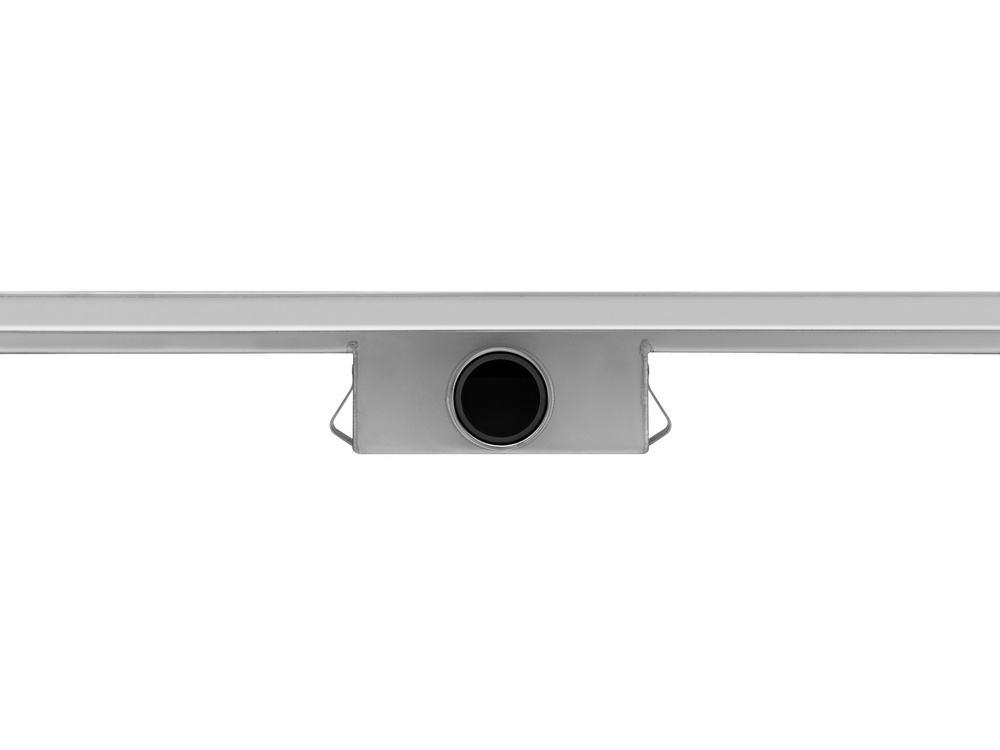

- trap height: 52 mm
Thickness of steel of linear drains:
- market: 1.2 mm
- pipe: 1.5 mm
Product complies with EN 1253-1
Load class: K3 (surfaces without circular traffic)
Product thermal behavior class: Class A (no installation restrictions)
Flow rate: more than 36 l/min (the shower faucet has a maximum flow rate of 18 l/min)
- bathrooms, shower rooms - swimming pools - swimming pools - laundry rooms, boiler rooms - balconies, terraces - drainage trough with trap - grate - sewer reduction 50/40 mm - adjustable mounting feet - insulation mat - hook for lifting the grate - instruction manual - warranty card
