LINEAR DRAIN 70 CM SERIES: MADEIRA

  • Odpływ liniowy Fala to doskonały pomysł na eleganckie i praktyczne zaaranżowanie przestrzeni łazienki.
  • Szeroki wybór dostępnych rozmiarów umożliwia optymalne dopasowanie jego długości do wymiarów kabiny lub płytek i pozwala z większą swobodą, niż w prz
Body length
Regular price: 168,14 zł / kpl-4%
161,41 zł
incl. VAT / kpl
Lowest price in 30 days before discount: 159,41 zł / kpl+1%
Buy now, pay in 30 days
Instalment
Official manufacturer's store
Safe shopping
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Body length
700 mm
Series
Madeira
Cover design
paste plate
Material
304 stainless steel
Body width
70 mm
Flange width
20 mm
Siphon height
52 mm
Outlet size
50/40 mm
SMARTthru
yes
EASYclean
yes
GRIPstrong
yes
HYDROcloth
yes
STRAINer
yes
HQwelding
yes
EXTRAslim
yes
EASYfix
yes
Application
bathrooms - shower cabins, swimming pools - swimming pools, laundry rooms, boiler rooms, balconies, terraces
Set includes
grate, drainage channel with siphon, sewage reduction, adjustable mounting feet, insulating mat, hook for lifting the grate
Symbol
75364

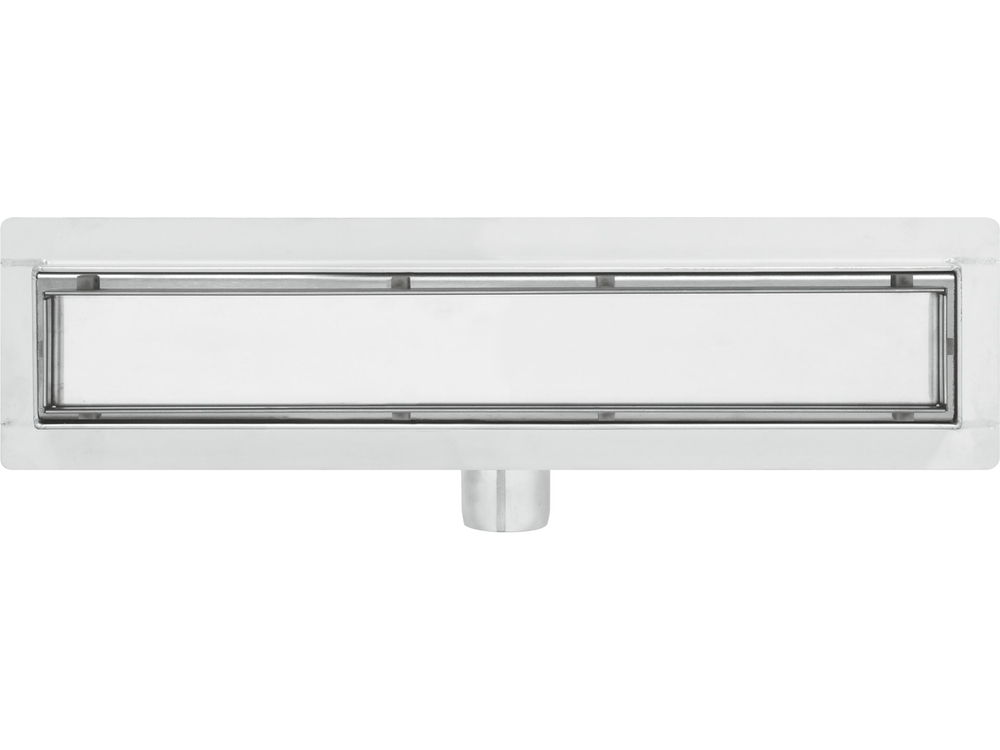

Wave linear drain is an excellent idea for elegant and practical arrangement of bathroom space.
The wide range of
available sizes allows you to optimally match its length to the dimensions of the shower enclosure or tiles, and allows you to plan your shower space with greater freedom than with traditional shower trays.
It is made entirely of AISI 304 stainless steel, which is characterized by resistance to corrosion, detergents and mechanical damage.
Wave shower drains are equipped with amenities that guarantee comfortable and efficient operation for many years:

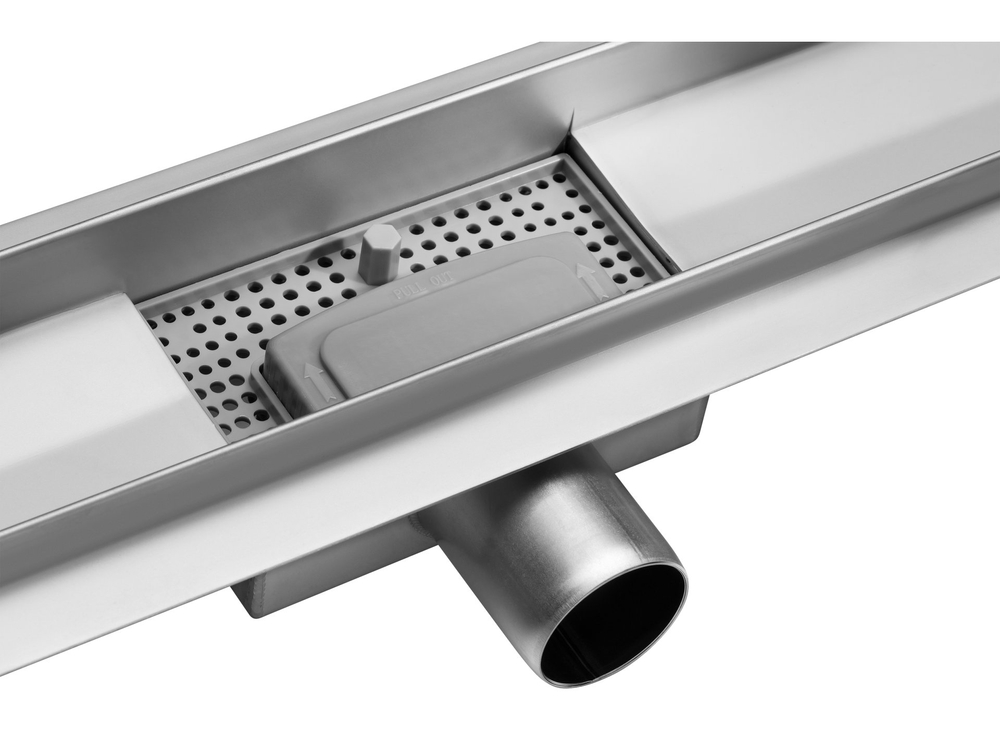

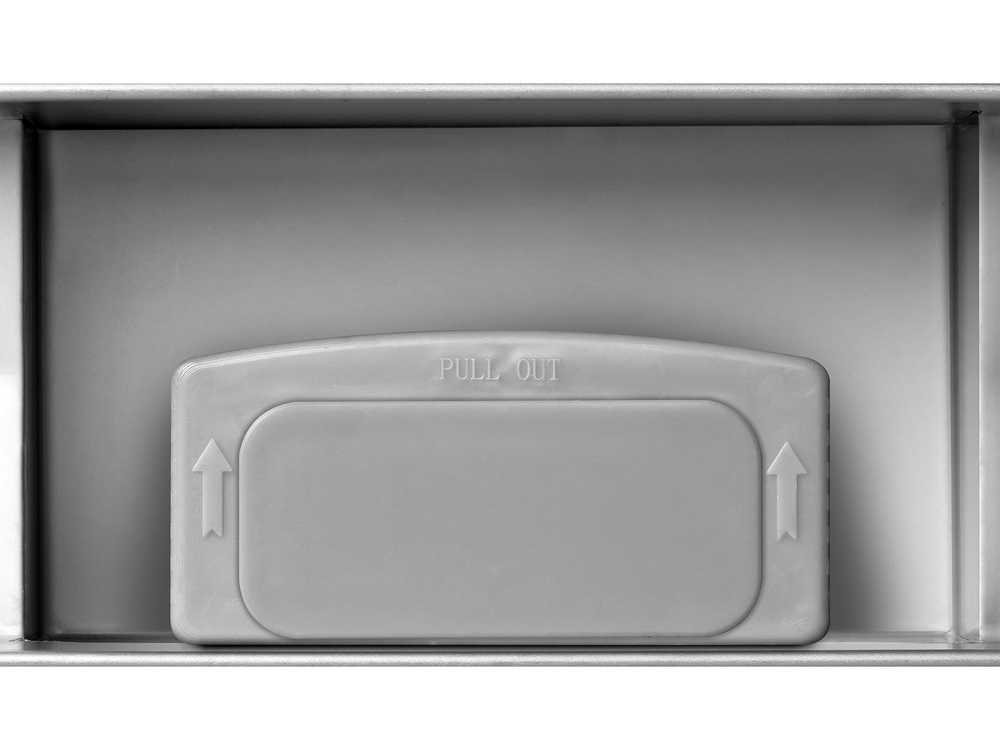

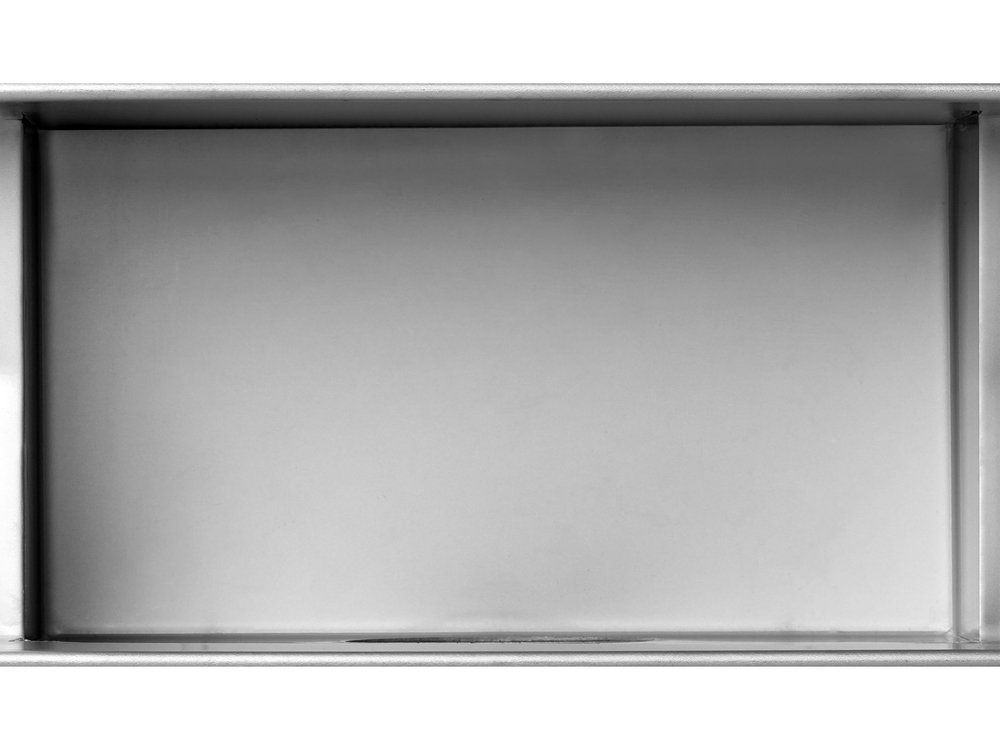

- SMARTthru - a special inspection window means 100% patency control and convenient cleaning;

- EASYclean - it is easy to clean, thanks to the hook that is included;

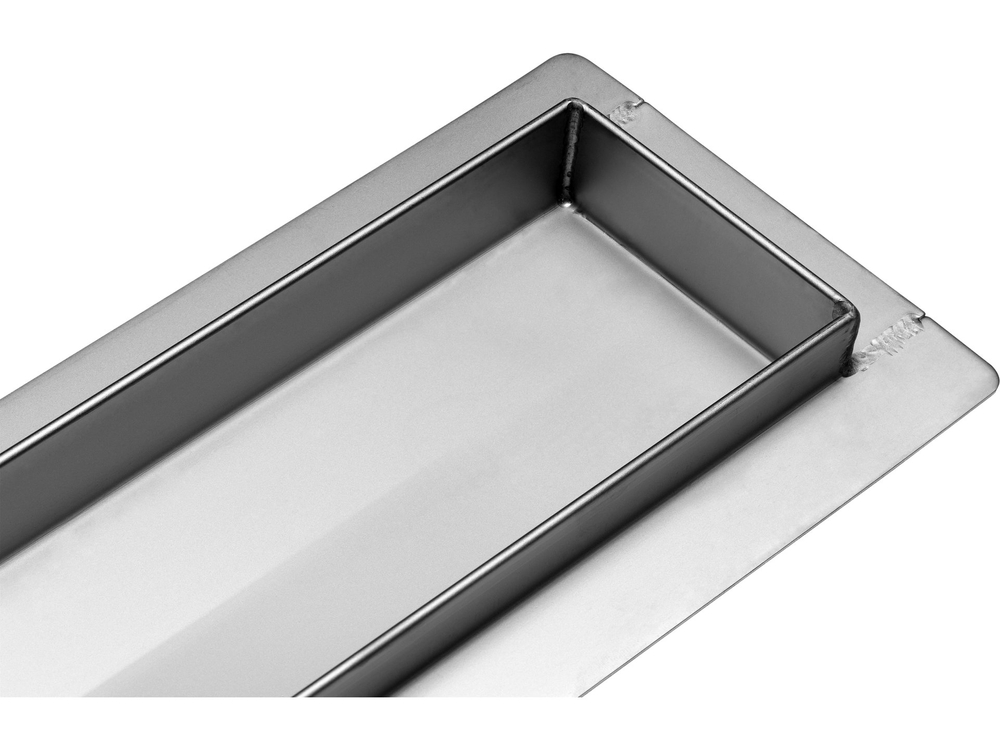

- GRIPstrong - handles to stabilize the body, additional stiffening of the structure in the floor;

- HYDROcloth - sealing mat is included - an indispensable part when waterproofing;

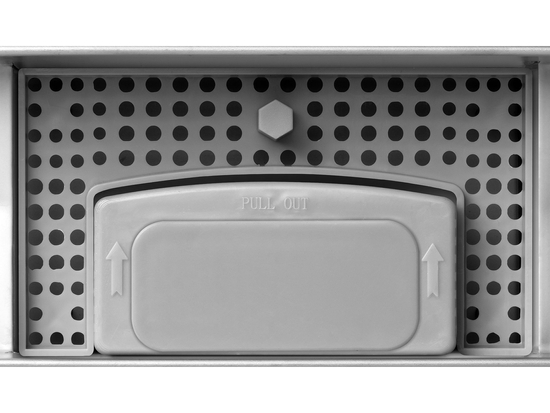

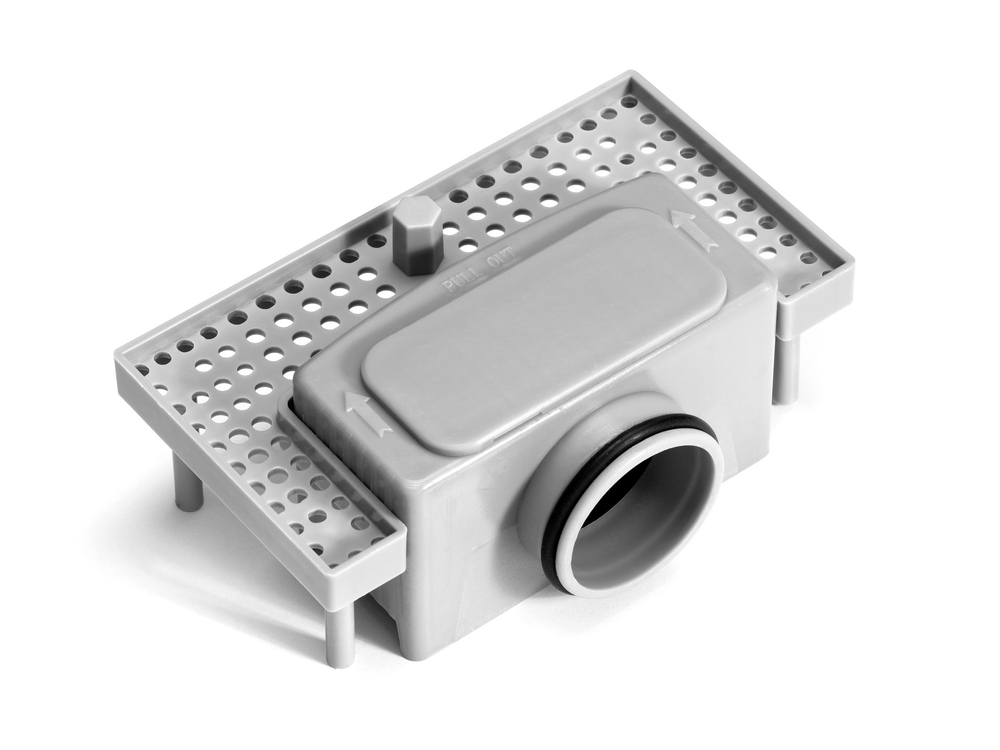

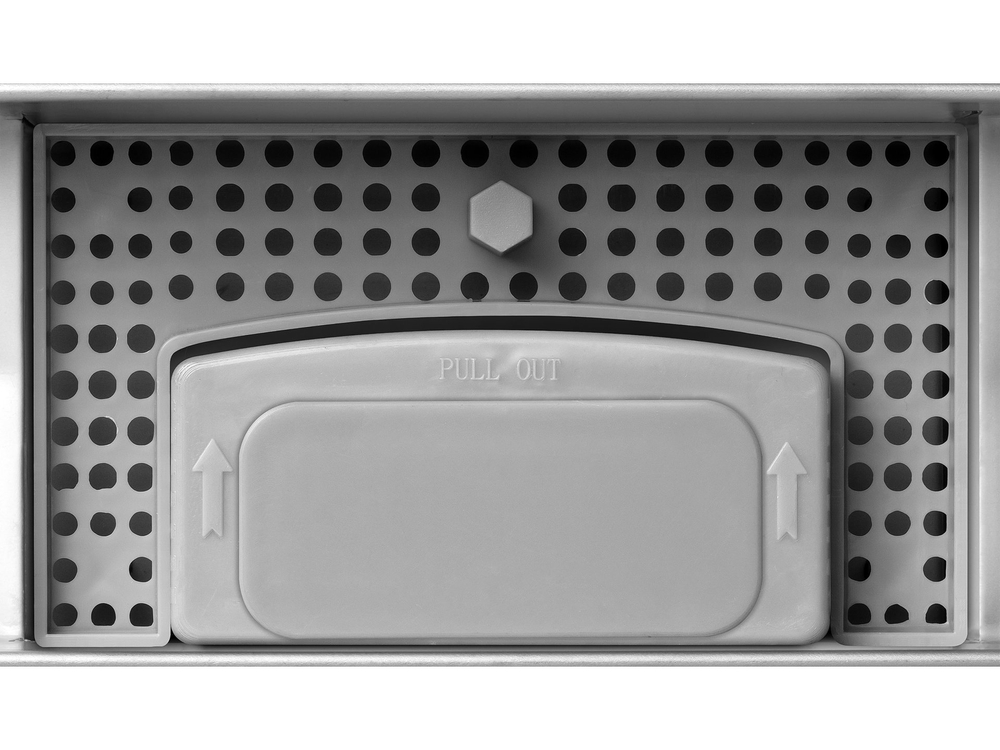

- STRAINer - an effective and durable strainer that prevents clogging of the trap and facilitates the ongoing maintenance of the drain;

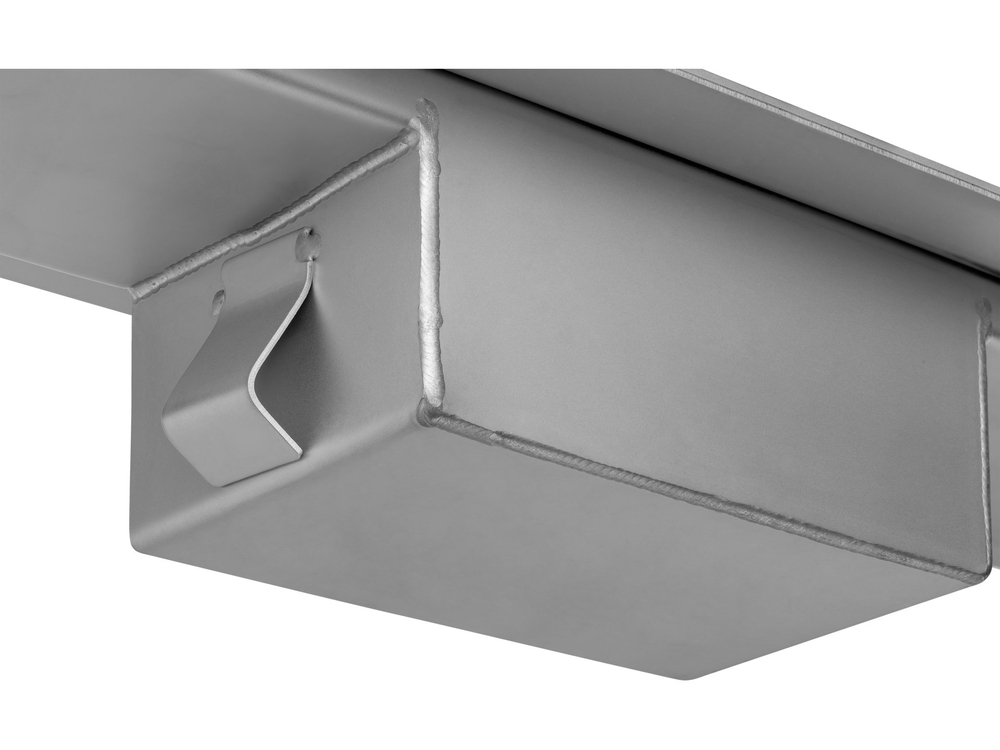

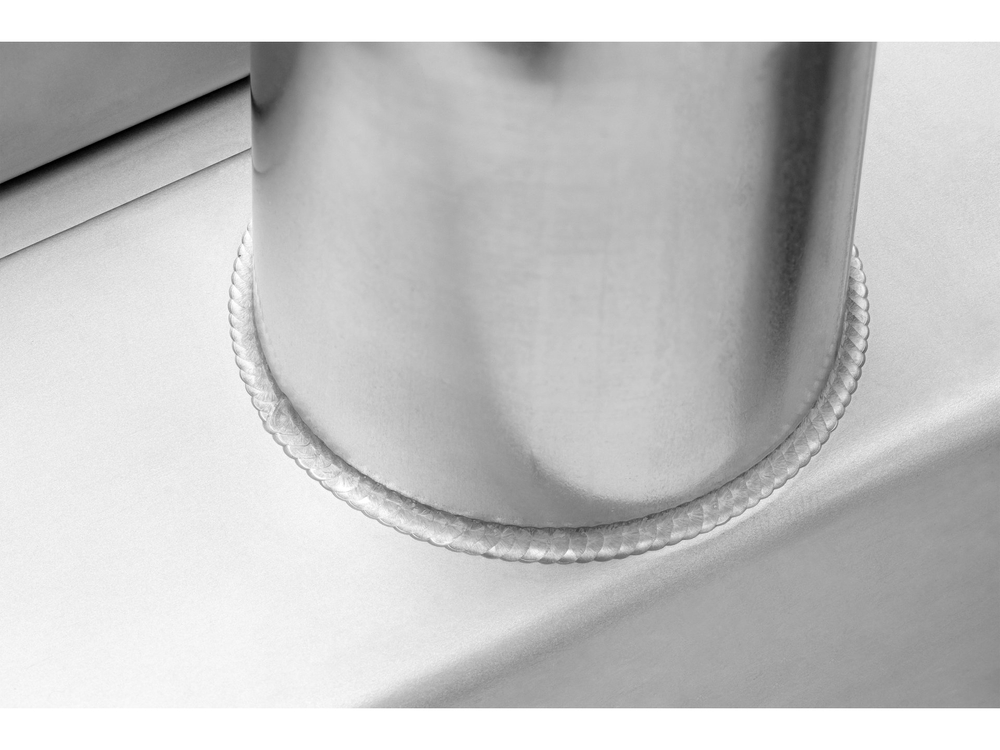

- HQwelding - high quality precision welds , which guarantee the tightness of the drain;

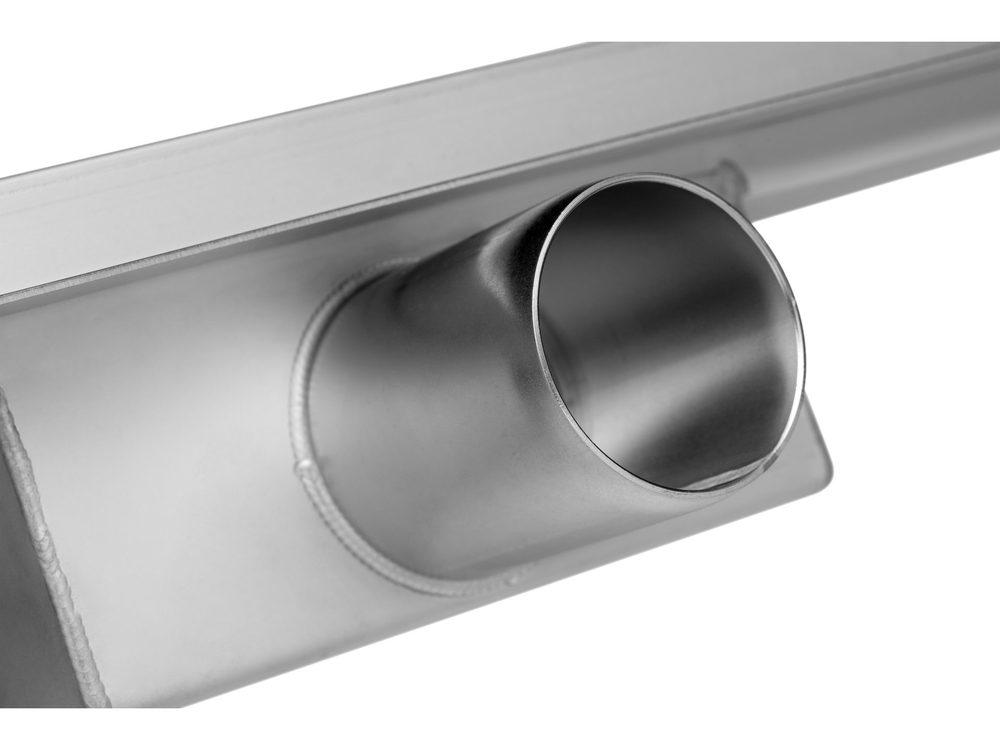

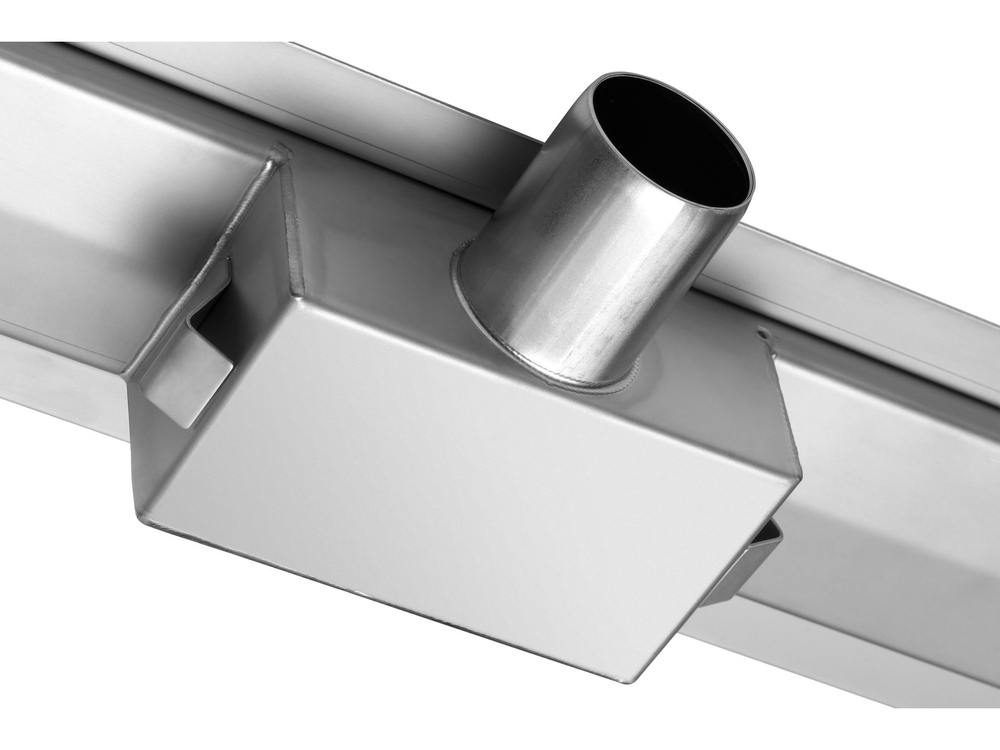

- EXTRAslim - made of AISI 304 stainless steel very low siphon, which makes installation easier;

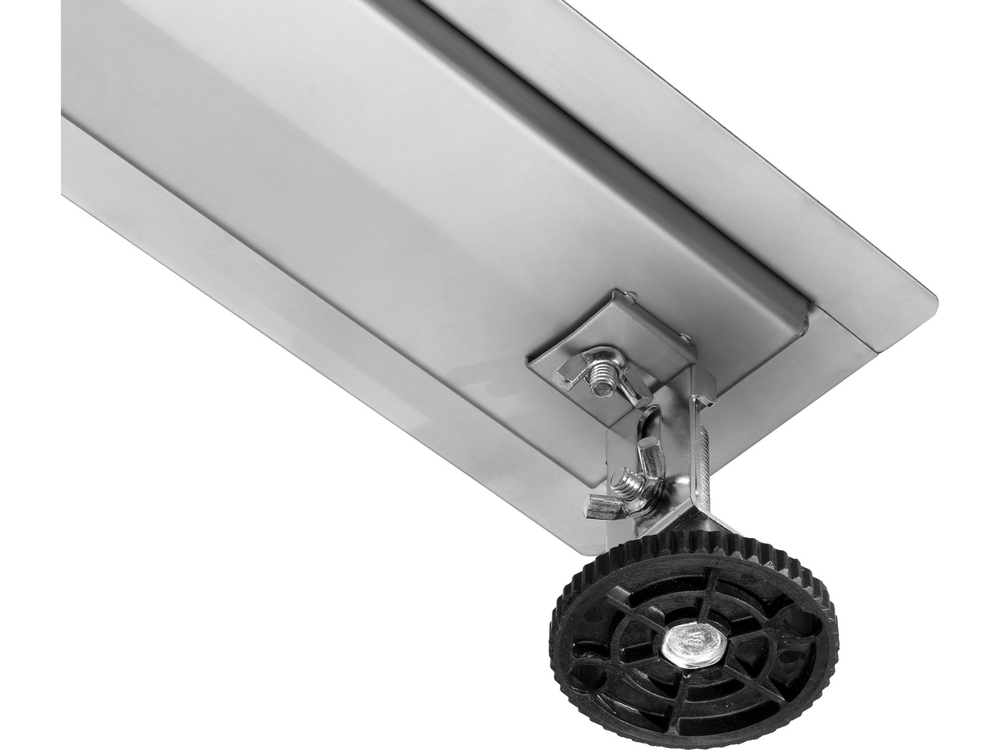

- EASYfix - wide range of height adjustment, which allows you to adjust the drain to fit the floor surface.

You will install the Wave drain without worry - all our drains have a 10-year warranty!

Data:
- gutter length: 70 cm

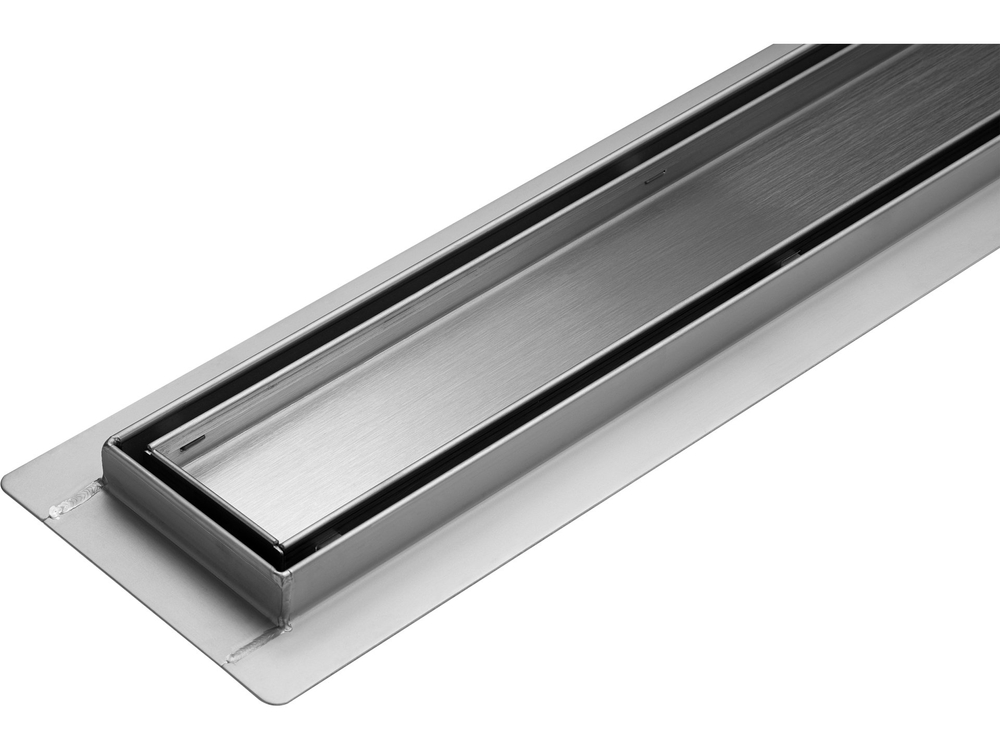

- grid pattern - Madeira (insertable tile)
- material: stainless steel AISI 304
- width: 70 mm (additional flange about 2 cm on each side)
- siphon height: 52 mm

Thickness of steel of linear drains:

  • trough: 1.2 mm
  • grate: 1.5 mm

Product in accordance with EN 1253-1
Load class: K3 (surfaces without vehicular traffic)
Thermal behavior class of the product: class A (without installation restrictions)
Flow rate: more than 36 l/min (shower faucet has a maximum flow rate of 18 l/min)

- bathrooms, shower stalls - swimming pools - swimming pools, swimming pools - laundry rooms, boiler rooms - balconies, terraces - drainage trough with trap - grate - sewer reduction 50/40 mm - adjustable mounting feet - insulation mat - hook for lifting the grate - instruction manual - warranty card.
