YT-82135
ROTARY HAMMER 25J SDS-MAX 1600W
- Młot udarowo-obrotowy kombi o wysokiej mocy max. 25J.
- Bardzo szybko wierci koronami wiertniczymi i wiertłami sds-max do średnicy aż 160mm oraz niezwykle sprawnie kuje w przemysłowym betonie oraz przewierca granit.
- Krótki korpus maszyny i poprzecznie zamon
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
shoeing, drilling with impact
Toolholder type
SDS-Max
Power
1600 W
Rotations
175-350 min⁻¹
Hammering energy
25 J
Impact frequency
1150-2350 min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Max. hole diameter in concrete
52 mm
Stroke
yes, electropneumatic
Rotation switch
yes

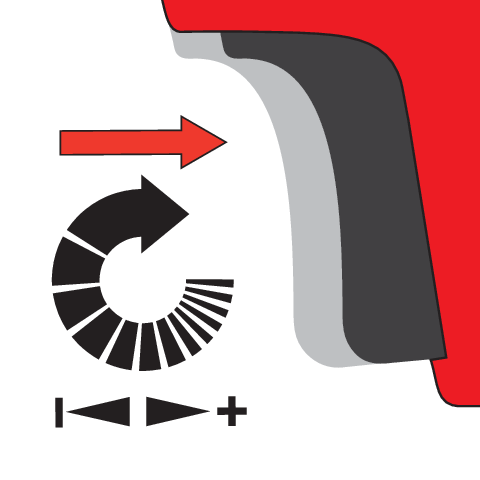

Electronic rotation adjustment
yes
Tool positioning in chuck
yes
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
96.1 ± 3.0 dB(A)
Acoustic power
107.1 ± 3.0 dB(A)
Vibrations
22.31 ± 1.5 / 20.91 ± 1.5 m/s²
Weight
12 kg
Set includes
hammer drill, additional handle x2 (d-type, threaded), grease container, drill, punch
Application
concrete, natural and artificial stone, marble
Symbol
YT-82135
The device is equipped with a powerful 1600W motor and an impact mechanism with a force as high as 25J.
- Metal housing covered with high-quality plastic
- transversely positioned motor and additional side handle guarantee optimal center of gravity
- fast drilling in concrete and an additional side grip for resting on the hip,
- . reduces operator fatigue and increases productivity
- steel clutch guarantees safety when drilling in reinforced concrete
- max drilling diameterwith SDS-max crowns 160mm
- max drilling diameter with spiral drill 52mm
Drilling in walls
Drill in foundation walls and ceilings for sewer pipes and cables for building power, as well as fast penetration of installation passages and demolition of walls.
How to use
With crowns, chisels and sds-max drill bits, such as Sthor brand

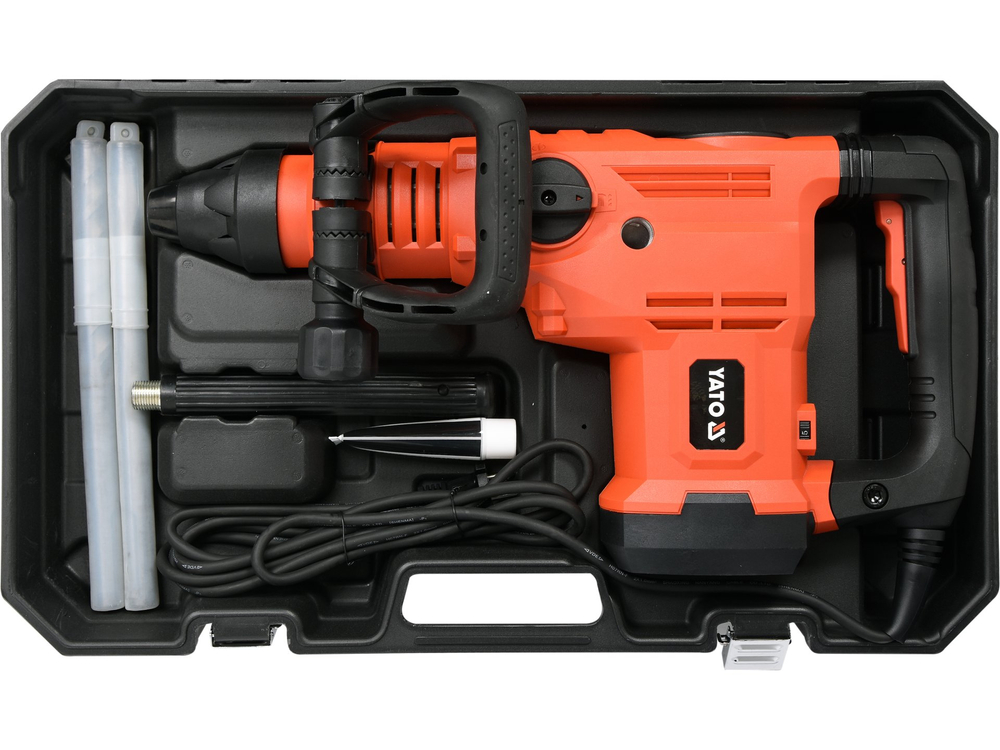

In the set:
- hammer drill
- sds-max drill
- sds-max spade chisel
- .d-type auxiliary chuck
- threaded auxiliary chuck
- lubricant
- spare brushes
