YT-55556
SHOP CRANE 1000KG
- Żuraw warsztatowy 1000 kg.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Load capacity
1000 kg
Max. lifting height
2040 mm
Application force
260 N
Length
1580 mm
Height
1560 mm
Width
1060 mm
Material
Q235 steel
Surface finish
lacquered
Bearing
yes
Wheels
yes
Wheel quantity
6
Wheel material
steel
Acoustic power
≤80 dB(A)
Weight
65 kg
Application
automotive services, production plants
Symbol
YT-55556

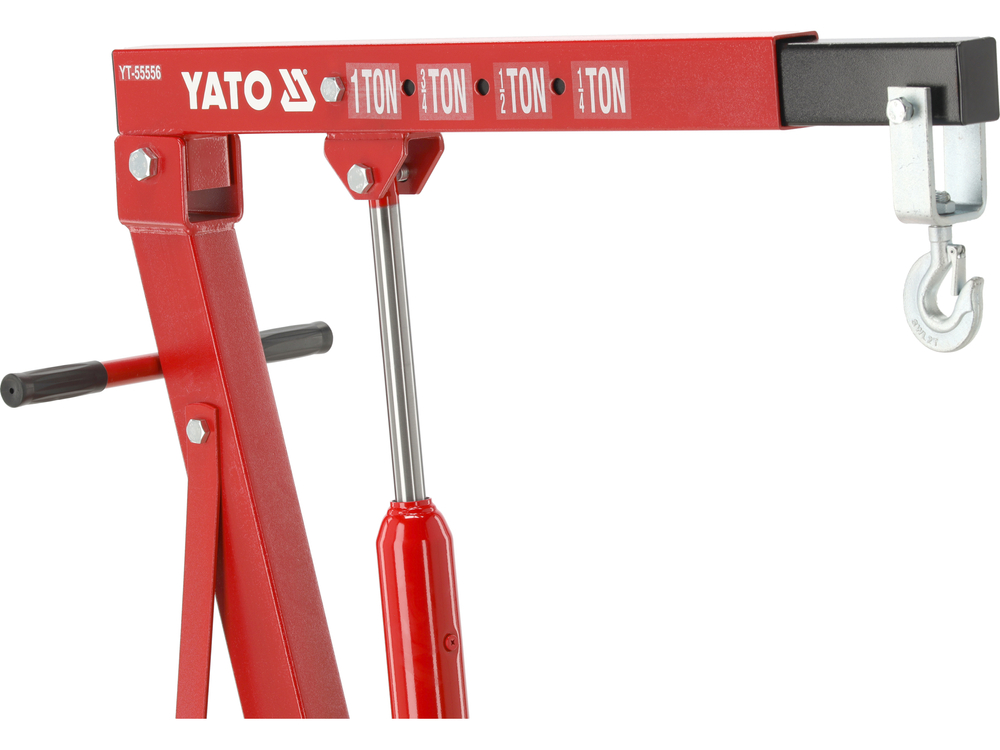

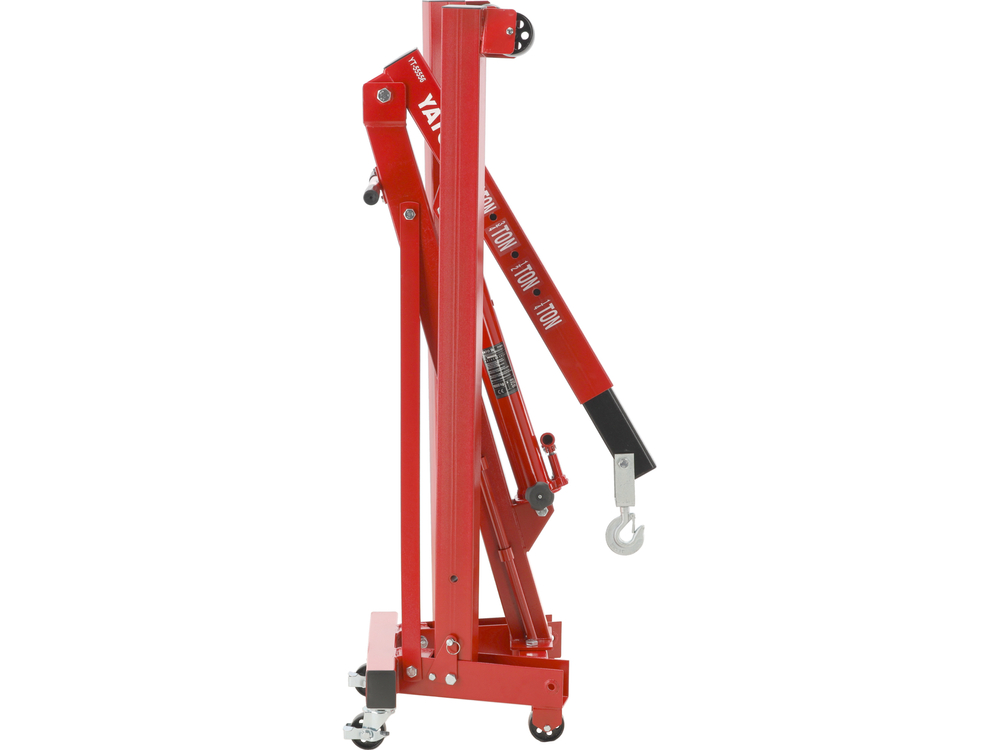

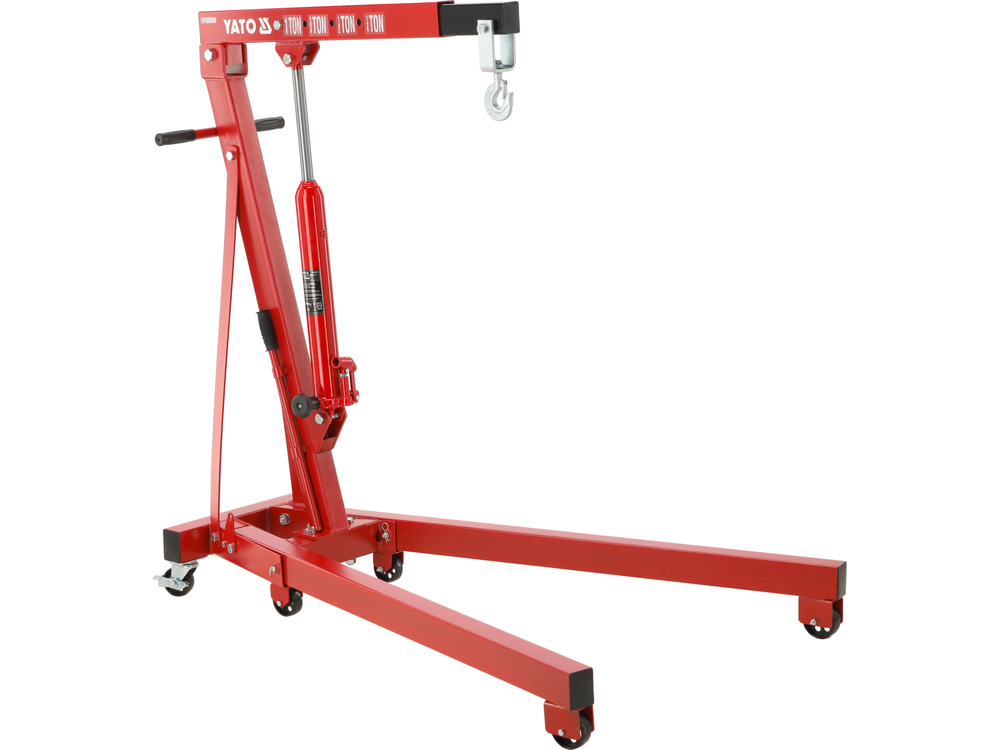

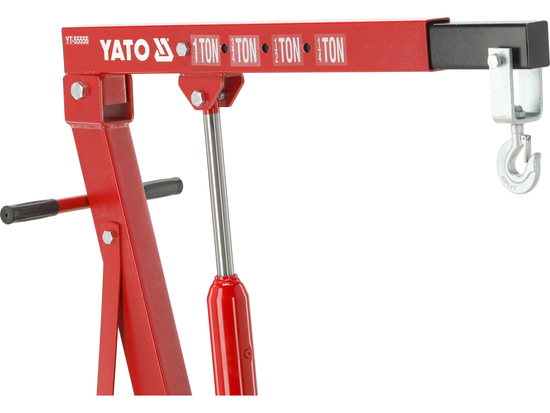

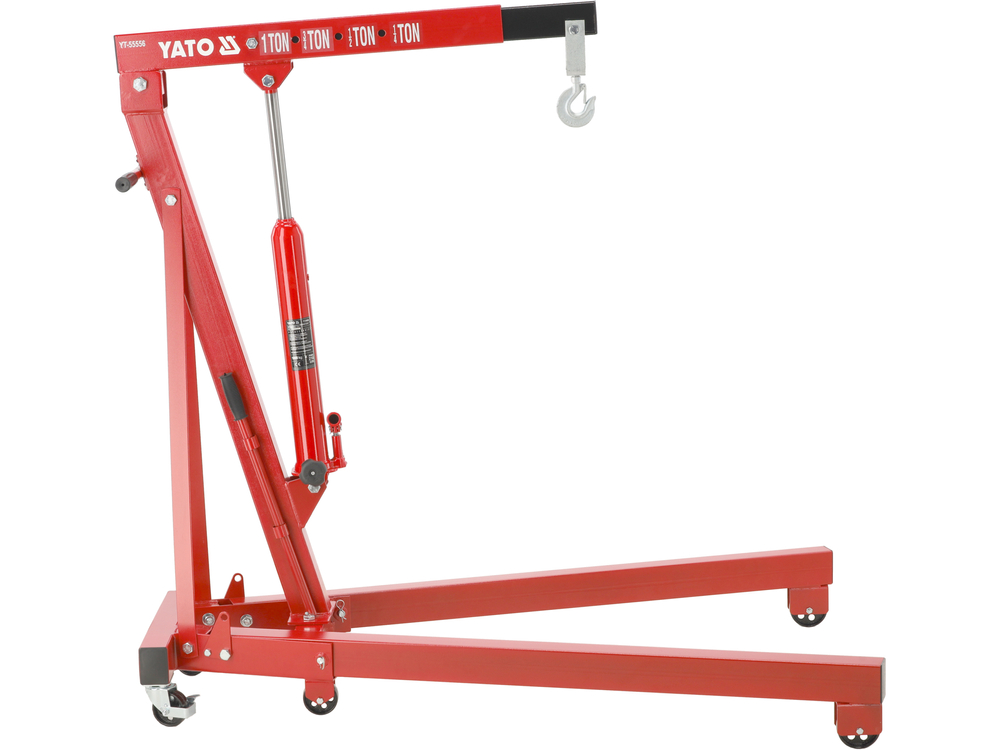

Professional workshop crane with a load capacity of up to 1000 kg. It has a precise trigger valveór for easy positioning of the suspended workpiece. It has a compact fully collapsible design. Dimensions of the product when folded: height 152cm, width 48cm, depth to boom 54cm. It is equipped with 6 metal kół - and a special handle for easy maneuvering. The total lifting height is as high as 210cm. The 1000kg workshop crane has all the required certificates allowing it to work in automotive workshops and manufacturing plants.
Usage warnings:
Before using the crane, read the instructions carefully.Do not exceed the crane's capacity.
The crane must be placed on a strong, even and stable surface.
Do not perform any activities under a raised and unsecured load.
Do not adjust the safety valve.
