YT-58968

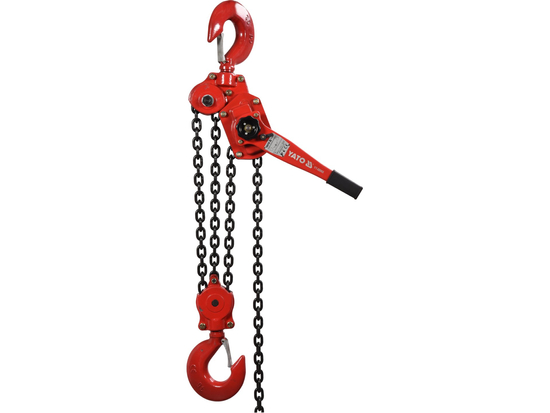

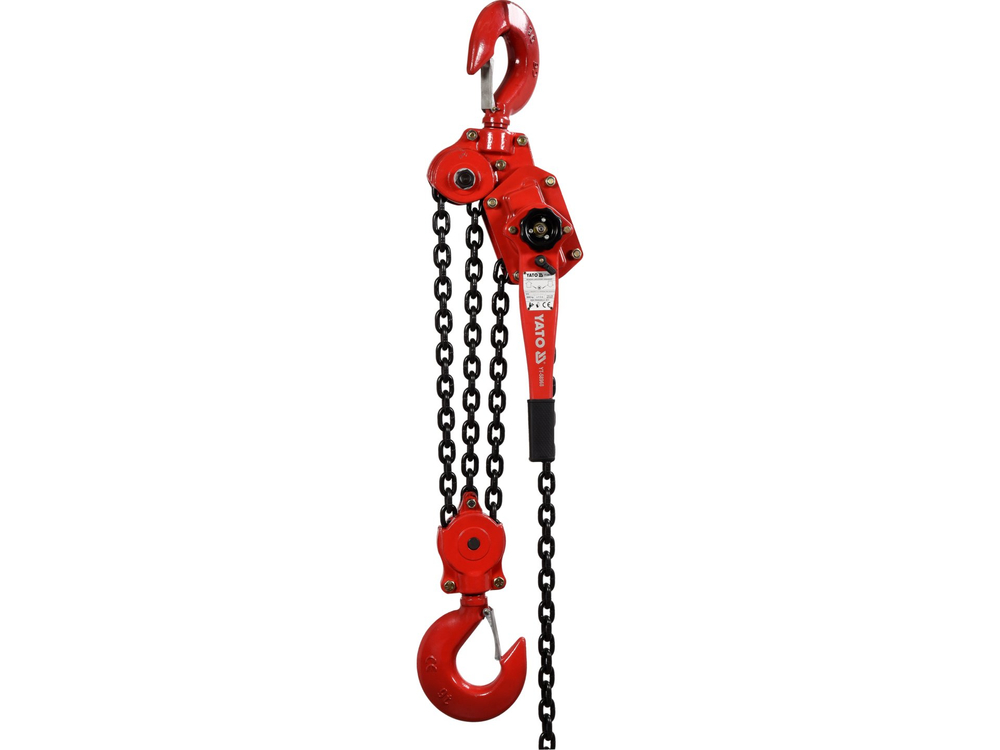

LEVER BLOCK 9T

+ Add to compare Add to shopping list

Wciągnik łańcuchowy ,dźwigniowy ręczny, udźwig 9,0 T
Wysokość podnoszenia 1,5 m

Brand

Yato

Entity responsible for this product in the EU

TOYA S.A.More

Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl

Series

GRF

Max. lifting capacity

9000 kg

Max. lifting height

1.5 m

Needed force to lift max. load

360 N

Working load test

112.5 kN

Weight increase for each additional meter of lifting height

6.6 kg

Load chain quantity

Load chain link size

10x30 mm

Weight

46 kg

Symbol

YT-58968

YATO'S NEW LINE OF LEVER CHAIN HOISTS. Yato lever chain hoists , are designed for intensive use in industrial conditions in manufacturing companies, transport companies, shipyards mines and warehouses. They make it possible to lift heavy loads, construction elements , foundation of machines as well as pre-tensioning of ropes and effective securing of heavy loads . The hoists are equipped with hooks of special design to increase the safety of work. The lifting height is 1500 mm . The new line of hoists is distinguished by a compact damage-resistant all-steel, corrosion-protected design . Precise lever mechanism, minimizes the force required to lift loads. The full product line includes lever hoists with lifting capacities from 750 kg - 9 tons ... Detailed data available in the technical documentation of the equipment. The hoists are covered by service during and after the warranty period. Manual hoists with a lifting capacity of more than 2000 kg are subject to notification and acceptance by UDT (Office of Technical Inspection). Please read the instruction manual before use.

To download

User manual YT-58968
