28880

CUTTER FOR LAMINATE FLOOR PLANKS

+ Add to compare Add to shopping list

Gilotyna do cięcia podłogowych i ściennych paneli laminowanych.

Brand

Vorel

Entity responsible for this product in the EU

TOYA S.A.More

Address: Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl

Series

GRE

Max. cutting length

210 mm

Max. cutting capacity

12 mm

Base dimensions

695x200x80 mm

Frame dimensions

40x25 mm

Arm length

520 mm

Cutting blade thickness

5 mm

Material

steel

Surface finish

powder coated

Working part finish

galvanized

Application

floor panels

Symbol

28880

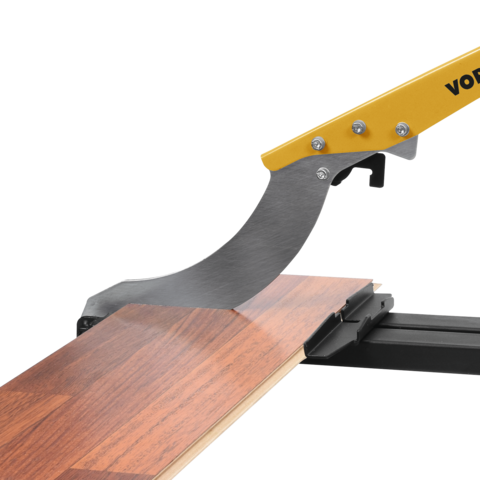

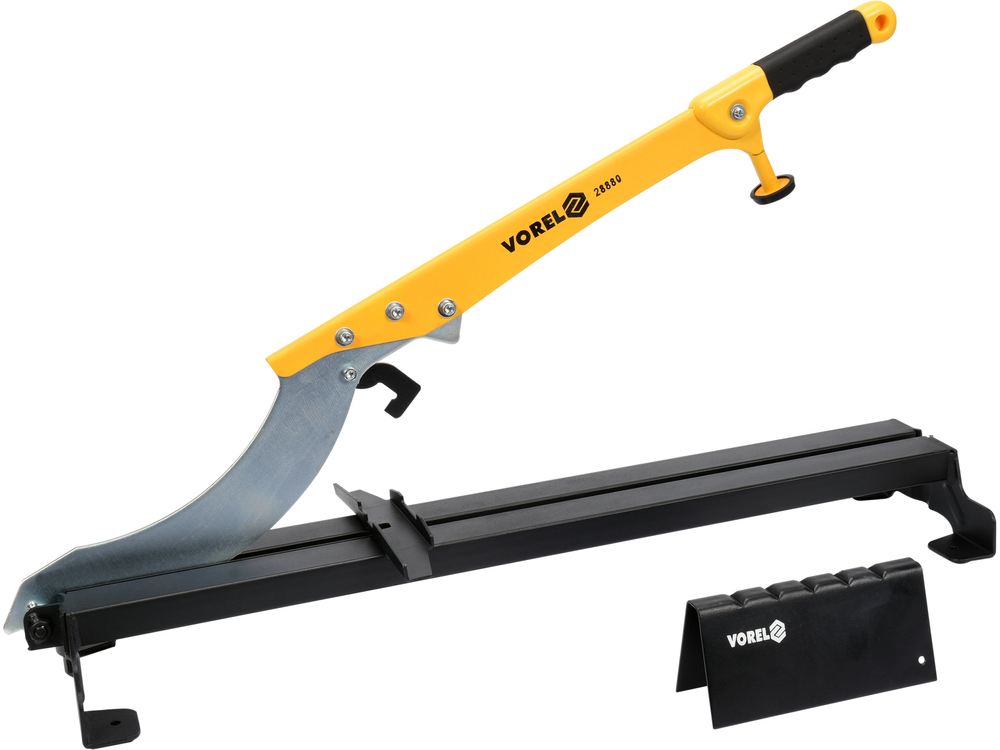

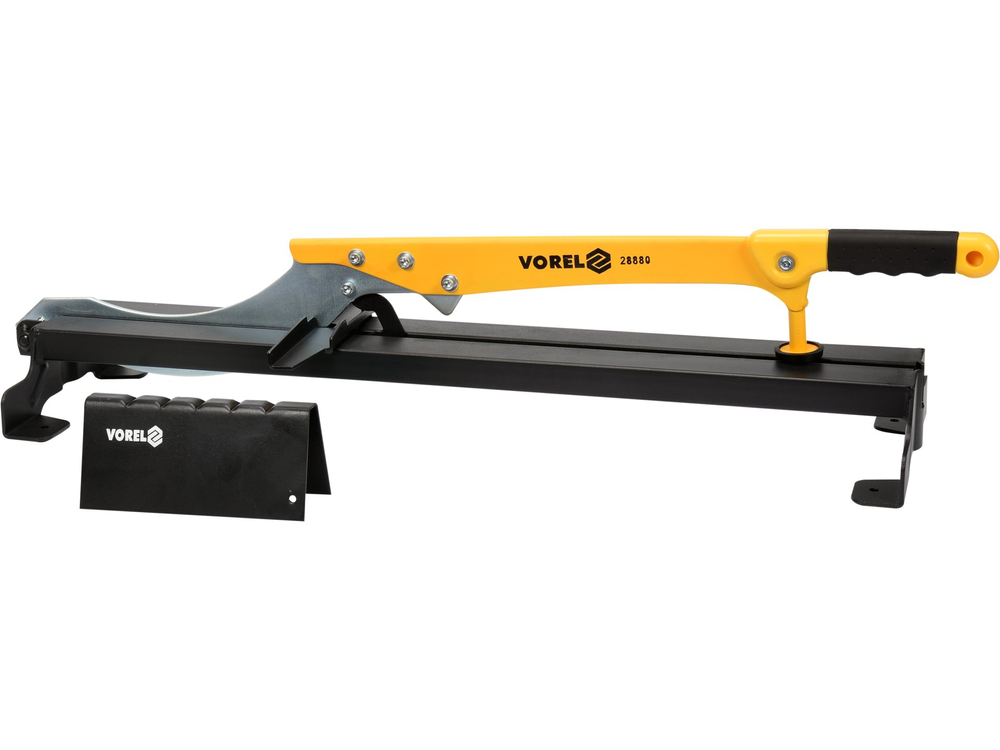

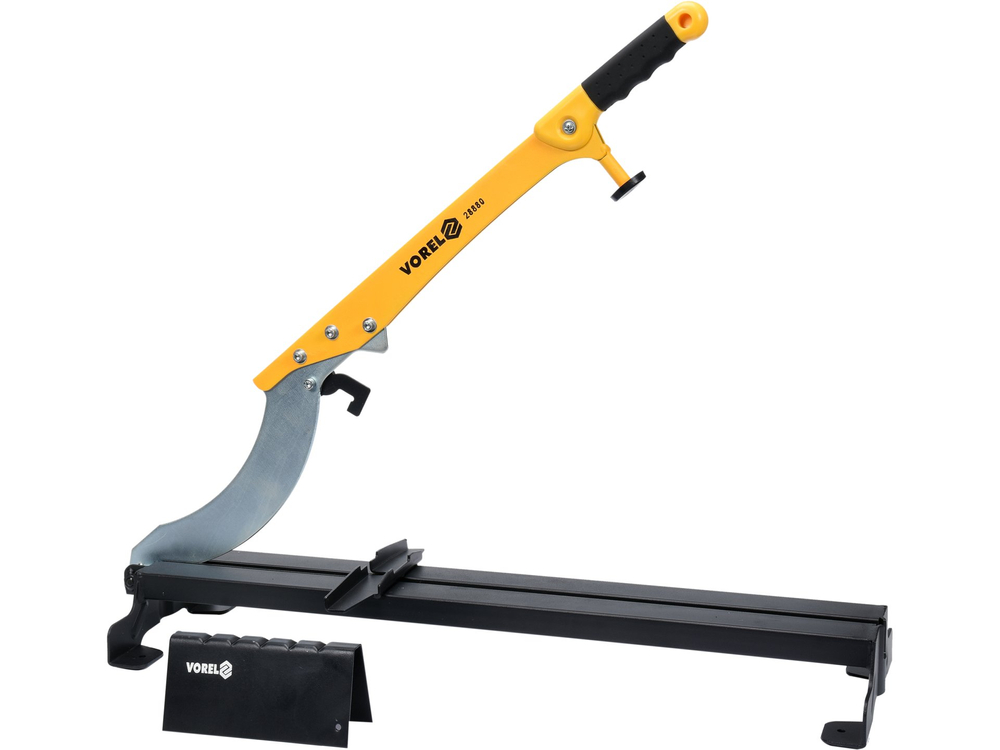

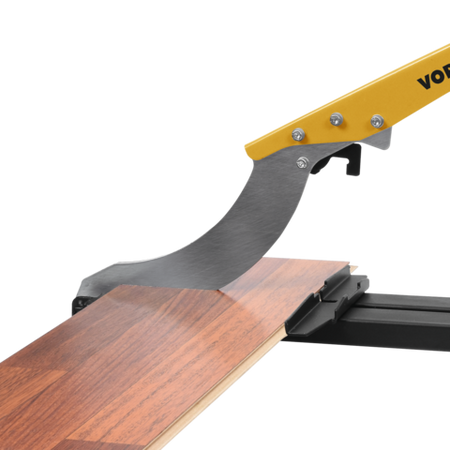

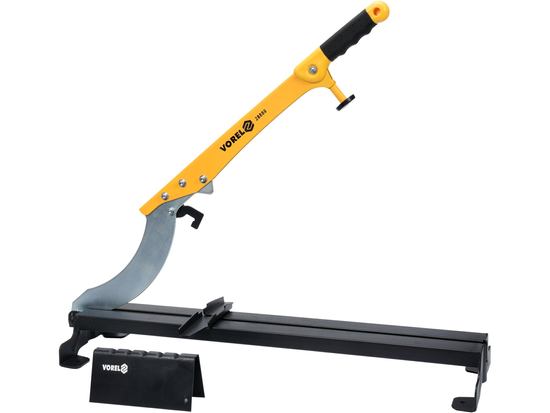

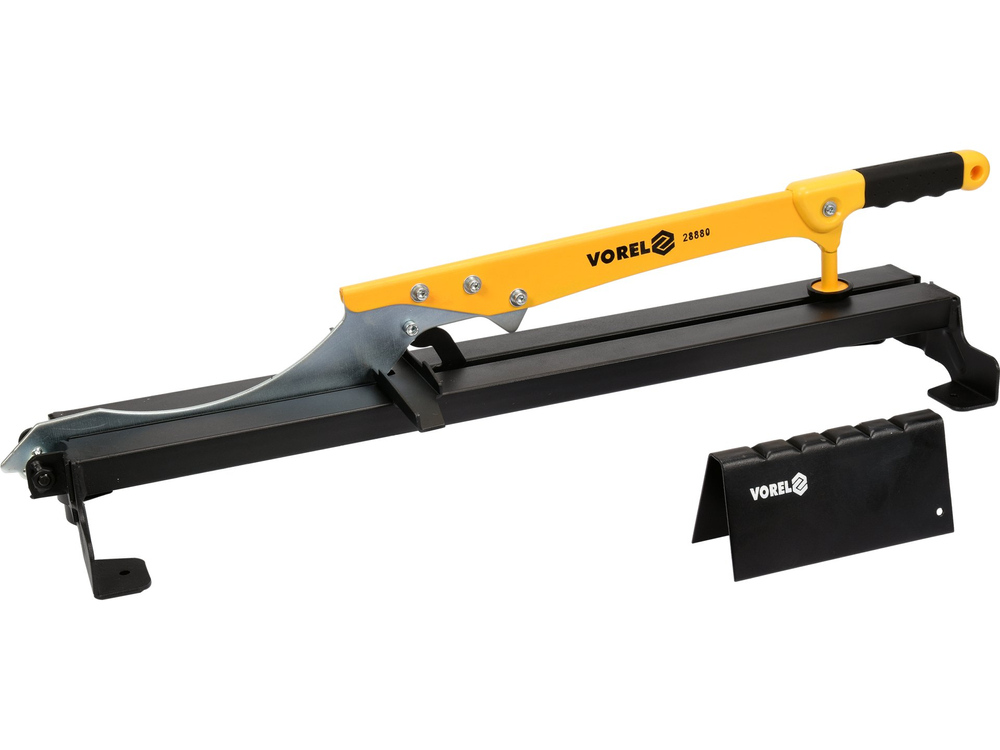

Gilotine for cutting floor and wall laminated panels. Made of thick steel sheet. The construction is extremely stiff and resistant to deformation, caused by a strong pressure of the long arm. This guarantees ease and precision of cutting. The maximum cutting width is 210 mm. , this allows you to cut most of the panels available on the market with typical widths of 130, 150, 160 and 190 mm. Construction elements and technical solutions that guarantee effective and precise cutting: *stable table with a width of 100 mm, supported on legs with rubber pads and holes for permanent fastening *High arm length about 520 mm. It minimizes pressure and makes it easier to cut the *frame of the guillotine equipped with a high, rubberized bunch, protecting the hand from accidental crushing. *Blade with a special, safe profile, cutting panels up to 12 mm thick. *An additional support for horizontal support when cutting long panels.

Usage warnings:

Using hand tools can be dangerous! Use personal protective equipment when working. Use only functional, undamaged tools. Select the type and size of the tool to suit the type of work being performed. Do not overload the tools. Keep tools out of the reach of children and exercise caution when using them.
