YT-09524
PNEUMATIC IMPACT WRENCH 1/2" 680NM
- Klucz pneumatyczny 1/2" 680 Nm marki YATO..
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Holder size
1/2" (12.7 mm)
Toolholder type
Operator

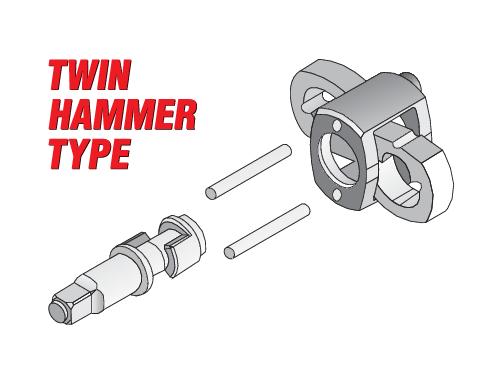

Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.63 MPa
Required air flow
184 l/min
Rotations
7000 min⁻¹
Max. torque
680 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
170 mm
Casing material
composite, duralumin

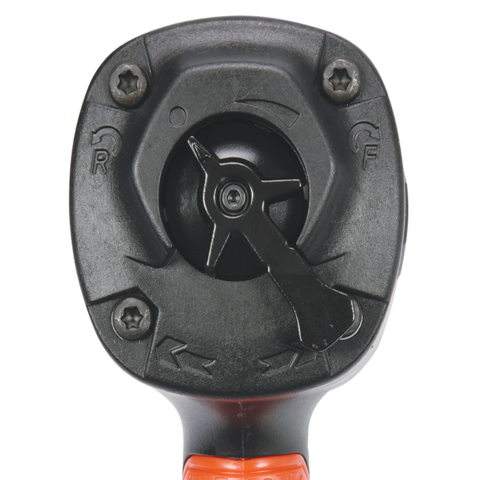

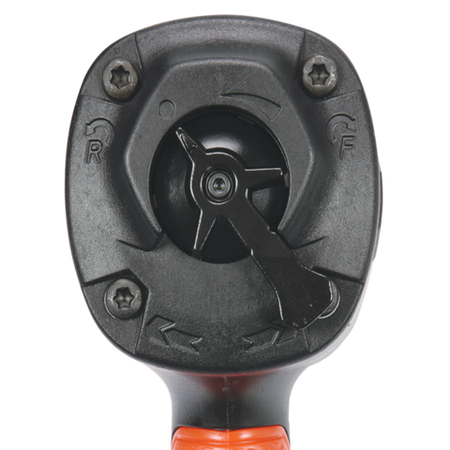

Rotation switch
yes
Acoustic pressure
95.0 ± 3.0 dB(A)
Acoustic power
106.0 ± 3.0 dB(A)
Vibrations
9.1 ± 1.5 m/s²
Weight
2.7 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09524

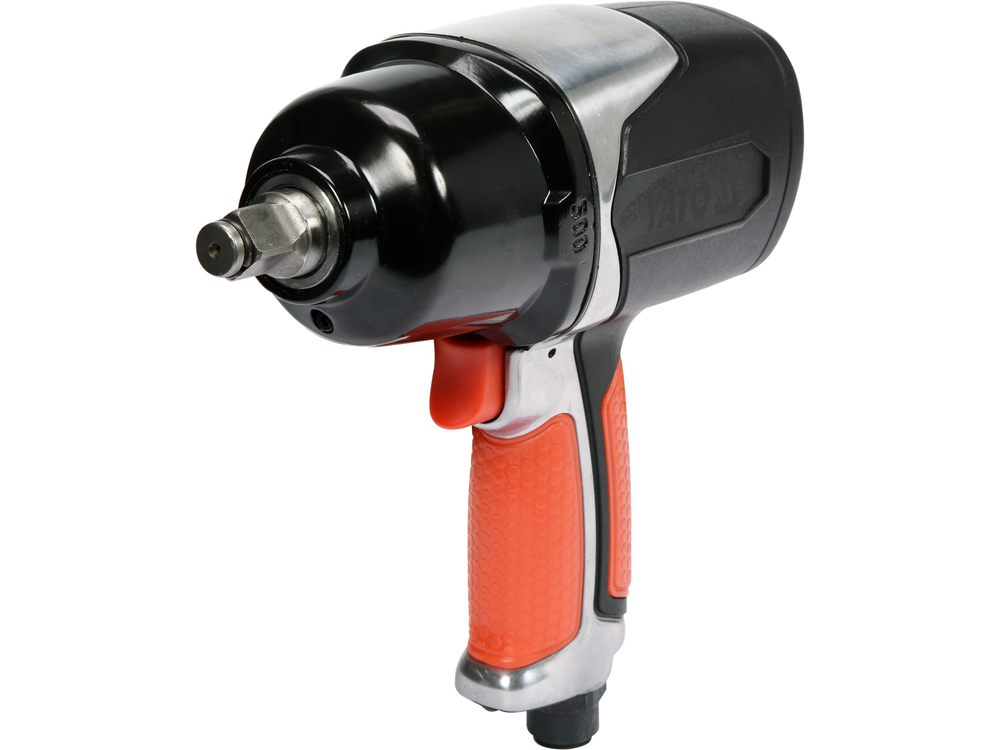

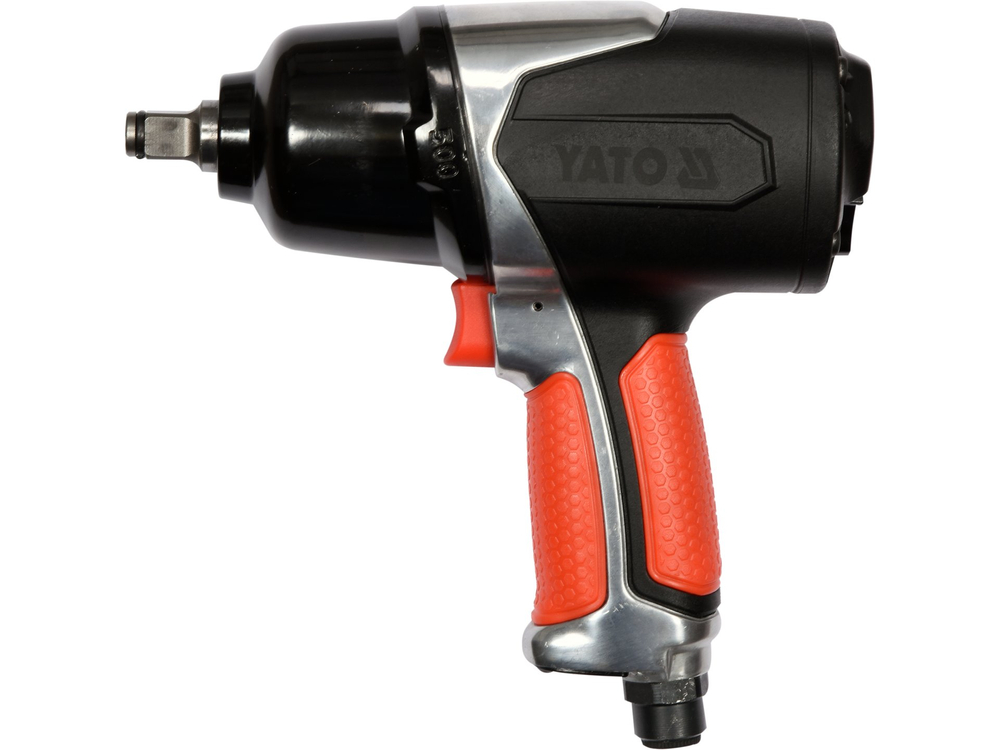

Pneumatic wrench 1/2" 680 Nm by YATO.
Made of composite casting and duralumin. The TWIN HAMMER impact mechanism guarantees high efficiency and outstanding durability. Use in industry, mechanical services and auto repair shops
The wrench is designed for use in mechanical workshops and auto repair shops. Body made of duralumin combined with composite.
• ergonomic housing
• handle that eliminates „cold touch”
• trój-stage rotational torque adjustment
Technical data:
• length: 205 mm
• weight: 2.7 kg
• maximum torque: 680 Nm
• air consumption: 184 l/min
• maximum speed: 7000 rpm
• 1/2&rdquo drive;
