YT-09715
AIR CUT-OFF TOOL
- Przecinarka pneumatyczna z tarczą 75mm.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Max. working pressure
0.65 MPa
Required air flow
127 l/min
Rotations
18000 min⁻¹
Disc diameter
75 mm
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Casing material
aluminum
Speed adjustment
yes
Acoustic pressure
87.0 ± 3.0 dB(A)
Acoustic power
98.0 ± 3.0 dB(A)
Vibrations
1.36 ± 1.5 m/s²
Weight
0.7 kg
Set includes
pneumatic cutter, cutting disc, air inlet connector, key for mounting and replacing the cutting disc x2
Symbol
YT-09715

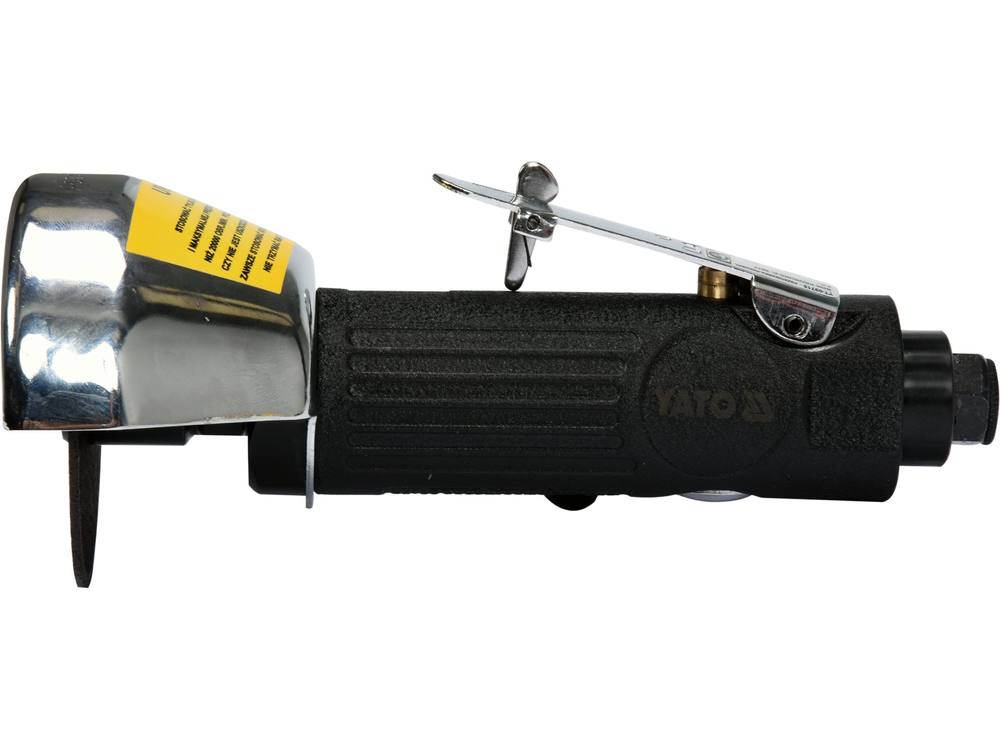

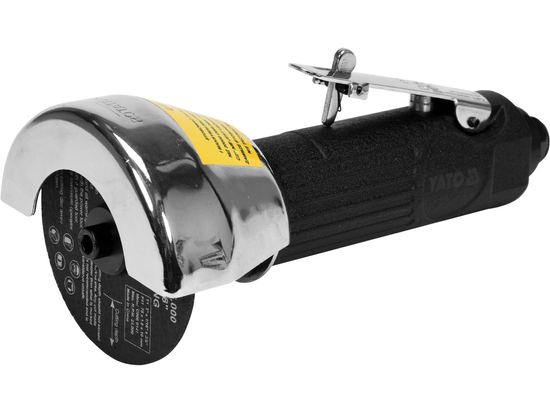

Lightweight and handy pneumatic cutter, designed for cutting body parts and sheet metal structures.
- compact aluminum body with steel blade guard .
- ergonomic switch lever with accidental lock
- adjustable speed
Technical data:
- Maximum speed: 18,000 rpm
- Diameter of cutting disc: 75 mm
- air consumption: 127 l/min
- air connection thread: 1/4"
- weight: 0.64 kg
