YT-29984

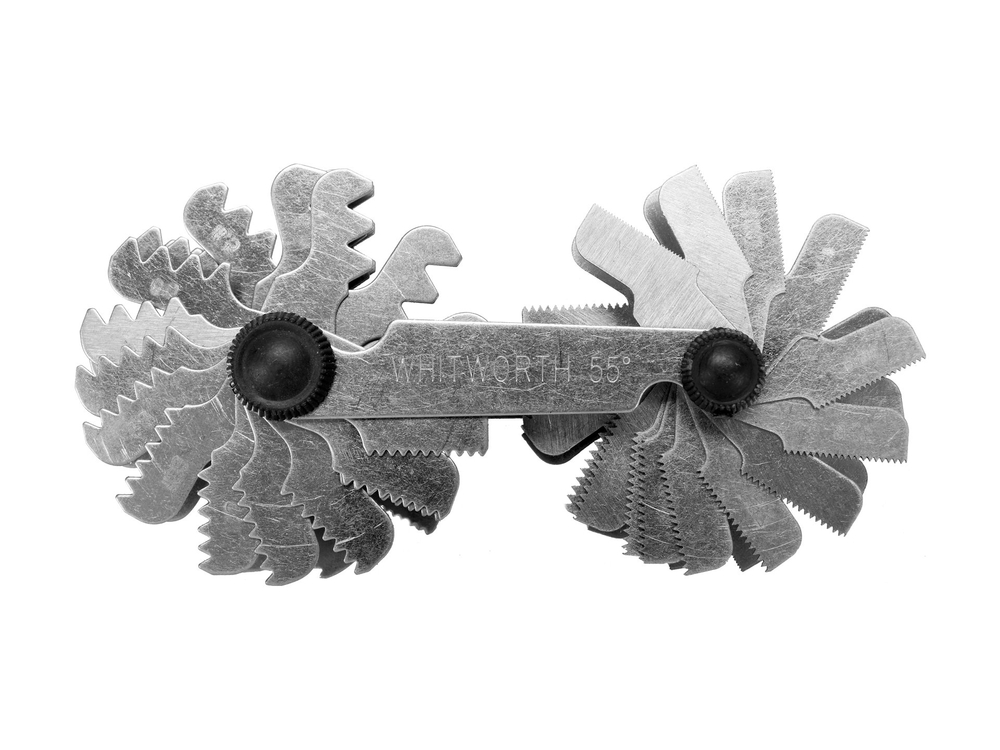

SCREW PITCH GAUGES METRIC AND WHITWORTH
- Sprawdzian grzebieniowy do kontroli gwintów metrycznych 60° ,0,25-6,0 mm oraz WHITWORTH 55°, 4 - 62 BSW, - 52 szablony.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of thread
metric, Whitworth
Thread pitch
0.25-6 mm
Thread size metric
0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6 mm
Thread size Whitworth
4, 4.5, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62
Material
430 stainless steel
Surface finish
galvanized
Blades quantity
52
Threads per inch
4-62 TPI
Thread outline angle
60, 55 ˚
Application
for checking internal or external metric threads, for checking internal or external Whitworth threads
Symbol
YT-29984
The gauge is made of hardened steel plate.
- has 52 tilted plates with incised thread patterns
- designed for internal and external metric threads.60° with a pitch of 0.25-6.0 mm and Whitworth 55°, 4 - 62 BSW
- plates locked with a clamping screw
