YT-29982
SCREW PITCH GAUGES WHITWORTH
- Sprawdzian grzebieniowy do kontroli gwintów WHITWORTH 55°, 4 - 62 BSW
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of thread
Whitworth
Thread size Whitworth
4, 4.5, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62
Material
430 stainless steel
Surface finish
galvanized
Blades quantity
28
Threads per inch
4-62 TPI
Thread outline angle
55 ˚
Application
for checking internal or external Whitworth threads
Symbol
YT-29982

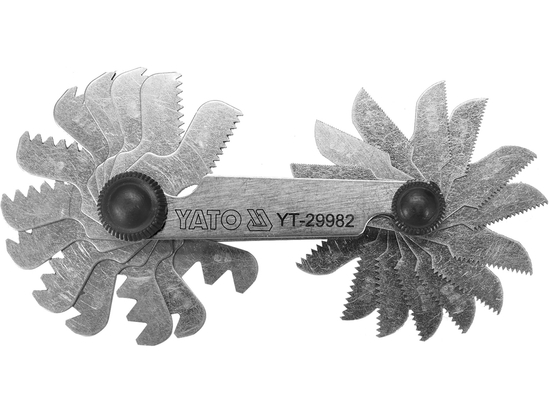

A tester made of hardened steel plate.
- has 28 tilted plates with incised thread patterns
- .designed for internal and external Whitworth threads 55°, 4 - 62 BSW
- .locking inserts with a clamping screw
- for inspection of WHITWORTH-type internal external threads
- select the appropriate template insert matching closely with the teeth of the thread to be tested
- the thread parameters are described on the insert
