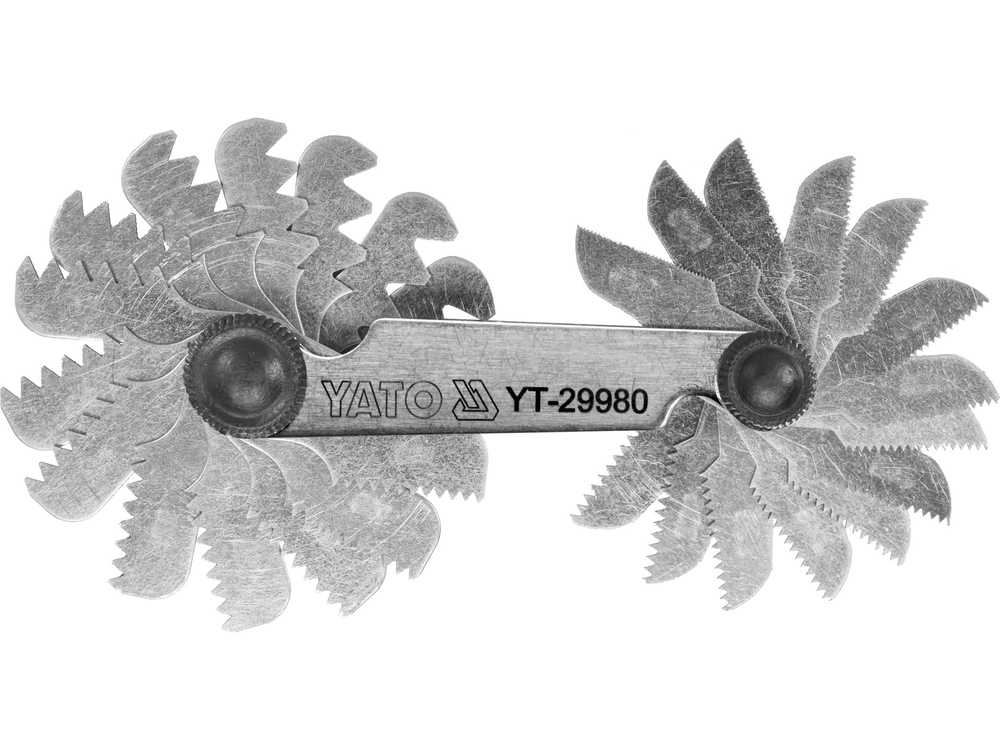

YT-29980
SCREW PITCH GAUGES METRIC
- Sprawdzian grzebieniowy do kontroli gwintów metrycznych 60° ,0,25-6,0 mm
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of thread
metrical
Thread pitch
0.25-6 mm
Thread size metric
0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6 mm
Material
430 stainless steel
Surface finish
galvanized
Blades quantity
24
Thread outline angle
60 ˚
Application
for checking internal or external metric threads
Symbol
YT-29980
The gauge is made of hardened steel plate.
- has 24 tilted plates
- has 24 tilted plates with incised thread patterns
- .designed for internal and external metric 60° threads with a pitch of 0.25-6.0 mm
- .inserts in the housing are locked with a clamping screw
- for inspection of internal or external metric threads
- select the appropriate template insert matching closely with the teeth of the thread to be tested
- the thread parameters are described on the insert
