YT-09944

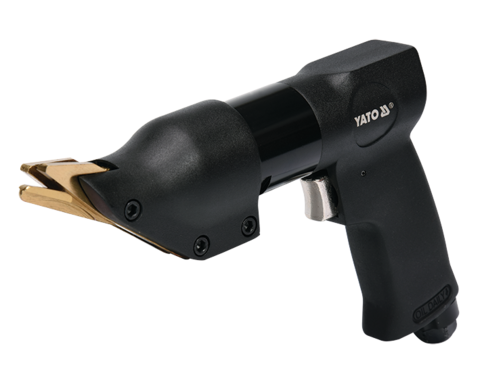

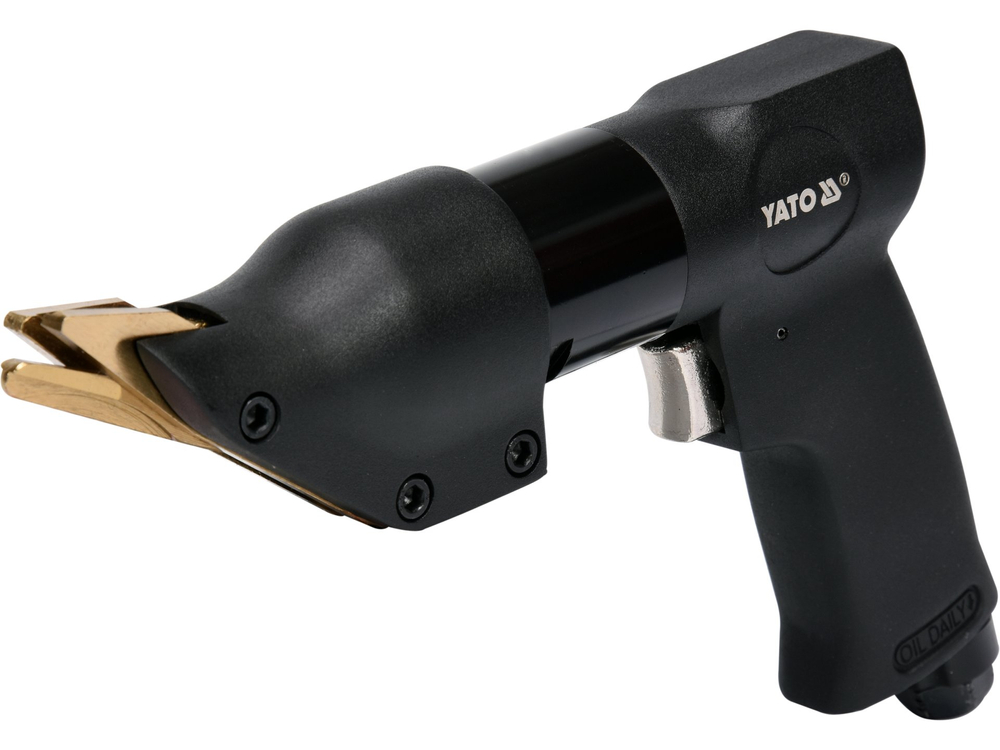

AIR METAL SHEAR PISTOL TYPE
- Nożyce pneumatyczne proste.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Max. working pressure
0.63 MPa
Required air flow
141 l/min
Cutting speed
1800 min⁻¹
Cutting width
5.5 mm
Max. cutting capacity in steel
1.2 mm
Max. cutting thickness in aluminium
1.4 mm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Material
aluminium
Acoustic pressure
80.0 ± 3.0 dB(A)
Acoustic power
91.0 ± 3.0 dB(A)
Vibrations
6.5 ± 1.5 m/s²
Weight
1.3 kg

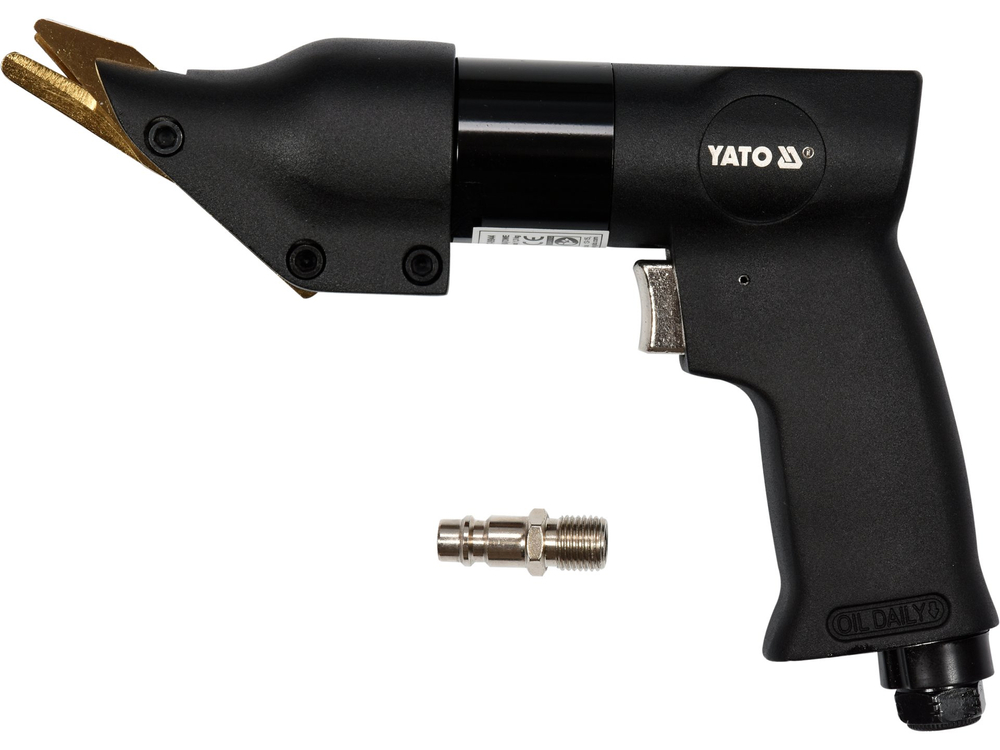

Set includes
pneumatic scissors, air inlet connector
Symbol
YT-09944
YATO pneumatic shears for cutting sheet metal, for use in sheet metal workshops, among others.
• Allows free cutting of steel sheets up to 1.2 mm thick and aluminum up to 1.4 mm
• Cutting diameter: 5.5 mm
• Low air consumption: 141 l/min
• Efficient, durable blades
• Comfortable handle
• Number of strokes:1800/min
