57097
ELECTRIC IMPACT WRENCH 3/4" 1100W/ 800NM WITH SOCKETS 24, 30, 32, 36MM AND CABLE 4M
- ELEKTRYCZNY KLUCZ UDAROWY 1100W/ 800NM 3/4"
Brand
Symbol
57097
Producer code
5906083025884
Series
Power
1100 W
Turnover
2200 min⁻¹
Stroke frequency
4000 min⁻¹
Torching max.
800 Nm
Voltage
230-240 V a.c.
Frequency
50 Hz
Tool handle size
3/4" (19.0 mm)
Type tool handle
rope
Length of cable
4 m
Electrical insulation class
II
Ingress protection
IP20
Acoustic pressure
89.0 ± 3.0 dB(A)
Acoustic power
100.0 ± 3.0 dB(A)
Vibrations
10.04 ± 1.5 m/s²
Weight
4.1 kg
Contents of the set
impact key, X4 impact cap (24 mm, 30 mm, 32 mm, 36 mm)

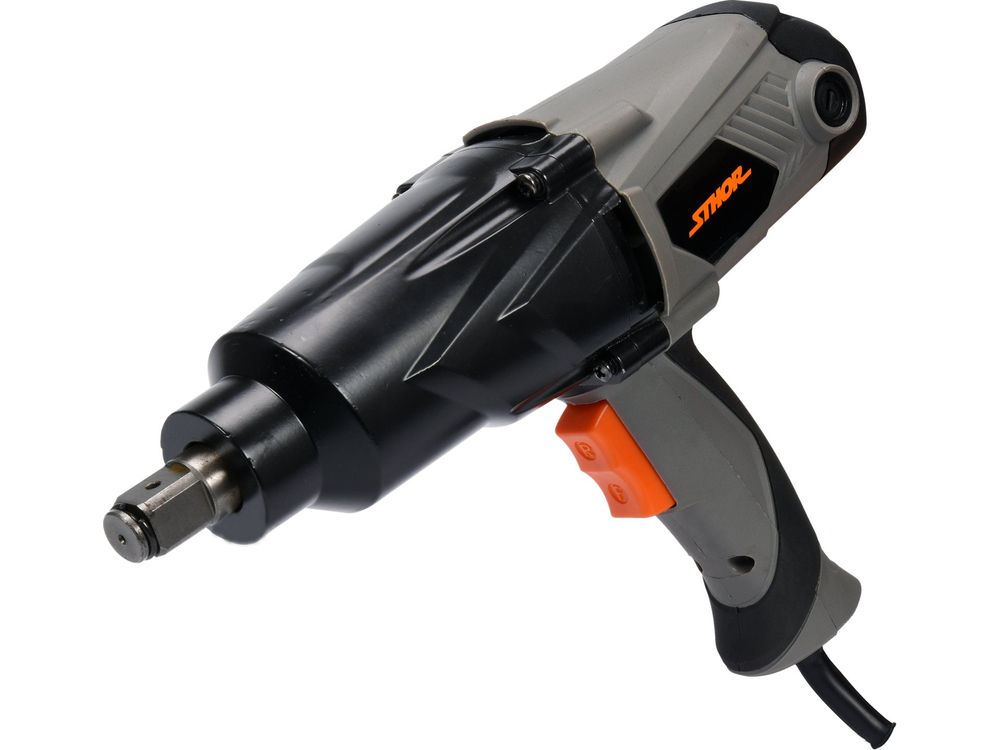

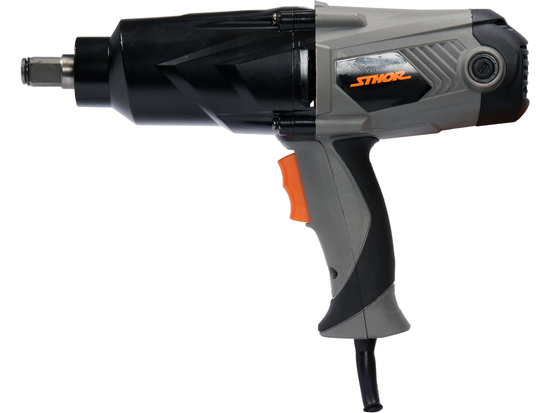

Electric impact wrench 3/4".
- power 1100W
- 800 Nm
- complete with sockets 24 mm, 30 mm, 32 mm, 36 mm.
- length of power cord 4 meters
- the whole is housed in a handy case
The impact wrench is an ordinary power tool, class II insulation, designed for loosening and tightening nuts and bolts. Thanks to the electric power supply, it is not required to have a pneumatic system to operate the wrench. Correct, reliable and safe operation of the tool depends on proper operation. The wrench is supplied complete and does not require assembly. Socket wrenches are supplied with the wrench.
- before screwing a bolt or nut with a socket wrench, manually thread the bolt or nut (at least two turns)
- ensure that you have correctly sized the socket wrench in relation to the component to be unscrewed or tightened. Incorrect sizing can result in damage to both the wrench and the nut or bolt
- slip the socket wrench over the nut or bolt head
- press the switch and hold it in the position corresponding to the desired direction of rotation
- in the case of tightening, press and hold the switch in the F position, and in the case of loosening in the R position
- in the case of tightening, when the maximum torque is reached, the overload clutch will engage and the drive of the driver will be disconnected. You should then let go of the switch and wait until the motor stops rotating completely
- in the case of loosening, check that the torque with which the nut was tightened does not exceed the maximum torque of the wrench. If this is the case, the overload clutch will also engage and it may not be possible to unscrew the nut
- after unscrewing, release pressure on the device switch and wait until the motor stops rotating completely
- after finishing work, unplug the tool from the power supply and proceed with maintenance

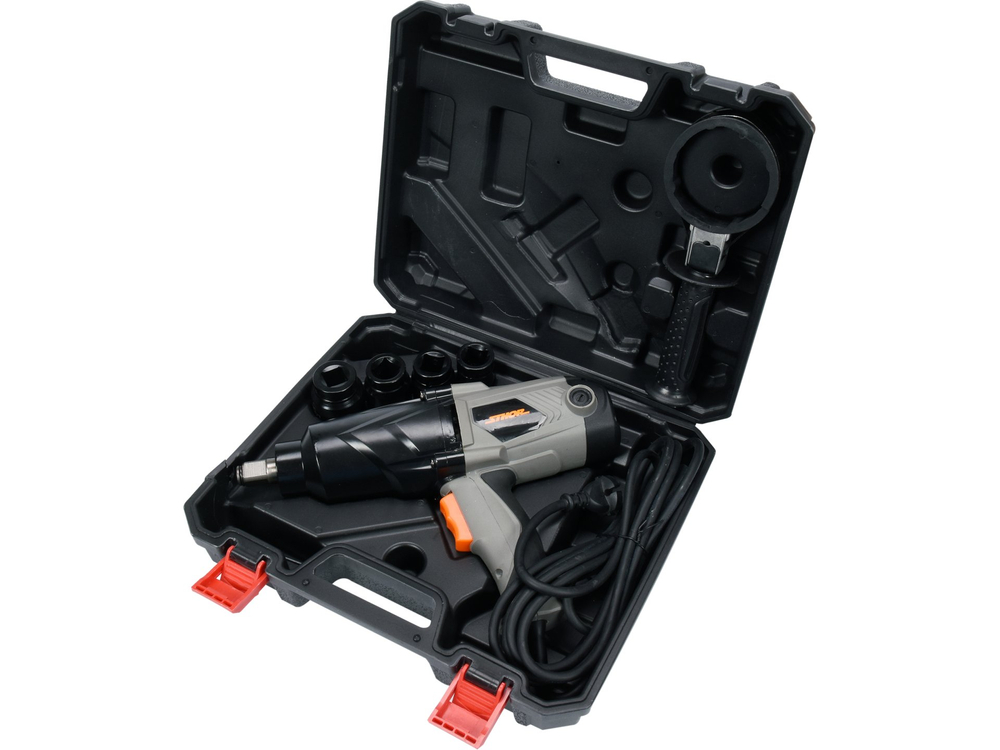

Set contents:
- Electric impact wrench Sthor
- impact sockets 24 mm, 30 mm, 32 mm, 36 mm
- length of the tool.
- length of power cord 4 meters

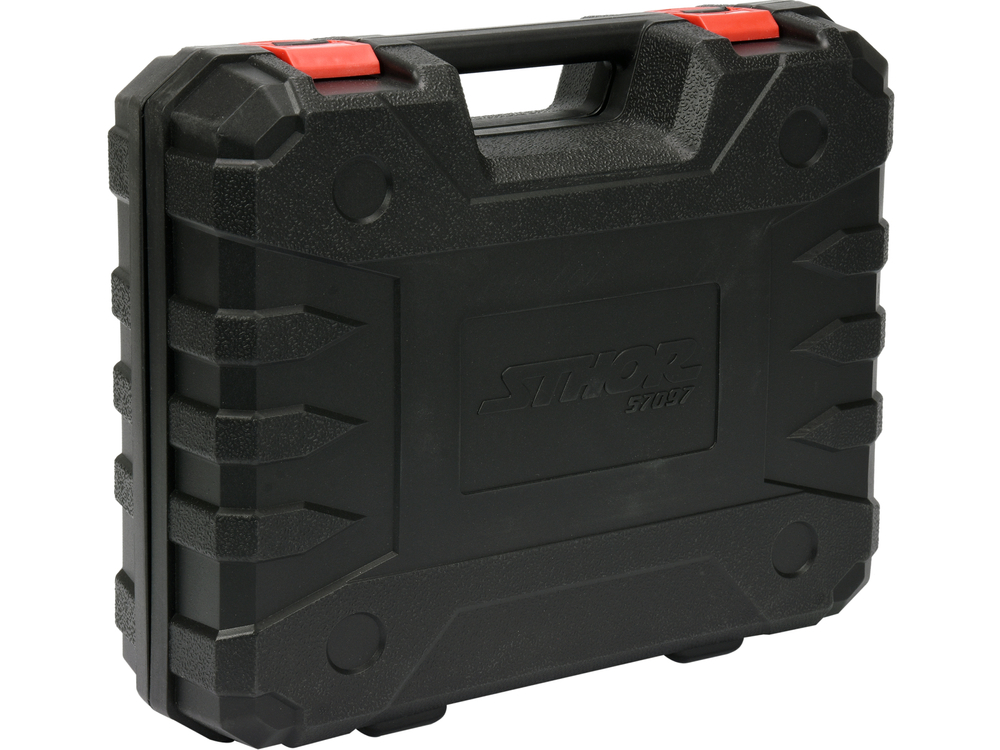

- practical carrying case
