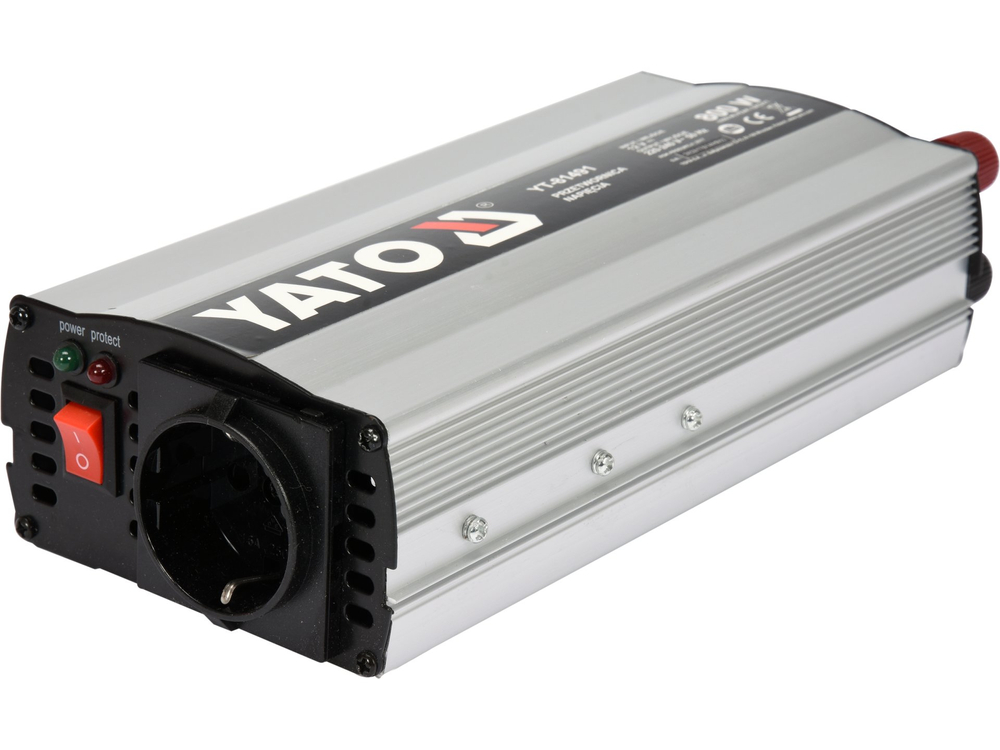

Voltage converter 12/230 V 800 W

The voltage converter is a device that allows you to power electrical equipment that requires mains power with a 12-volt car battery.

Thanks to its small size, light weight and high power, it is able to power many electrical devices in places without access to the power grid.

Parameters:

• nominated input voltage [V d.c.]: 12
• operating input voltage [V d.c.]: 10.5 - 15
• nominal output voltage [V a.c.]: 230
• operating output voltage [V a.c.]: 220 - 240
• nominal output frequency [Hz]: 50 ± 10%
• rated power (continuous) [W]: 800
• peak power [W]: 1600
• efficiency [%]: ≥80

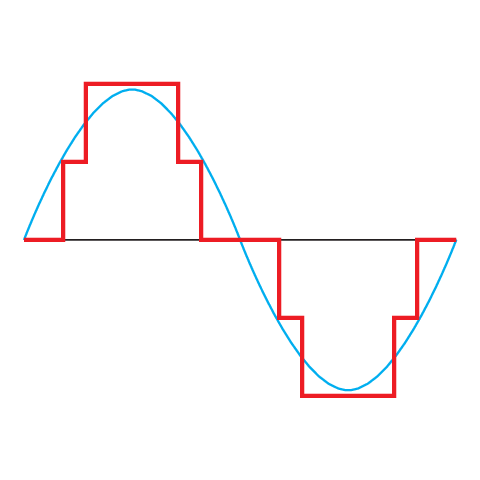

• output signal characteristics: modified sine wave
• no-load current consumption [A]: <0.7
• Low battery alarm voltage. [V d.c.]: 10 ± 0.5
• inverter shutdown input voltage [V d.c.]: 9.5 ± 0.5
• power overload [W]: >760
• inverter input voltage overload [V d.c.]: 15 - 16
• temperature overload [deg C]: >60
• fuse: 50A x 2
• weight [kg]: 0.83
• grade of protection: IP20
• class of electrical insulation: I

Additional information:

• low battery voltage indication
• the inverter is equipped with a fan that will start automatically when the inverter is running and help cool the inverter's electrical systems
