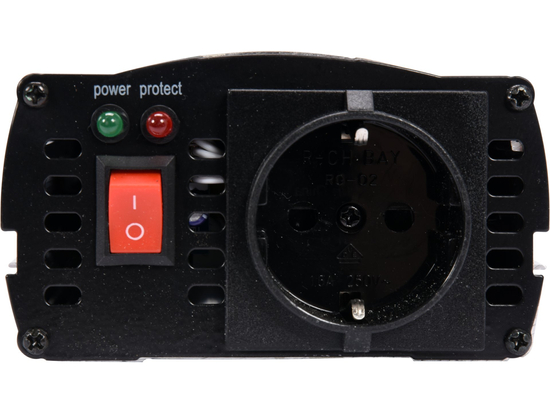

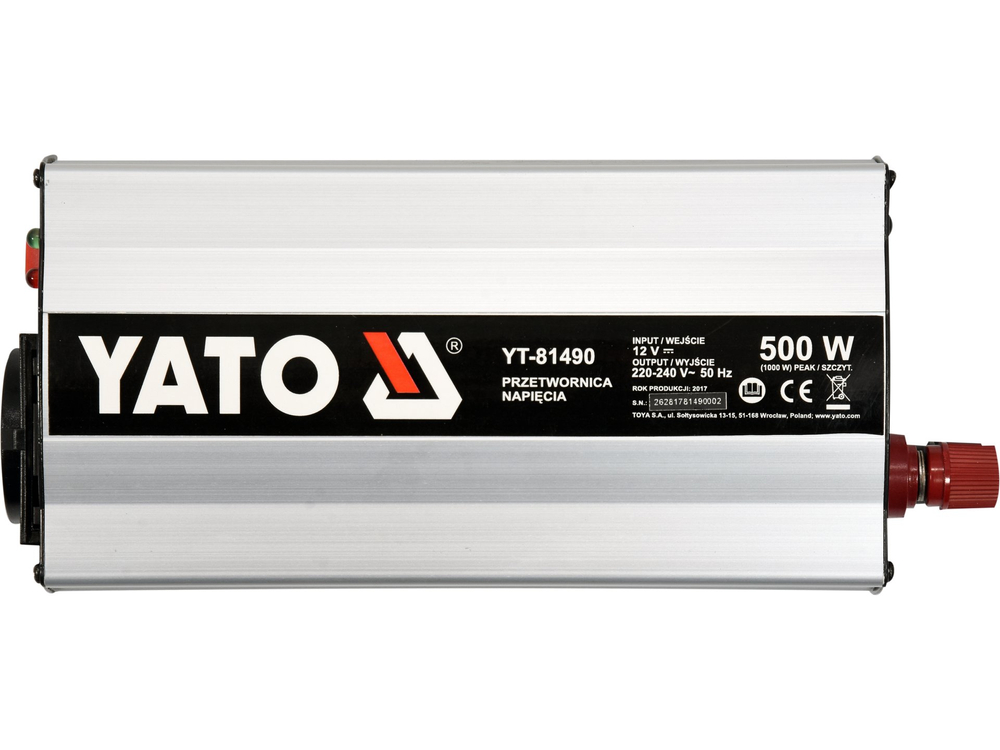

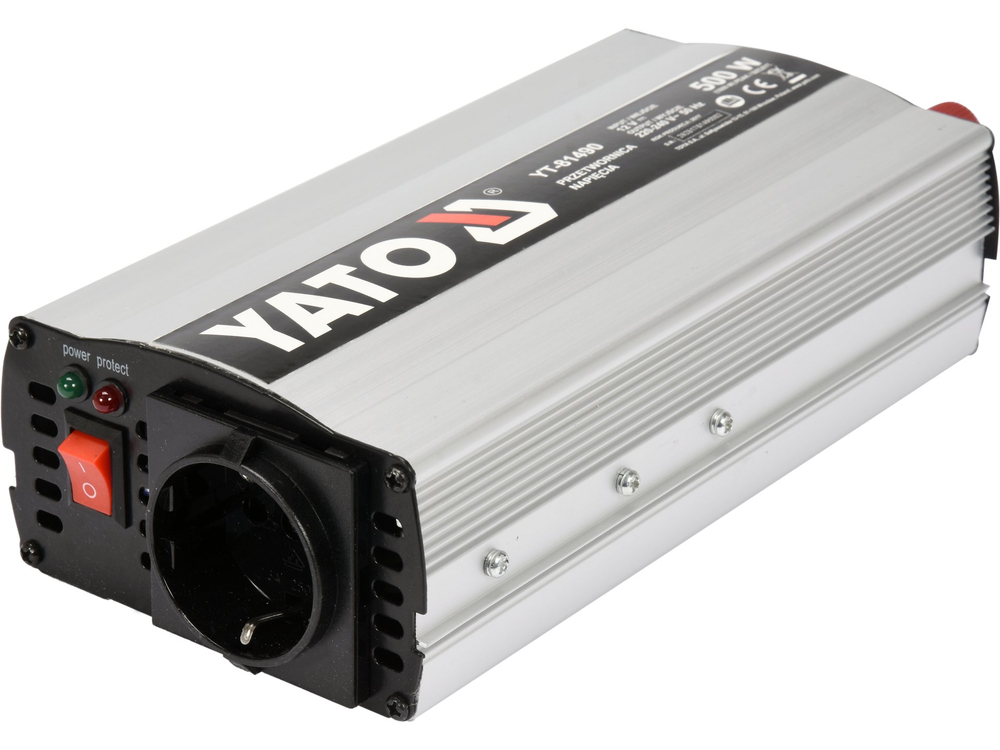

Voltage converter 12/230V 500W

Voltage converter is a device that allows you to power electrical equipment that requires mains power through a 12-volt car battery.

Thanks to its small size, light weight and high power, it is able to power many electrical devices in places without access to the power grid.

Parameters:

• rated input voltage [V d.c.]: 12
• operating input voltage [V d.c.]: 10,5 - 15
• rated output voltage [V a.c.]: 230
• operating output voltage [V a.c.]: 220 - 240
• rated output frequency [Hz]: 50 ± 10%
• rated power (continuous) [W]: 500
• peak power [W]: 1000
• efficiency [%]: ≥80

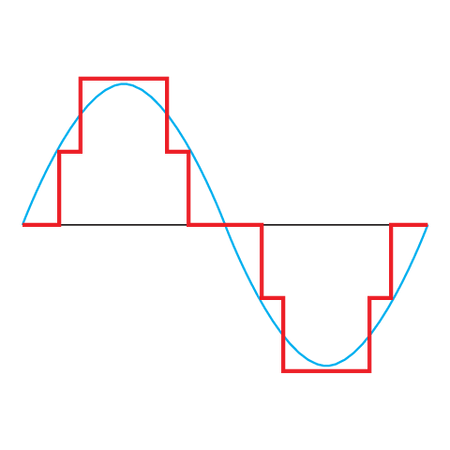

• output signal characteristics: modified sine wave
• no-load current consumption [A]: <0,7
• low battery alarm voltage. [V d.c.]: 10 ± 0,5
• inverter shutdown input voltage [V d.c.]: 9,5 ± 0,5
• power overload [W]: >760
• input voltage overload [V d.c.]: 15 - 16
• temperature overload [deg. C]: >60
• fuse: 35A x 2
• weight [kg]: 0,73
• protection degree: IP20
• electrical insulation class: I

Additional information:

• low battery voltage indication
• the inverter is equipped with a fan that will start automatically during the operation of the inverter and help cool the electrical systems of the inverter
