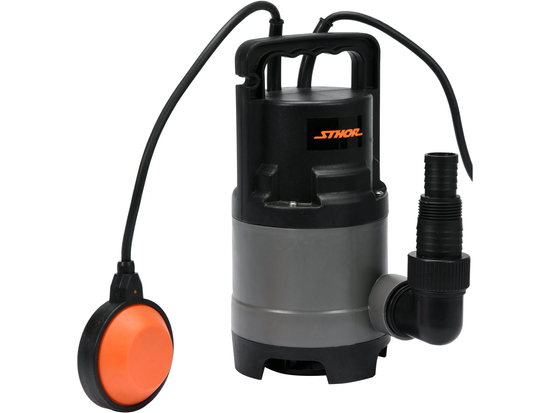

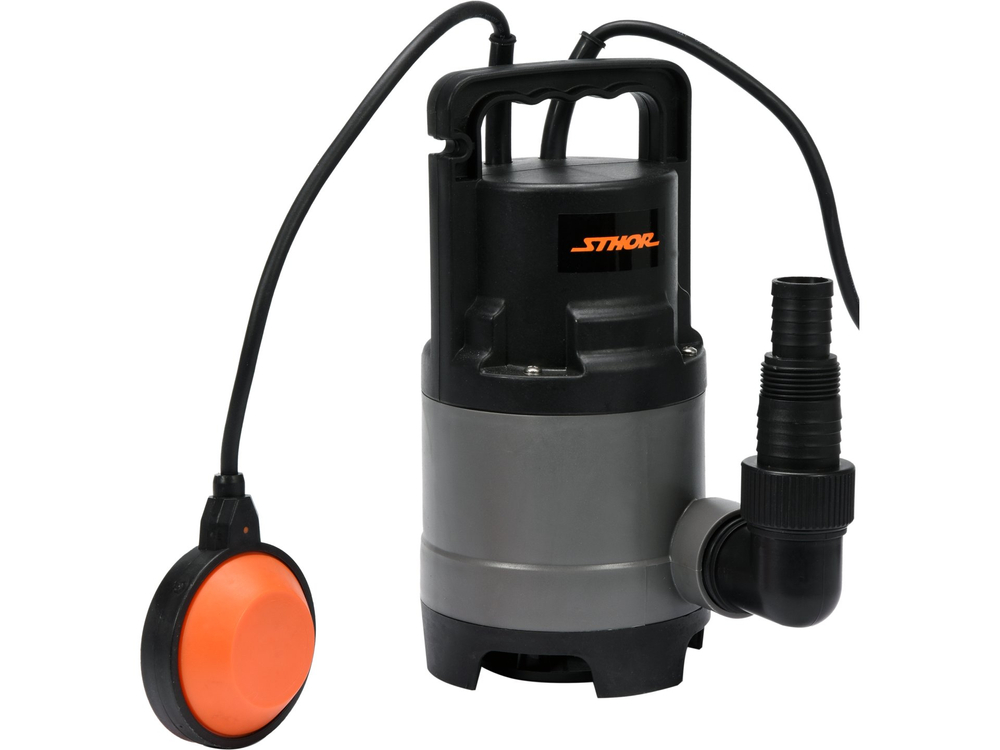

DIRTY WATER SUBMERSIBLE PUMP 500W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Power
500 W
Max. capacity
10000 l/h
Voltage
230 V a.c.
Frequency
50 Hz
Water outlet diameter
G1, G1-1/4, G1-1/2
Max. head
6.5 m
Max. submersion depth
7 m
Min. shaft dimensions
40x40x50 cm
Max. foreign matter diameter
35 mm
Max. water temperature
35 ˚C
Float switch
yes
Thermal switch
no
Power on level
ok. -0.5 m
Power off level
ok. -0.07 m
Casing material
PVC
Dimensions (diameter x height)
160x340 mm
Cable length
10 m
Electric insulation class
I
Protection grade
IPX8
Weight
3 kg
Set includes
submersible pump, connector for attaching the hose
Symbol
79782
Submersible pumps used for pumping, aeration and circulation of water .clean and polluted from rainwater tanks, wells.
They can be used to pump water out of swimming pools, basements, excavations, used in households and farms, allotments, construction sites.
- automatic float switch responding to changing water levels
- housing made of impact-resistant plastic
- robust construction
- max. submersion: 7 m
- max. dirt size: 35 mm
- max. water temp: 35°C
- rubberized cable: 10 m
- connection adapters: 1ʺ, 1-1/4ʺ
