Guide
79790

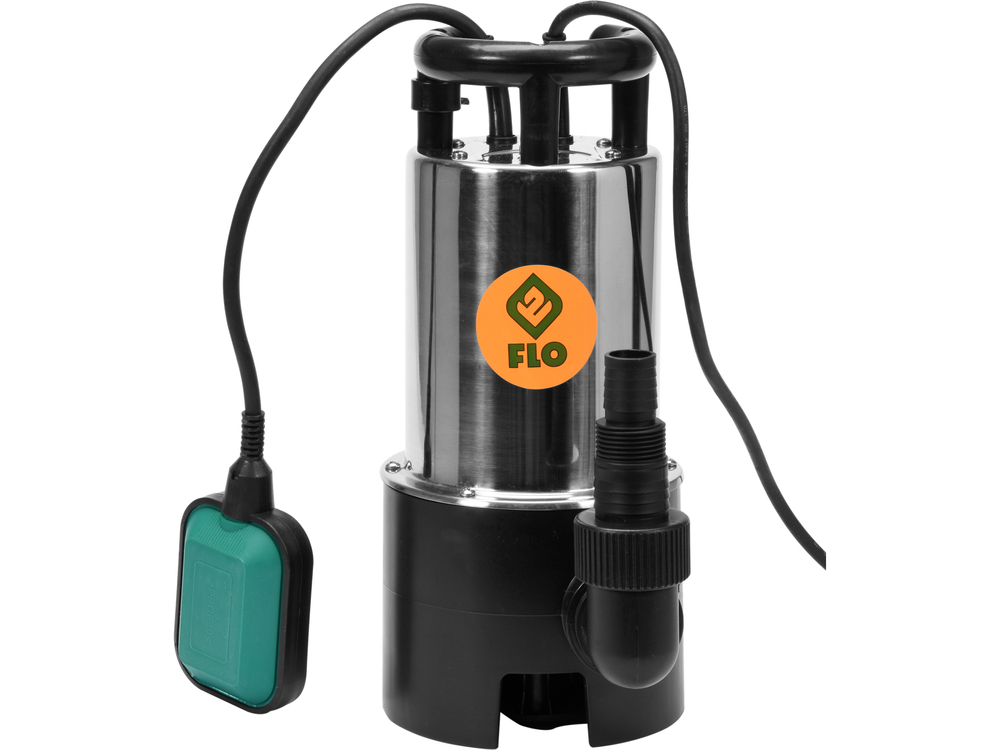

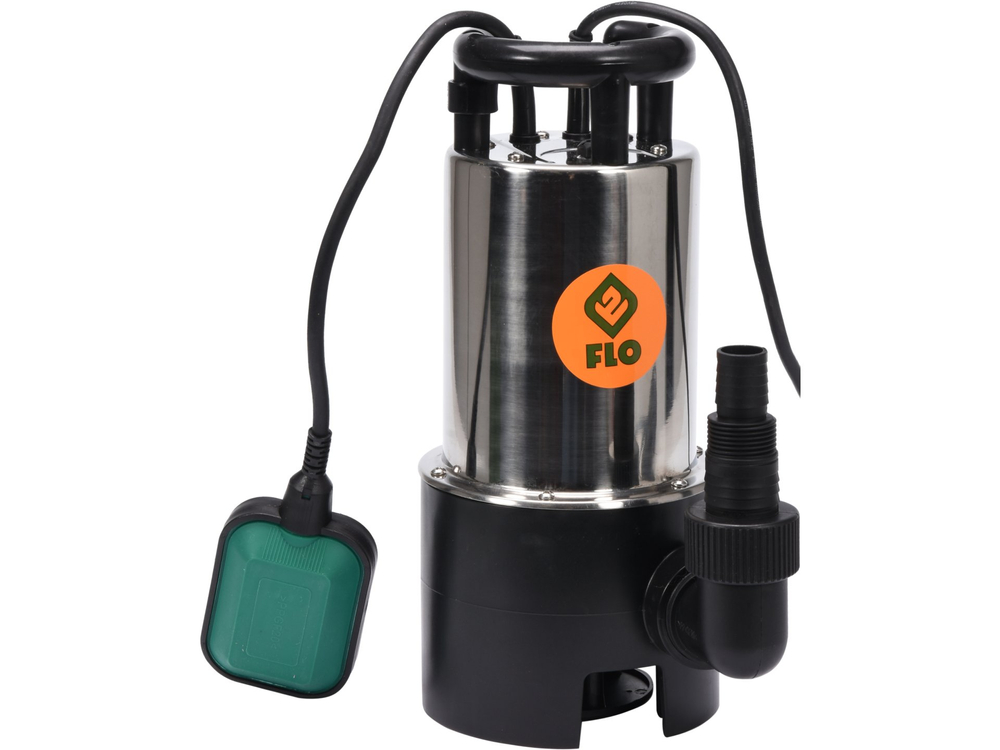

INOX DIRTY WATER SUBMERSIBLE PUMP 750W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
750 W
Max. capacity
14000 l/h
Voltage
230 V a.c.
Frequency
50 Hz
Water outlet diameter
G1, G1-1/4, G1-1/2
Max. head
7.5 m
Max. submersion depth
7 m
Min. shaft dimensions
40x40x50 cm
Max. foreign matter diameter
16 mm
Max. water temperature
35 ˚C
Float switch
yes
Thermal switch
no
Power on level
ok. -0.5 m
Power off level
ok. -0.07 m
Casing material
stainless steel
Dimensions (diameter x height)
135x310 mm
Cable length
10 m
Electric insulation class
I
Protection grade
IPX8
Weight
4.2 kg
Set includes
submersible pump, connector for attaching the hose
Symbol
79790
Performance submersible pump FLO 750W with durable stainless steel housing ( inox ) used for pumping, aerating and circulating clean and polluted water from rainótanks, wells.
It can be used to pump out water from swimming poolsós, basements, ponds, used in households and farms, recreational plots, summer houses.
- automatic float switch responding to changing water levels
- solid corrosion resistant construction
- size dimensions [mm] (diameter x height): 135 x 310
- minimum shaft cross-section [cm] : 40 x 40 x 50
- max. water temp: 35°C
- rubberized cable: 10 m
- adapters connection: 1ʺ, 1-1/4ʺ, 1-1/2ʺ
