The Wave linear drain is an excellent idea for elegant and practical arrangement of bathroom space.
A wide selectionór of available sizesów allows you to optimally match its length to the dimensionsów of the shower enclosure or tiles, and allows you to plan your shower space with greater freedom than with traditional shower trays.
It is made wholly of AISI 304 stainless steel, whichóra is characterized by resistance to corrosion, detergents and mechanical damage.
Wave shower drains are equipped with facilities that guarantee comfortable and efficient operation for many years:

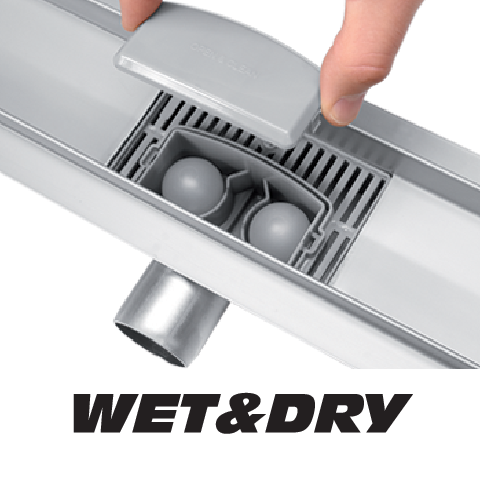

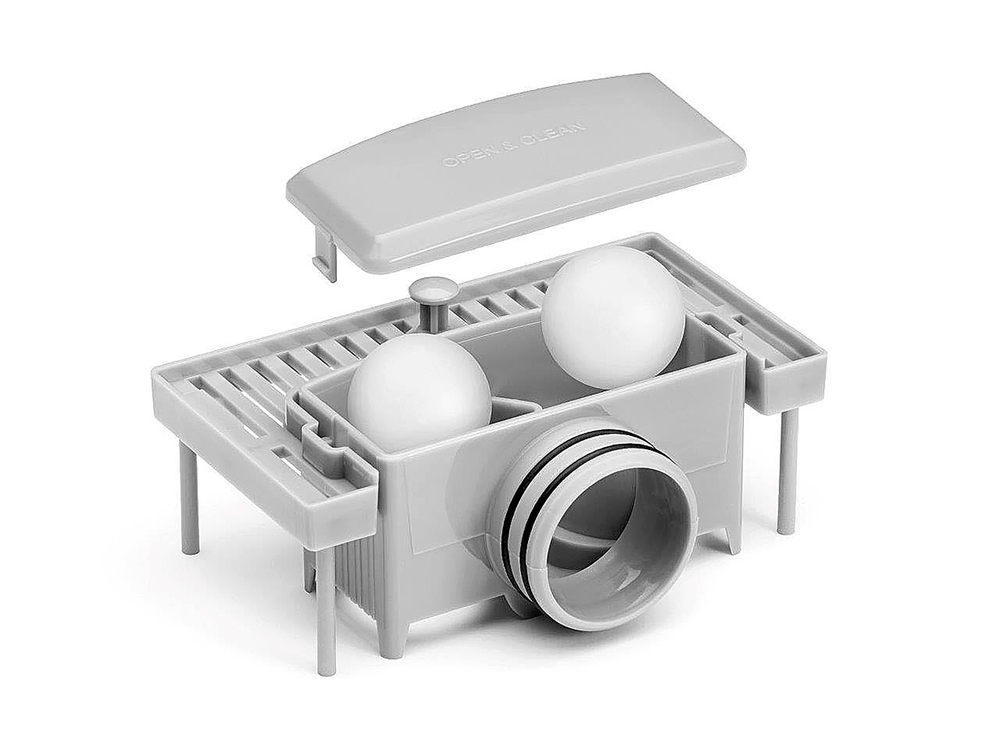

- WET&DRY – a special solution in the siphon thatóre prevents odorsów and bugsów during use as well as after drying;

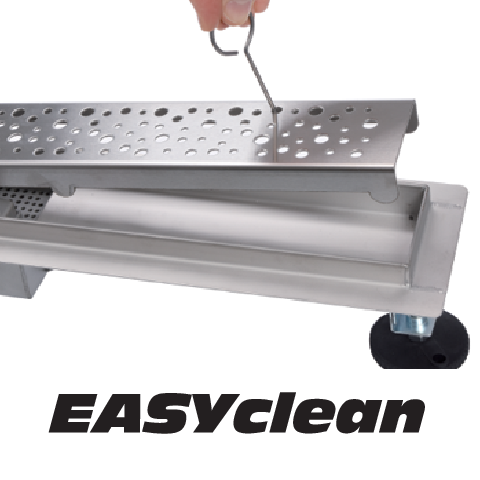

- EASYclean – is easy to clean, thanks to a hook that&óry is included;

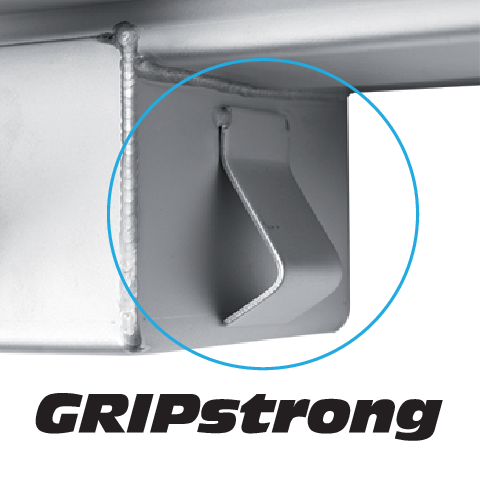

- GRIPstrong – handles to stabilize the body, additional stiffening of the structure in the floor;

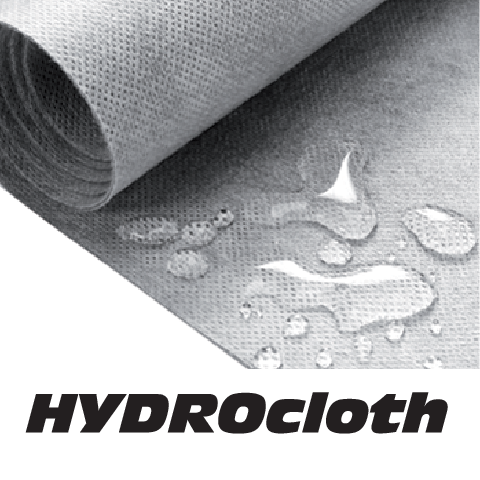

- HYDROcloth – sealing mat is included – an indispensable part when performing waterproofing;

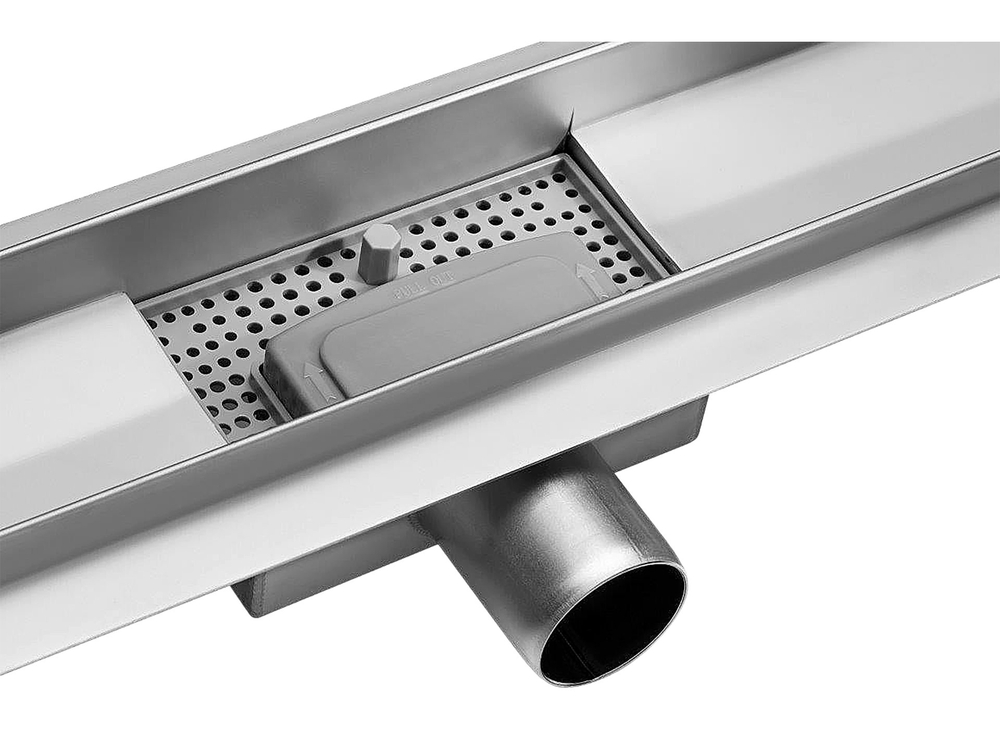

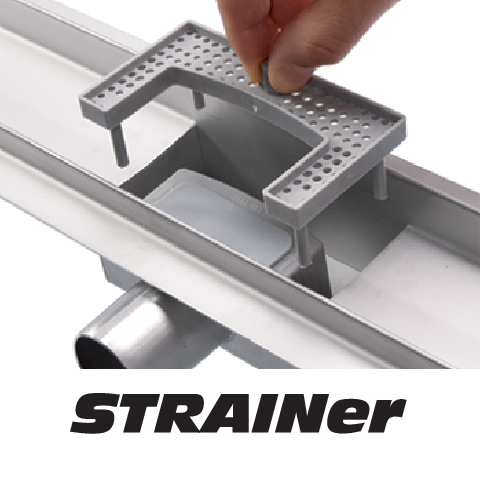

- STRAINer – an effective and durable strainer that prevents clogging of the trap and facilitates the ongoing maintenance of the drain;

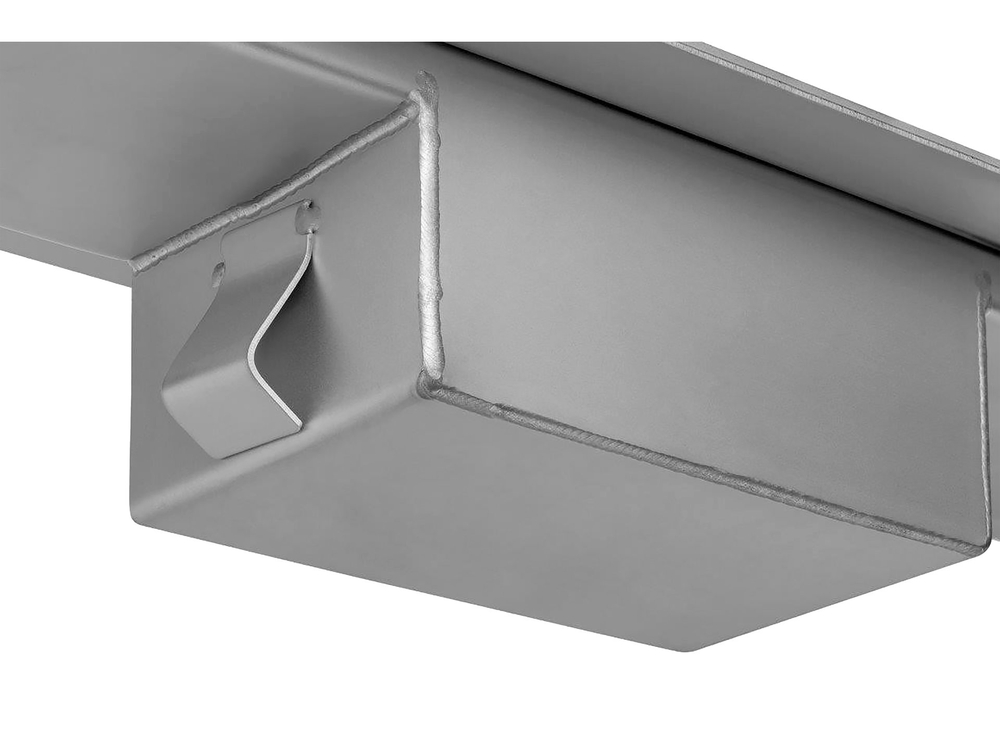

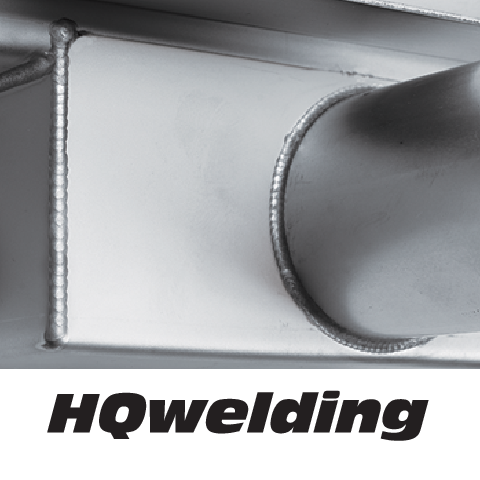

- HQwelding – high quality precision welds that guarantee the tightness of the drain;

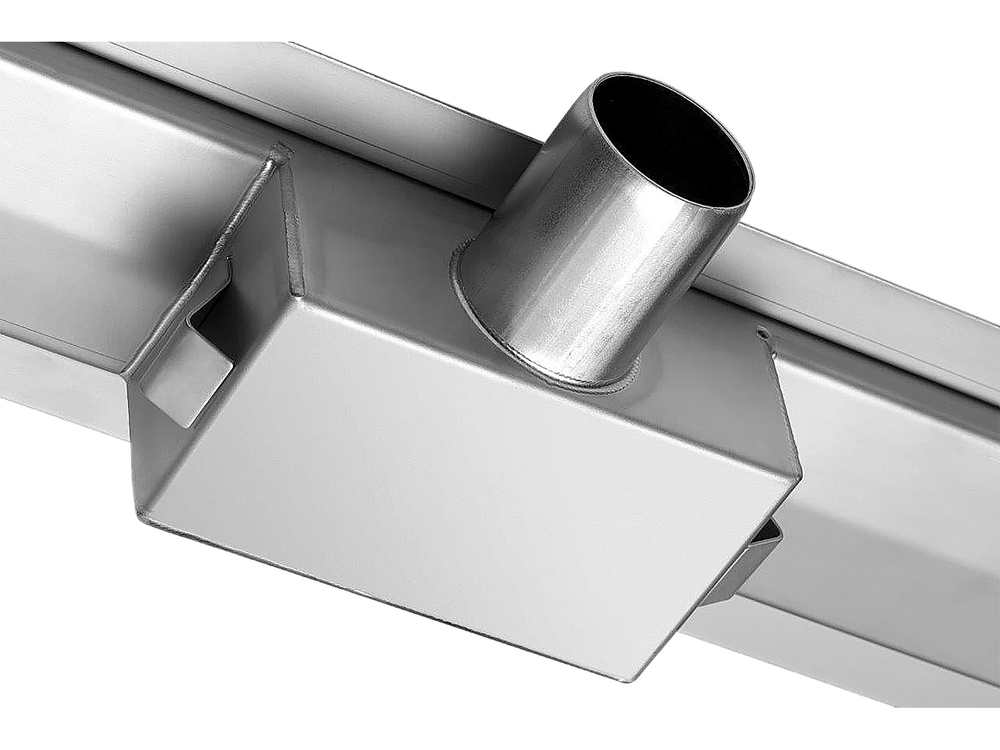

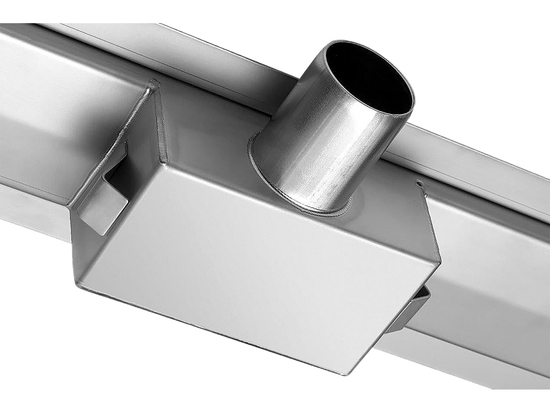

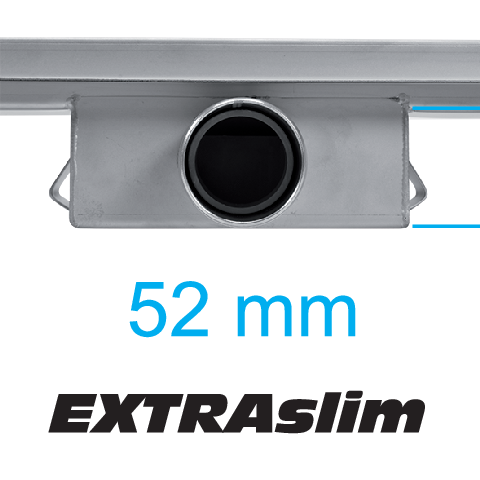

HQwelding.br /> - EXTRAslim – made of AISI 304 stainless steel a very low siphon thatós easy to install;

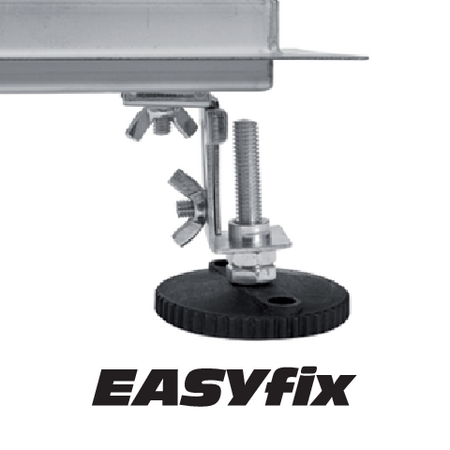

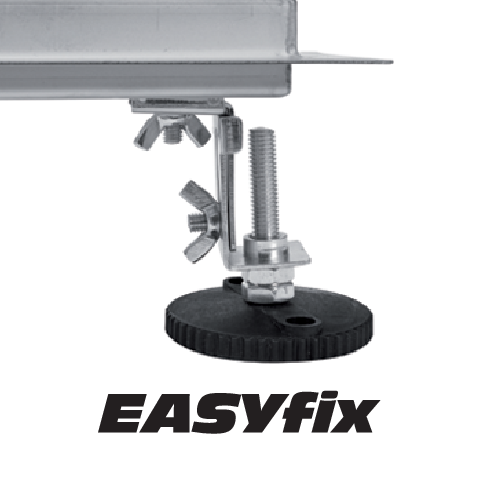

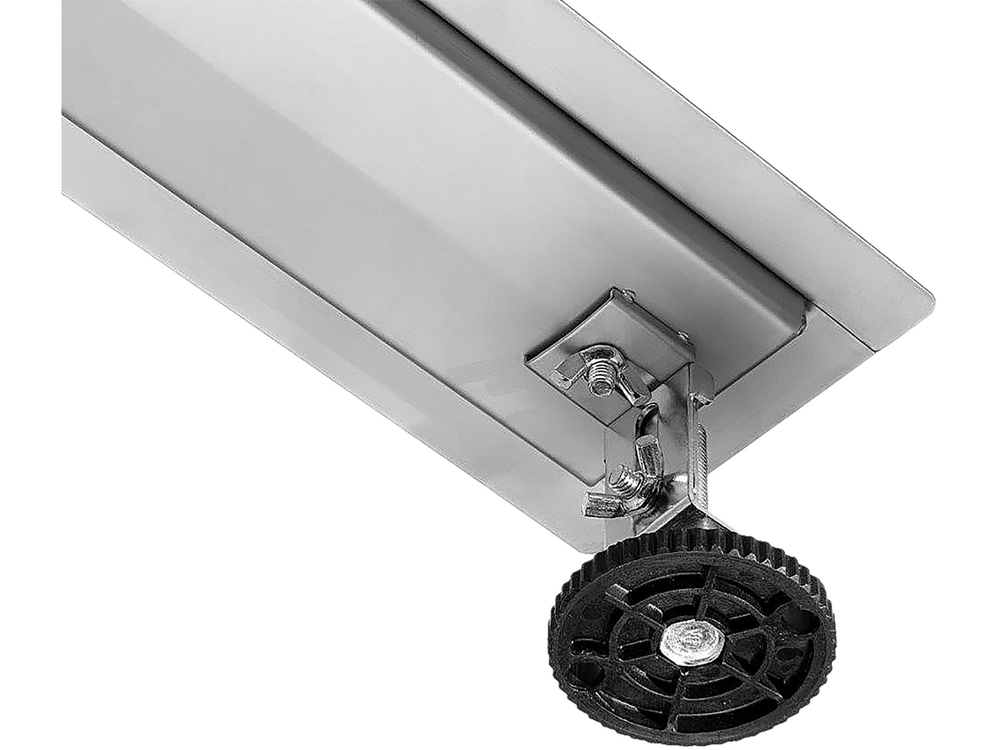

- EASYfix – a wide range of height adjustment thatóry allows you to adjust the drain to the floor surface.


You will install the Wave drain without worry – all our drains have a 10-year warranty!

Details:
- gutter length: 60 cm

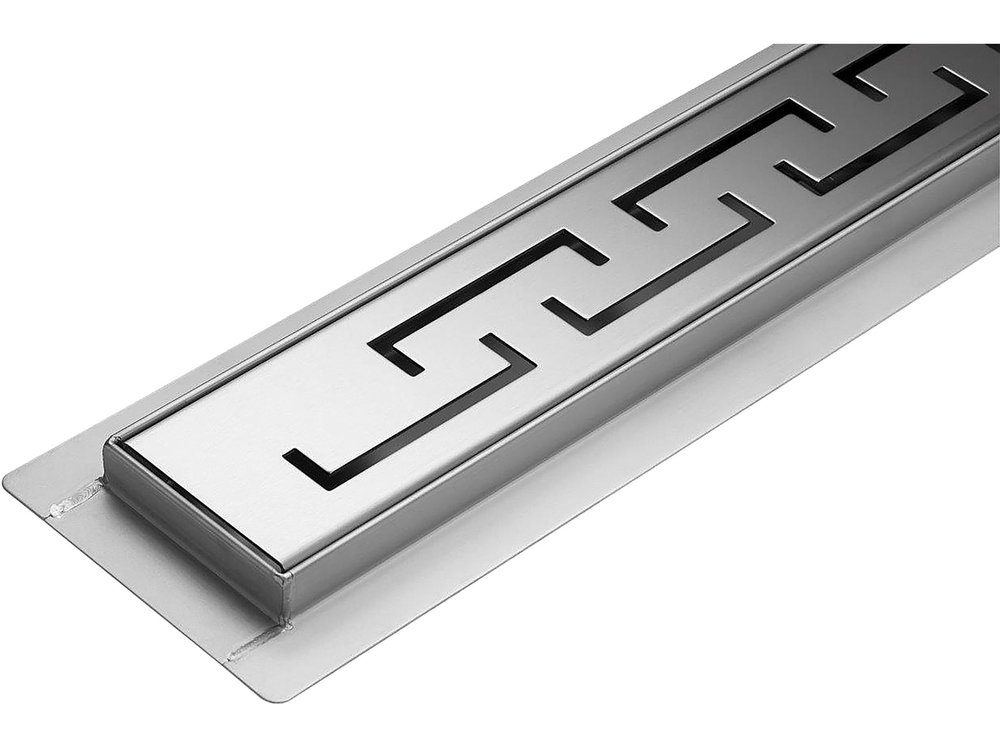

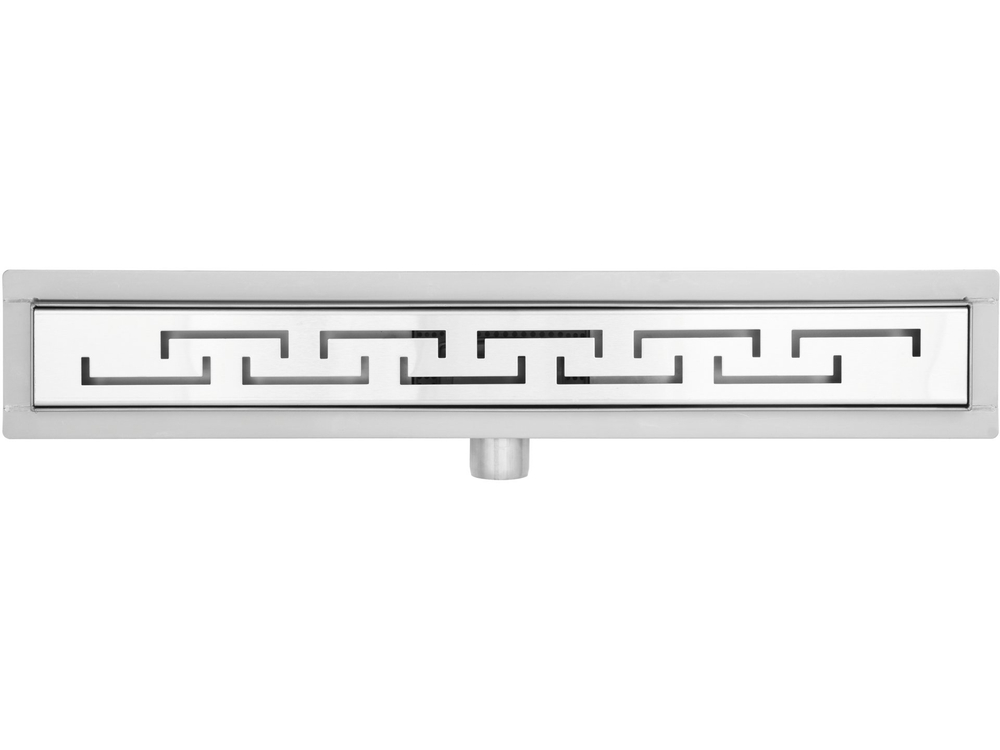

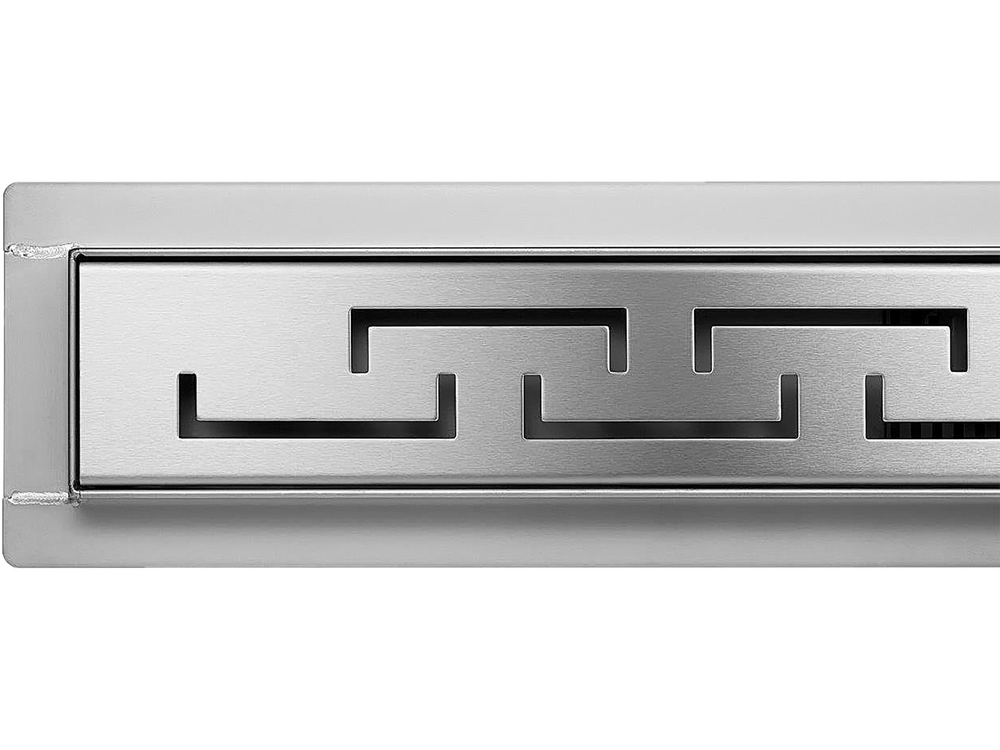

- grate pattern – OLIMP
- material: stainless steel AISI 304
- width: 70 mm (additional flange approx. 2 cm on each side)
- trap height: 52 mm

Thickness of steel of linear drainsós:

• brine: 1.2 mm
• pipe: 1.5 mm

Product in accordance with EN 1253-1
Capacity class: K3 (surfaces without vehicular traffic)
Product thermal behavior class: Class A (no installation restrictions)
Flow rate: more than 36 l/min (the shower faucet has a maximum flow rate of 18 l/min)
