YT-36715
TURBO HAND TORCH
- Palnik gazowy turbo

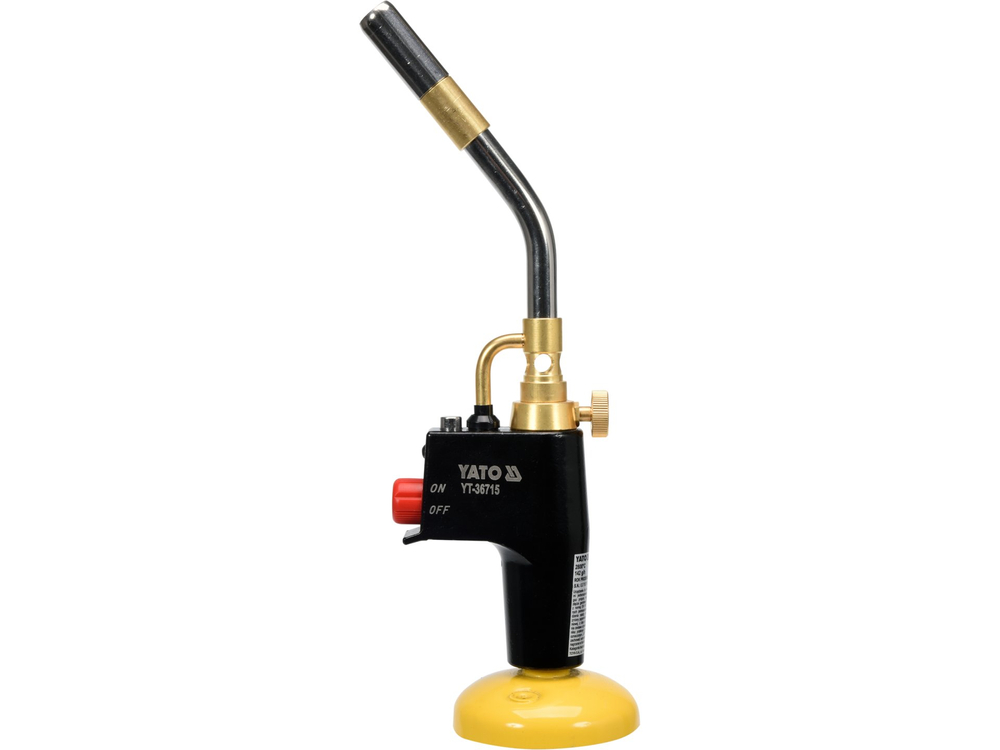

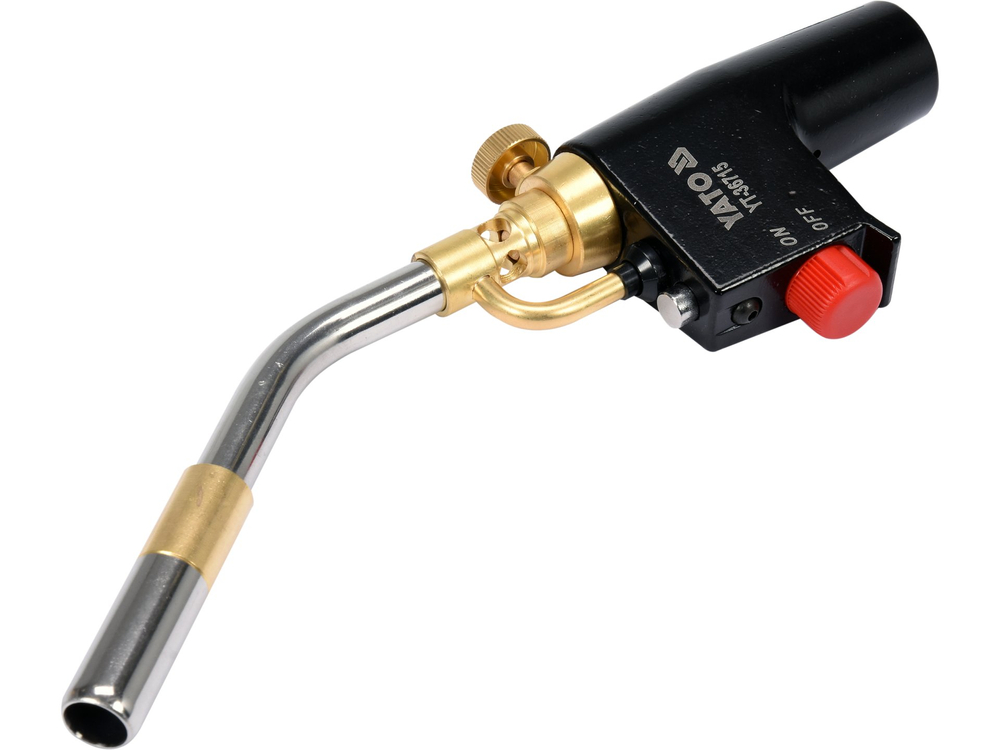

Professional turbo gas burner YT-36715.
YATO burner designed for professional applications. Specificallyólly recommended for plumbing and installation work possible:
- hard soldering - copper pipes of diameter up to 32mm
- .soft soldering - copper pipes with diameterup to 100mm
- welding.
Thanks to the use of the highest quality componentsós, such as brass body., the burner allows it to reach a temperature of 28000C and power of 2.0kW. It is powered by gaspropane or MAPP mixture, which allows to achieve very high performance without connecting additional gas cylinders. The gas consumption is 142g/h and the pressure is 2.59MPa.

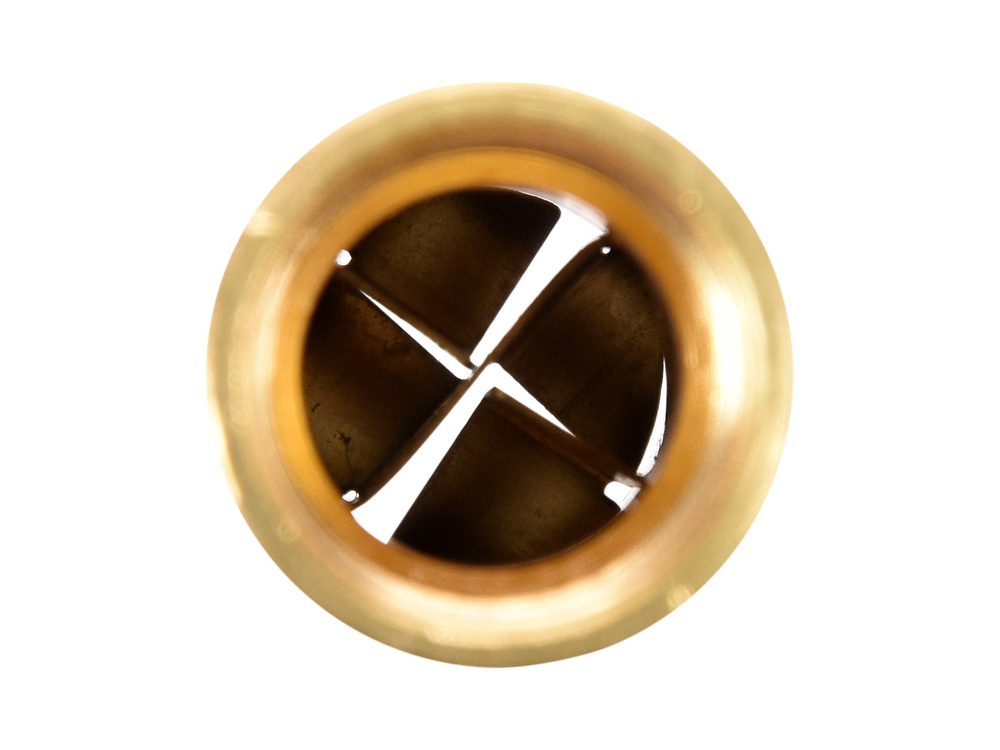

The burner is equipped with a TURBO nozzle that produces a vortex flame. This increases the flow of gas, resulting in much higher efficiency and faster heating of the pipes.
The YATO burner has a number of very useful functions:
- PIEZO ignition - makes it easy to ignite the gas without the need for an external igniter
- drain lock./strong> - protects against accidental activation of the burner
- lock for continuous operation - especiallyólly useful during prolonged operation. Allows you to lock the burner in the on position without holding the button with your finger

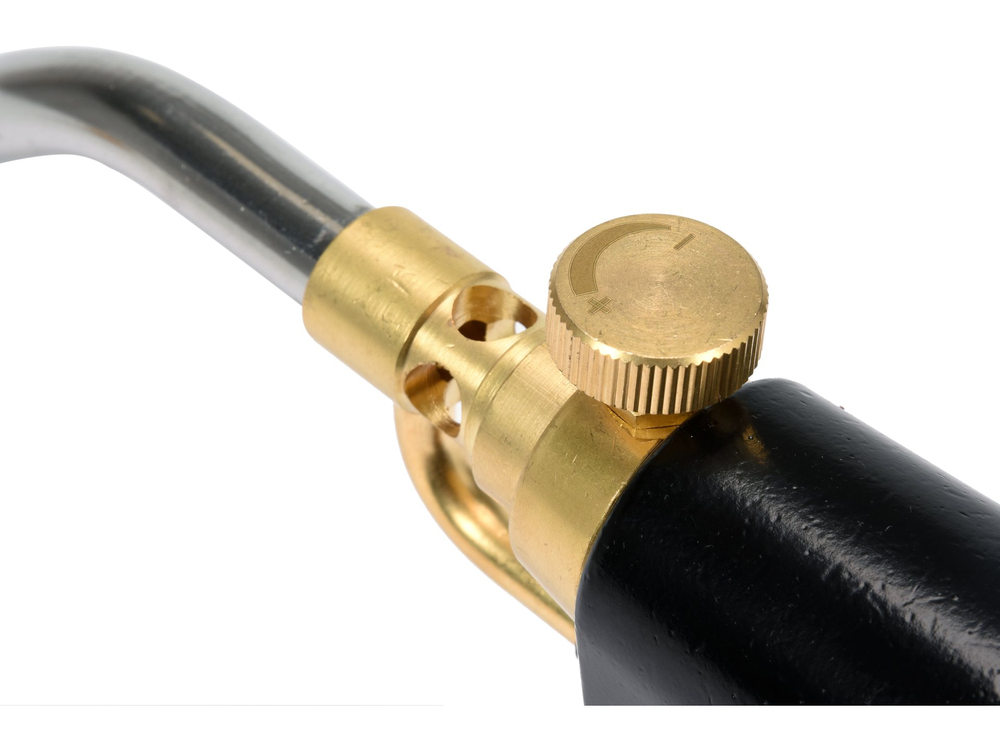

- gas adjustment. - allows you to adjust the power of the flame according to your needs
An important advantage of the YATO burner is the AUTO START/STOP function. Thanks to its special design and built-in valve, operation of the burner is very convenient and allows it to be operated with just one hand. The burner is activated by pressing a single button and works only when it is pressed. On the other hand, when the button is released, the burner will automatically turn off. There is no need to turn off the gas supply every time. This greatly simplifies and speeds up the work. In addition, it reduces gas consumption.
The YATO burner can be worked at a 3600 angle, which allows you to safely work in any position, even in the most inaccessible places.

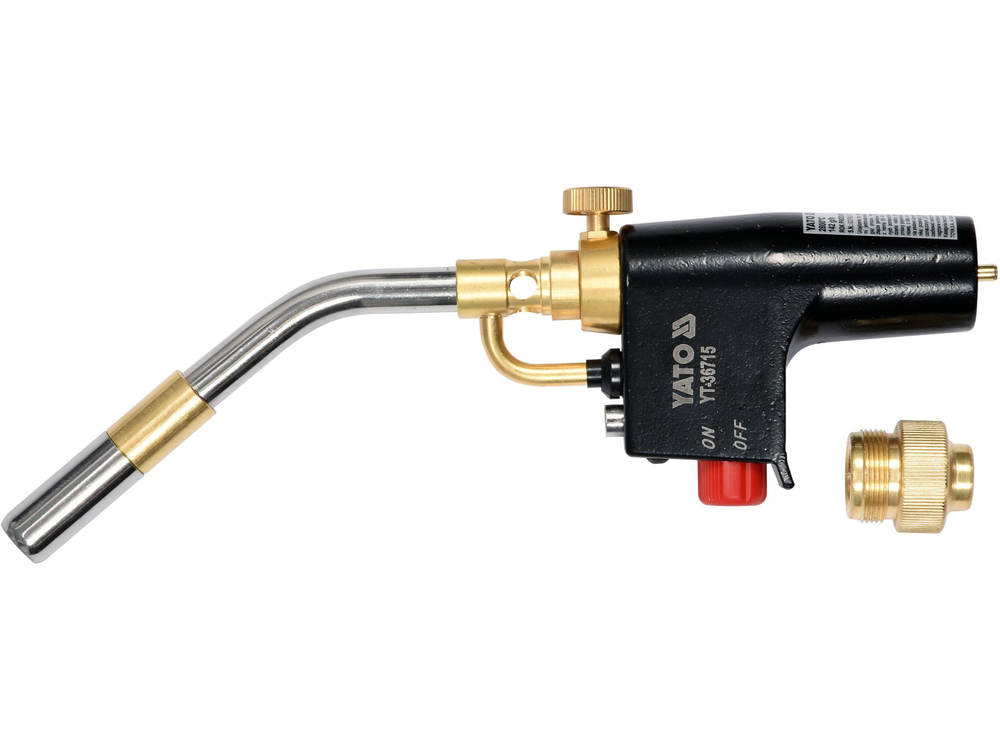

The burner has a connection for gas cylinders with a G1 "F thread. In addition, the kit comes with a adapter that allows you to connect a bottle with a G7/16 "F connection. This makes it possible to connect to the YATO burner both typesóof cylinders used on the market.
Usage warnings:

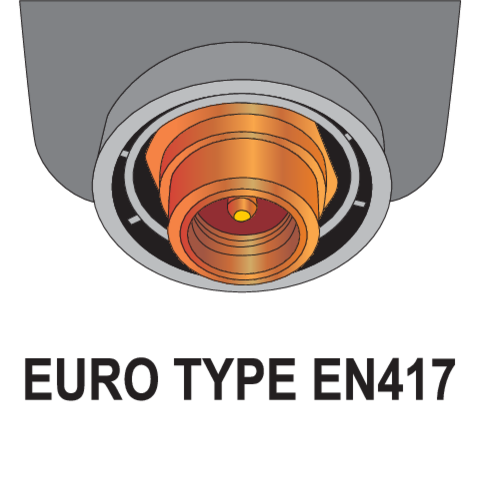

The device should only be used with reusable containers containing technical propane-butane gas, equipped with a threaded connection.Gas containers must comply with the EN 417 standard.
Use only in well-ventilated rooms.
Please read the instructions before using this device.
Connect or change containers in a flameless atmosphere, away from unauthorized persons.
Wear safety glasses when using the set.
Turning off the burner: Turn the regulator knob as far as it will go in the direction marked "OFF". The flame will go out automatically.
Be careful because the metal parts of the burner became hot during operation. Leave to cool.
