YT-09615

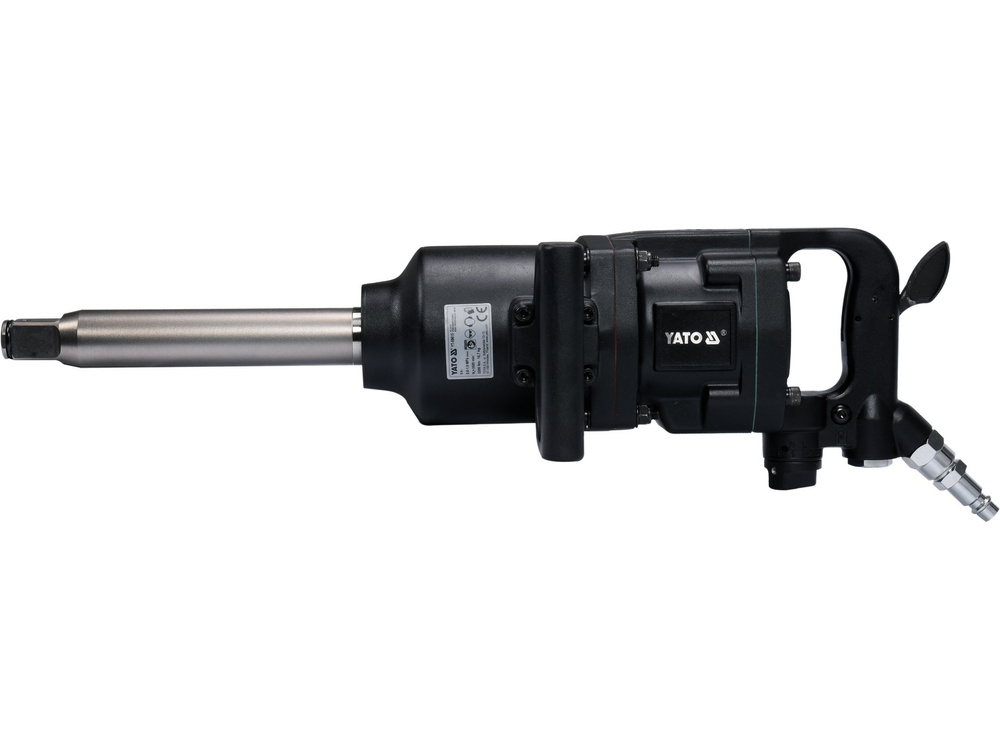

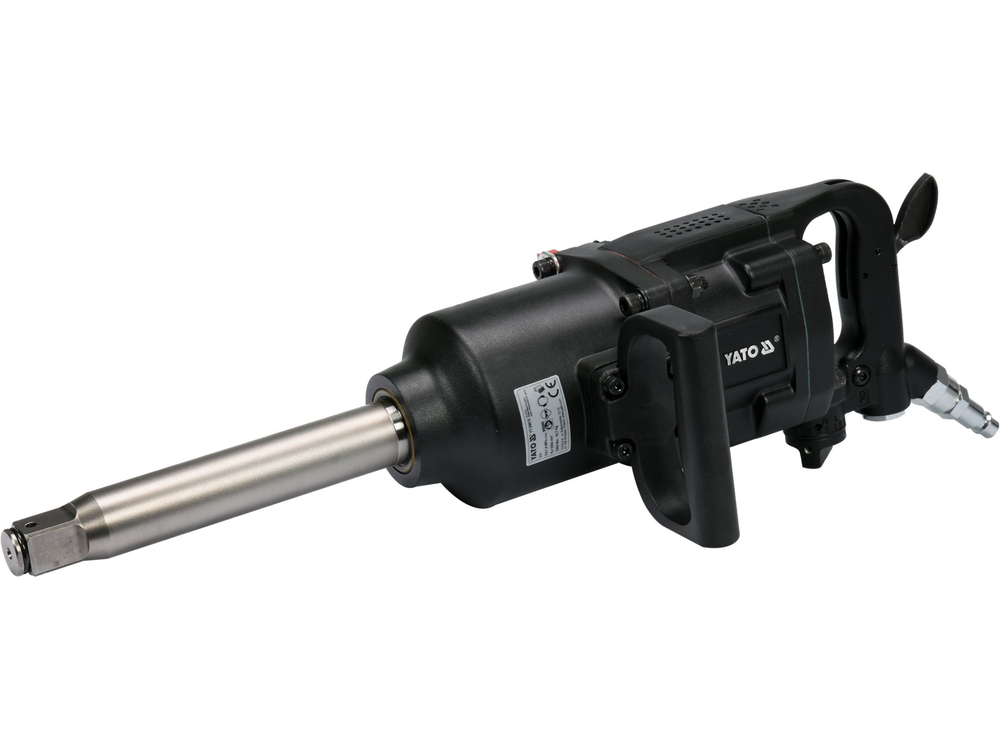

PNEUMATIC IMPACT WRENCH 1" 3200 NM
Brand
Symbol
YT-09615
Producer code
5906083031281
Series
Tool handle size
1" (25.0 mm)
Type tool handle
rope
Type of stroke mechanism

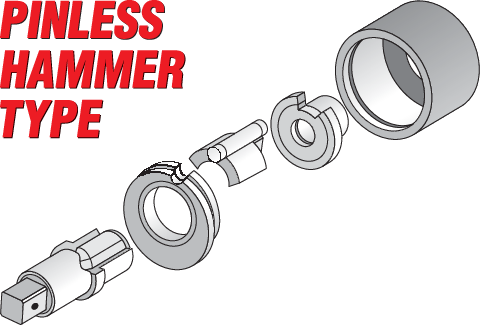

PINLESS HAMMER
Max. working pressure
1 MPa
Recommended operating pressure
0.6-1 MPa
Air flow required
355 L/min
Turnover
3500 min⁻¹
Torching max.
3200 Nm
Size of the quick coupling
1/2 (12.7 mm)"
Air connection diameter (PT)
1/2 (12.7 mm)"
The inner diameter of the air supply hose
1/2 (12.7 mm)"
Length
670 mm
Housing material
aluminium
Rotation direction switch
Yes
Acoustic pressure
97.1 ± 3.0 dB(A)
Acoustic power
108.1 ± 3.0 dB(A)
Vibrations
13.75 ± 1.5 m/s²
Weight
16.7 kg

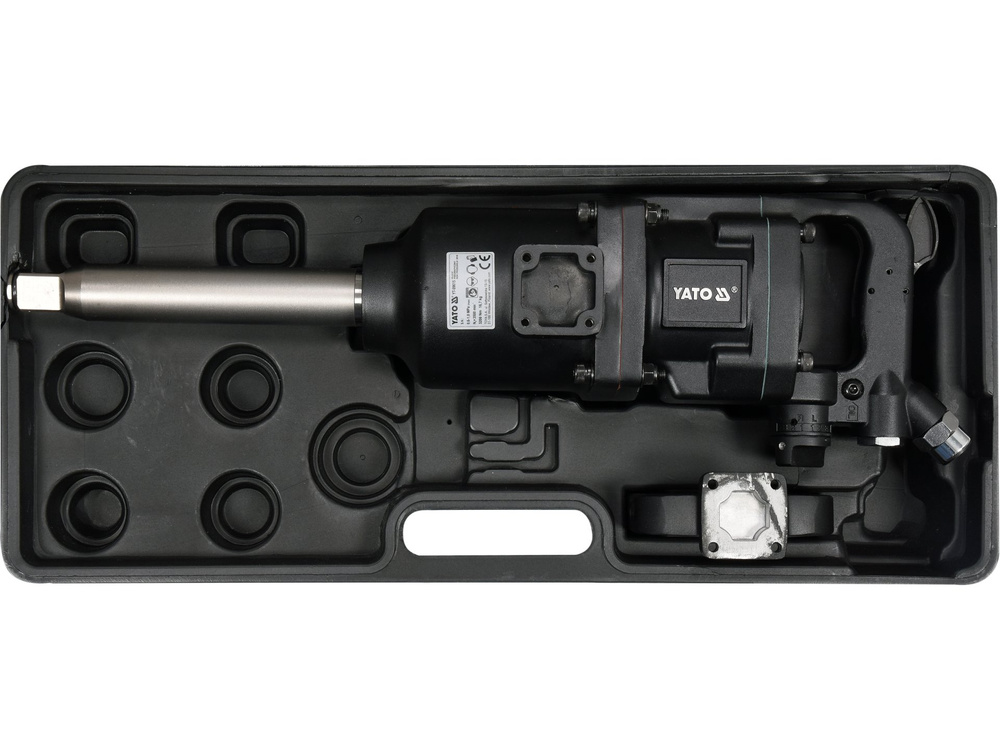

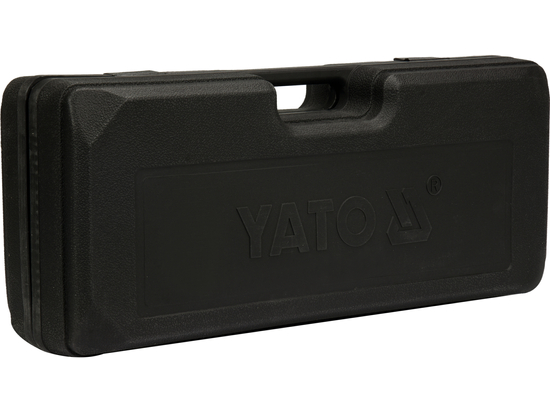

Contents of the set
pneumatic key, hose connector
Application
Industry, mobile and stationary car services, tire and truck services
