YT-09525

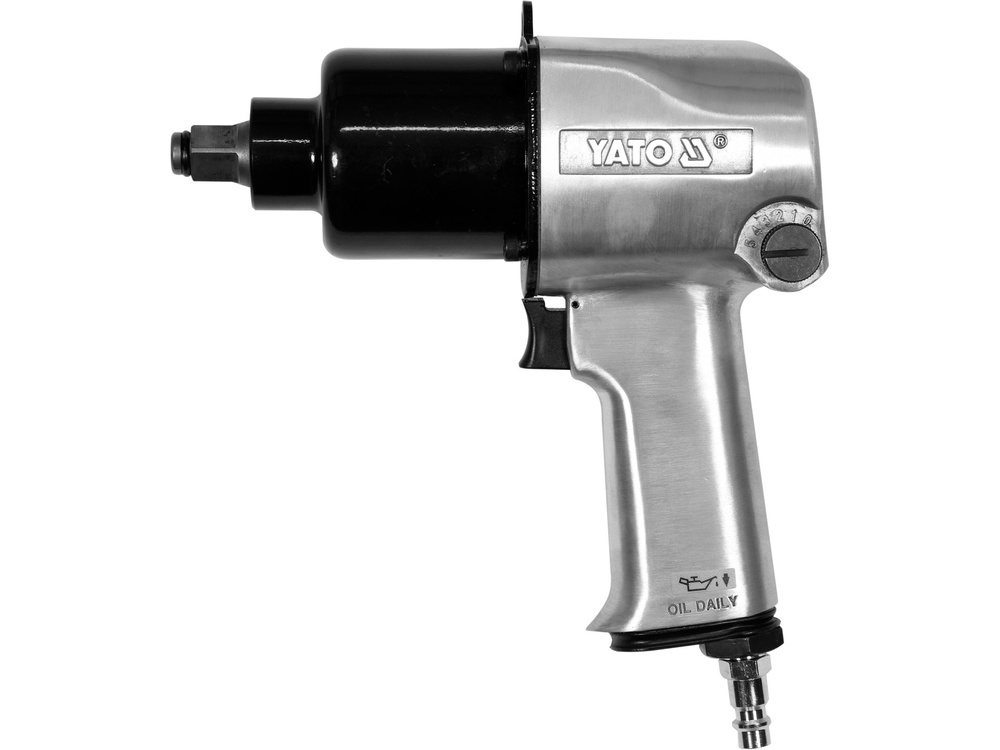

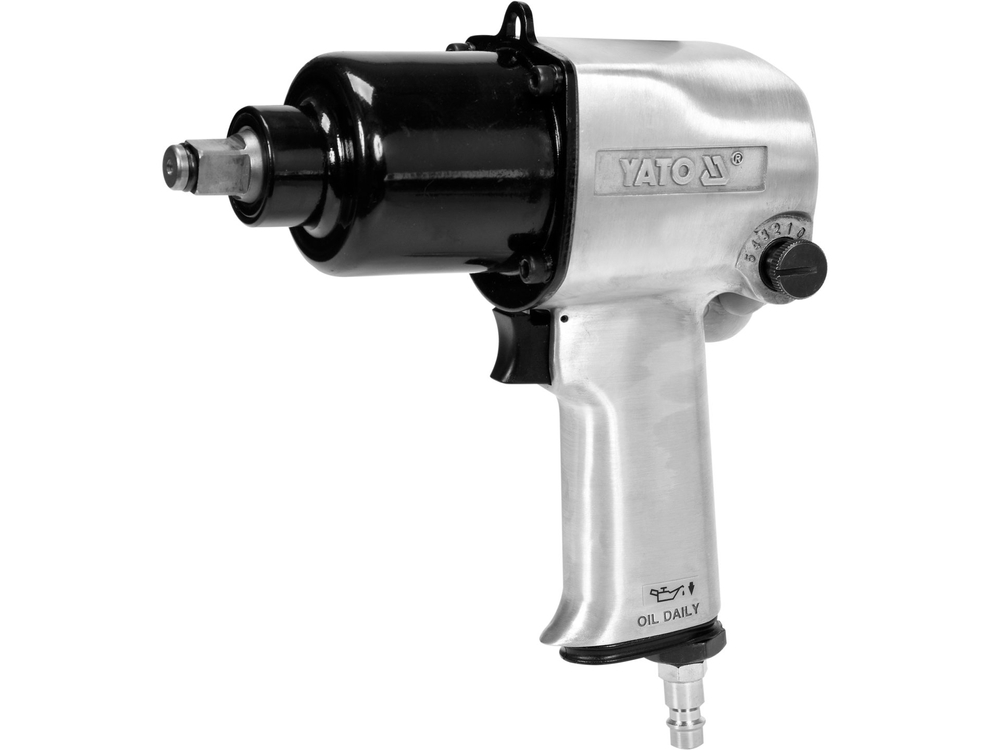

ALUMINIUM PNEUMATIC IMPACT WRENCH 1/2" 850NM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Holder size
1/2" (12.7 mm)
Toolholder type
Driver
Stroke mechanism type
TWIN HAMMER
Max. working pressure
0.6-0.8 MPa
Recommended working pressure
0.63 MPa
Required air flow
119 l/min
Rotations
7000 min⁻¹
Max. torque
850 Nm
Quick coupler size
standard
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Length
190 mm
Casing material
aluminum
Rotation switch
yes
Acoustic pressure
92.0 ± 3.0 dB(A)
Acoustic power
103.0 ± 3.0 dB(A)
Vibrations
5.47 ± 1.5 m/s²
Weight
2.6 kg
Set includes
pneumatic wrench, hose connector
Application
industry, mechanical workshops, car services
Symbol
YT-09525
![](https://pim.toya.pl/piktogramy/CALE_inch-mm_inch-cm/image-thumb__59485__Sklep_pikto/1-2_inch_12%2C7_mm.png")
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__59096__Sklep_pikto/TWIN_HAMMER_TYPE.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52591__Sklep_pikto/0%2C6-0%2C8_MPa.png")
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__57217__Sklep_pikto/119_l-min.png")
![](https://pim.toya.pl/piktogramy/Nm_nm/image-thumb__52838__Sklep_pikto/850_Nm.png")
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__60230__Sklep_pikto/7000_min-1.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60328__Sklep_pikto/COUPLE_01_STANDARD.png")
Pneumatic Power in the Workshop
The YT-09525 pneumatic wrench is a synonym of durability and precision. Designed to meet the requirements of professional car workshops, offering exceptional performance.
Maximum Performance, Minimum Effort
- Durable aluminum housing ensuring years of reliable operation
- Five-step airflow adjustment for precise power control and task adaptation

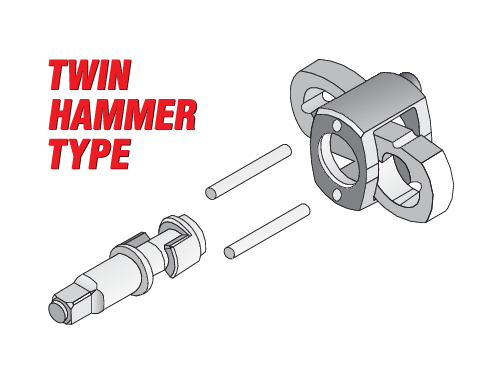

- Twin Hammer impact mechanism ensuring high efficiency in loosening
- Increased tool durability thanks to the proven Twin Hammer technology
- Ergonomic shape significantly increasing work comfort, even during long sessions
- An attractive price-to-quality and parameter ratio, making it a worthwhile investment
- Ideal for intensive use in professional mechanical workshops and car services
- Quick and efficient loosening even the most stubborn screws
850 Nm Power
Twin Hammer
Aluminum Housing
Fast Work
5-Step Adjustment
Technical Data
- Max. torque: 850 Nm
- Type of impact mechanism: TWIN HAMMER
- Tool handle size: 1/2" (12.7 mm)
- Speed: 7000 rpm
- Weight: 2.6 kg
- Required airflow: 119 l/min
- Max. operating pressure: 0.6-0.8 MPa
- Housing material: aluminum
