78992
IMPACT DRILL 600W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Power
600 W
Rotations
0-3000 min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Max. toolholder size
13 mm
Toolholder type
self-centering
Max. hole diameter in concrete
10 mm
Max. hole diameter in steel
13 mm
Max. hole diameter in wood
20 mm
Stroke
yes
Electronic rotation adjustment
yes
Rotation switch
yes
Work mode switch
yes
Length of cable
3 m
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
90.0 ± 3.0 dB(A)
Acoustic power
101.0 ± 3.0 dB(A)
Vibrations
2.39 ± 1.5 / 7.67 ± 1.5 m/s²
Weight
1.8 kg
Set includes
impact drill, additional handle, drilling depth limiter
Symbol
78992

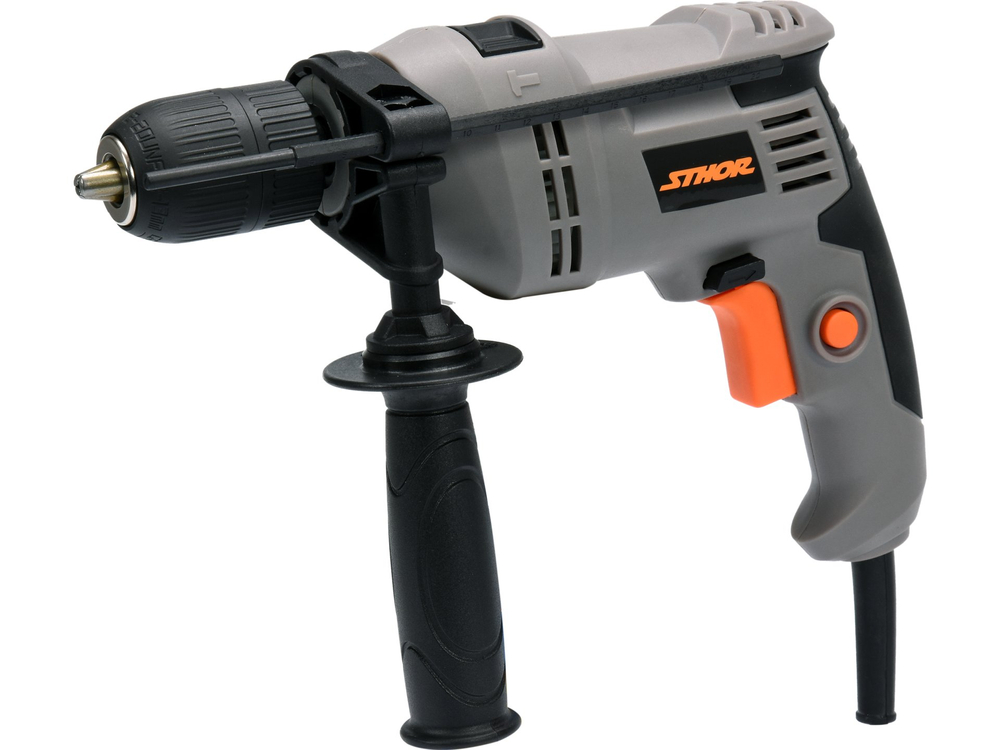

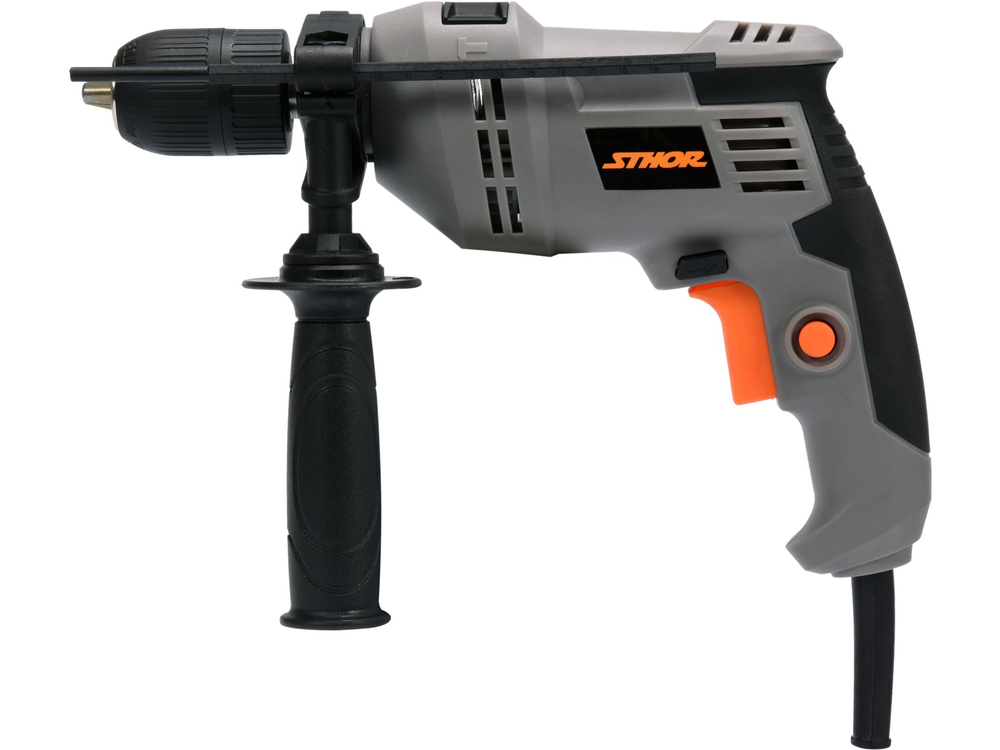

A 600w impact drill

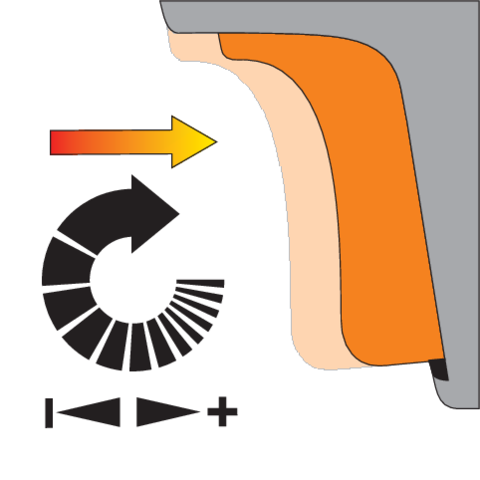

The hand-held percussion drill is an ordinary power tool, designed for drilling holes in a variety of materials: metals, wood, plastics, concrete, masonry, etc., using cylindrical shank drill bits appropriate for the material being worked on. The drill has functions of infinitely adjustable spindle speed, change of rotation direction, drilling with and without impact.
It can also be used for screwdriving and unscrewing screws using commercially available screwdriver bits.
The factory package should include:
- drill
- extra handle
- drill depth limiter
Parameters:
- network voltage [V~] 230
- mains frequency [Hz] 50
- rated power [W] 600
- rated rpm [min-1] 0 - 3000
- max drilling diameter (in steel) [mm] 13
- max drilling diameter (in concrete) [mm] 10
- max drilling diameter (in wood) [mm] 20
- weight [kg] 1.8.
- protection rating IP20
