79943

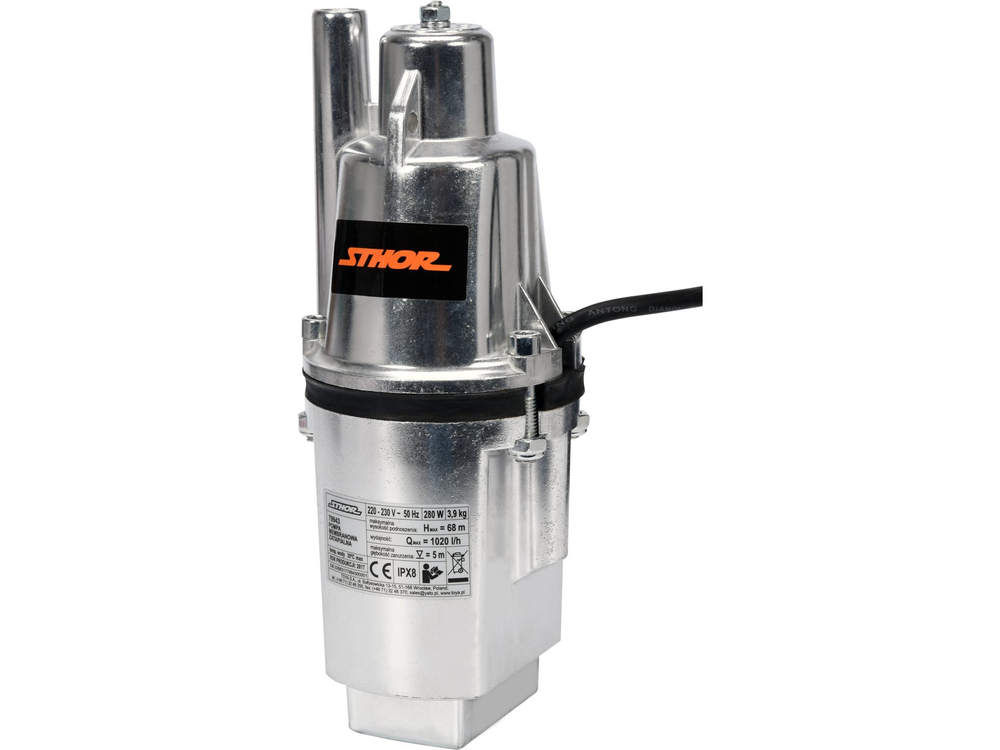

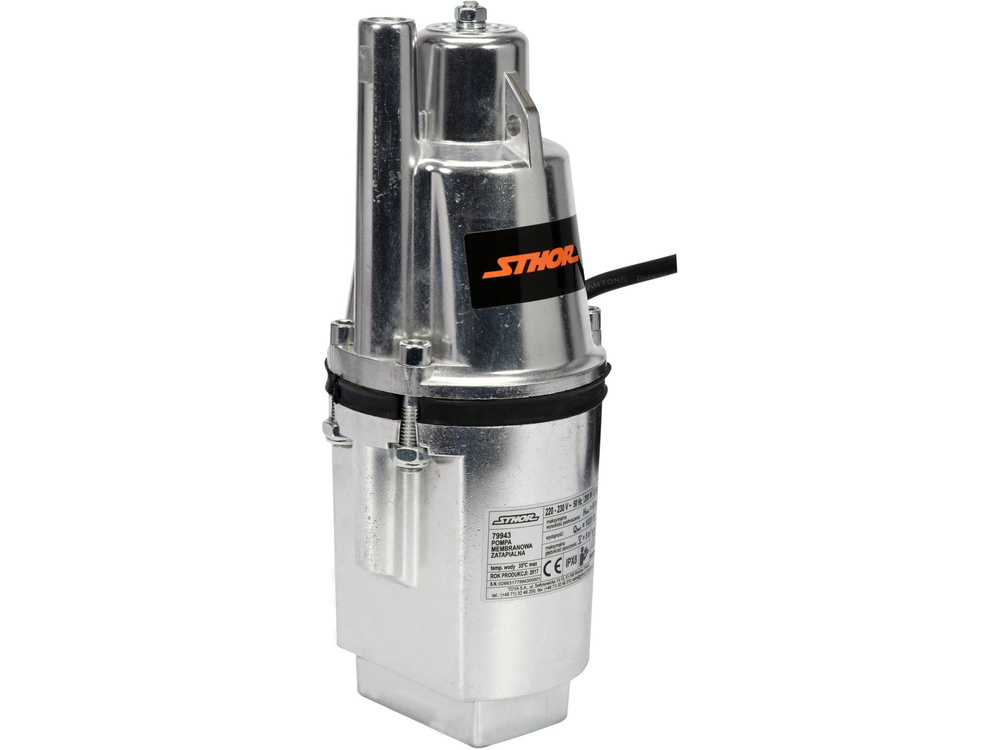

MEMBRANE PUMP 280W
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Working mode
S3 (max. 2 h on, min. 20 min off: total 12 h on)
Power
280 W
Max. capacity
1020 l/h
Voltage
230 V a.c.
Frequency
50 Hz
Water outlet diameter
G1/2
Max. head
68 m
Max. submersion depth
5 m
Max. water temperature
35 ˚C
Cable length
10 m
Wire section area
3Gx0.75 mm²
Wire insulation type
H05RN-F
Electric insulation class
I
Protection grade
IPX8
Weight
3.9 kg
Symbol
79943
The pump is designed for pumping clean water in domestic and garden applications. It is recommended that the pump be operated in intermittent mode. The permissible operating time should not exceed 2 hours, after which operation should be interrupted, for at least 20 minutes. The total operating time in such cycles should not exceed 12 hours.
Parameters:
- Rating voltage [V~]: 220 - 230
- Rating frequency [Hz]: 50
- Rating power [W]: 280
- Electrical protection class: I
- Industrial protection rating (IP): IPX8
- Maximum capacity [dm3 /h]: 1020
- Diameter of hose connection (ext.) [”]: 1/2
- Diameter of hose connection (ext.) [mm]: 19
- Max. discharge height [m]: 68
- Max. immersion depth [m]: 5
- Cable length [m]: 10
- Max. water temperature [deg. C]: 35
- Weight [kg]: 3.9
- Operation type: max. 2 h on, min. 20 min off: total 12 h on).
