YT-73126
LASER DISTANCE METER 40M
- Dalmierz laserowy do szybkich i precyzyjnych pomiarów odległości w zakresie od 0,2-40 m.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Measuring range
0.2-40 m
Measurement unit
meters, feet, inches, feet + inches
Measurement basis
3
Measurement memory
20
Surface measurement
yes
Volume measurement
yes
Measurement accuracy
± 2 mm
Measured angle accuracy
± 1 ˚
Laser
yes
Laser class
2
Laser power
˂ 1 mW
Laser wave length
630-670 nm
Laser pointer colour
red
Continuous measurement mode
yes
Single measurement mode
yes
Min. and max. measured distance mode
yes
Adding and subtracting distances mode
yes
Constant angle pitch measurement mode
yes
Indirect measurement using hypotenuse
yes
Indirect measurement using two hypotenuses
yes
Indirect measurement using divided right-angled triangle mode
yes
Indirect measurement using double right-angled triangle mode
yes
Indirect measurement using right-angled triangle mode
yes
Power supply
battery
Type of battery
3x1.5V; AAA, 3x1.2V; AAA
Charger
USB
Dimensions
115x49x26 mm
Tripod included
no
Tripod connection size
1/4" (6.35 mm) 20UNC
Display type
backlit LCD, four-line
Lowest displayed value
1 mm
Working temperature range
0~40 ˚C
Storage temperature
-10 ~ +50 ˚C
Protection grade
IP65
Weight
0.1 kg
Symbol
YT-73126

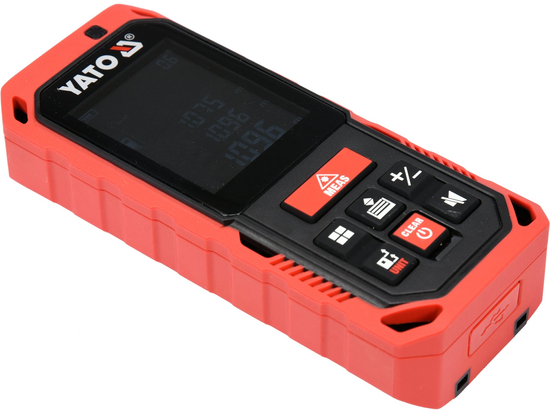

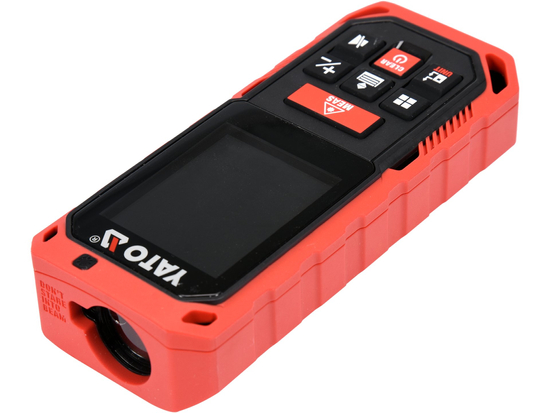

Laser rangefinder for fast and precise distance measurements from 0.2 - 40 m

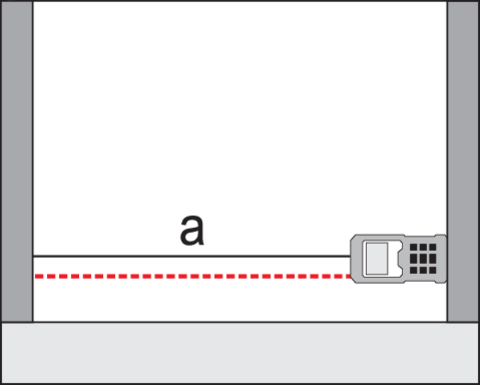

- Continuous measuring functions

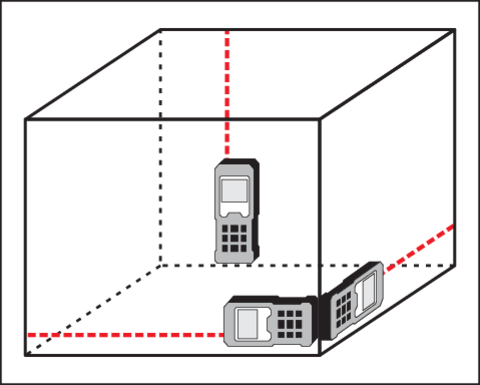

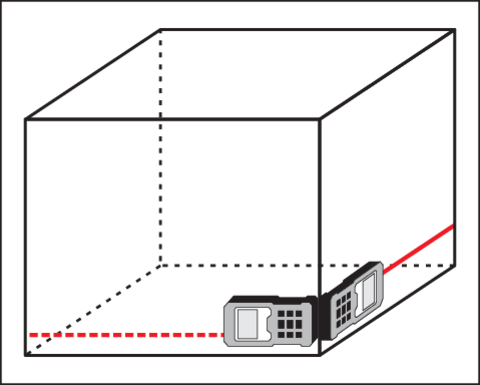

- Calculation of area and volume

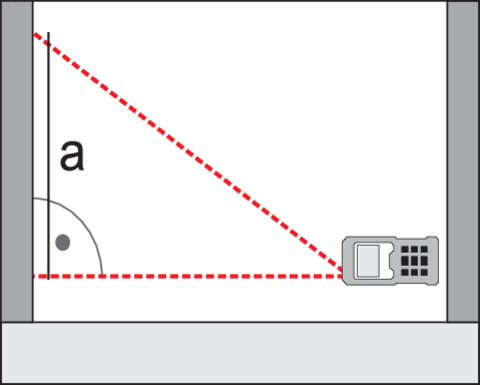

- 3 types of measurements by. Pythagoras' theorem
- storage of 20 results
- variable measurement starting point
- change of measurement units
- continuous tilt angle measurement during distance measurements
- resistant screen .
- protection class IP65
- power supply of 3 AAA NiMh batteries via USB
- battery status indicator
- reinforced housing
Included:
- diameter
- USB cable
- leash
- case
Before replacing the batteries, slide the cover on the back of the unit, following the direction of the arrow then by lifting the cover from the sides, lift it up and slide it out.
Strengthened sealing of the device in accordance with IP65 requirements.
Use in accordance with the included instructions.
