SEWAGE PUMP 600W WITH BLADES
- Wydajna pompa sanitarna z rozdrabniaczem wyposażona w cichy silnik o mocy 600 W.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
600 W
Voltage
220-240 V a.c.
Frequency
50 Hz
Max. rotations
2850 min⁻¹
Max. lifting height
9.5 m
Max. capacity
150 l/min
Water outlet diameter
40 x2, 100 x1 mm
Max. supply water temperature
45 ˚C
Electric insulation class
I
Protection grade
IP55
Weight
6.5 kg
Set includes
sanitary pump with a built-in non-return valve, clamp x3, cap with nuts and seals x2, flexible connector x3, anchor element for the floor x2
Symbol
75953

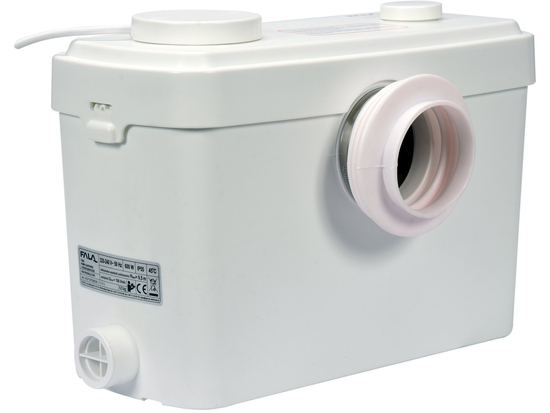

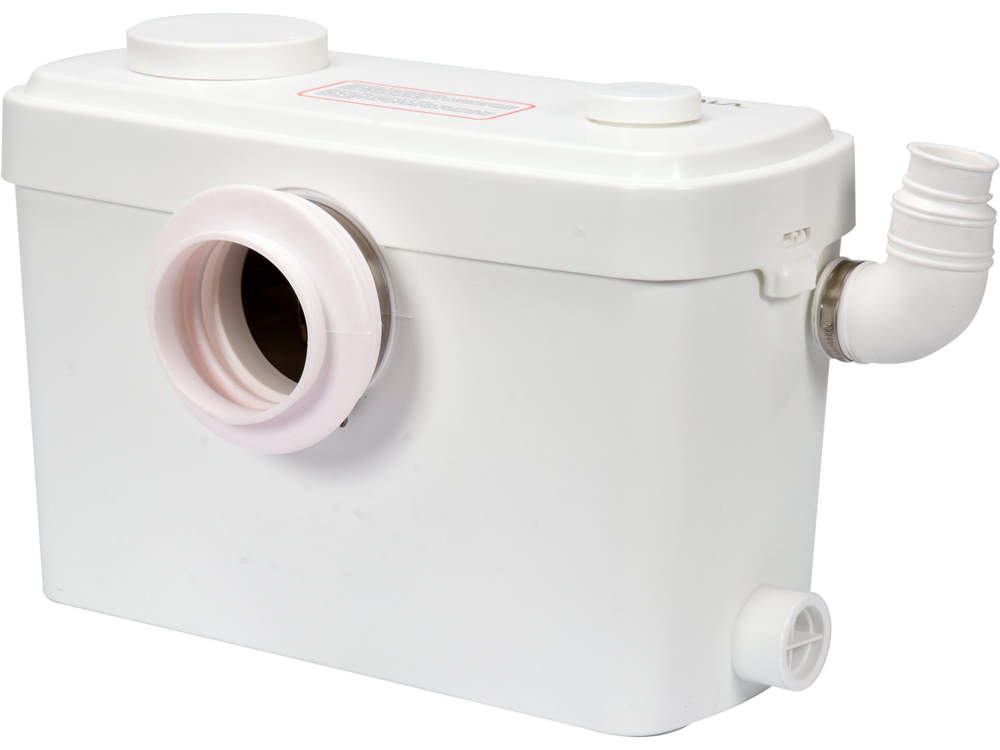

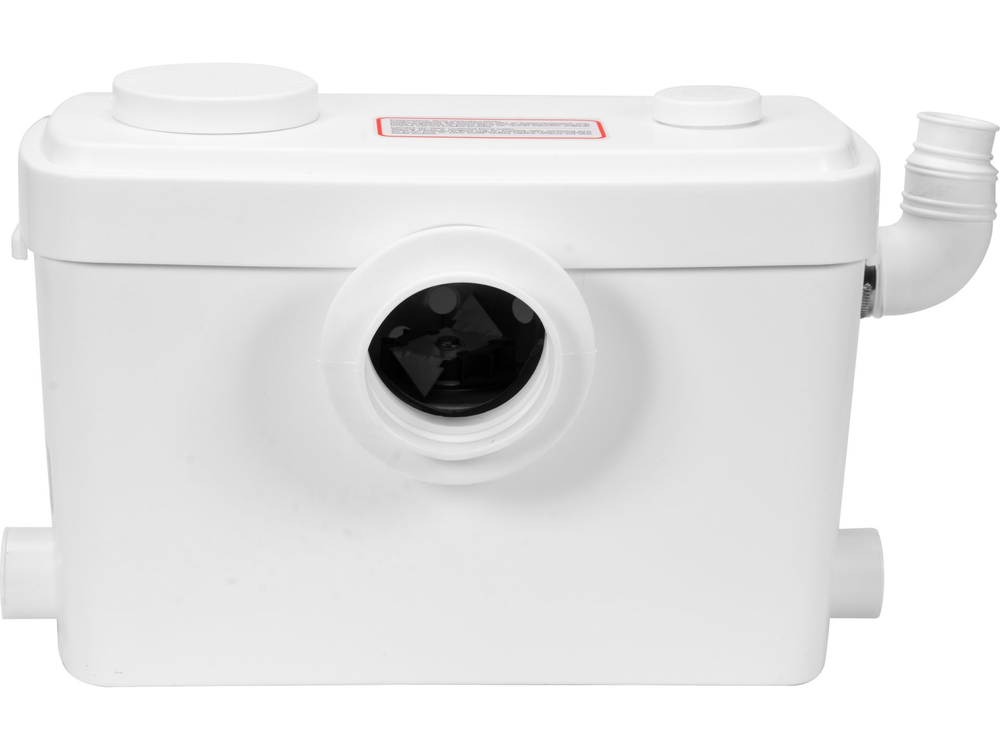

Efficient sanitary pump with chopper equipped with a quiet 600W motor.

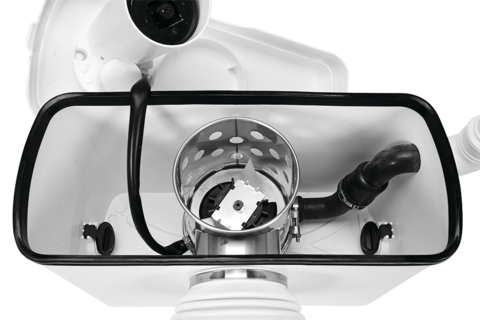

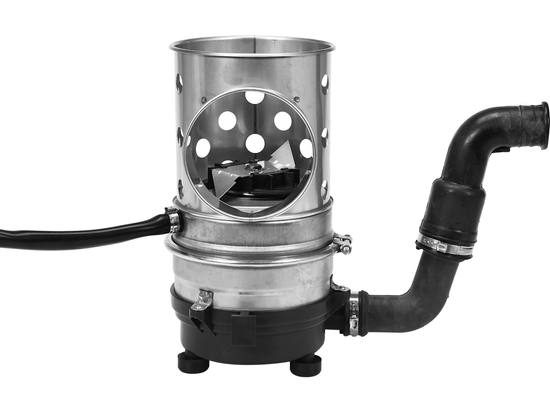

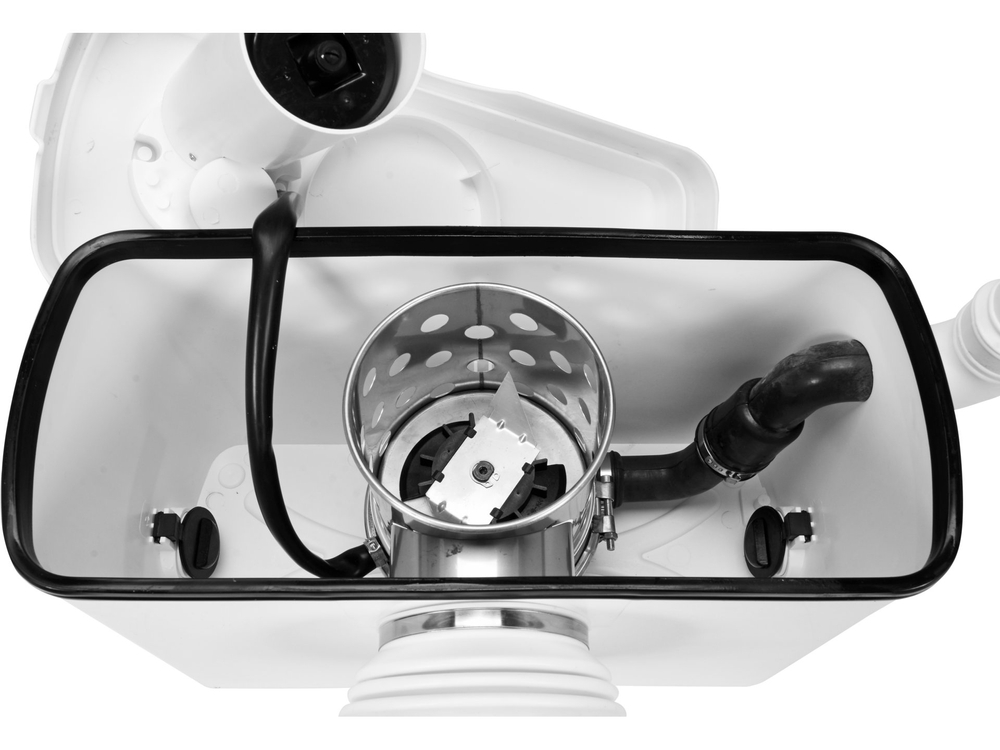

- An efficient set of stainless steel cutting blades
- reliable float switch, which guarantees precise control of the operation of the device for many years
- possibility to connect the supply from both sides
- fully automatic operation of the pump
- the pump has a built-in non-return valve
- filter with active carbon protects against escape of unwanted odors
- small dimensions make the pump fit behind any traditional toilet compactor
- possibility to connect two additional devices, such as a dishwasher, sink, bidet, washing machine, and even a low shower tray or bathtub
Technical specifications:
- Power: 600 W
- Speed: 2850 RPM
- Max flow rate: 150 l/min
- Max. lifting height: 9,5 m
- Noise level: <45dB (class A)
- Voltage: 230 V~ 50 Hz
- Degree of protection: IP55
- Number of inputs: 3 (100 mm and 2 x 40 mm)
Rooms in the household without the technical possibility of connecting sanitary facilities to a gravity sanitary sewer - converted for sanitary purposes basements, attics, dressing rooms and other rooms. * pump * 3 clamping clamps * 2 side inlet plugs * 3 flexible connectors * 2 anchoring elements to the floor * electrical cable terminated with a plug * warranty card * instructions.





Usage warnings:
Warning! Device is designed only for pumping water containing fecal matter. It is forbidden to throw hygiene products to the toilet connected to the pump, such as: paper towels, sanitary napkins, tampons and other similar products.To download
