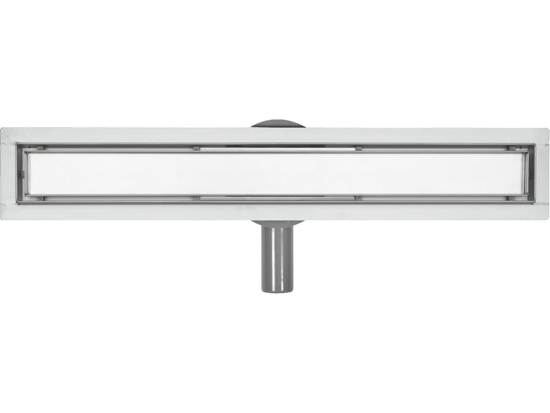

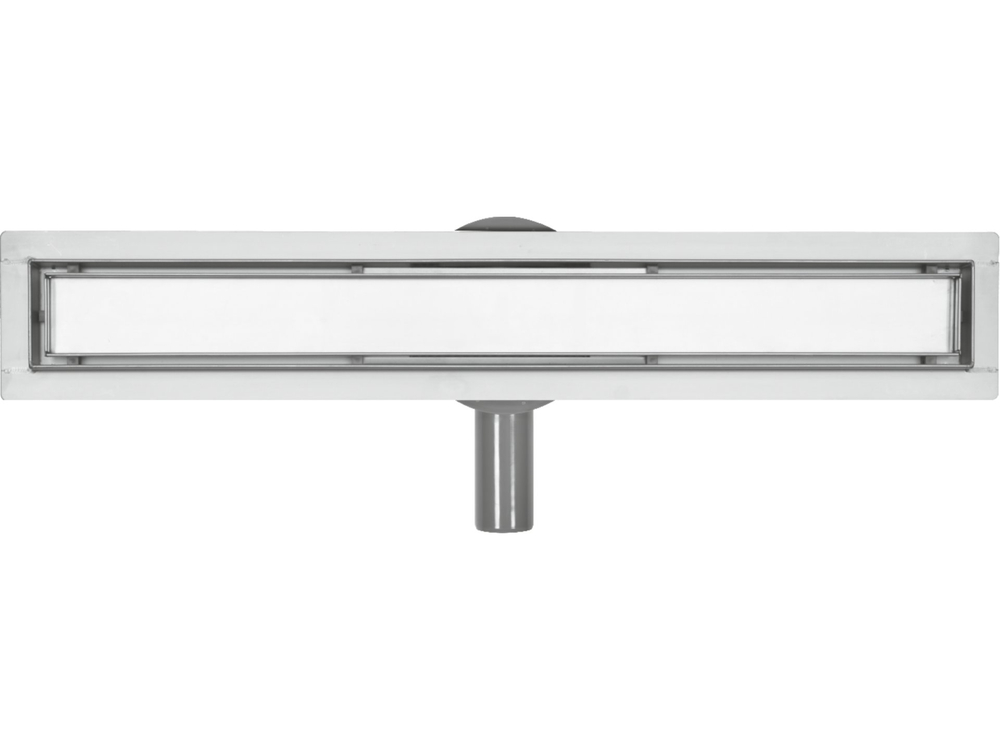

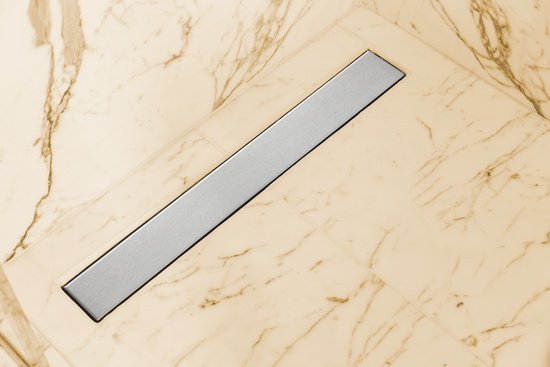

LINEAR DRAIN ROTARY 70CM WET&DRY
- Odpływ liniowy Fala to doskonały pomysł na eleganckie i praktyczne zaaranżowanie przestrzeni łazienki.
- Szeroki wybór dostępnych rozmiarów umożliwia optymalne dopasowanie jego długości do wymiarów kabiny lub płytek i pozwala z większą swobodą, niż w przypa
The Wave linear drain is an excellent idea for elegant and practical arrangement of bathroom space.
Rotary models are innovative double-sided drains with Wet & Dry system. The ability to choose between elegant stainless steel and a custom tile pattern to match the floor provides unlimited possibilities for bathroom design.
The wide selection of available sizes allows you to optimally match its length to the dimensions of the shower enclosure or tiles and allows you to plan your shower space with greater freedom than with traditional shower trays.
The gutter and grate are made wholly of AISI 304 stainless steel, which is characterized by resistance to corrosion, detergents and mechanical damage.
Wave shower drains are equipped with facilities that guarantee comfortable and efficient operation for many years:

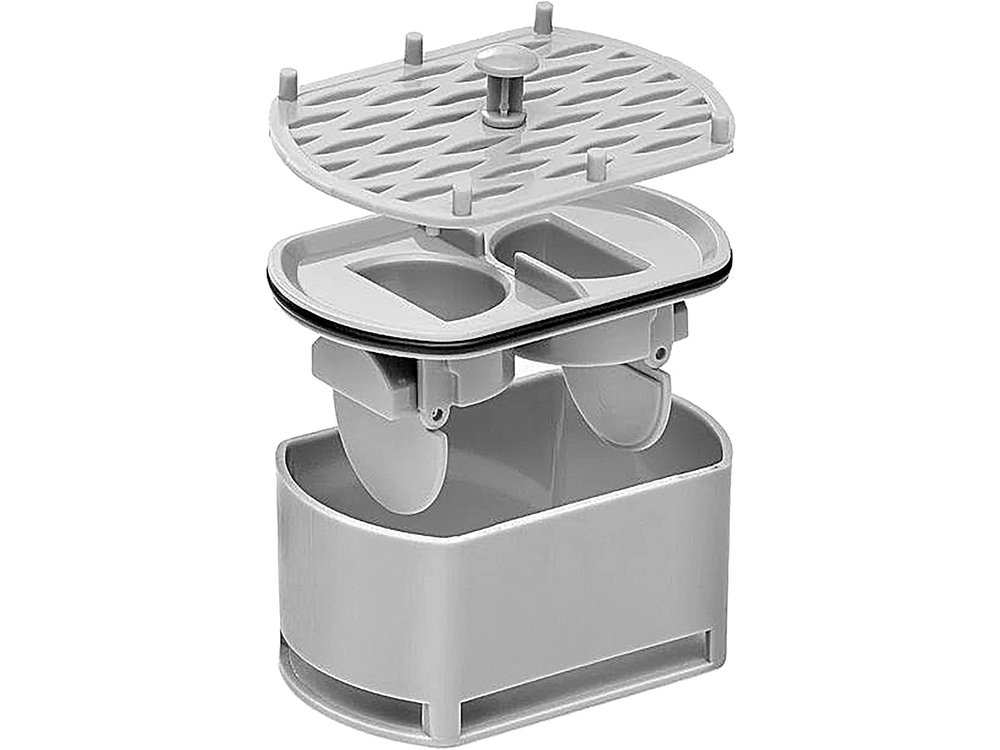

- WET&DRY - a special solution in the trap thatprevents odors and bugs from entering during use as well as after drying;

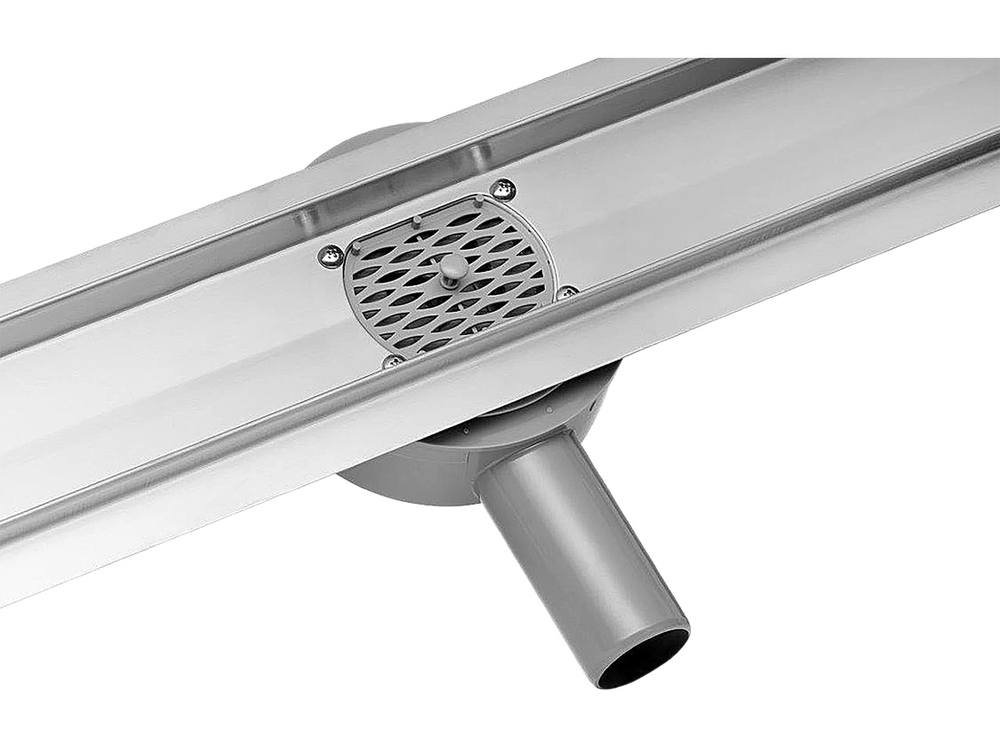

-ROTARY360 - the outlet can be set in any direction
- . EASYclean - is easy to clean, thanks to the hook that is included;
EASYclean - is easy to clean, thanks to the hook that is included;
EASYclean. - HYDROcloth - sealing mat is included - an essential part when doing waterproofing;

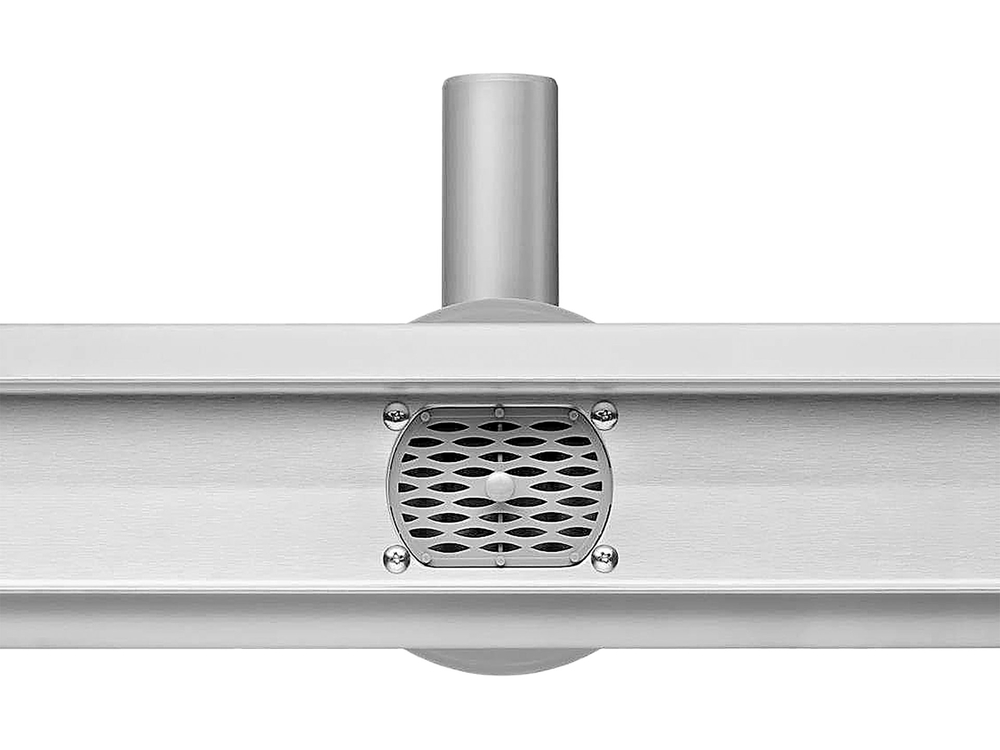

- STRAINer - an effective and durable strainer that prevents clogging of the trap and facilitates the ongoing maintenance of the drain;

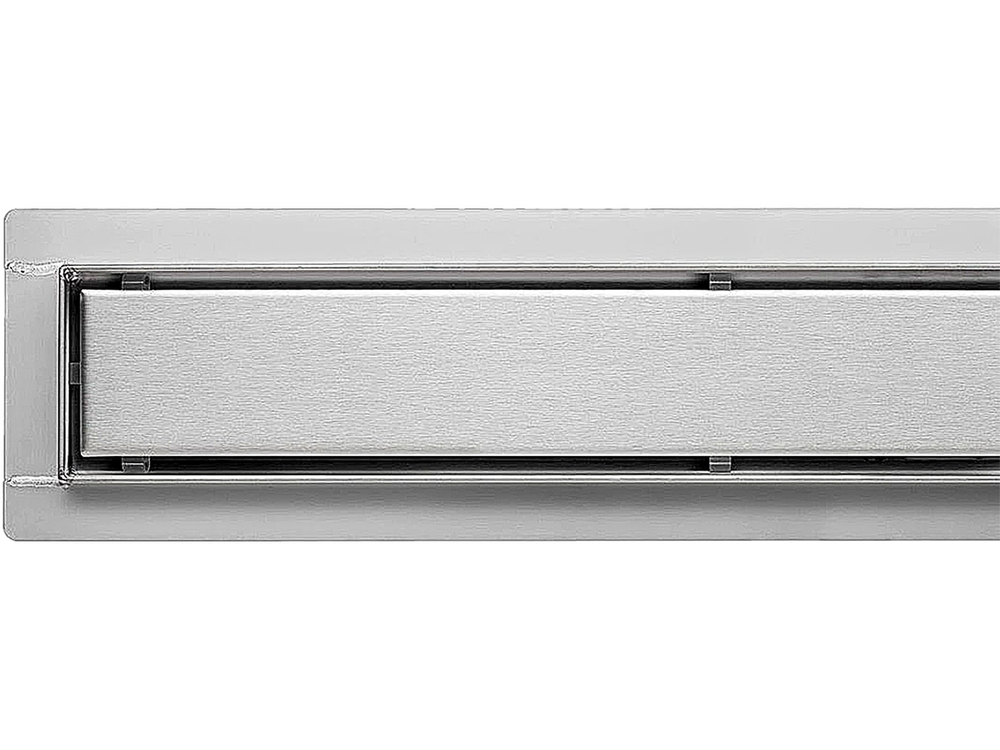

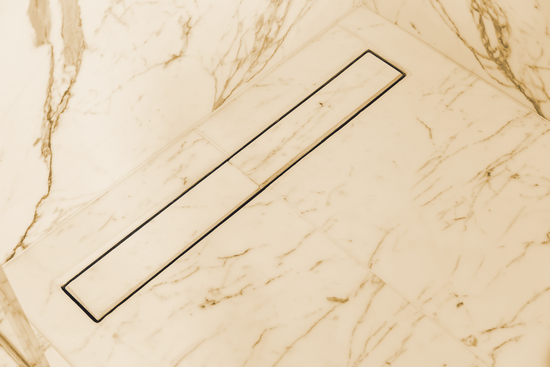

- 2IN1design -Reversible grate allows you to insert a tile or use a brushed stainless steel solid cover.

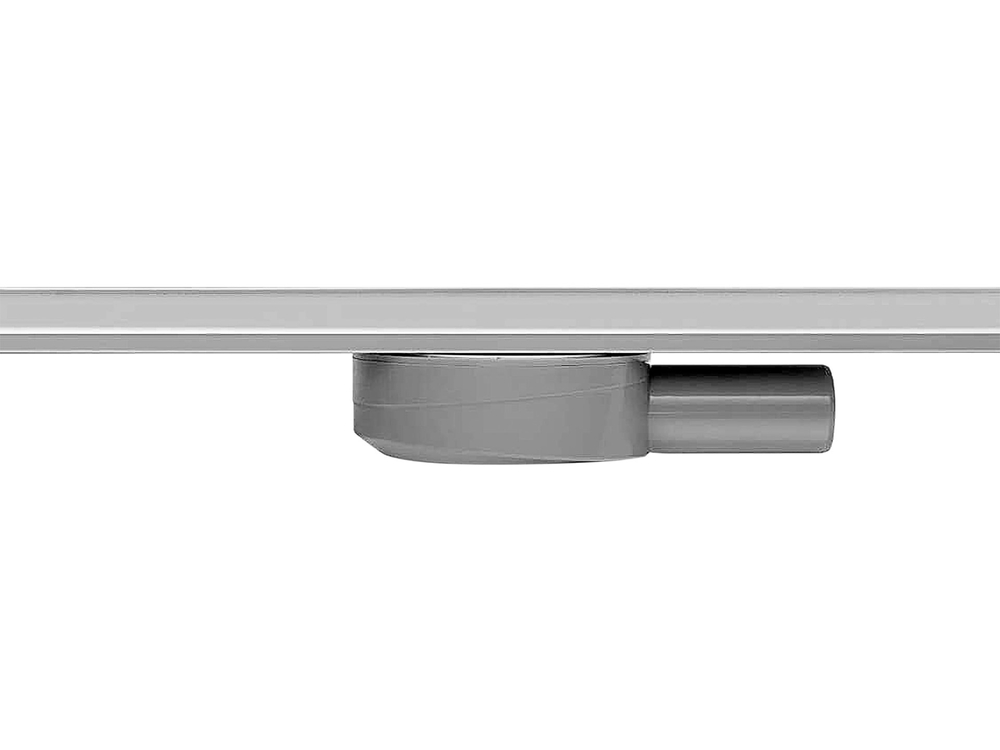

- EXTRAslim - extra low siphon that makes installation easier;
EASYfix. - EASYfix - a wide height adjustment range that allows you to adjust the drain to the floor surface.
You will install the Wave drain without worry - all our drains have a 10-year warranty!
Details:< br /> - gutter length: 70 cm
- grate design - insertable or solid (double-sided)
- material: stainless steel AISI 304
- width: 70 mm (additional flange approx. 2 cm on each side)
- trap height: 56 mm
Thickness of steel of linear drains:
- market: 1.2 mm
- pipe: 1.5 mm
Product complies with EN 1253-1
Load class: K3 (surfaces without circular traffic)
Product thermal behavior class: Class A (no installation restrictions)
Flow rate: more than 36 l/min (the shower faucet has a maximum flow rate of 18 l/min)
- bathrooms, shower rooms - swimming pools - swimming pools, swimming pools - laundry rooms, boiler rooms - balconies, terraces - drainage trough with trap - grate - sewer reduction 50/40 mm - adjustable mounting feet - insulation mat - hook for lifting the grate - instruction manual - warranty card
