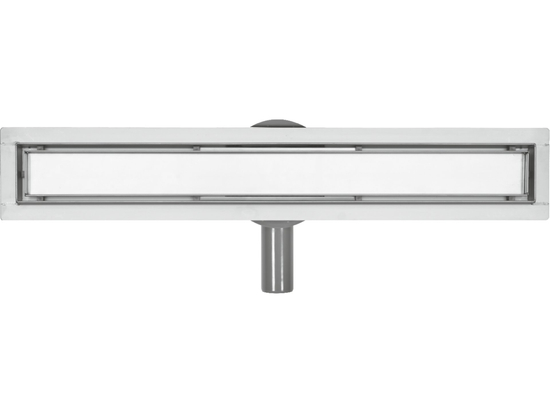

The Wave linear drain is an excellent idea for elegant and practical arrangement of bathroom space.
Rotary models are innovative double-sided drains with Wet & Dry system. The ability to choose between sleek stainless steel and a custom tile pattern that matches the floor provides endless bathroom design possibilities.A wide selectionór of available sizesómakes it possible to optimally match its length to the dimensionsóof the shower enclosure or tiles, and allows you to plan your shower space with greater freedom than with traditional shower trays.
The gutter and grate are made wholly of AISI 304 stainless steel, whichóra is characterized by resistance to corrosion, detergents and mechanical damage.
Wave shower drains are equipped with facilities that guarantee comfortable and efficient operation for many years:

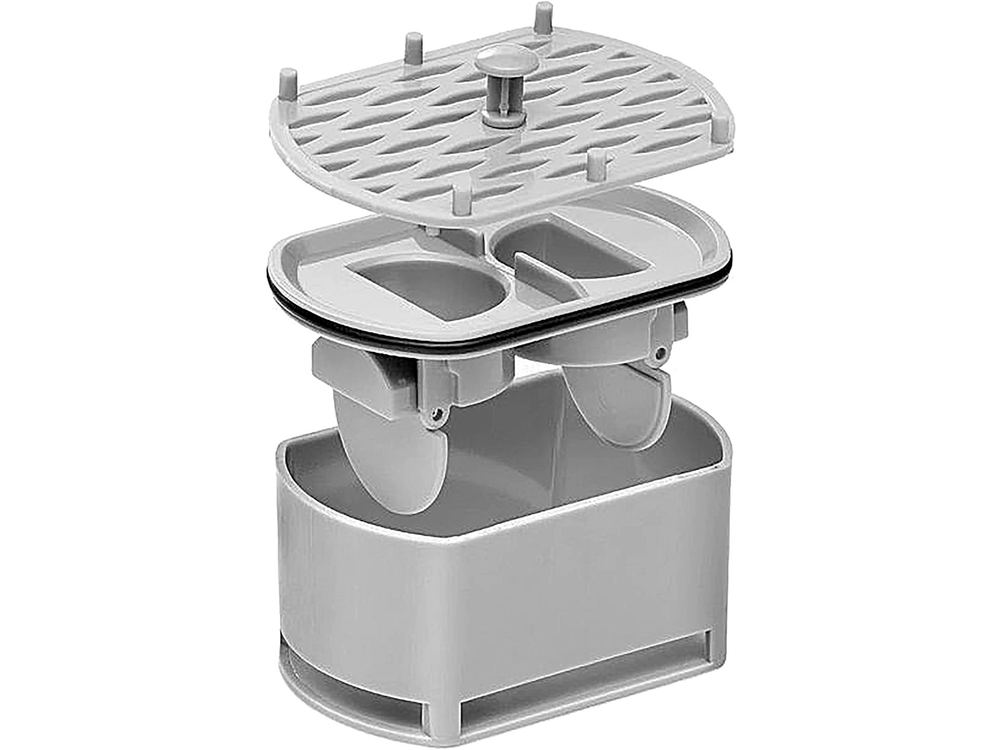

- WET&DRY – a special solution in the siphon, which prevents odors from entering the drain. prevents the entry of odorsówormsóworms during use as well as after drying;

-. ROTARY360 - the outlet can be set in any direction

- EASYclean – is easy to clean, thanks to the hook thatós included;

- HYDROcloth – sealing mat is included – an indispensable part when performing waterproofing;

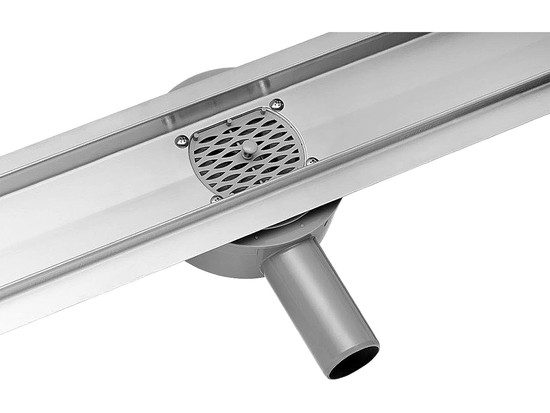

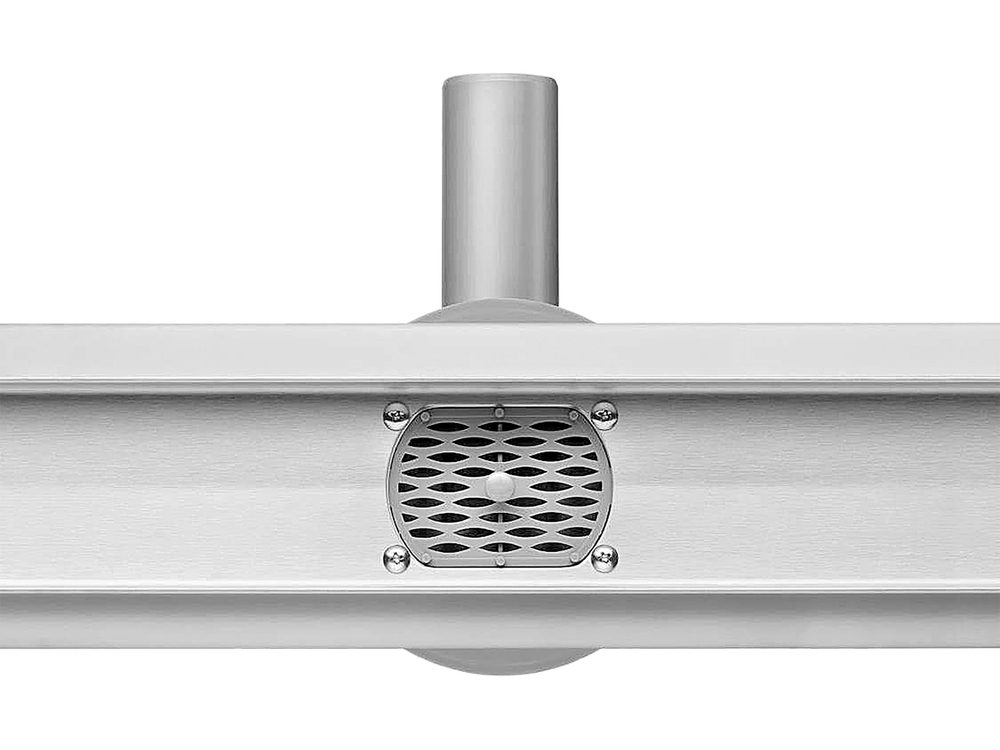

- STRAINer – an effective and durable screen thatóre prevents clogging the trap and facilitates the ongoing maintenance of the drain;

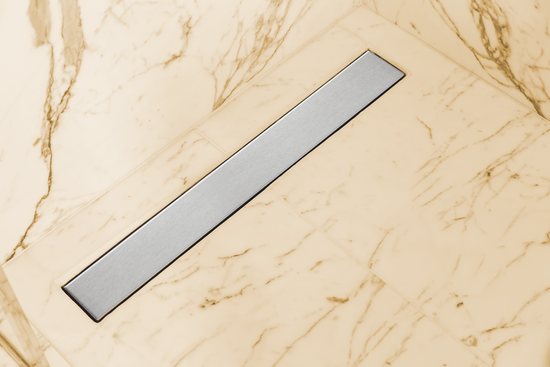

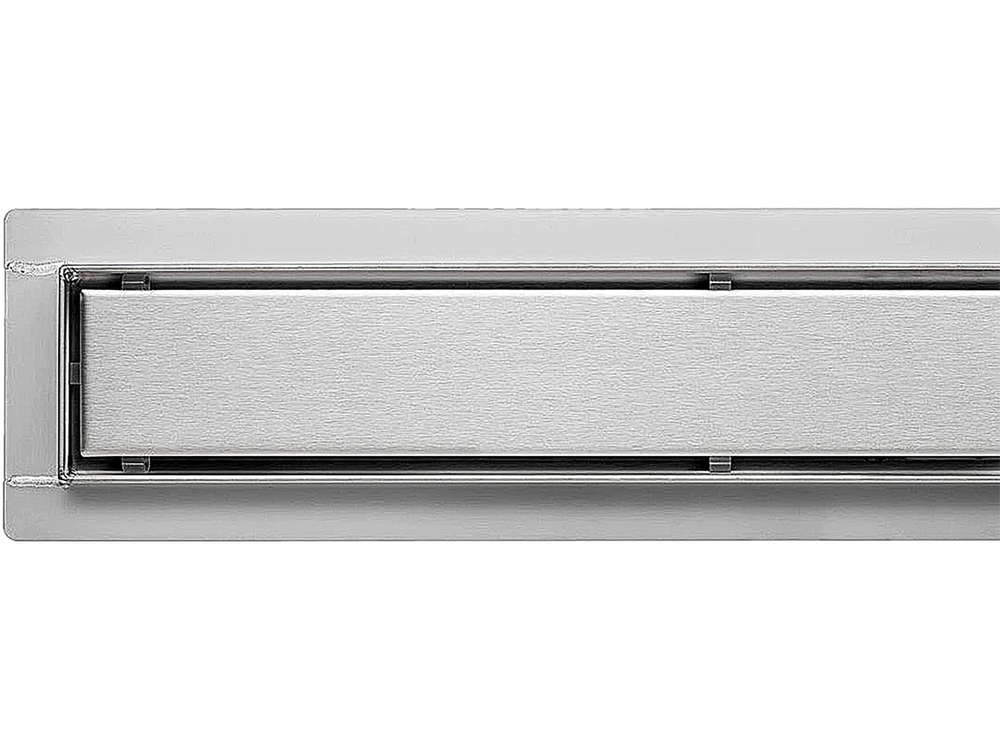

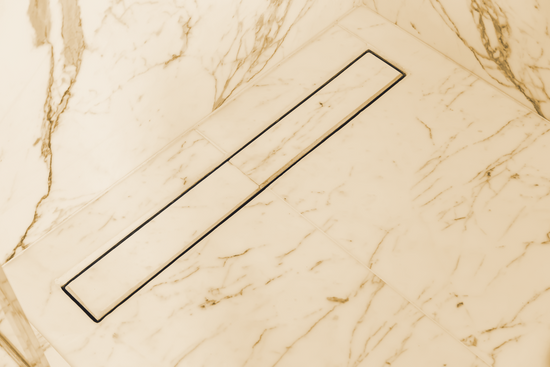

- 2IN1design –Reversible grate allows you to paste a tile or use a solid brushed stainless steel cover.

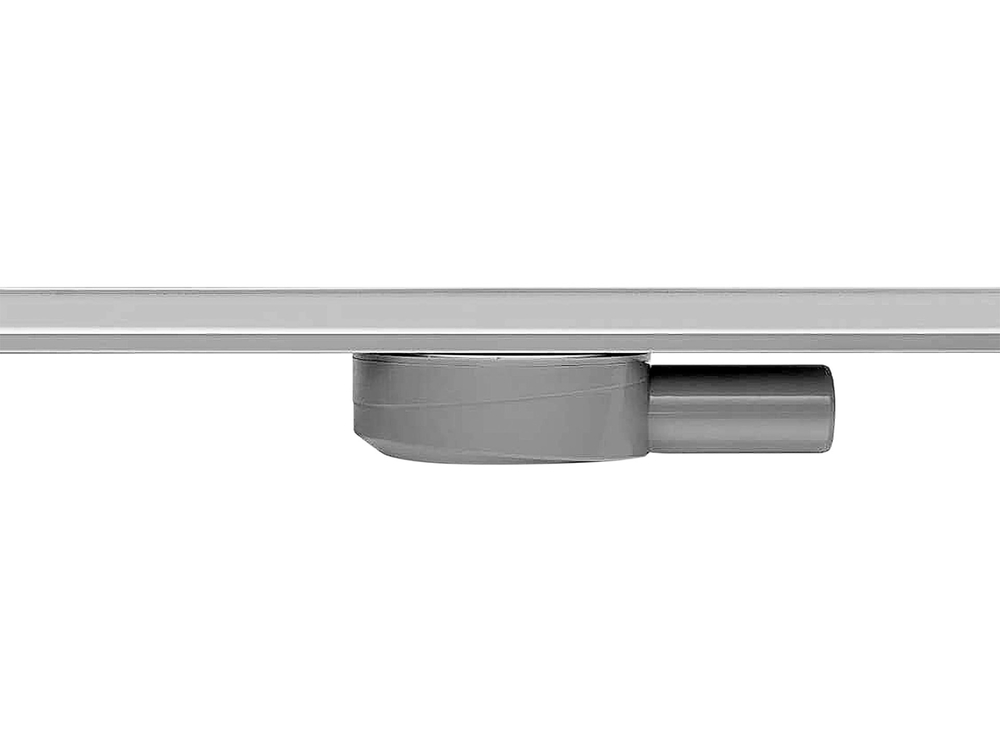

- EXTRAslim – very low siphon thatós easy to install;

EASYFIX. - EASYfix – a wide height adjustment range thatóry allows you to adjust the drain to the floor surface.


You will install the Wave drain without worry – all our drains have a 10-year warranty!

Details:
- gutter length: 60 cm
- grate pattern – insertable or full (double-sided)
- material: AISI 304 stainless steel
- width: 70 mm (additional flange approx. 2 cm on each side)
- height of trap: 56 mm

Thickness of steel of linear drainsós:

• brine: 1.2 mm
• pipe: 1.5 mm

Product in accordance with EN 1253-1
Capacity class: K3 (surfaces without vehicular traffic)
Product thermal behavior class: Class A (no installation restrictions)
Flow rate: more than 36 l/min (the shower faucet has a maximum flow rate of 18 l/min)

- bathrooms, shower rooms - swimming pools, swimming pools - laundries, boiler rooms - balconies, terraces - drain trough with trap - grate - sewage reduction 50/40 mm - adjustable fixing feet - insulation mat - hook for lifting the grate - instruction manual - warranty card
