YT-82122

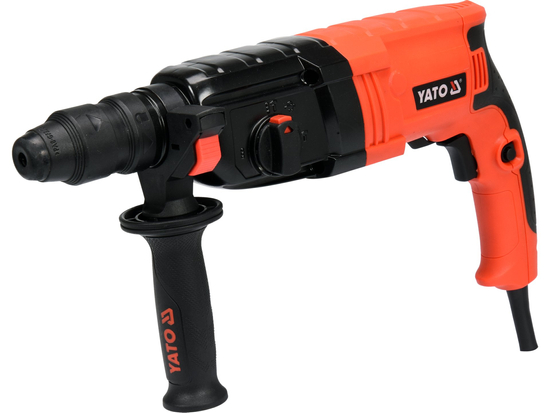

ROTARY HAMMER SDS-PLUS WITH 13MM CHUCK 850W
- Uniwersalna młotowiertarka umożliwiająca wiercenie w każdym
- rodzaju materiału, dzięki dwóm głowicom: sds+ oraz samozaciskowej 13mm (pasują do Bosch GBH )
- Sprawdza się przy wierceniu pod puszki elektryczne, podkuwaniu
- bruzd pod kable oraz wierceniu bez ud
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Functions
shoeing, drilling, drilling with impact, chisel positioning
Toolholder type
SDS-Plus
Power
850 W
Rotations
0-1300 min⁻¹
Hammering energy
3.3 J
Impact frequency
0-5100 min⁻¹
Voltage
220-240 V a.c.
Frequency
50 Hz
Max. hole diameter in concrete
32 mm
Max. hole diameter in steel
13 mm
Max. hole diameter in wood
30 mm
Stroke
yes, electropneumatic
Rotation switch
yes
Tool positioning in chuck
yes
Cable length
3 m
Electric insulation class
II
Protection grade
IP20
Acoustic pressure
92.3 ± 3.0 dB(A)
Acoustic power
103.3 ± 3.0 dB(A)
Vibrations
11.964 ± 1.5 / 10.037 ± 1.5 m/s²
Weight
3 kg
Set includes

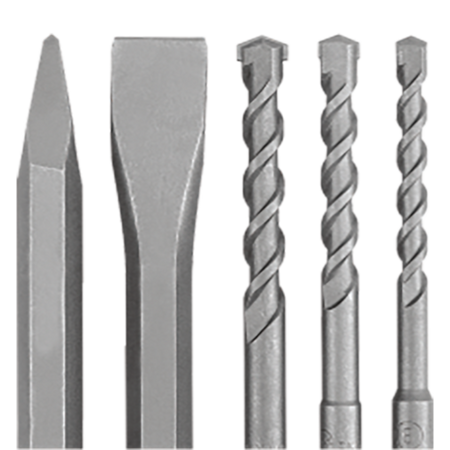

hammer drill, additional handle, additional drill chuck 2-13 mm, drilling depth limiter, drills x3, chisel, punch
Application
metal, concrete, silicates, wood, plastics
Symbol
YT-82122
![](https://pim.toya.pl/piktogramy/POWER_SUPPLY/image-thumb__60417__Sklep_pikto/220-240V_50Hz.png)
![](https://pim.toya.pl/piktogramy/WORDS_DESCRIPTION/image-thumb__65690__Sklep_pikto/SDS_PLUS.png)
![](https://pim.toya.pl/piktogramy/W_kW/image-thumb__53184__Sklep_pikto/850_W.png)
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__84215__Sklep_pikto/0-1300_min-1.png)
![](https://pim.toya.pl/piktogramy/min-1/image-thumb__82438__Sklep_pikto/IMPACT_0-5100_min-1.png)
![](https://pim.toya.pl/piktogramy/J_JULE/image-thumb__66950__Sklep_pikto/3%2C3_J.png)
![](https://pim.toya.pl/piktogramy/CUTTING/image-thumb__78491__Sklep_pikto/DRILLING_WOOD_30_mm.png)
![](https://pim.toya.pl/piktogramy/CUTTING/image-thumb__84225__Sklep_pikto/DRILLING_CONCRETE_32_mm.png)
![](https://pim.toya.pl/piktogramy/CUTTING/image-thumb__78490__Sklep_pikto/DRILLING_STEEL_13_mm.png)
![](https://pim.toya.pl/piktogramy/PICTURES/image-thumb__59865__Sklep_pikto/DRILL.png)
![](https://pim.toya.pl/piktogramy/PICTURES/image-thumb__59866__Sklep_pikto/DRILL_IMPACT.png)
![](https://pim.toya.pl/piktogramy/PICTURES/image-thumb__63517__Sklep_pikto/LEFT_RIGHT.png)
![](https://pim.toya.pl/piktogramy/CABLE/image-thumb__50867__Sklep_pikto/CABLE_3_m.png)

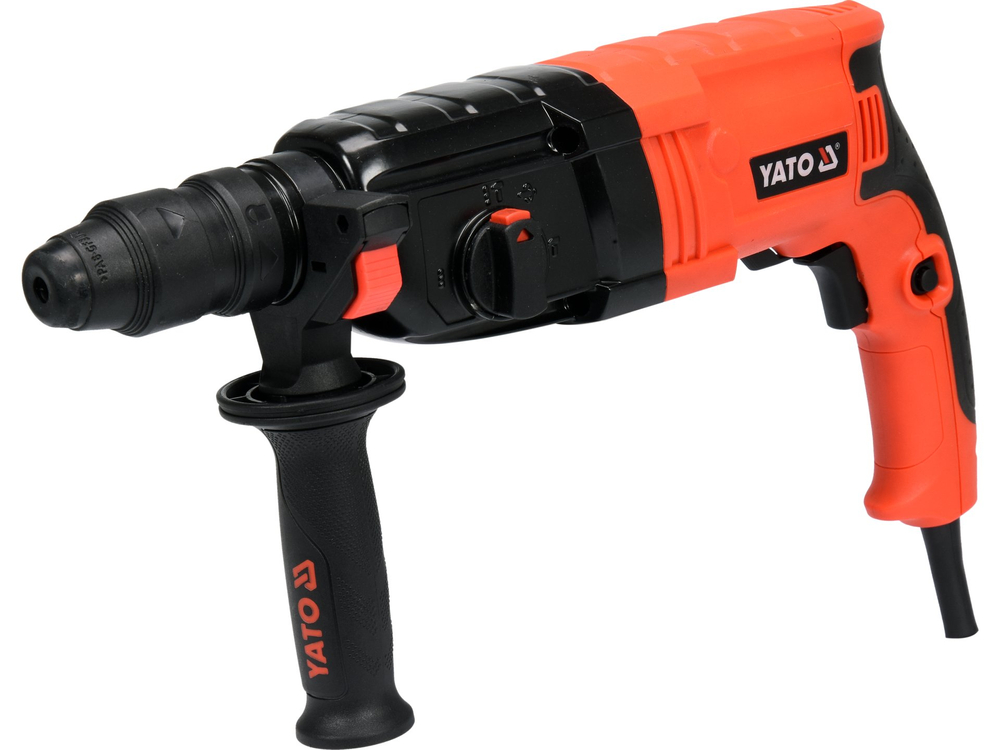

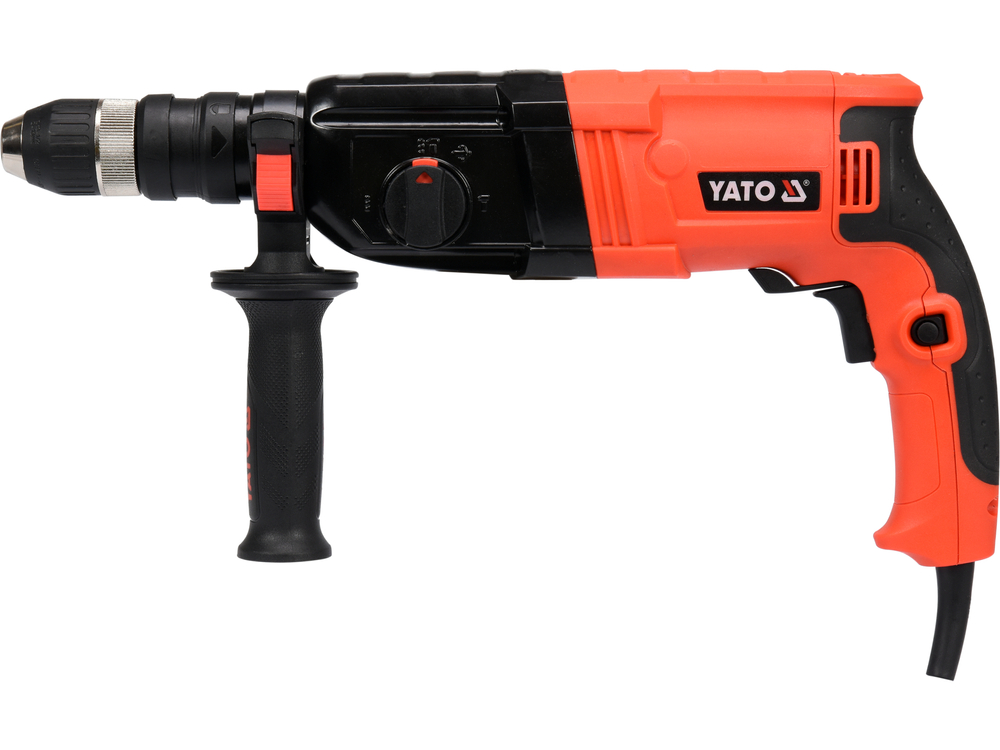

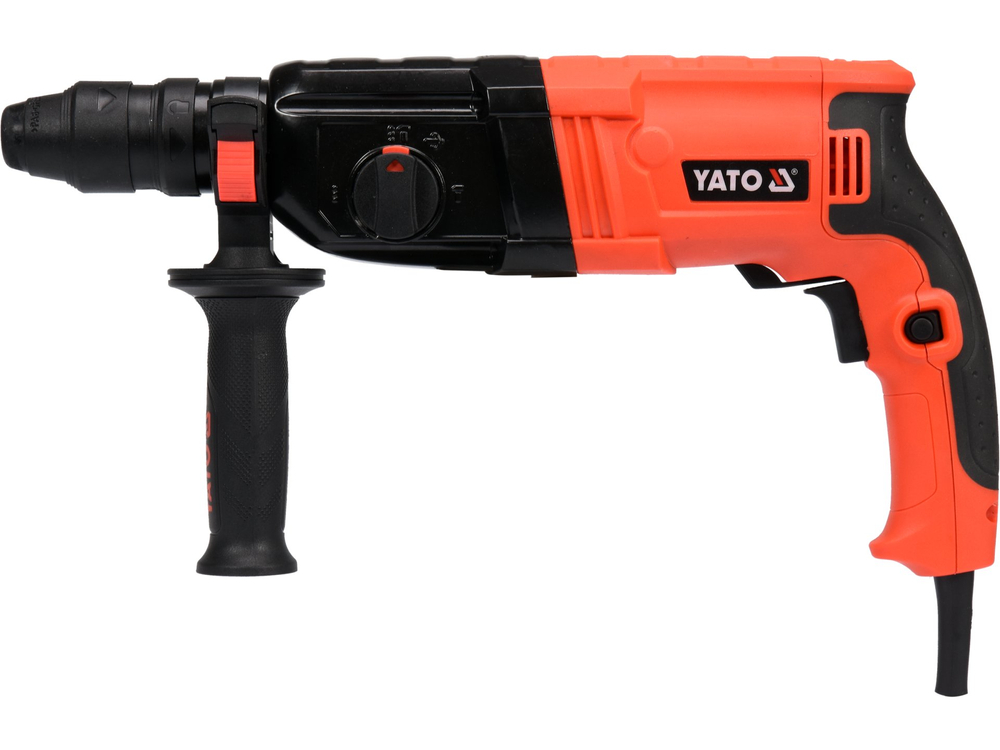

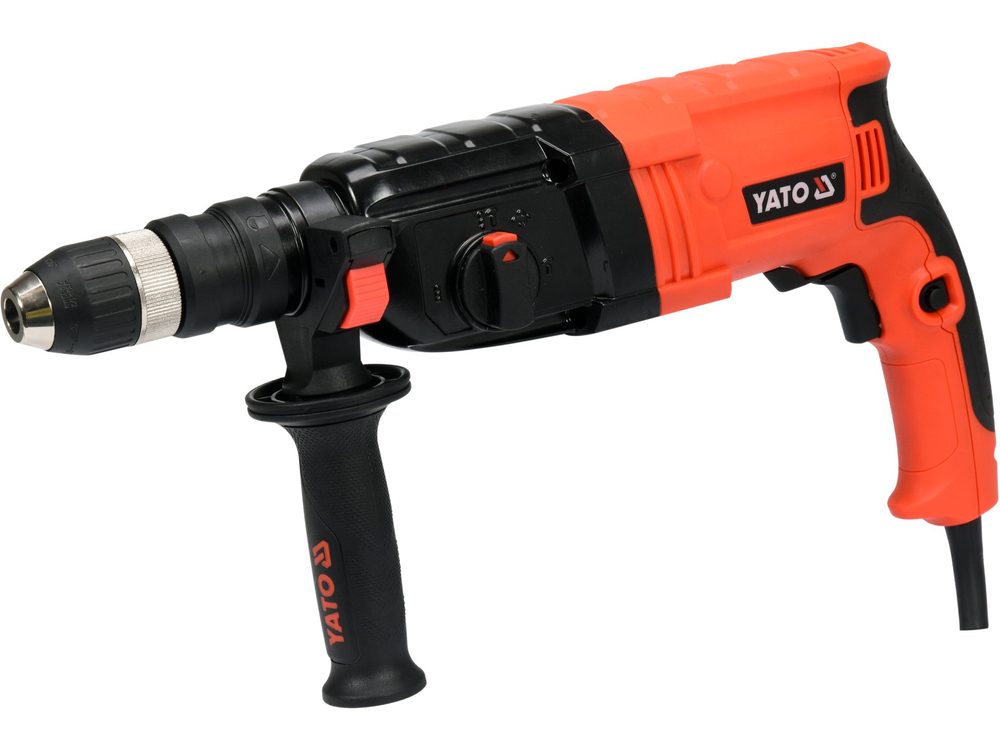

Universal hammer drill that allows drilling in any type of material, thanks to its two heads: sds+ and self-clamping 13mm. It works well for drilling for electrical boxes, shoring grooves for cables, and non-impact drilling with the 13mm head. High force and speed ensure fast work progress.
- metal housing for the entire gearbox
- steel clutch to protect the user from overload and injury
- quick-change head system
- lateral mode setting knob: forging, drilling, impact drilling or chisel positioning
- thick 3 m cable

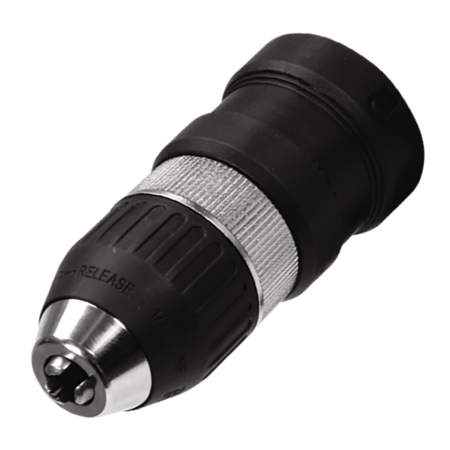

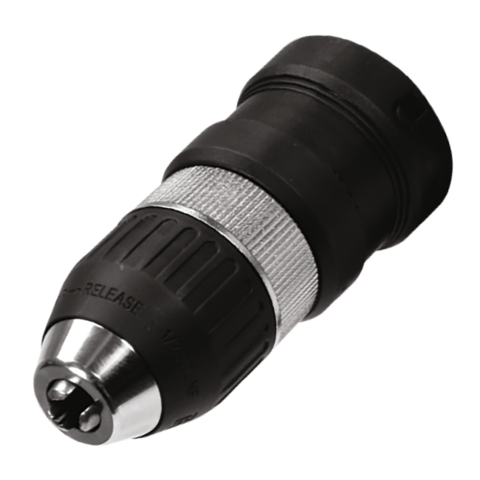

- included:sds+ head and additional 13 mm head for cylindrical drills, 3 drill bits and 2 chisels

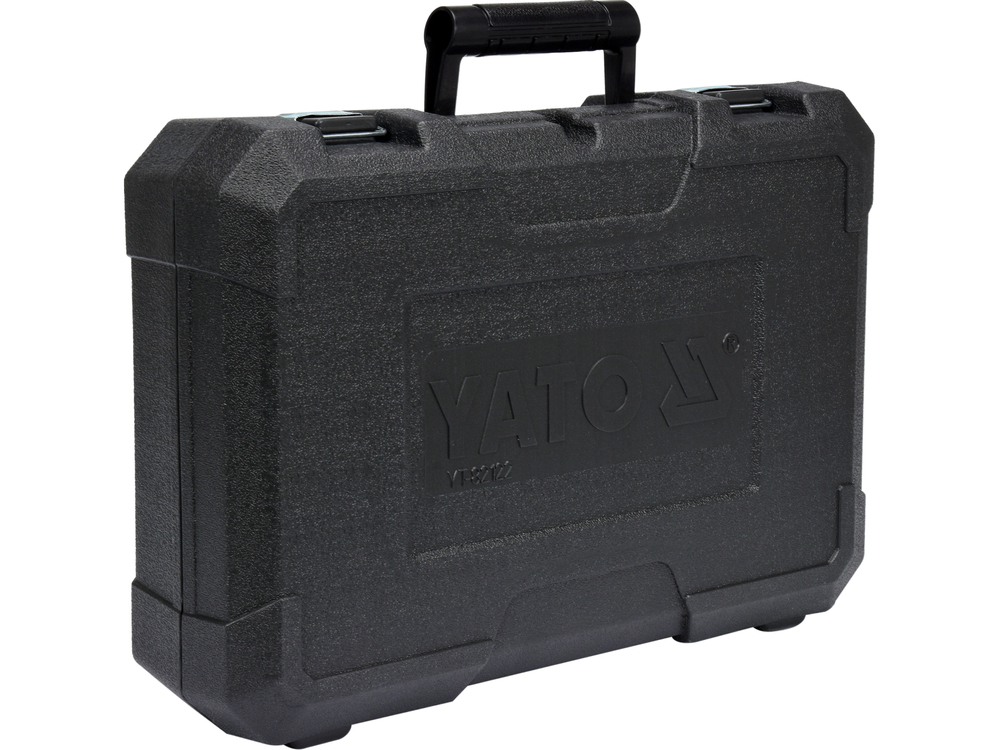

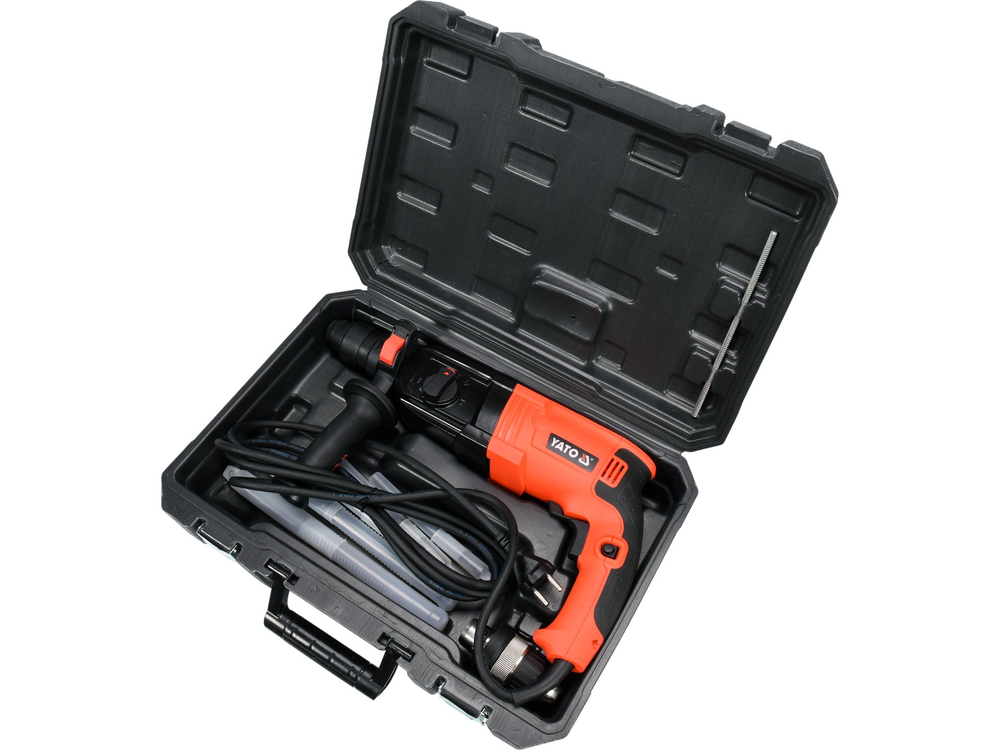

- packaged in a durable carrying case with metal latches
Parameters
- power [W]: 850
- udar: electropneumatic
- application: wood, concrete, metal
- grip: SDS plus
- impact energy [J]: 3.3
- voltage [V]: 230
- weight [kg]: 3
- stroke rate [1/min]: 5100
- number of rotations [1/ min]: 0-1300
- max concrete drilling diameter [mm]: 32
- work functions: forging, impact drilling, non-impact drilling, chisel positioning
