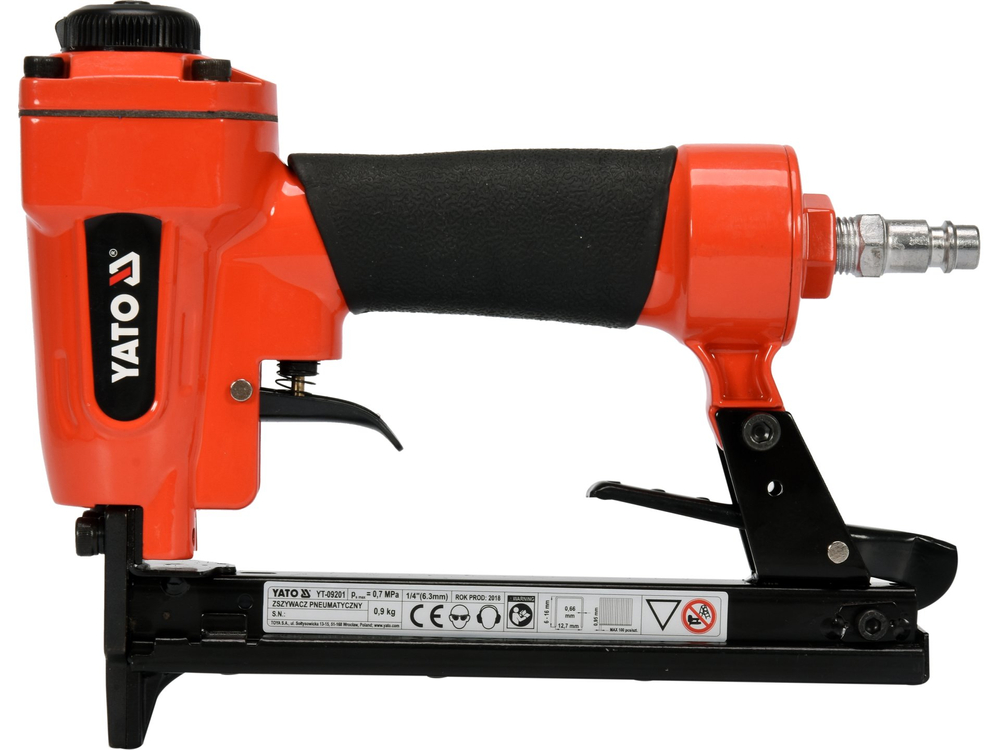

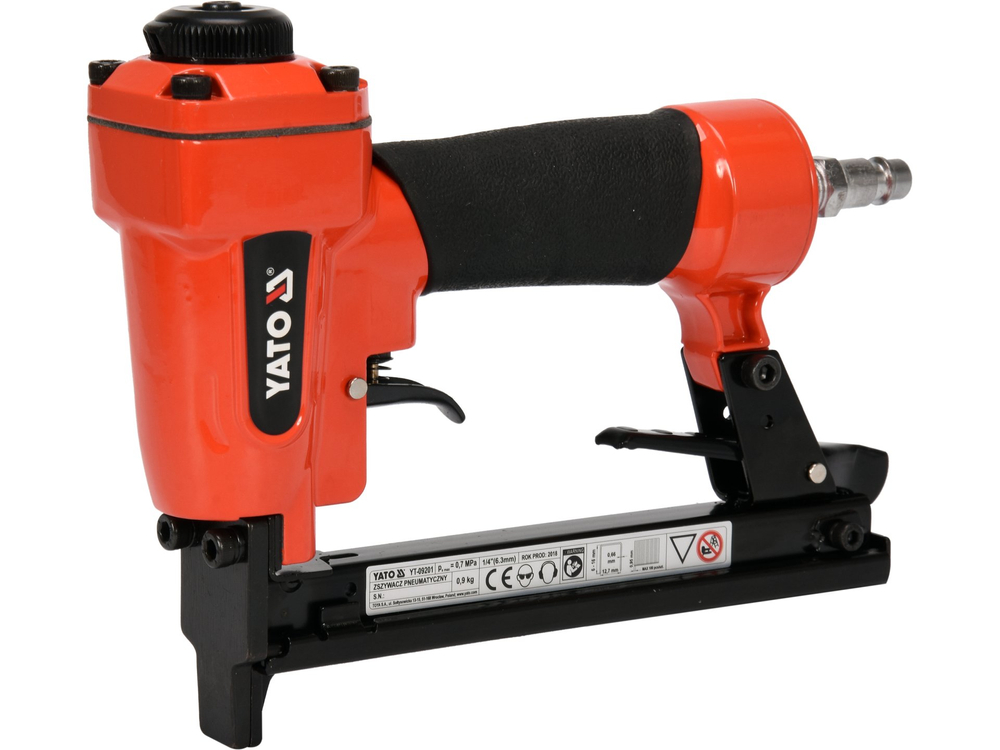

YT-09201
STAPLER FOR STAPLES: 6-16MM*12,7MM
- Zszywacz pneumatyczny na zszywki 12,7 6-16 mm
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of fasteners
staples
Connecting elements length
6-16 mm
Connecting elements dimensions
6-16x0.95x12.7 mm
Max. working pressure
0.7 MPa
Recommended working pressure
0.4-0.7 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
100 szt.
Dimensions
215x50x165 mm
Body material
aluminum
Handle material
rubber
Functions
sequential operating mode
Rotary nozzle
yes
Fuse
yes
Acoustic pressure
88.0 ± 2.5 dB(A)
Acoustic power
99.0 ± 2.5 dB(A)
Vibrations
3.5 ± 1.5 m/s²
Weight
0.9 kg
Application
upholstery, carpentry, finishing works
Symbol
YT-09201
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52603__Sklep_pikto/0%2C7_MPa.png")
![](https://pim.toya.pl/piktogramy/STAPLES/image-thumb__70182__Sklep_pikto/STAPLES_01_6-16_mm.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60328__Sklep_pikto/COUPLE_01_STANDARD.png")
Professional pneumatic stapler for assembly and finishing work. It drives staples with a spacing of 12.7 mm and lengths from 6-16 mm. It has a rotary air outlet nozzle, 1/4BSP connection, body made of die-cast aluminum.
- 360° rotating air outlet nozzle
- rubber-coated handle for more comfortable operation
- sequential operation mode
- ability to drive staples into hard wood and wood-based materials
- easy staple replacement
- high working speed
- magazine capacity: 100 pcs.
For fast joining of materials with staples in finishing, decorating, upholstery work.... PROPOSED staples VOREL- INDEK 71970,71971,71972 Press the “nose” of the stapler to the elements to be joined and press the trigger of the device.
