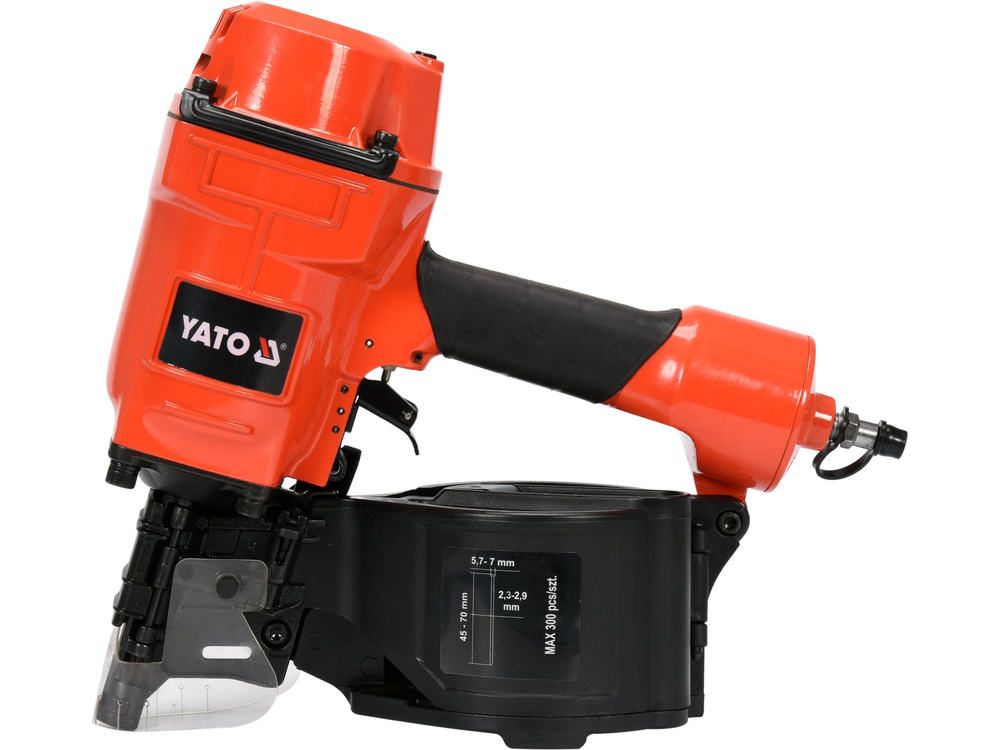

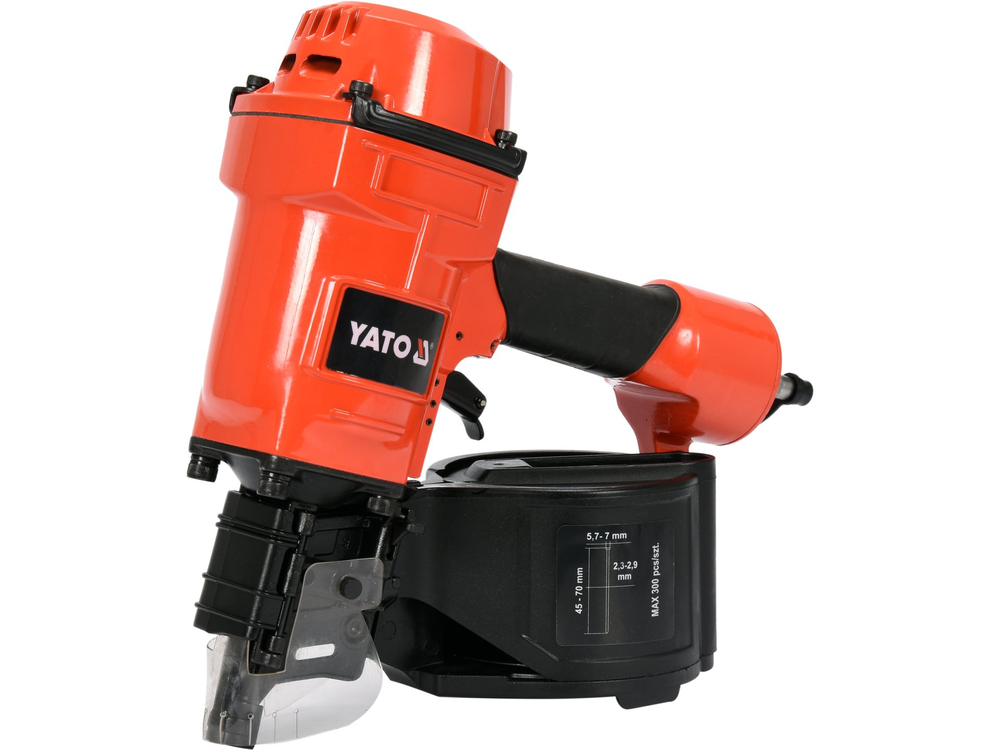

YT-09213
COIL NAILER FOR NAILS: 45-70MM DIAM. 2,3- 2,9MM
- Profesjonalna gwoździarka bębnowa na gwoździe papowe o długości od 45 do 70 mm , łączone drutem pod kątem 15°
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of fasteners
nails
Connecting elements length
45-70 mm
Connecting elements dimensions
45-70x2.3-2.9x5.7-7 mm
Max. working pressure
0.8 MPa
Recommended working pressure
0.4-0.8 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
300 szt.
Dimensions
306x128x315 mm
Body material
aluminum
Materiał rękojeści
rubber
Wire collated nail angle
15 ˚
Functions
sequential operating mode, side loading system, impact force adjustment, touch and trigger firing switch
Rotary nozzle
yes
Dust cover
yes
Fuse
yes
Acoustic pressure
101,7 ± 2,5 dB(A)
Acoustic power
116,7 ± 2,5 dB(A)
Vibrations
14,55 ± 1,5 m/s²
Weight
3.6 kg
Application
upholstery, carpentry, finishing works
Symbol
YT-09213



Professional drum nailer for nails from 45 to 70 mm long, joined by wire at an angle of 15°. The body is made of die-cast magnesium-based alloy. It has a rotating air outlet nozzle, a fuse to prevent accidental application, a side-loading system, a protector and a dust cover. ¼ bspt connection.
- equipped with a touch and trigger firing switch that allows for both rapid and precision operation
- adjustment of impact force by varying the pressure in the air system
- .li>side-loading system
- protection against unwanted activation
- dust shield
- a wide, reinforced barrel prevents too rapid abrasion
For fast nail driving during construction, carpentry, roofing work, etc.
Proposed nails: Vorel 71992, 71993, 71994
.
