YT-09212
COIL NAILER FOR NAILS: 25MM- 57MM DIAM. 2,1- 2,3MM

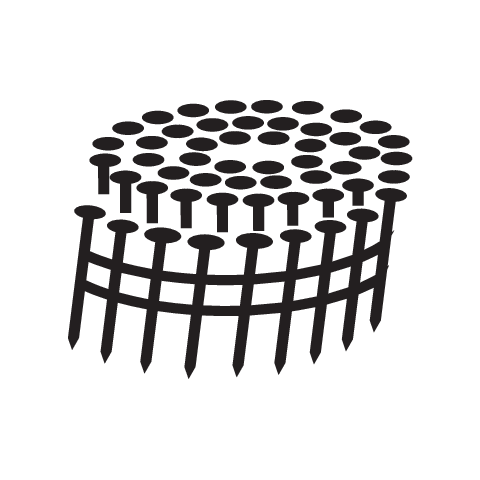

- Profesjonalna gwoździarka bębnowa na gwoździe o długości od 25-57 mm , łączone drutem pod kątem 15°.
Brand
Series
Type of fasteners
nails
Connecting elements length
25-57 mm
Connecting elements dimensions
25-57x2.1-2.3x5-6.2 mm
Max. working pressure
0.8 MPa
Recommended working pressure
0.4-0.8 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
350 szt.
Dimensions
270x131x283 mm
Body material
aluminum
Materiał rękojeści
rubber
Wire collated nail angle
15 ˚
Functions
sequential operating mode, side loading system, impact force adjustment, touch and trigger firing switch
Rotary nozzle
yes
Dust cover
yes
Fuse
yes
Acoustic pressure
88.6 ± 2.5 dB(A)
Acoustic power
101.6 ± 2.5 dB(A)
Vibrations
3.73 ± 0.8 m/s²
Weight
2.8 kg
Application
upholstery, carpentry, finishing works
Symbol
YT-09212

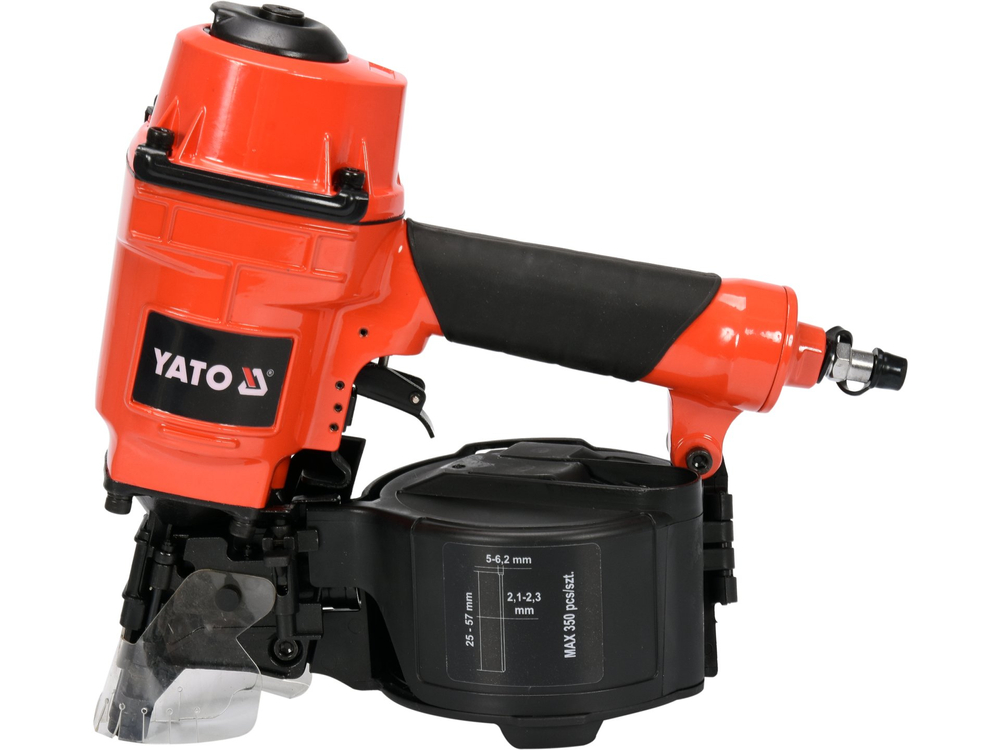

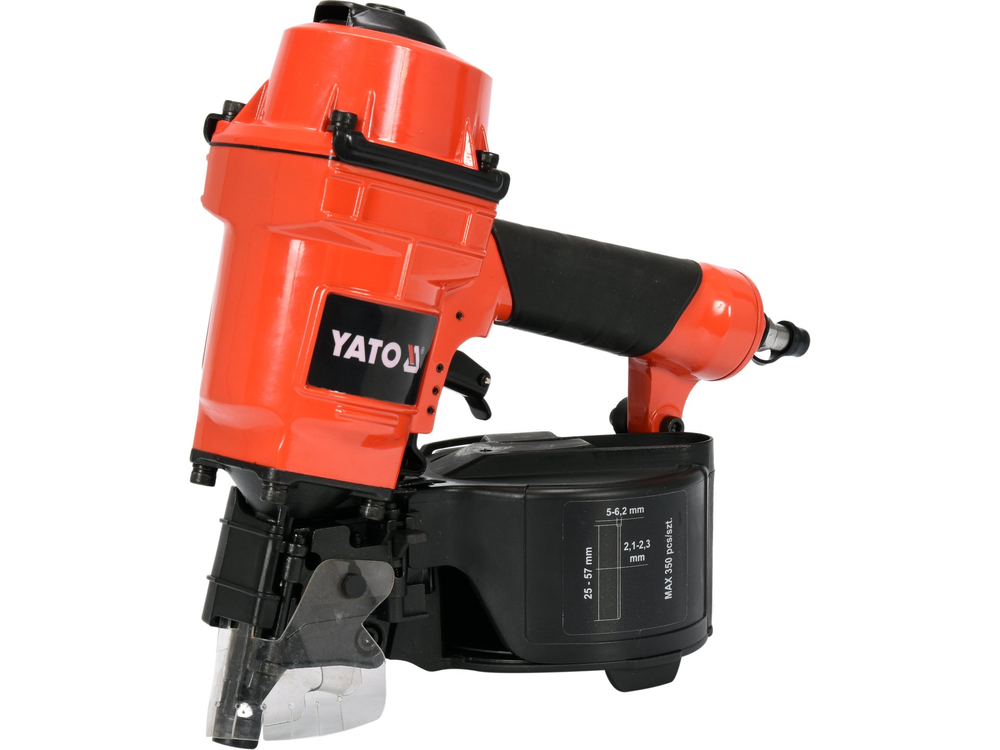

Professional drum nailer for nails from 25-57 mm in length, joined by wire at an angle of 15°. Body made of die-cast magnesium-based alloy. It has a rotating air outlet nozzle, a fuse to prevent accidental application, a side-loading system, a protector and a dust cover. ¼ bspt connection.
- equipped with a touch-and-trigger shooting switch that allows for both rapid and precision operation
- adjustable impact force .
- side-loading system
- protection against unwanted activation
- .dust cover
- wide, reinforced barrel prevents too fast abrasion
For fast nail driving during roofing, carpentry, finishing work.

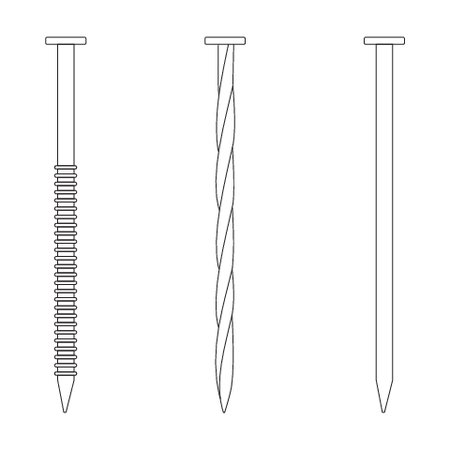

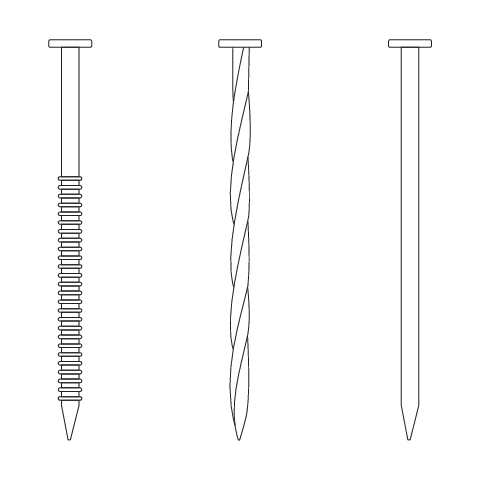

Proposed nails: Vorel 71990, 71991, 71992
.
