YT-09211
ROOFING COIL NAILER FOR NAILS: 22-45MM DIAM. 3,05MM
- Profesjonalna, pneumatyczna gwoździarka bębnowa na gwoździe papowe o długości od 22-45 mm.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of fasteners
nails
Connecting elements length
22-45 mm
Connecting elements dimensions
22-45x3.05x9.5-10 mm
Max. working pressure
0.7 MPa
Recommended working pressure
0.4-0.7 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
120 szt.
Dimensions
250x117x264 mm
Body material
aluminum
Material of the handle
rubber
Wire collated nail angle
15 ˚
Functions
sequential operating mode, side loading system, impact force adjustment, touch and trigger firing switch
Rotary nozzle
yes
Dust cover
yes
Fuse
yes
Acoustic pressure
100.3 ± 2.5 dB(A)
Acoustic power
111.3 ± 2.5 dB(A)
Vibrations
11.3 ± 1.5 m/s²
Weight
2.6 kg
Application
upholstery, carpentry, finishing works
Symbol
YT-09211

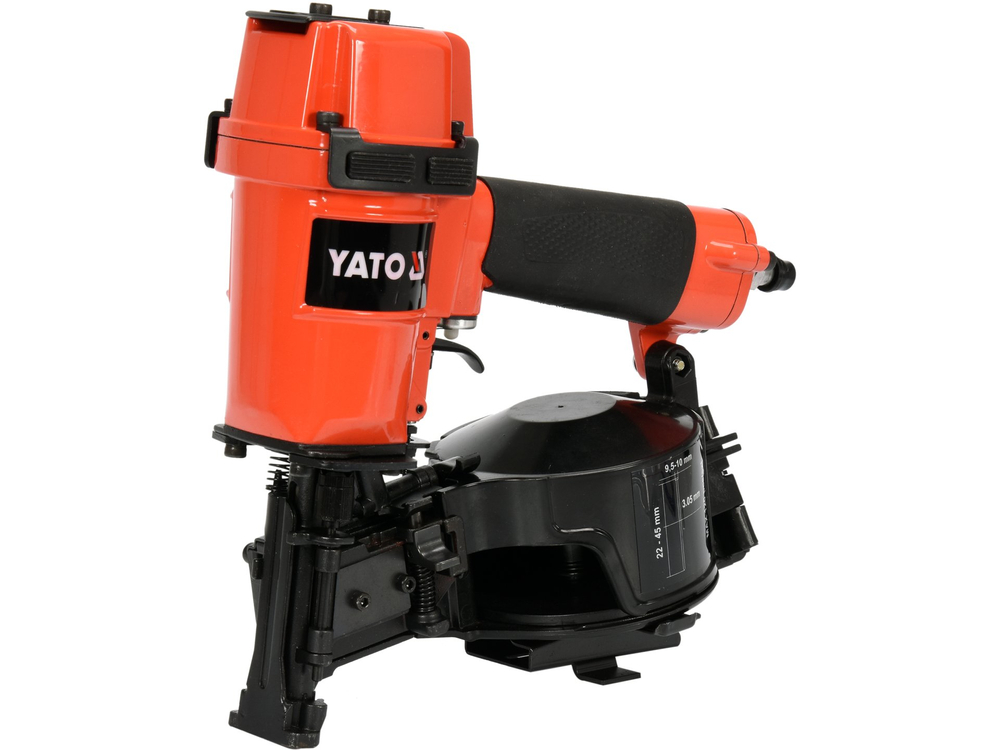

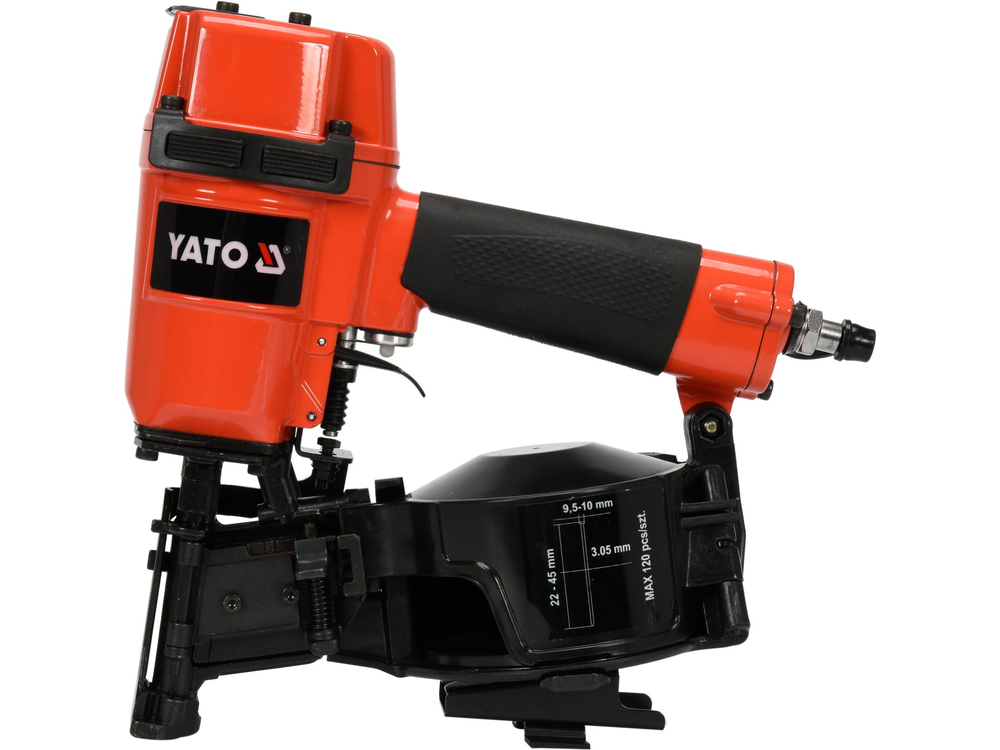

ProfessionalYATO drum nailer
- For paper nails from 22-45 mm in length, joined by wire at an angle of 15°. Nail thickness approx 3.05 mm
- Body made of die-cast magnesium-based alloy
- Rotating nozzle air outlet
- Fuse to protect against accidental application
- Side-charging system ./li>
- Protector and dust cover
- Front 1/4 bspt connection
Reliable when fixing pap, shingles and other roofing materials such as sheet metal. Improves the installation or repair of roof sheathing. Designed for wire-connected nails at an angle of 15°.
- lightweight and well-balanced, does not burden the user during work
- equipped with touch and trigger firing switch< /strong>. /strong>which allowsfast and precision operation
- protection against unwanted activation
- side loading system
- adjustment of the impact force by changing the pressure in the pneumatic system
- .dust cover
- wide, reinforced barrel prevents too rapid abrasion
- magazine capacity: 120 nails
- bodies made of die-cast aluminum alloy
For driving tar paper nails 22-45 mm.
Proposed nails: Vorel 72000, 72001
