YT-09203
BRAD NAILER AND STAPLER FOR STAPLES: 25- 40MM AND NAILS: 10-50MM
- Zszywacz pneumatyczny na zszywki 5,7 mm , długości 13-40 mm.oraz gwoździe płaskie w zakresie 10-50 mm.
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Type of fasteners
staples, nails
Connecting elements length
25-40, 10-50 mm
Connecting elements dimensions
25-40x1.25x5.7, 10-50x1.25x2 mm
Max. working pressure
0.8 MPa
Recommended working pressure
0.4-0.8 MPa
Air connection diameter (PT)
standard
Air supply hose inside diameter
3/8" (9.5 mm)
Dispenser capacity
80 (staple gun), 100 (nails) szt.
Dimensions
250x55x240 mm
Body material
aluminum
Handle material
rubber
Functions
sequential operating mode
Rotary nozzle
yes
Fuse
yes
Acoustic pressure
87.8 ± 2.5 dB(A)
Acoustic power
100.8 ± 2.5 dB(A)
Vibrations
2.91 ± 1.5 m/s²
Weight
1.5 kg
Application
upholstery, carpentry, finishing works
Symbol
YT-09203
![](https://pim.toya.pl/piktogramy/MPa_l-min_l-h/image-thumb__52607__Sklep_pikto/0%2C8_MPa.png")
![](https://pim.toya.pl/piktogramy/STAPLES/image-thumb__52952__Sklep_pikto/STAPLES_01_25-40_mm.png")
![](https://pim.toya.pl/piktogramy/STAPLES/image-thumb__52962__Sklep_pikto/STAPLES_03_10-50_mm.png")
![](https://pim.toya.pl/piktogramy/PICTURES_DESCRIPTION/image-thumb__60328__Sklep_pikto/COUPLE_01_STANDARD.png")

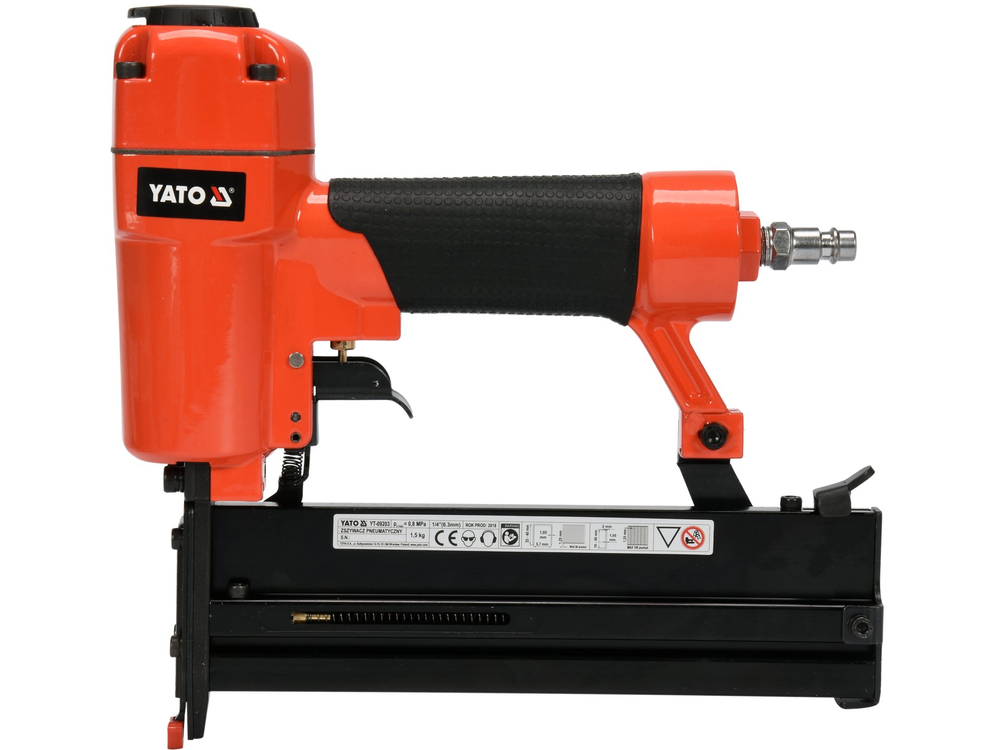

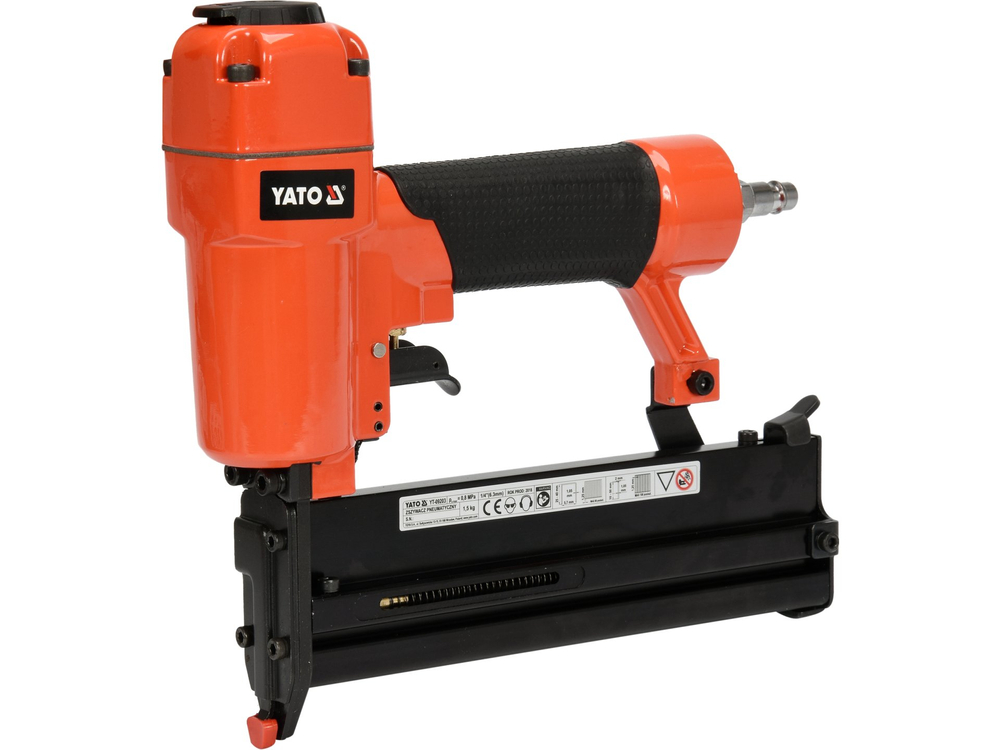

Professional pneumatic stapler for assembly and finishing work. The dual-purpose device - stapler and stapler - drives staples with 5.5 mm spacing and lengths from 25-40 mm and flat nails with lengths 05 10-50 mm. It has a rotating air outlet nozzle, 1/4BSP connection, nose equipped with a fuse to prevent accidental staple application. The body is made of die-cast aluminum.
- 360° rotating air outlet nozzle
- protection against accidental activation
- sequential operation mode
- rubber-coated handle for increased comfort of work
- possibility to drive staples into hard wood and wood-based materials
- easy staple replacement
- high working speed
- magazine capacity: 80 pcs. - staples, 100 pcs. - nails ( staples )
For joining different materials with staples or nails . PROPOSED staples VOREL -INDEKS 71977,71978 PROPOSED nails ( sticks ) VOREL- INDEKS 71980,71981,71982,71983 Press the nose / unlocking the fuse / to the materials to be joined and press the trigger of the device.
