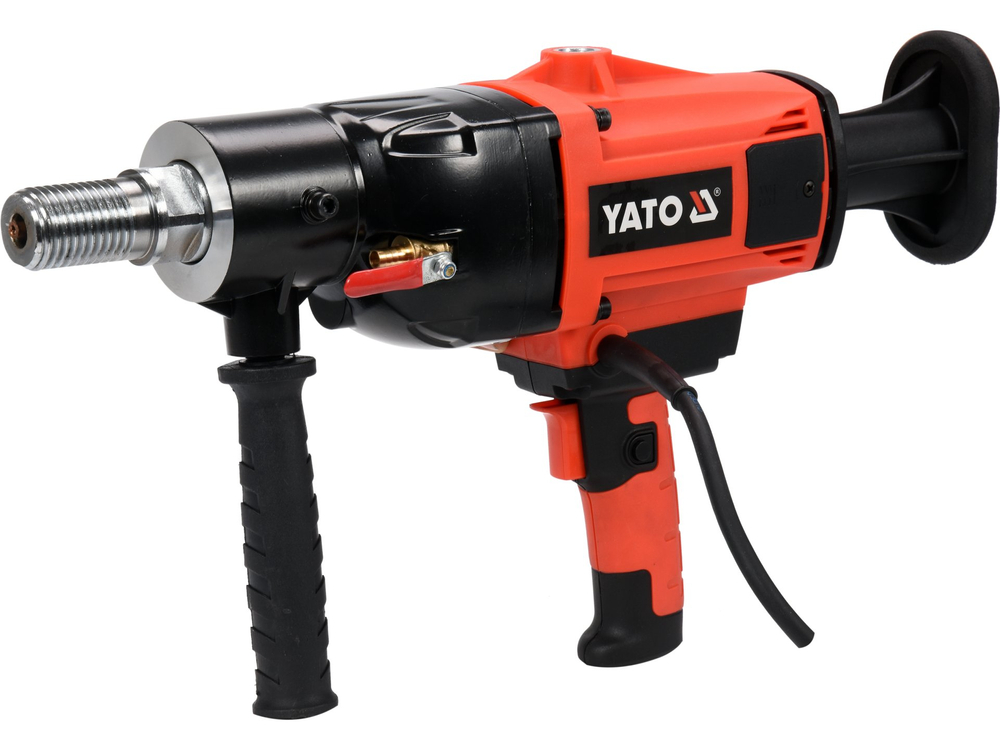

Diamond drill rig with tripod 2200w

Diamond drill rig is used to drill holes in reinforced concrete, using special drill bits with a diamond blade. It is also possible to use the drill dto drill holes in ceramic materials, such as concrete, asphalt, brick or stone.

With the possibility of water cooling, the work is efficient and safe.

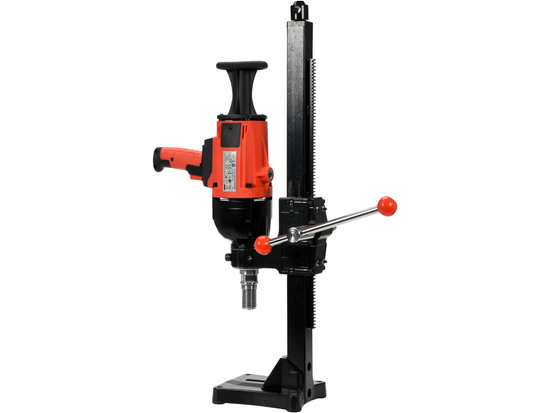

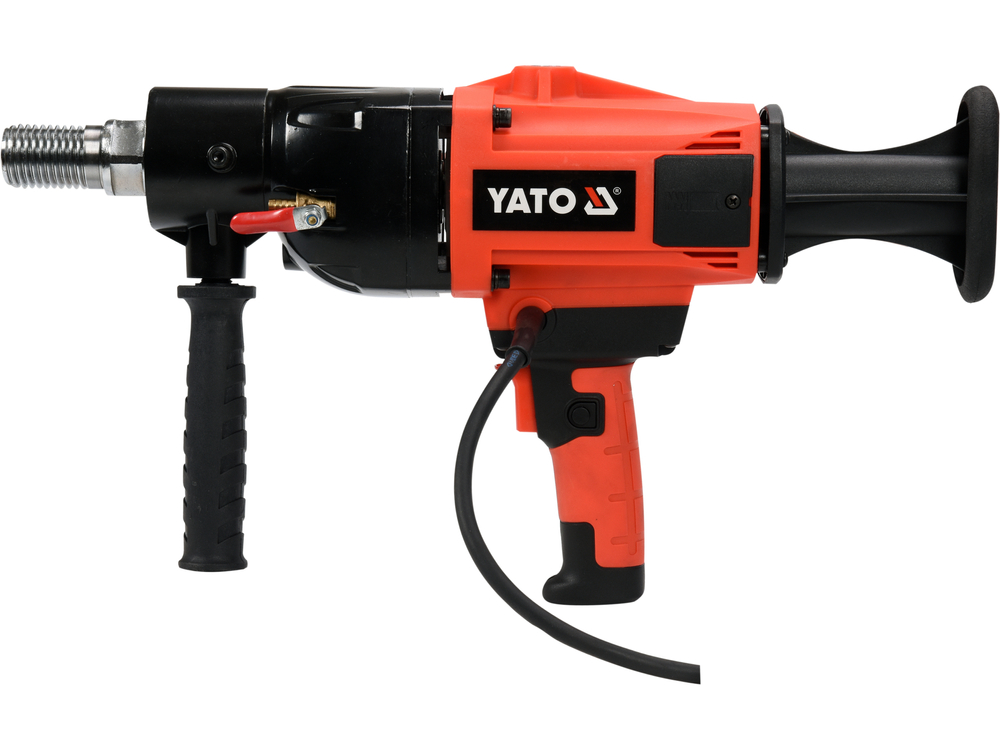

The drill can be used as a handheld or stationary tool - the set includes a dedicated stand.

Benefits of Yato diamond drill rig:

• large drilling range
• enables drilling of holes for 110 mm and 125 mm sewage pipes
• it also works "by hand"
• sensitive clutch is drilling through rebar without jerking
• can operate water-cooled
• made of corrosion-resistant materials

Additional information:

• Universal diamond drill rig for tripod or handheld operation. The machine has power of 2200W and operates at 0-1200 rpm. It allows drilling holes in a very wide range of 30 mm to 180 mm.

• The machine is equipped with a clutch, which, thanks to its smooth operation, does not cause jerking of the machine when cutting holes in reinforced concrete.

• The 1 1/4" inch drill chuck is standard chuck, which fits all drills available on the market.

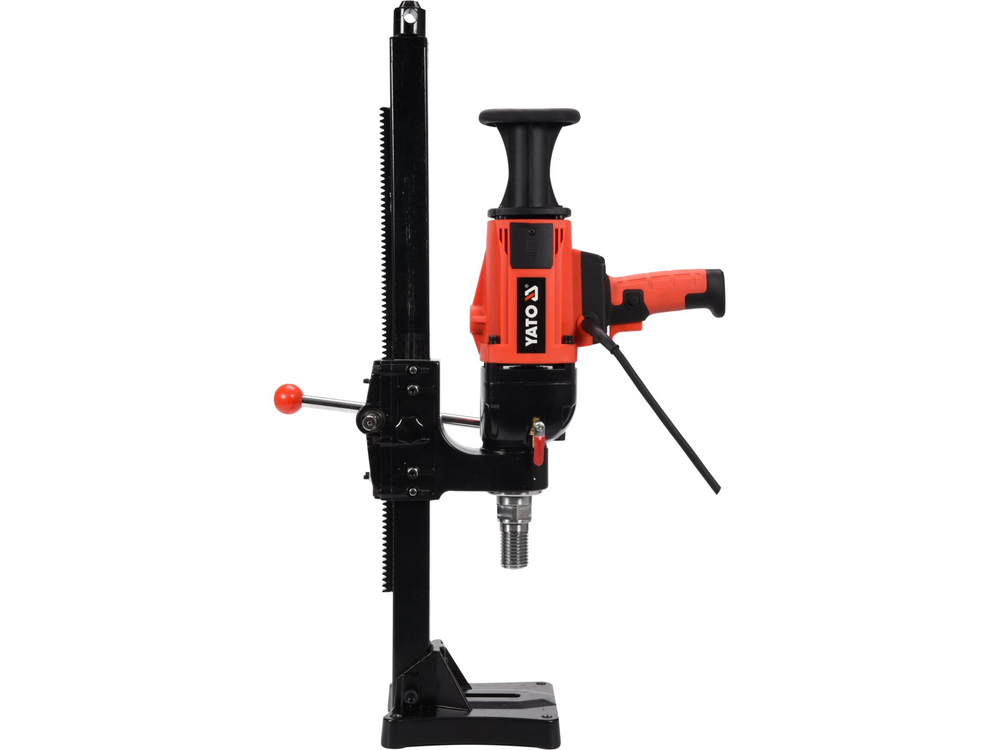

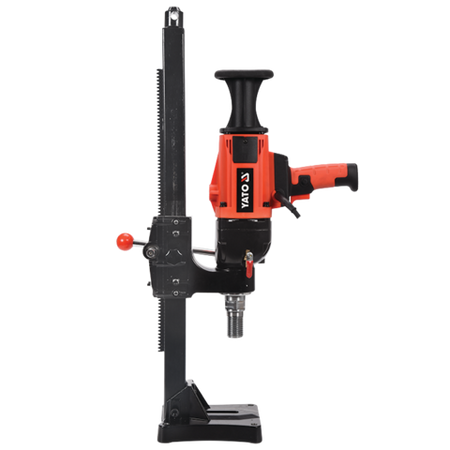

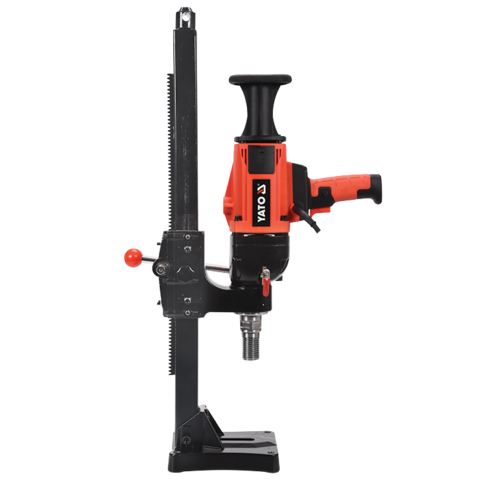

• The unit includes a tripod equipped with a gearbox, which makes drilling in hard materials such as granite or concrete effortless.

• The drill is indispensable for cutting electrical conduits in reinforced concrete, drilling ceilings for pipes and cables, installing cable routes or ventilation ducts.

Easy drilling in reinforced concrete

The 100% centrifugal coupling protects the operator and enables drilling through rebar without jerking. It is a centrifugal, mechanical clutch. Its design is based on 5 springs, so despite 1200 rpm, jerking is not felt, and only a slight deceleration of the drill bit is visible, which continues to cut the rebar.

Drilling, for example, for electrical boxes requires drilling many holes in reinforced concrete, so streamlining this work significantly reduces the time to complete the electrical installation in the apartment.

Failure-free

The diamond drill works on the principle of classical machining without impact, so the machine is not exposed to destructive vibrations.

Corrosion-resistant materials were used in the construction of the drill (it can also run water-cooled), so service life is a strong point. The clutch is mechanical, not electronic, and once the clutch springs wear out naturally, you only need to replace them.

Parameters:

• Rating voltage [V~]: 230
• Rating frequency [Hz]: 50
• rated power [W]: 2200
• insulation class: II
• rated rpm [min-1]: 1200
• drill attachment: 1 1/4" UNC
• minimum drill diameter [mm]: 12
• maximum drill diameter [mm]: 180
• drill length [mm]: 150 - 450
• water connection diameter [''/ mm]: 1/4" / 6.35
• max. inlet water pressure [MPa]: 0.5
• grade of protection: IP20
• weight [kg]: 12
