75951
SEWAGE PUMP 600W
- Wydajna pompa sanitarna z rozdrabniaczem wyposażona w cichy silnik o mocy 600 W.
- • niezawodny włącznik pneumatyczny, który gwarantuje precyzyjne sterowanie pracą urządzenia przez wiele lat
- • możliwość podłączenia dopływu z boku i od góry
- • w pełni automat
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Power
600 W
Voltage
230 V a.c.
Frequency
50 Hz
Max. rotations
3000 min⁻¹
Max. lifting height
6.5 m
Vertical range
65 m
Max. capacity
140 l/min
Water outlet diameter
40 x2, 100 x1 mm
Wire length
2 m
Wire insulation type
H05VV-F
Wire section area
3Gx0.75 mm²
Max. supply water temperature
90 ˚C
Electric insulation class
I
Protection grade
IPX4
Weight
8 kg
Set includes
sanitary pump with a built-in non-return valve, clamp x4, cap with nuts and seals x3
Symbol
75951

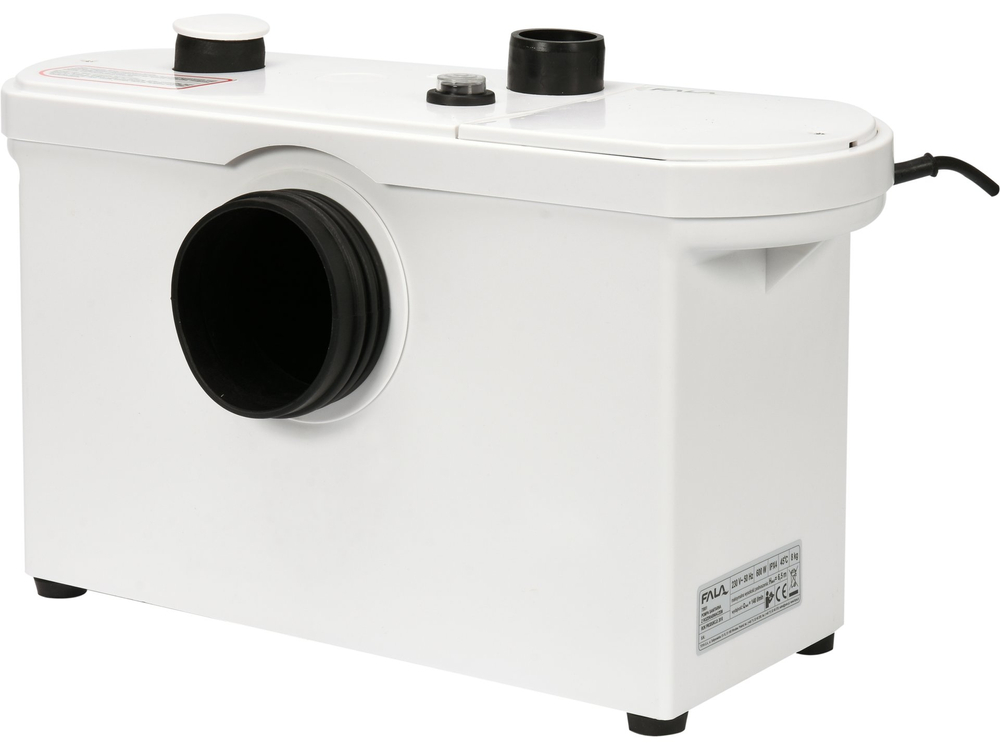

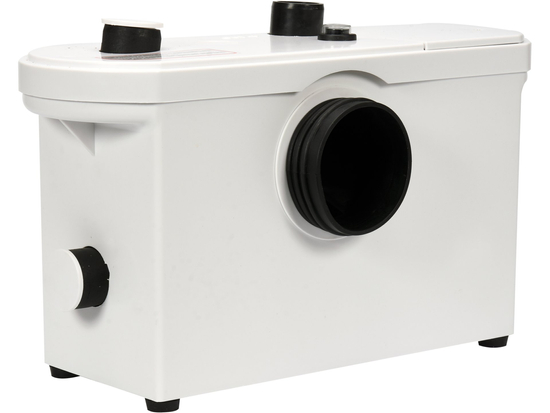

Efficient sanitary pump with grinder equipped with a quiet motor of power 600 W. The pump gives you the opportunity to install sanitary facilities where there is no way to connect them to a gravity sanitary sewer.
- reliable membrane switch, which guarantees precise control of the device's operation for many years
- .
- possibility to connect the supply from the side and from the top
- full automatic operation of the pump
- small dimensions make the pump fit behind any traditional toilet compact ./li>
- possibility to connect three additional appliances, such as. dishwasher, sink, bidet, washing machine and even a low shower tray or bathtub
Purpose/application
Premises in the household without the technical possibility of connecting sanitary facilities to a gravity sanitary sewer system - converted for sanitary purposes basements, attics, dressing rooms and other rooms.
Possible to connect sanitary facilities to a gravity sanitary sewer system
Possibility to connect three additional appliances, such as a dishwasher
- sink
- bidet
- washing machine
- low shower tray
- washing tub
Parameters
- power: 600 W
- maximum flow rate: 140 l/min
- maximum temperature: 90°C
- number of inputs: 3 (100 mm and 2 x 40 mm)
- protection rating: IPX4





Usage warnings:
Warning! Device is designed only for pumping water containing fecal matter. It is forbidden to throw hygiene products to the toilet connected to the pump, such as: paper towels, sanitary napkins, tampons and other similar products.To download
