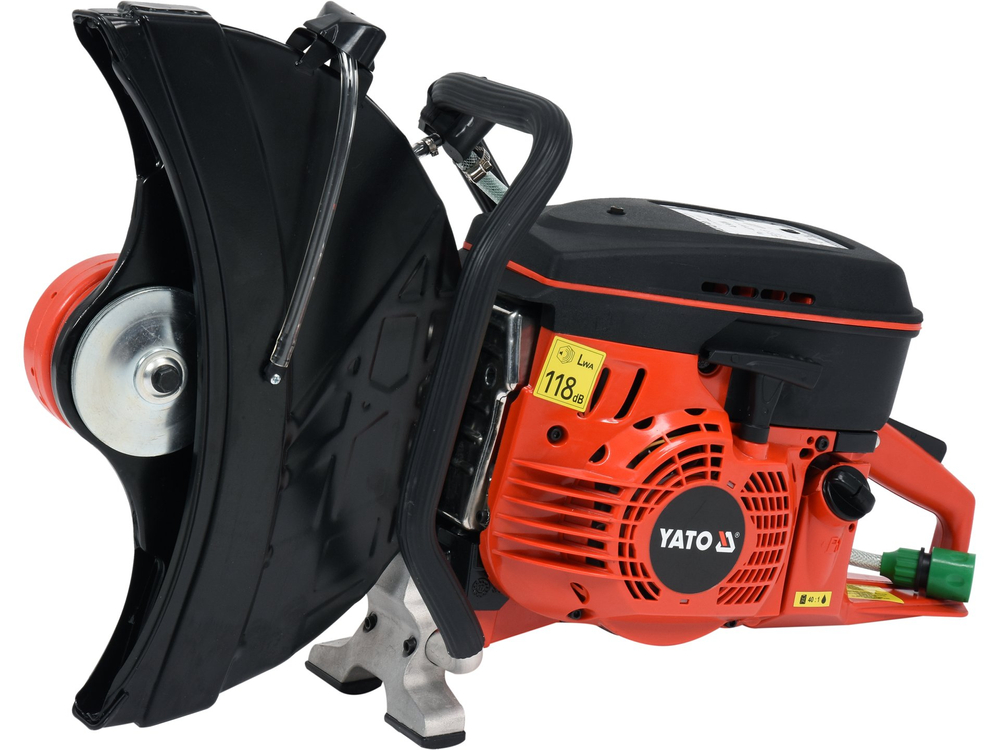

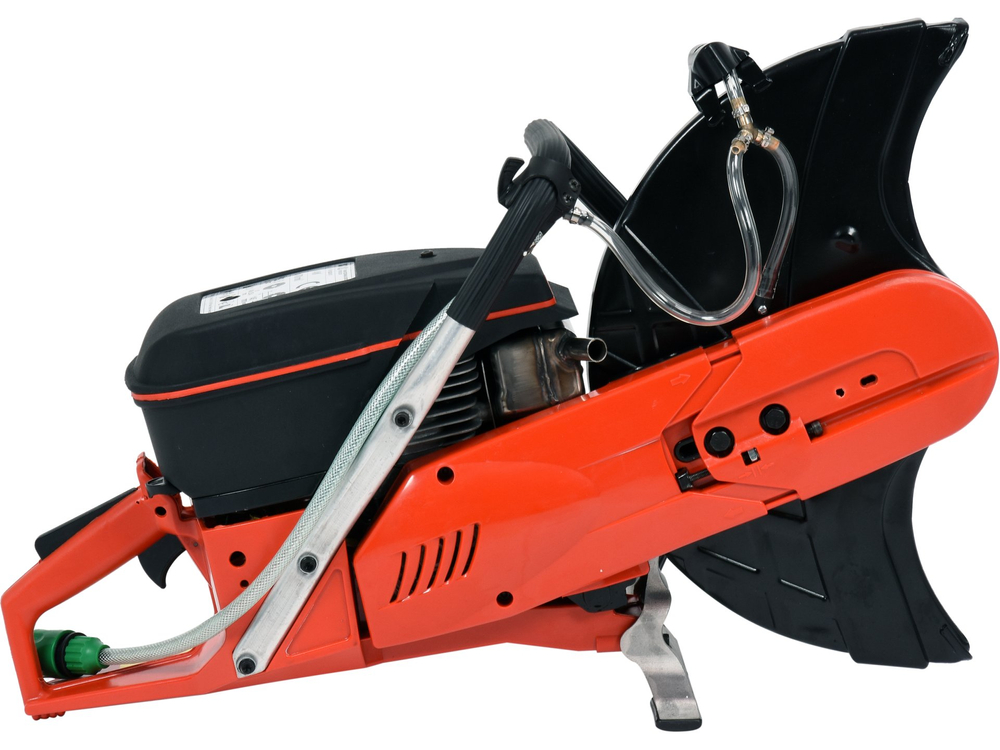

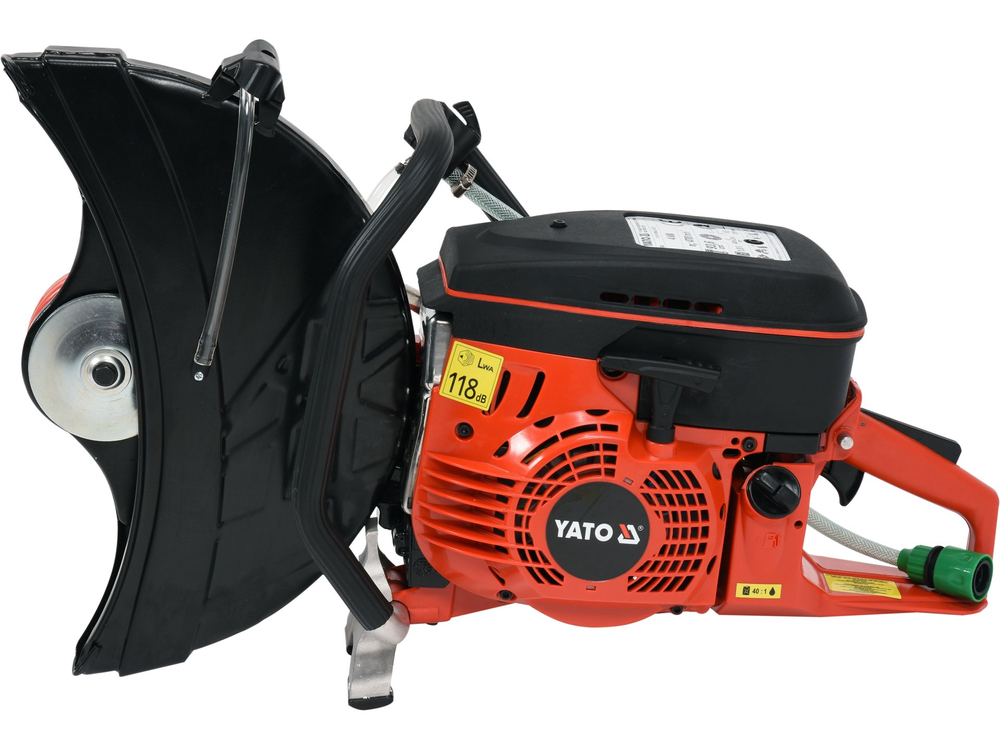

A very powerful two-stroke cutting machine designed for dry and wet cutting of concrete and - with the right type of disc - asphalt, stone and steel. Recommended for professionals. For the saw are recommended discs: YT-5965 and YT-5955.

• Required disc diameter: 400 mm
• maximum depth of cut: 145 mm
• power: 5.44 hp
• cooling of the blade with water<.
• dust protection
• multiple V-belt
• ceramic cylinder coating
• adjustabledisc guard allows operation in any position
• cutting element mounted on shock absorbers
• precise cutting from idle
• fuel venting system
• precision cutting. nbsp;
• low vibration level
• adjustable water jet
• exhaust gas blowing in a different direction than dust blowing
• compliance with EURO 2
• water connection included

Parameters:

• weight (without disc and fuel) [kg]: 12
• fuel tank capacity [l]: 1
• max. spindle speed [min-1]: 4700
• spindle diameter [mm]: 14.3
• diameter of disc mounting hole [mm]: 25.4
• diameter of disc [mm]: 400
• disc mounting torque [Nm]: 15 - 25
• minimum outside diameter of disc mounting flange [mm]: 78
• maximum depth of cut [mm]: 145
• water pressure [MPa]: 0.1 - 0.5

Combustion engine:

• Number of cylinders: 1
• Number of bars: 2
• cooling: air

• spark plug type: L8RTF, BM6A
• engine displacement [cm3]: 93.6
• engine power [kW]: 4
• statement speed [min-1]: 8500
• idle speed [min-1]: 2500 ± 300
• max. fuel consumption [g/h]: 2105

.

Usage warnings:

Warning! Avoid kickback towards the operator when operating the machine.
Warning! The exhaust system may emit sparks - risk of fire. Do not use a damaged cutting disc. Do not use circular saws.
