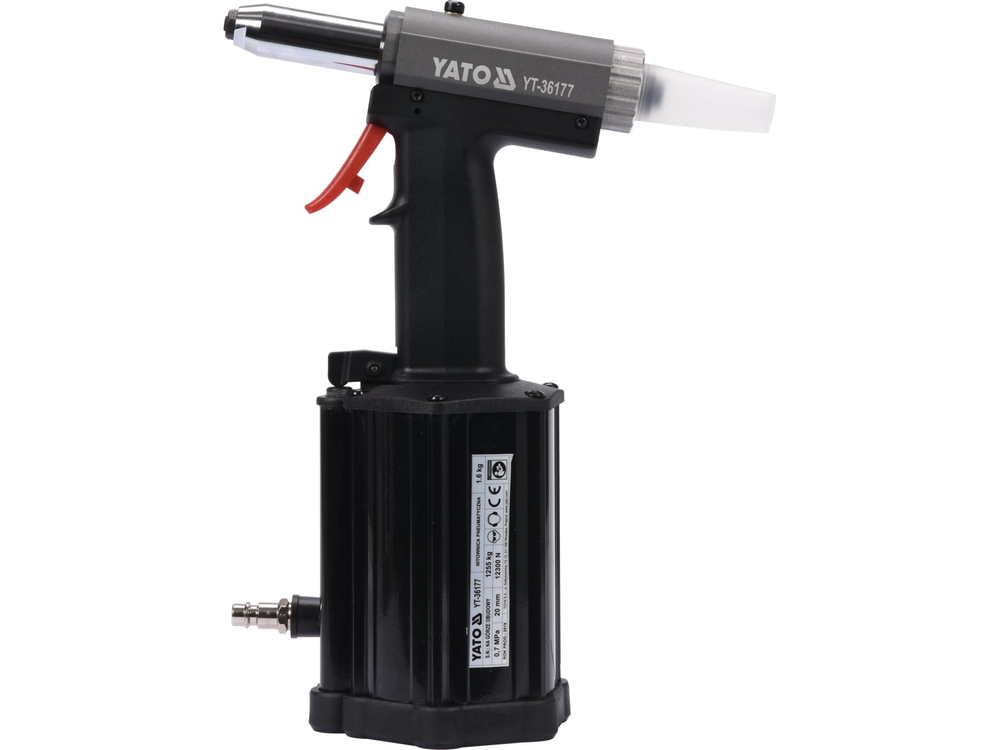

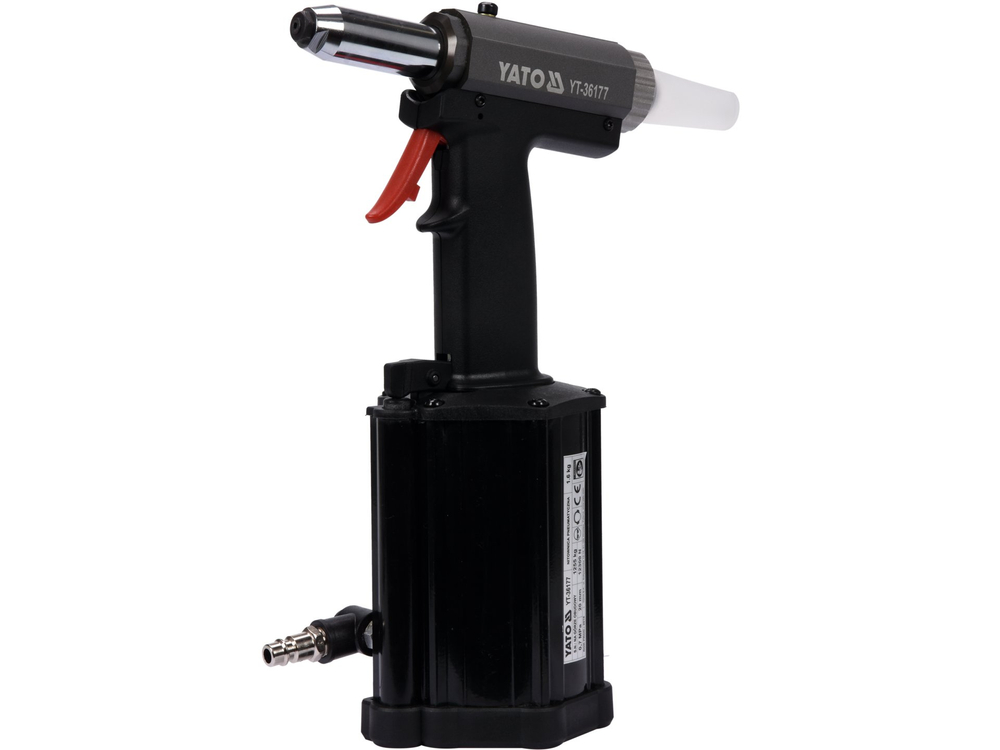

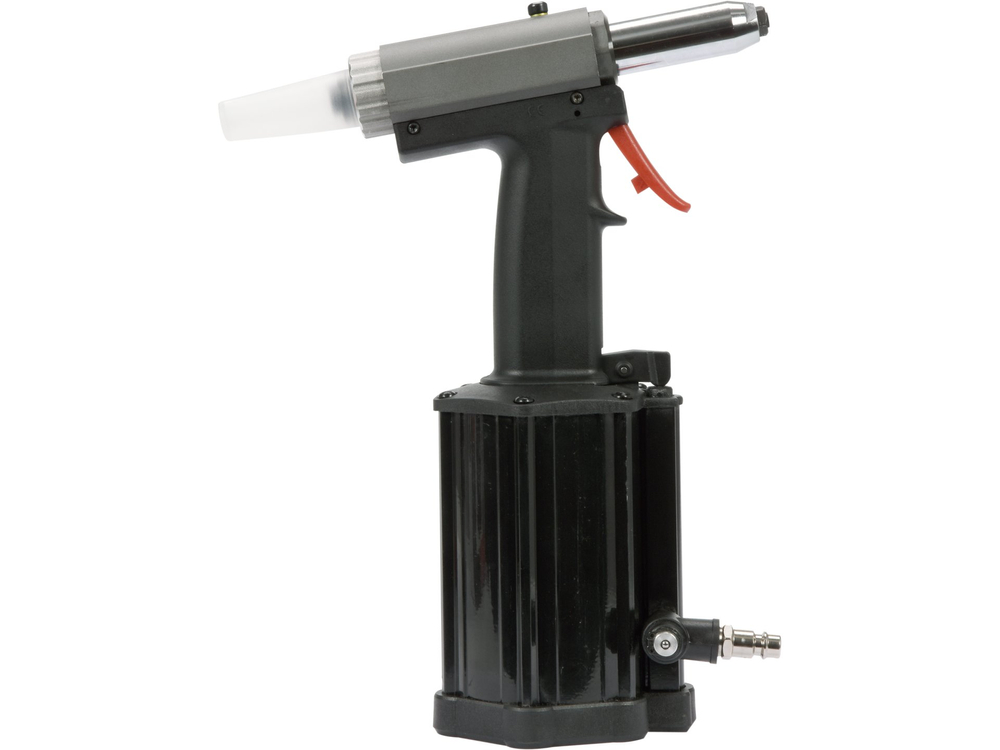

YT-36177
PNEUMATIC RIVETING TOOL 4,0- 6,4MM
Brand
Symbol
YT-36177
Producer code
5906083037351
Series
Max. working pressure
0.5 MPa
Recommended operating pressure
0.5 MPa
Air flow required
60 l/min
Crushing force
1255 kg
12300 N
Air connection diameter (PT)
standard
The inner diameter of the air supply hose
3/8 (9.5 mm)"
Rivet diameter
4, 4.8, 5, 5.4, 6, 6.4 mm
The number of jaws
3
The number of spare jaws
3
Maximum stroke of the actuator piston
20 mm
Acoustic pressure
87.2 ± 2.3 dB(A)
Acoustic power
94.5 ± 3.0 dB(A)
Vibrations
0.54 ± 0.15 m/s²
Weight
1.6 kg
Designed for permanently joining metal parts with rivetsórivets in steel, stainless steel and aluminum.
- The weighted pressure connection allows the riveter to rotate freely
- The durable 3-jaw system ensures fast and efficient riveting ./li>
- interchangeable endsós allow you to work with rivets of different diameters
- Range of rivetsós: 4–6.4 mm
- low air consumption
- ergonomic and easy-to-use design .
- 3 spare jaws
- bucket for broken mandrels
- hanger in housing
