YT-55307
ROLLER CABINET WITH TOOLS 185PCS
Brand
Symbol
YT-55307
Producer code
5906083042058
Series
Number of pieces included
185
Dimensions
970x770x470 mm
Number of drawers
6
Number of contributions
12
Load max
25, 35, 35 kg
Material
blacha stalowa
Surface finish
powder painted
Worktop material
PP
Type of worktop
non-slip
Bearing
Yes
Bearing type
ball
Drawer lock
Yes
Central lock
Yes
Number of keys
2
Colic
Yes
Number of wheels
4
Number of wheels with a brake
1
Wheel diameter
125 mm
Corner bumpers
Yes
Double walls
Yes
Universal perforation
Yes

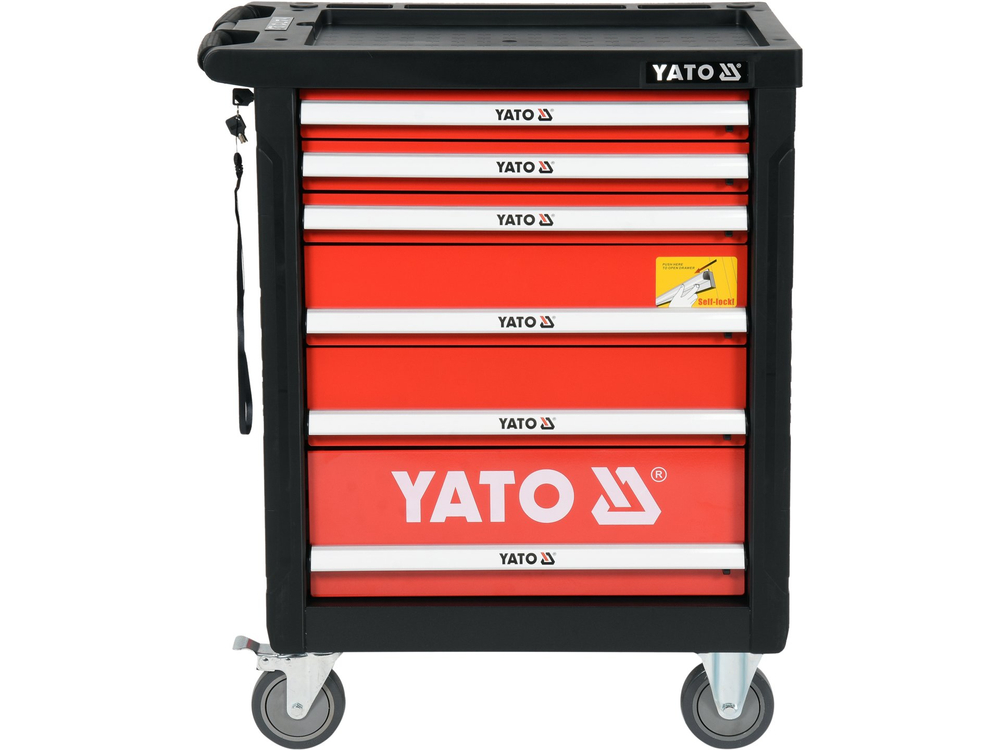

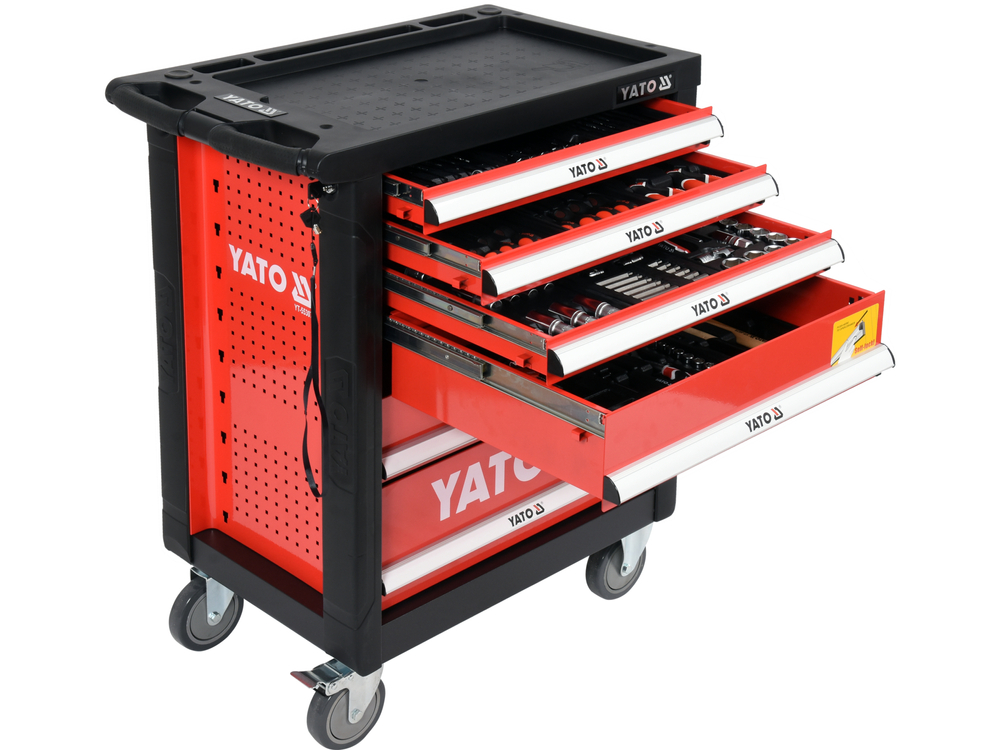

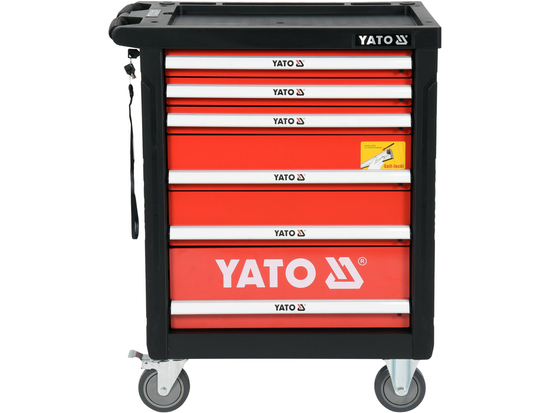

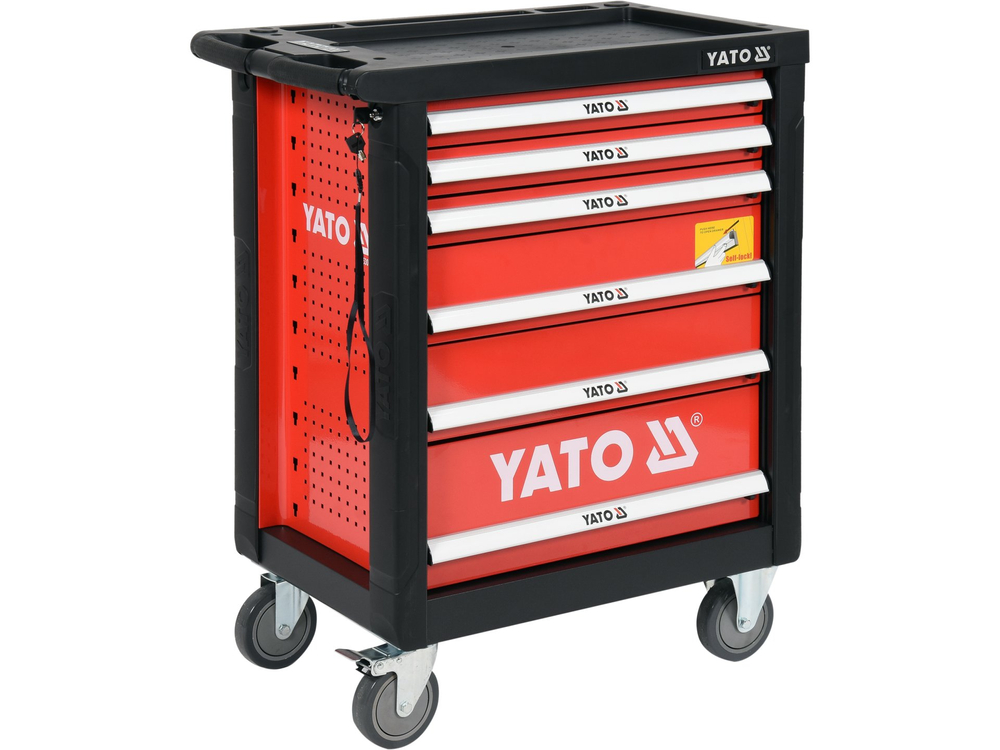

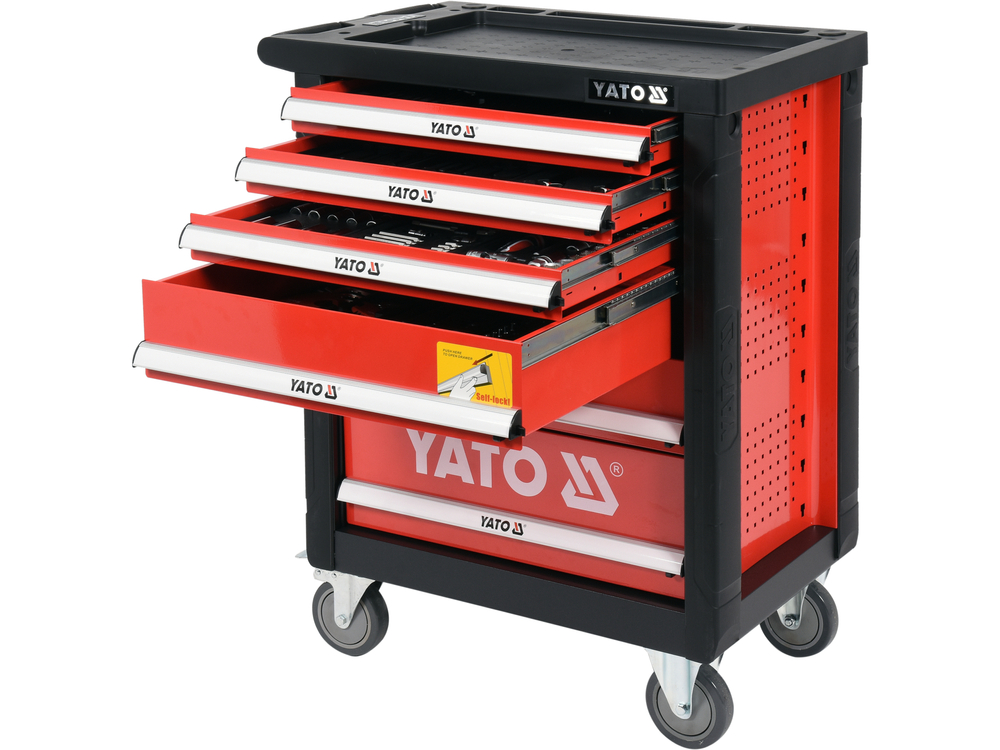

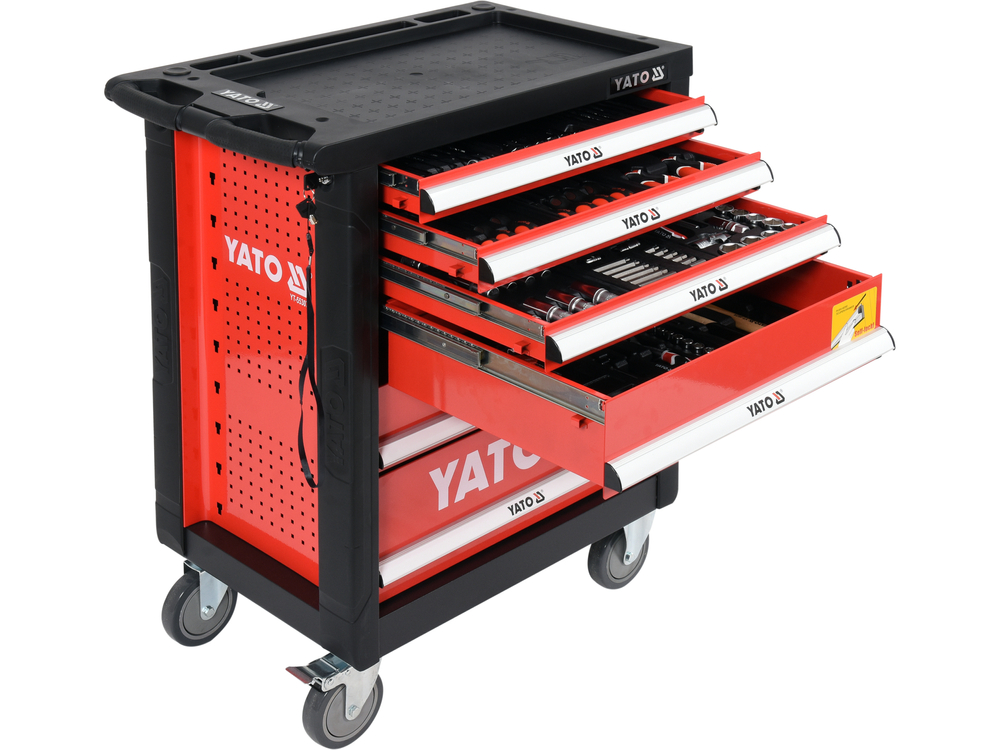

YATO tool service cabinet. It has6 drawers with a locking mechanism, thatóre mounted on ball bearing slides - 3 upper drawers have a load capacity of 25 kg, and 3 lower drawers have a load capacity of 35 kg. The cabinet has been equipped with handy handle and durable, rubber cóers, so moving it is not a problem at all.
The work surface has been covered with non-slip material, making it easier to work on the cabinet. Strong, underwater walls and corners equipped with bumpers make the cabinet durable, sturdy and resistant to damage.
Characteristics:
- convenient handle
- strong, underwater walls
- .central locking with two keys
- anti-skid work surface
- 6 capacious drawers with locking with load capacity: 25 kg – 3 górne, 35 kg – 3 bottom ones
- 185 elementsós

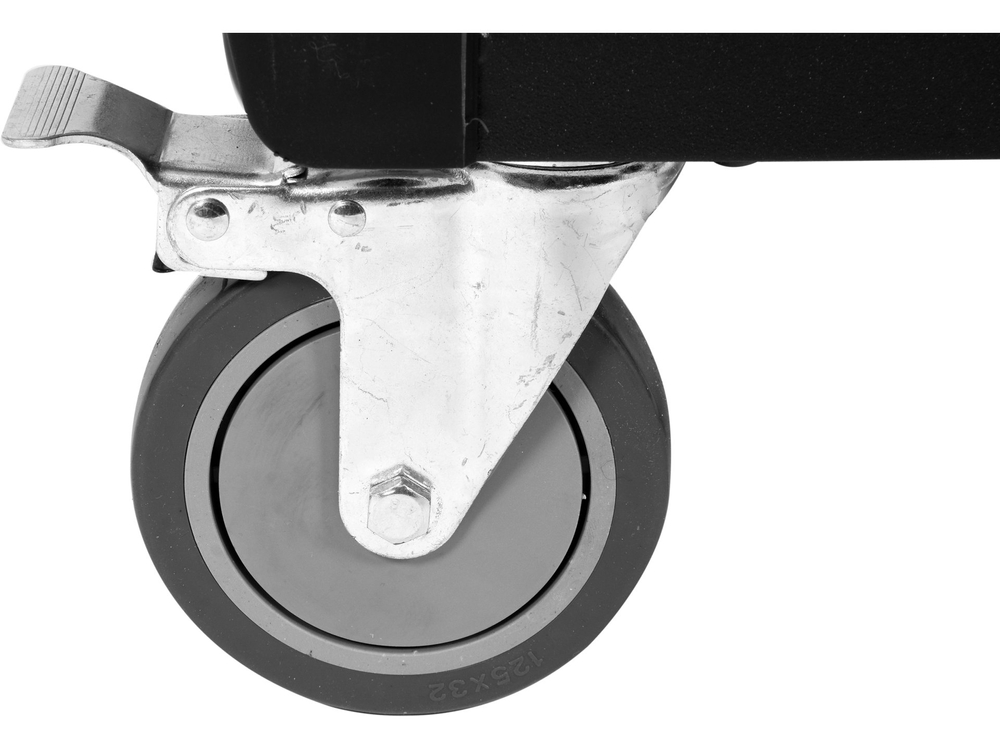

- rubber cós, including one with brake.
- wide ball slides

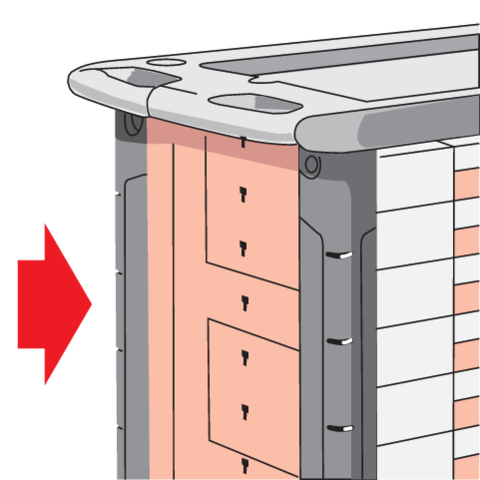

- universal perforation
- both sides are equipped with ball guides.li>corner rebounders

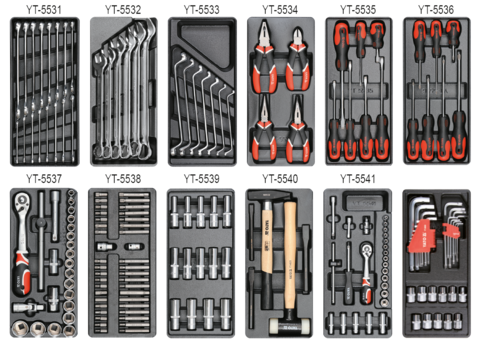

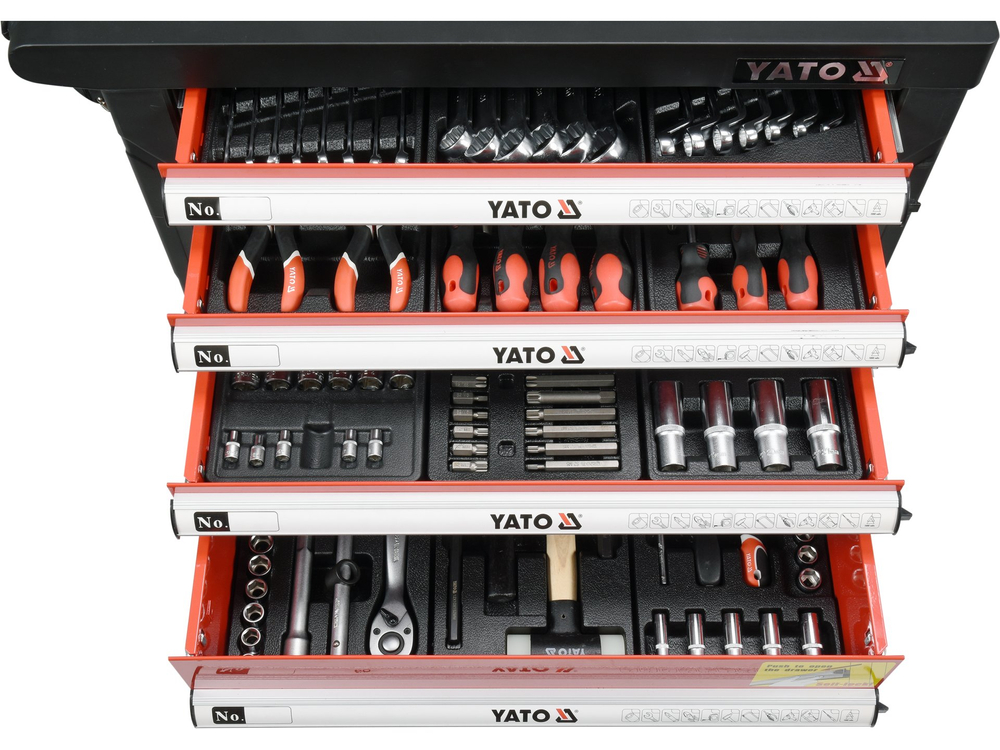

Drawer contents:
Drawer 1:
- Flat-end wrenches 6-21 mm, 16 parts. (6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21 mm)
- Flat-end wrenches 22-32 mm, 6 parts .nbsp;(22, 24, 27, 28, 30, 32 mm)
- Bent ring wrenches 6-19 mm, 7 parts< (6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19 mm)
Drawer 2:
- Pincers, 4 parts .(180 mm, 160 mm, 160 mm LONG NOSE, 160 mm BENT NOSE)
- Flathead screwdrivers, 7 parts .(3x75, 5x100, 5x150, 6x38, 6x100, 6x150, 8x150 mm)
- Spherical screwdrivers, 7 parts (PH0x100, PH1x75, PH1x100, PH2x38, PH2x100, PH2x150, PH3x150 mm)
Drawer 3:
- Set of sockets, 24 parts (- 1/2” (12.7 mm): 10, 11,12, 13, 14, 15, 16, 17, 18, 19,20, 21, 22, 23, 24, 27, 30, 32 mm; - 1/2” (12.7 mm): 127 mm; - 1/2” (12.7 mm); - 1/2” (12.7mm): 255 mm 72T; - 1/2” (12.7 mm): 255 mm; - 1/2” (12.7mm): 16; 21 mm)
- Screwdriver ends (bits), 40 parts (H4, H5, H6, H7, H8, H10, H12 (L=30 mm); H4, H5, H6, H7, H8, H10, H12 (L=75mm); M5, M6, M8, M10, M12 (L=30mm); M5, M6, M8, M10, M12 (L=75mm); T20, T25, T30, T40, T45, T50, T55 (L=30 mm); T20, T25, T30, T40, T45, T50, T55 (L=75 mm); 1/2”(12.7 mm), 3/8”(9.5 mm))
- Long sockets 1/2" 8-21 mm, 14 pieces (1/2” (12.7 mm): 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18,19, 20, 21 mm)
Drawer 4:
- Brushes and chisels, 5 parts (Hammers: 300 g (L=300 mm), fi40 mm (L=350 mm); Chisels: 10x8x142 mm, 12x10x152 mm, 16x13x170 mm)
- HEX wrenches, TORX, sockets, 25 parts (1/2” (12.5 mm): E10, E12, E14, E16, E18, E20; 1/4”(6.3 mm): E4, E5, E6, E7, E8, HEX: 2, 2.5, 3, 4, 5, 6, 7, 8, 10, 12 mm; TORX: T10, T15, T20, T25, T27, T30, T40)
- Socket set, 30 parts (1/4”(6.3 mm): 3.5, 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13, 14 mm; 1/4” (6.3 mm): 8, 10, 11, 12, 13 mm; 1/4” (6.3 mm): 50.8, 101.6 mm; 1/4” (6.3 mm); 1/4”(6.3 mm): 155 mm; 1/4” (6.3 mm): 152.4 mm; 1/4”(6.3 mm): 150 mm)
