YT-07069

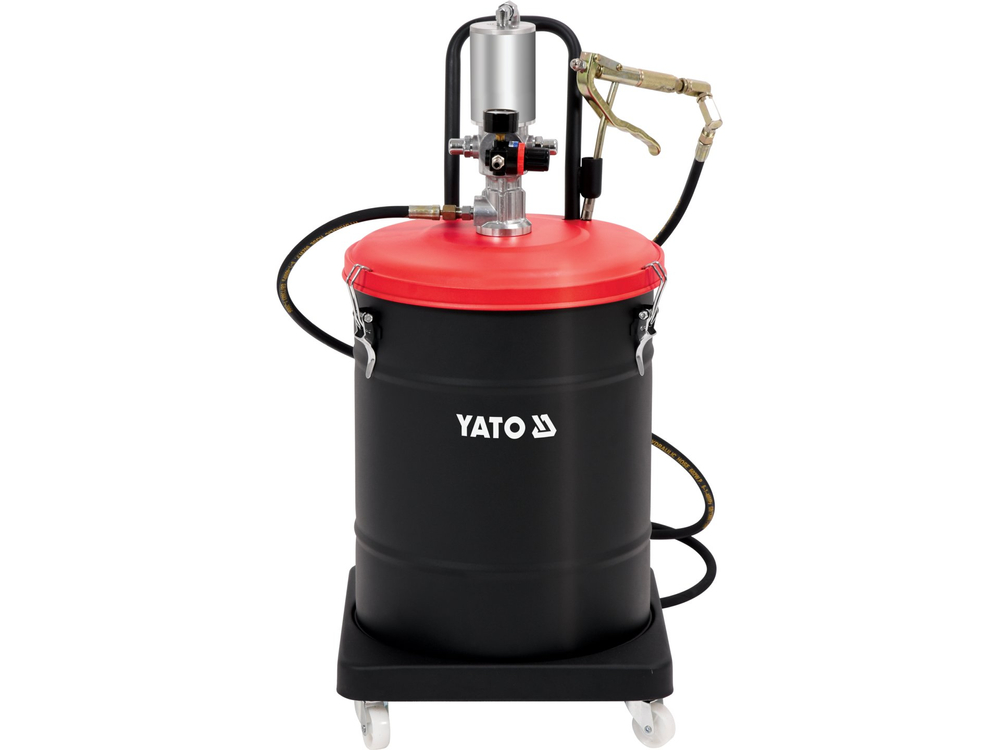

GREASE INJECTOR 45L
- Towotnica / smarownica pneumatyczna pojemność zbiornika 45l
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolandE-mail: info@yato.pl
Series
Efficiency
0.85 l/min
Operating pressure
0.6-0.8 MPa
Required air flow
300 l/min
Outlet grease pressure
30-40 MPa
Compressibility factor
50:1
Grease tank capacity
45 l
External dimensions
400x400x840 mm
Air supply hose inside diameter
3/8" (9.5 mm)
Hose length
4 m
Air connection diameter (PT)
standard
Wheels
yes
Wheel quantity
4
Acoustic pressure
97 ± 3.0 dB(A)
Acoustic power
108 ± 3.0 dB(A)
Weight
17 kg
Set includes
pneumatic lubricator/lubricator, flexible hose, grease gun
Symbol
YT-07069
Performance YATO pneumatic grease gun for use in automotive workshops, agriculture, industry.
Designed for maintenance of machinery and equipment having a calamity lubrication system.
When connected to the compressor enables independent operation, without the help of a second person.
- Pump pressure at 8 bar of compressed air: 300-400 bar
- compression ratio: 50:1
- large grease container: 45 l
- ended with a metal gun
- flexible pipeód with a length of 4 m
- kółka for easy transport and maneuvering
