YT-82601

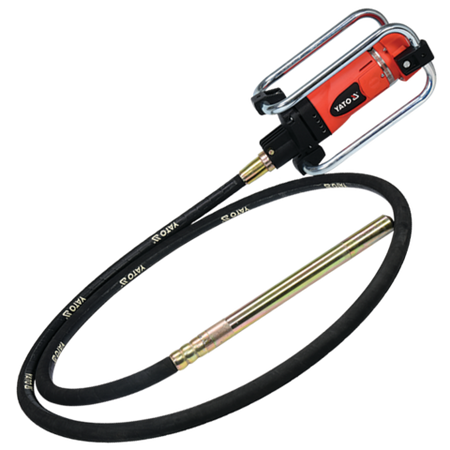

SET OF CONCRETE VIBRATOR 2300W WITH POKER 4M 35MM
Brand
Symbol
YT-82601
Producer code
5906083033711
Series
Power
2300 W
Turnover
4000 min⁻¹
Voltage
230 V a.c.
Frequency
50 Hz
Roller length and bun
4 m
Roll diameter
35 mm
Electrical insulation class
I
Ingress protection
IP20
Acoustic pressure
< 70 dB(A)
Acoustic power
< 85 dB(A)
Vibrations
< 2.5 m/s²
Weight
6.6 kg
Contents of the set
Drive unit, flexible roller, vibrating mace
Application
Thickening of fresh concrete mortar
Compatible with (e)
YT-82596
Concrete Vibrator 2300w+ 4m buzzer
Designed to vibrate concrete using high-frequency vibration, to produce a mass with an even surface and to vent it. This is crucial to properly lagging the reinforcement elements of floors and columns and to achieve the concrete strength specified in the construction project.
Characteristics:
- for vibrating columns and narrow elements with a height of3-4 mb, as well as foundations, floors, beams and precast concrete elements
- durably and solidly made
- .shockproof
- lightweight , handy, easy to operate by one person
- hose diameter 35 mm fits most drives
- stand with feet made of plastic, which allows the vibrator to be placed on the ground
- stress protection button
Purpose:
- for compacting fresh concrete mortar. The vibrating buzzer removes air bubbles from the mortar, resulting in concrete with a more uniform texture.
Parameters:
- rated power [W]: 2300
- rated rpm [min-1]: 4000
- shaft and roll length [m]: 4
- roller diameter [mm]: 35
- grade of protection: IP20
- net weight [kg]: 6.6
Included:
- drive
- hose
- vibrating bulb
