YT-59985

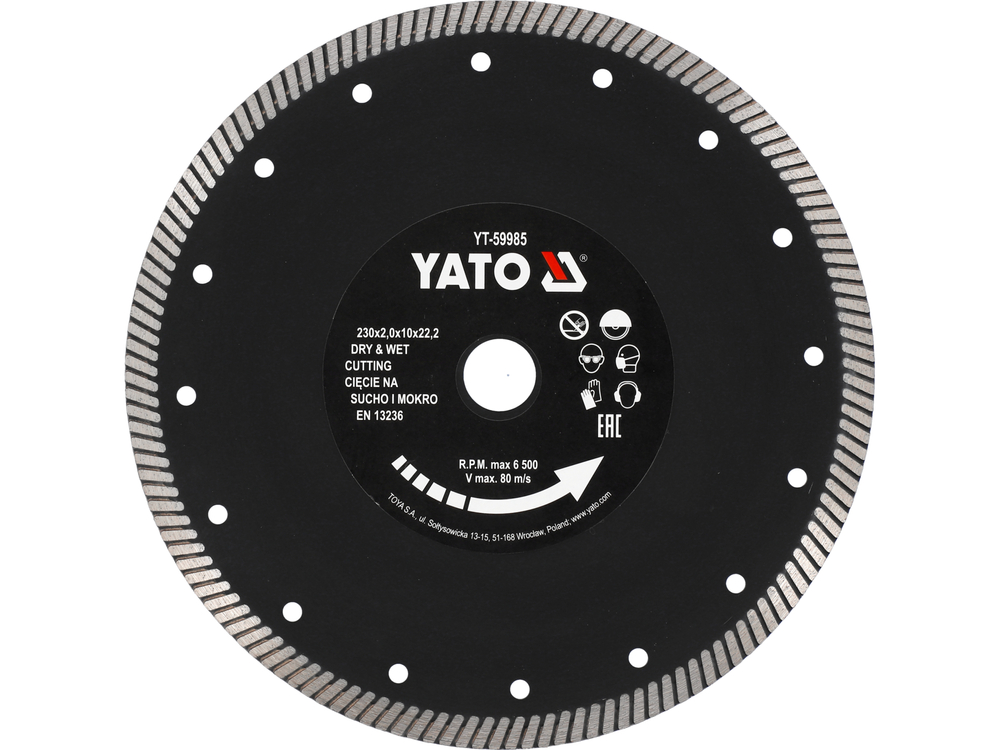

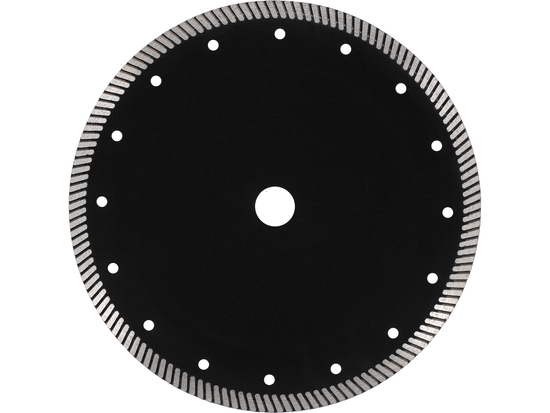

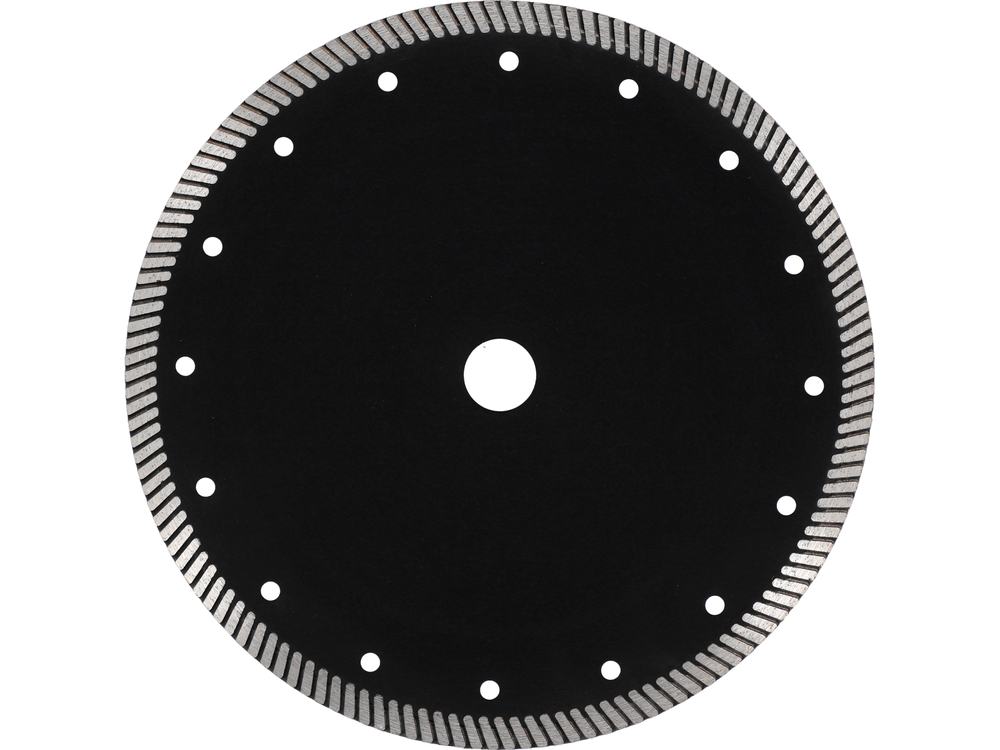

DIAMOND BLADE TURBO FOR HARD COMPOSITE TILES 230MM
Brand
Symbol
YT-59985
Producer code
5906083044571
Series
Diameter
230 mm
Mounting diameter
22.2 mm
The height of the cutting segment
10 mm
Cutting segment thickness
2 mm
Chemical composition of the cutting segment
Fe 20%, Cu 55%, SN 7%, Ni 8%, every 10%, diamond coating 15%
Material
stal 65Mn
Turnout
6500 min⁻¹
Linear speed of the shield
80 m/s
Application
reinforced concrete, granite, clinker, silicates
Type of work
dry, wet
The blade is designed for precise and clean wet cutting .
- high 10 mm segment increases the life of the disc
- reduced cross-sectional area allows to cut faster and more precisely, without chipping the cut edges and with less load on the grinder
- segment with optimally selected cobalt hardness and selected A-grade industrial diamond granules
- very fast high quality cutting
- easy straight cutting "by hand" with an angle grinder
