YT-59971

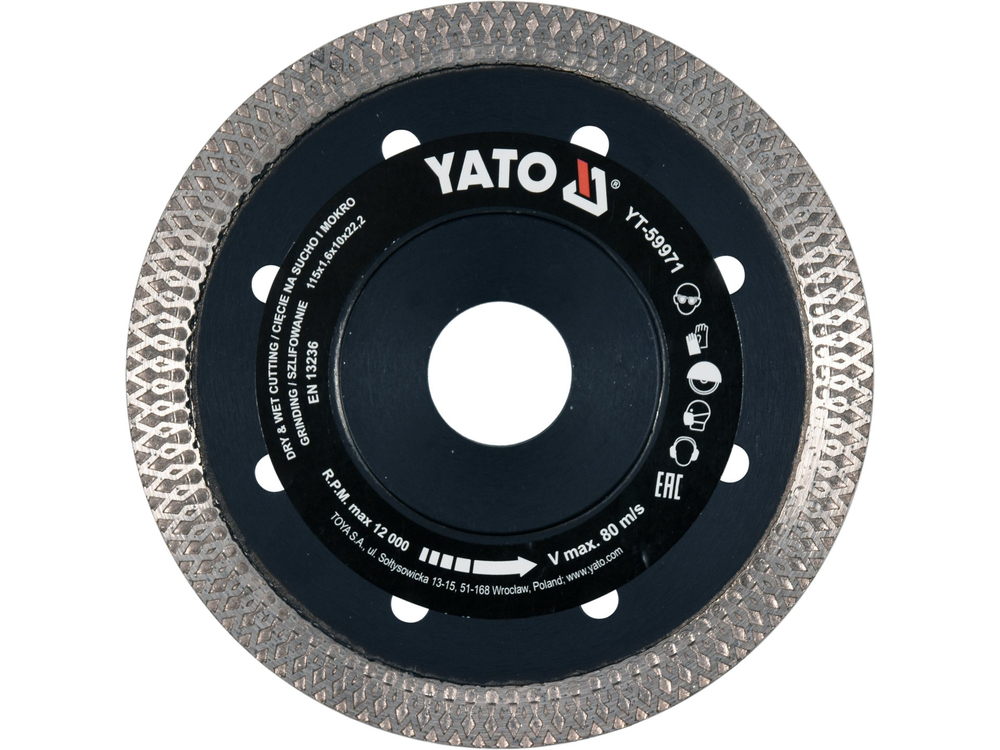

DIAMOND BLADE FOR CUTTING AND GRINDING CERAMICS 115MM
Brand
Symbol
YT-59971
Producer code
5906083044526
Series
Diameter
115 mm
Mounting diameter
22.2 mm
The height of the cutting segment
10 mm
Cutting segment thickness
1.6 mm
Chemical composition of the cutting segment
Fe 20%, Cu 55%, SN 7%, Ni 8%, every 10%, diamond coating 15%
Material
steel 65Mn
Turnout
12000 min⁻¹
Linear speed of the shield
80 m/s
Application
Ceramic tiles, tiles, stone tiles, glass, porcelain, ceramics, stoneware, tiles
Type of work
dry, wet
The blade is designed for precise and clean dry cutting.
- high 10 mm segment increases the life of the disc
- reduced cross-sectional area allows to cut faster and more precisely, without chipping the cut edges and with less load on the grinder
- segment with optimally selected cobalt hardness and selected A-grade industrial diamond granules
- Precise grinding of the edges of the tiles at an angle of 45° (even when working manually)
- centered disc flange ensures no side run-out and cuts without edge bumps
- chamfering of porcelain stonewaretiles
- Cutting of tile valley edges at an angle
