YT-59961

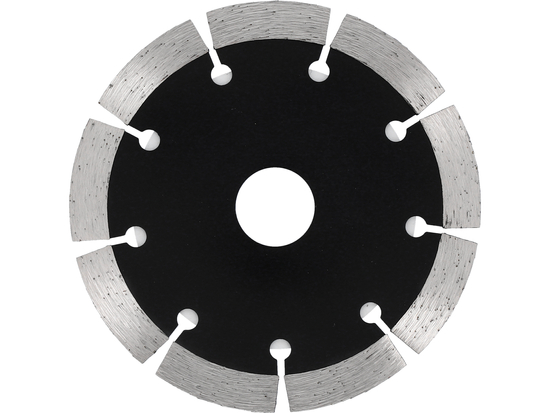

DIAMOND BLADE SEGMENTED FOR CONCRETE 115MM
Brand
Symbol
YT-59961
Producer code
5906083044496
Series
Diameter
115 mm
Mounting diameter
22.2 mm
The height of the cutting segment
10 mm
Cutting segment thickness
1.8 mm
Chemical composition of the cutting segment
Fe 20%, Cu 55%, SN 7%, Ni 8%, every 10%, diamond coating 15%
Material
steel 65Mn
Turnout
12000 min⁻¹
Linear speed of the shield
80 m/s
Application
paved concrete, brick, granite, wall, stone, sandstone, refractory materials, silicates
Type of work
dry, wet
Designed for precise and clean dry cutting.
- High 10mm segment increases blade life
- reduced cross-sectional cross-section allows you to cut faster and more precisely, without chipping the cut edges, and with less load on the grinder<
- segment with optimally selected cobalt hardness and selected A-class industrial diamond granules
- fast cutting in abrasive materials, e.g. fresh concrete, sand lime brick (silka) and solid brick and clay blocks
