YT-59951

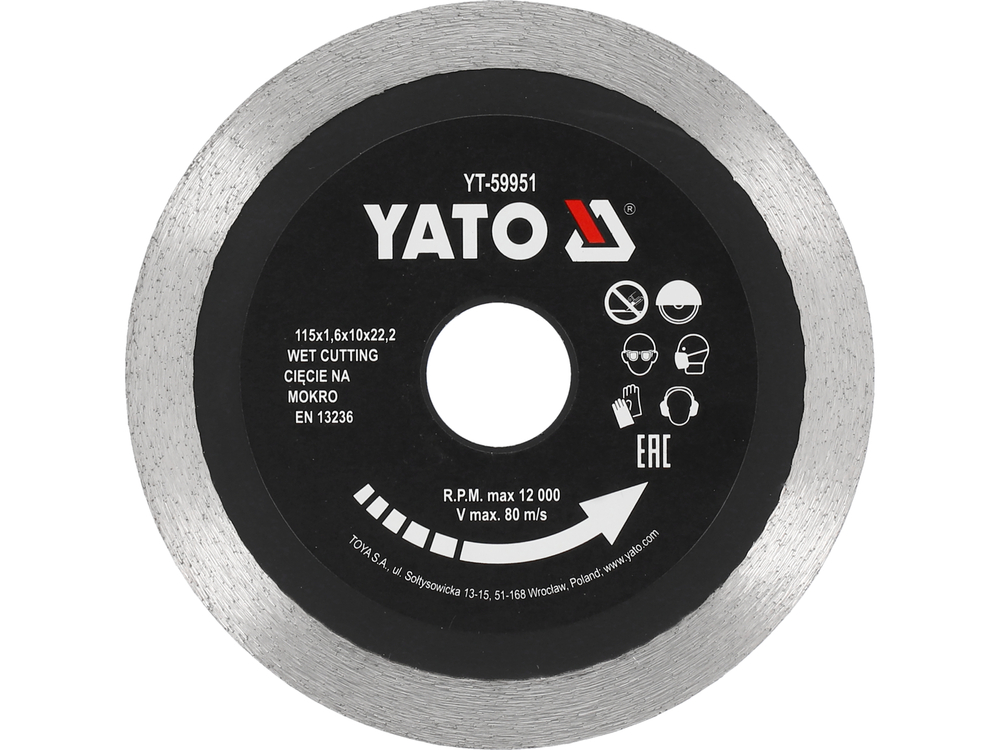

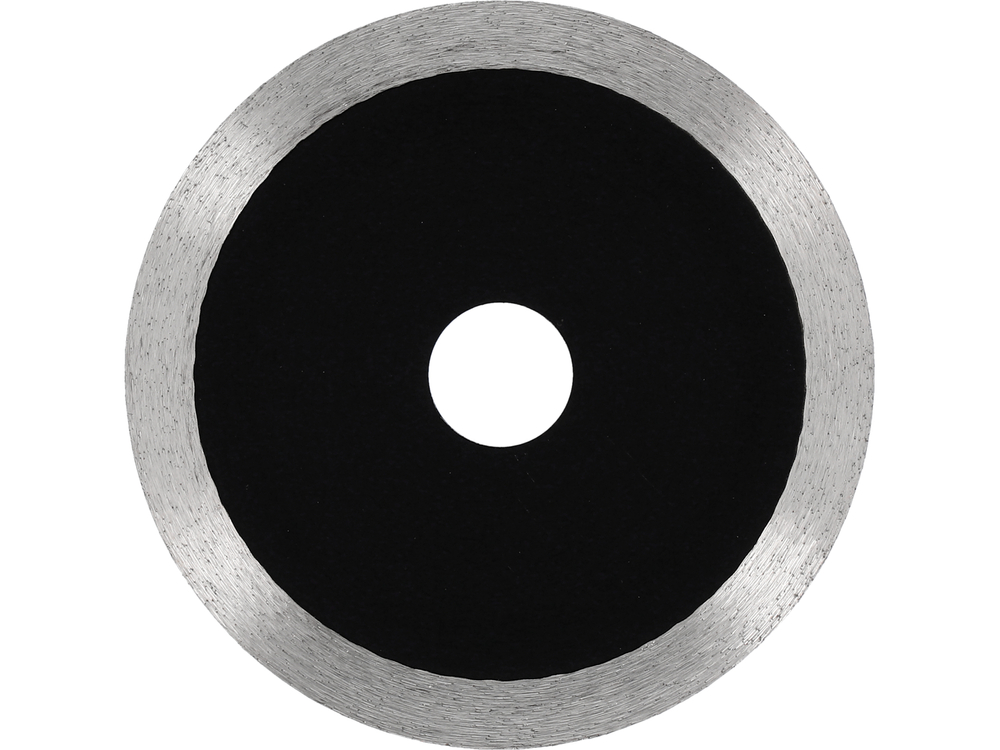

DIAMOND BLADE FOR TILES CONTINUOUS RIM 115MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Diameter
115 mm
Mounting hole diameter
22.2 mm
Cutting segment height
10 mm
Cutting segment thickness
1.6 mm
Cutting segment chemical composition
Fe 20%, Cu 55%, Sn 7%, Ni 8%, Every 10%, diamond coating 15%
Material
steel 65Mn
Max. rotations
12000 min⁻¹
Max. disc linear velocity
80 m/s
Application
ceramic tiles, glaze, stone tiles
Work type
wet
Symbol
YT-59951
The blade is designed for precise and clean dry or wet cutting.
- high 10 mm segment increases the life of the disc
- reduced cross-sectional area allows to cut faster and more precisely, without chipping the cut edges and with less load on the grinder
- segment with optimally selected cobalt hardness and selected A-grade industrial diamond granules
- clean dry and wet cutting of stoneware and ceramics
