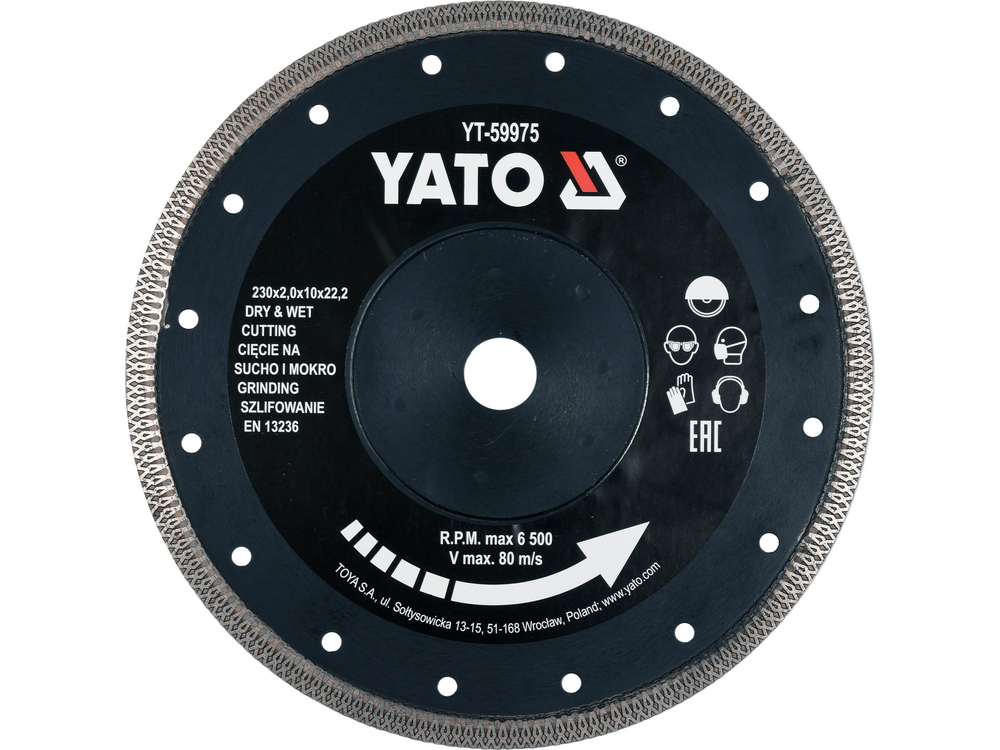

YT-59975
DIAMOND BLADE FOR CUTTING AND GRINDING CERAMICS 230MM
Brand
Entity responsible for this product in the EU
TOYA S.A.More
Address:
Sołtysowicka 13-15Postal code: 51-168City: WrocławCountry: PolskaE-mail: info@yato.pl
Series
Diameter
230 mm
Mounting hole diameter
22.2 mm
Cutting segment height
10 mm
Cutting segment thickness
2 mm
Cutting segment chemical composition
Fe 20%, Cu 55%, Sn 7%, Ni 8%, Every 10%, diamond coating 15%
Material
steel 65Mn
Max. rotations
6500 min⁻¹
Max. disc linear velocity
80 m/s
Application
ceramic tiles, glaze, stone tiles, glass, porcelain, ceramics, stoneware, roof tiles
Work type
dry, wet
Symbol
YT-59975
The blade is designed for precise and clean dry cutting.
- high 10 mm segment increases the life of the disc
- reduced cross-sectional area allows to cut faster and more precisely, without chipping the cut edges and with less load on the grinder
- segment with optimally selected cobalt hardness and selected A-grade industrial diamond granules
- Precise grinding of the edges of the tiles at an angle of 45° (even when working manually)
- centered disc flange ensures no side run-out and cuts without edge bumps
- chamfering of porcelain stonewaretiles
- Cutting of tile valley edges at an angle
